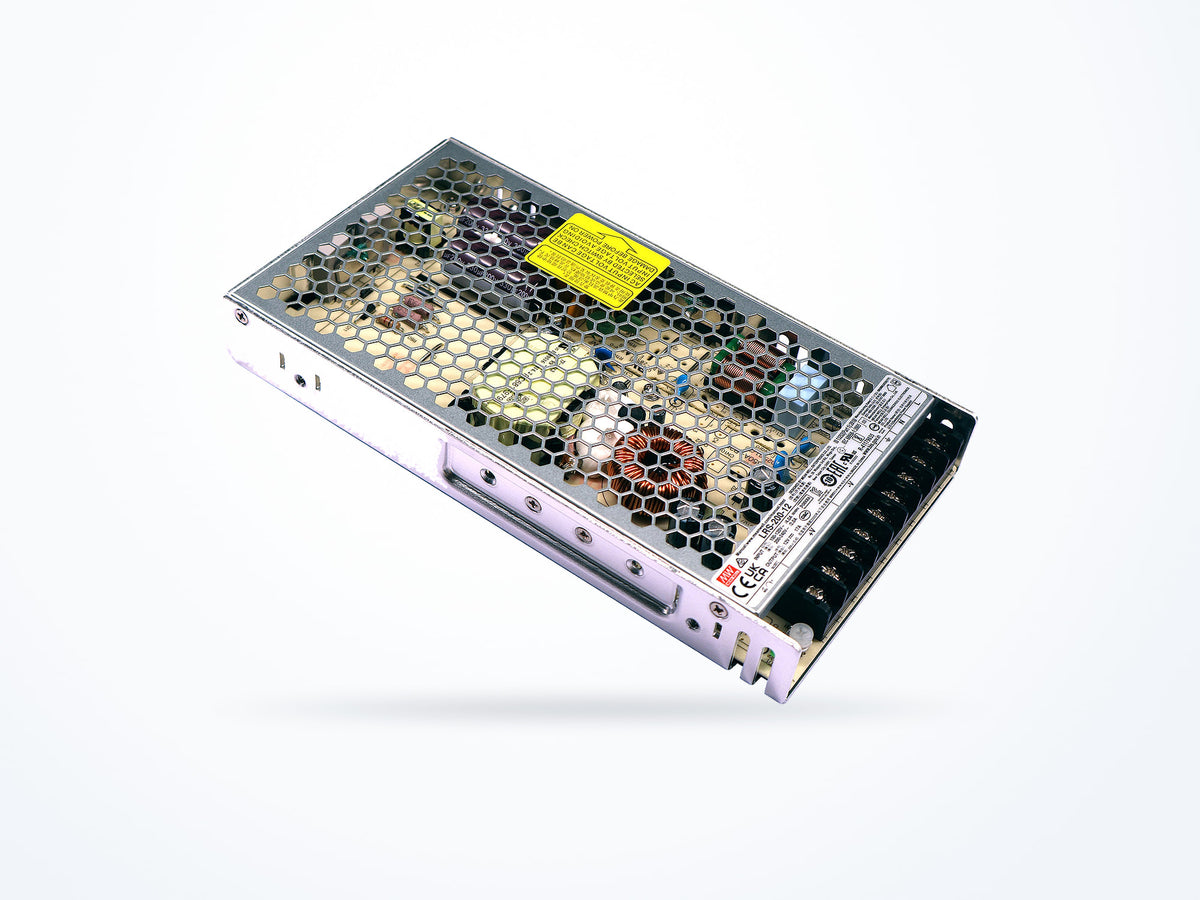

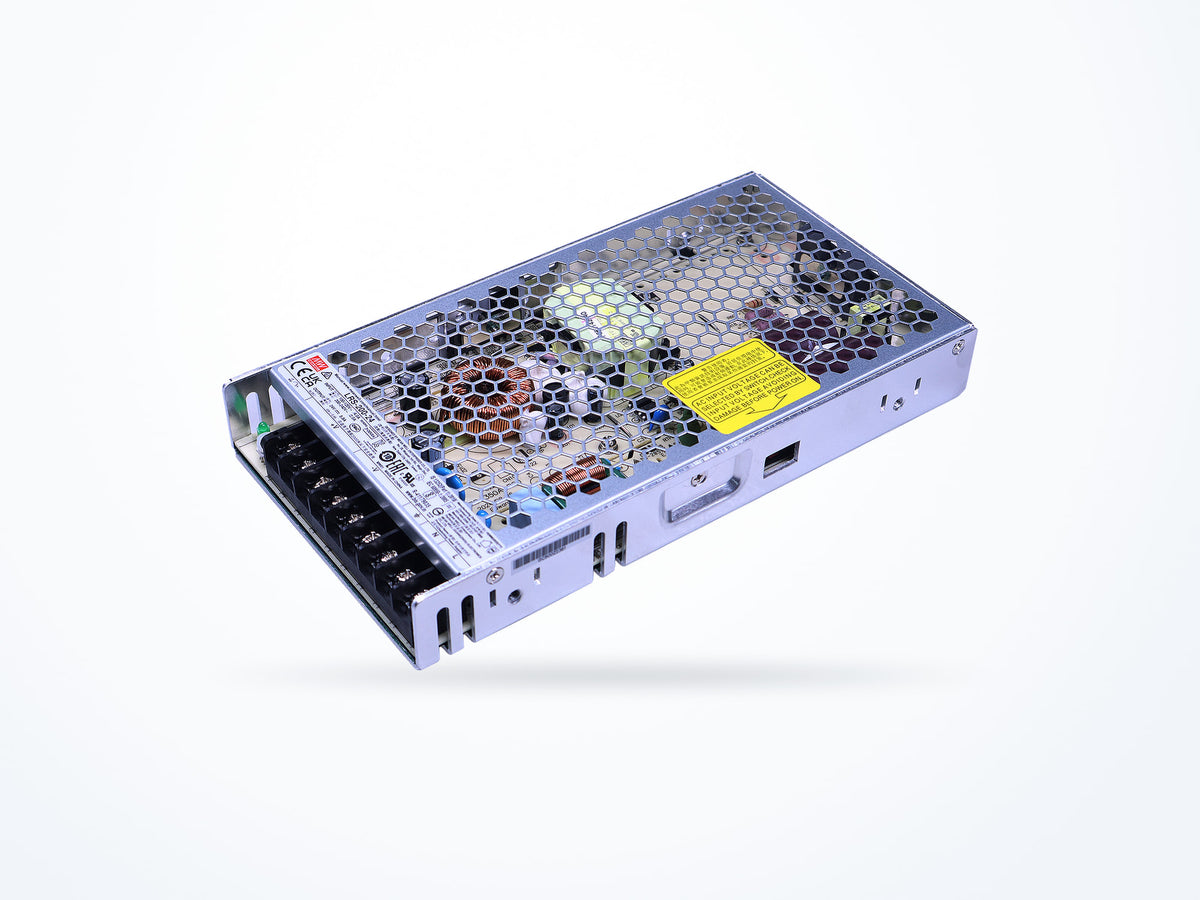

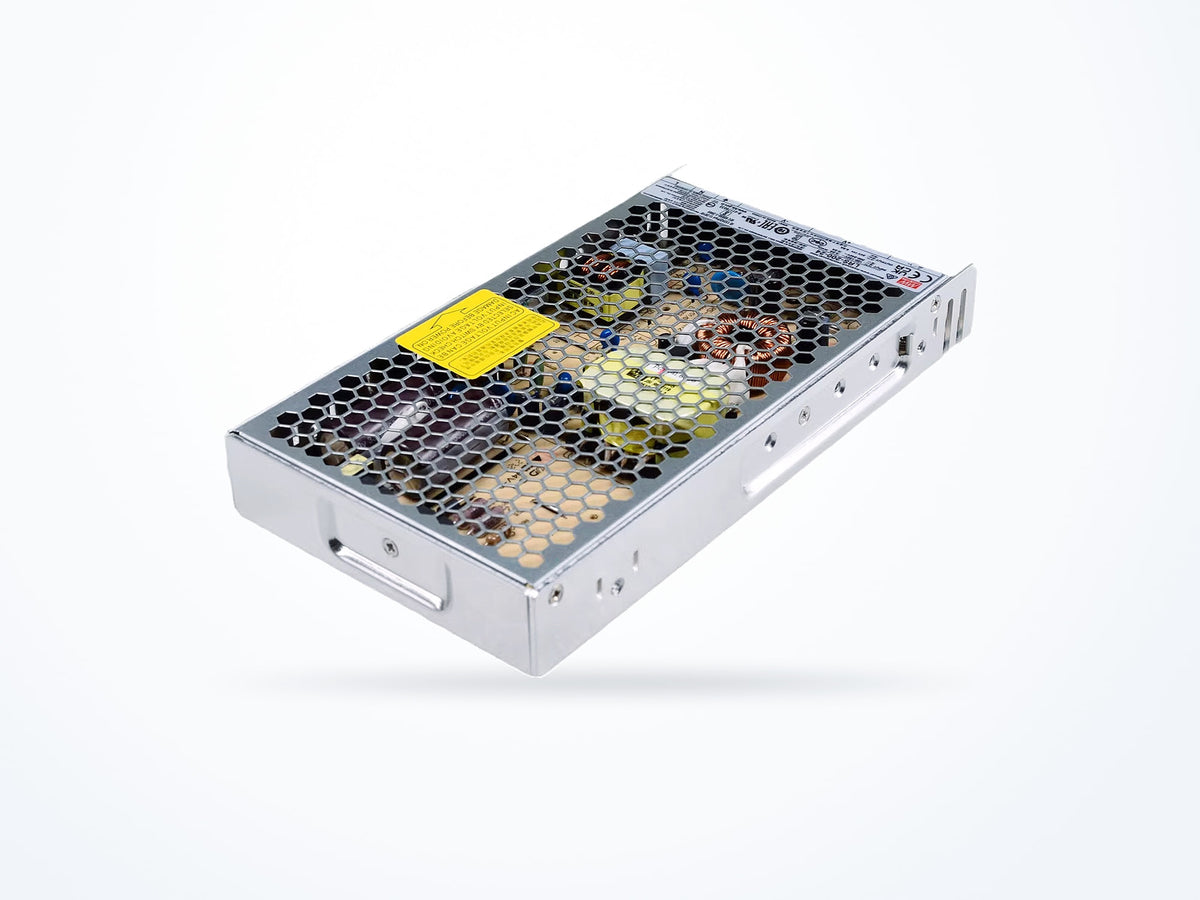

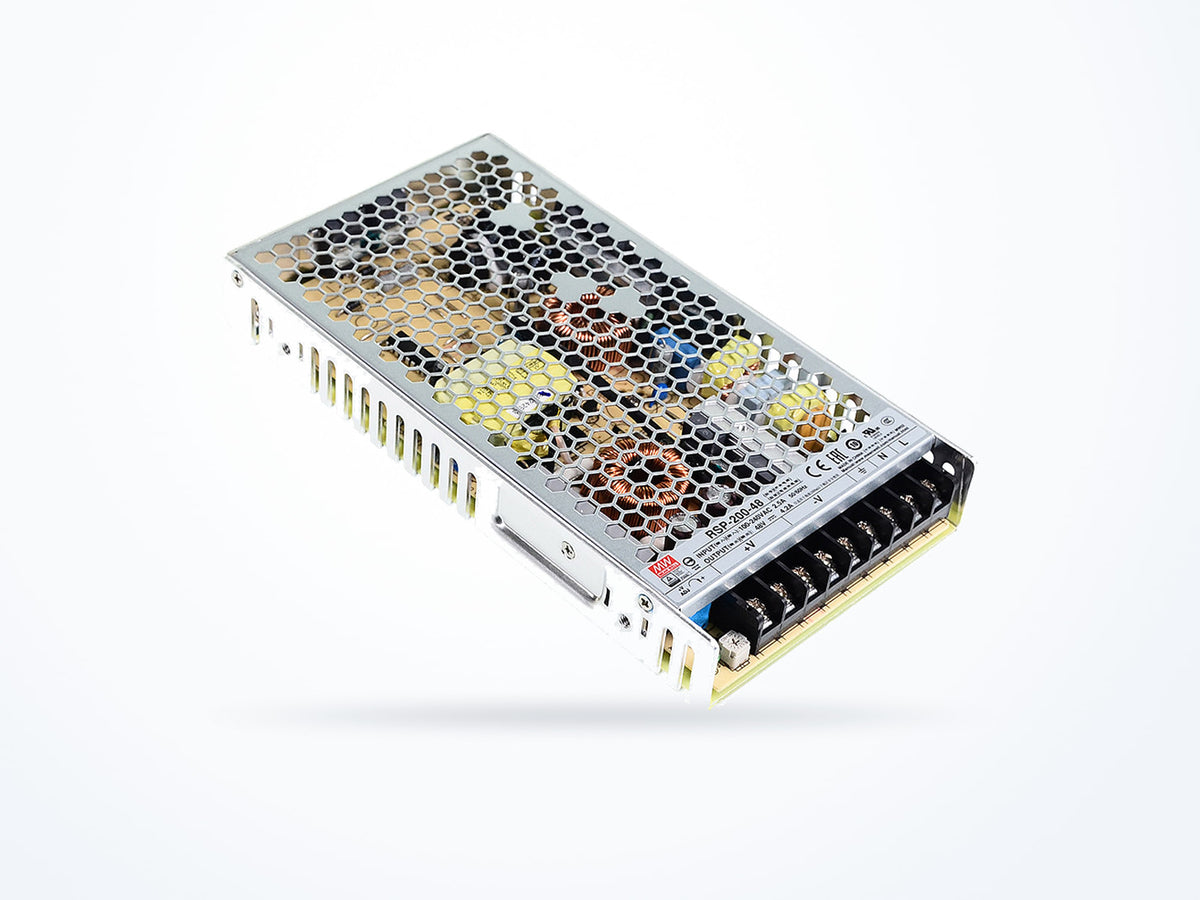

MEAN WELL RSP-200-48 201.6W 48V 4.2A Enclosed Type

Part numberRSP-200-48
Output voltage 48 V
Rated current 4.2 A
Rated power 201.6 W
$65.38Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RSP-200 model selection table RSP-75~500
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 4.2 A
Rated power 201.6 W
AC input range 88–264 VAC
Typical efficiency 90 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 215 × 115 × 30 mm

Is this model right for you?

Within the RSP-200 series, each SKU is distinguished by its output specifications. RSP-200-48 provides 48V at 4.2A, while RSP-200-12 provides 12V at 16.7A and RSP-200-24 provides 24V at 8.4A. Typical efficiency also differs: RSP-200-48 lists 90%, compared with 89% for RSP-200-12 and 89.5% for RSP-200-24. Use the output voltage and current values to identify the SKU that matches a required output point.

Product overview

The MEAN WELL RSP-200-48 is an Enclosed Type product within the RSP-200 series. It provides a 48V output at 4.2A with a rated power of 201.6W, and the output is adjustable across 41 ~ 56V. The product lists a typical efficiency of 90% and a ripple and noise value of 240mVp-p. Input operation spans 88 ~ 264VAC / 124 ~ 370VDC at 47 ~ 63Hz. Listed dimensions are 215*115*30mm (L*W*H).

Complete technical specifications

Rev. 2025-01-10
Output
Output voltage 48 V
Rated current 4.2 A
Rated power 201.6 W
Voltage adjustment range 41–56 V
Ripple & noise 240 mVp-p
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 90 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 215 × 115 × 30 mm
Net weight 720.0 g
Safety & compliance
Safety standards UL62368-1,TUVBS EN/EN62368-1,EAC TP TC 004,CCC GB4943.1,BSMI CNS15598-1, AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models) , BIS IS13252(Part1): 2010/IEC 60950-1:2005(exceptfor 2 .5V ,4V,48V)approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RSP-200-48
Brand MEAN WELL
Category AC/DC Enclosed Type
Series RSP-200

Approvals and compliance

From the manufacturer's datasheet for this series
Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1,KN 32(only for 5V)
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 60950.1
  • CNS15598-1
  • EN 61558-1/2-16
  • EN62368-1
  • GB4943.1
  • IEC 60950-1
  • IEC 61558-1/2-16
  • IS13252
  • UL62368-1
Read the datasheet's exact wording

UL62368-1,TUVBS EN/EN62368-1,EAC TP TC 004,CCC GB4943.1,BSMI CNS15598-1, AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models) , BIS IS13252(Part1): 2010/IEC 60950-1:2005(exceptfor 2 .5V ,4V,48V)approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Ordering & shipping information

Order and delivery terms
Part number RSP-200-48
Minimum order quantity 1
Country of origin China
Typical packed weight 937 g
Unit weight 720 g

Downloads

RSP-200 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RSP-200-1212 V16.7 A200.4 W$70.11
Ships in 3–5 business days
RSP-200-48 48 V4.2 A201.6 W$65.38
Ships in 3–5 business days
RSP-200-3.33.3 V40 A132 W$70.11
Ships in 3–5 business days
RSP-200-2727 V7.5 A202.5 W$65.38
Ships in 3–5 business days
RSP-200-2424 V8.4 A201.6 W$65.38
Ships in 3–5 business days
RSP-200-2.52.5 V40 A100 W$70.11
Ships in 3–5 business days
RSP-200-3636 V5.56 A200.16 W$70.11
Ships in 3–5 business days
RSP-200-13.513.5 V14.9 A201.15 W$70.11
Ships in 3–5 business days
RSP-200-44 V40 A160 W$70.11
Ships in 3–5 business days
RSP-200-55 V40 A200 W$70.11
Ships in 3–5 business days
RSP-200-7.57.5 V26.7 A200.25 W$65.38
Ships in 3–5 business days
RSP-200-1515 V13.4 A201 W$70.11
Ships in 3–5 business days

Output: RSP-200-48 provides 48V at 4.2A; RSP-200-12 provides 12V at 16.7A; RSP-200-24 provides 24V at 8.4A.

Rated power: RSP-200-48 lists 201.6W; RSP-200-12 lists 200.4W.

Typical efficiency: RSP-200-48 lists 90%; RSP-200-12 lists 89%; RSP-200-24 lists 89.5%.

Ripple and noise: RSP-200-48 lists 240mVp-p; RSP-200-12 and RSP-200-24 each list 150mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RSP-200-48

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RSP-200-48 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-01-10
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
