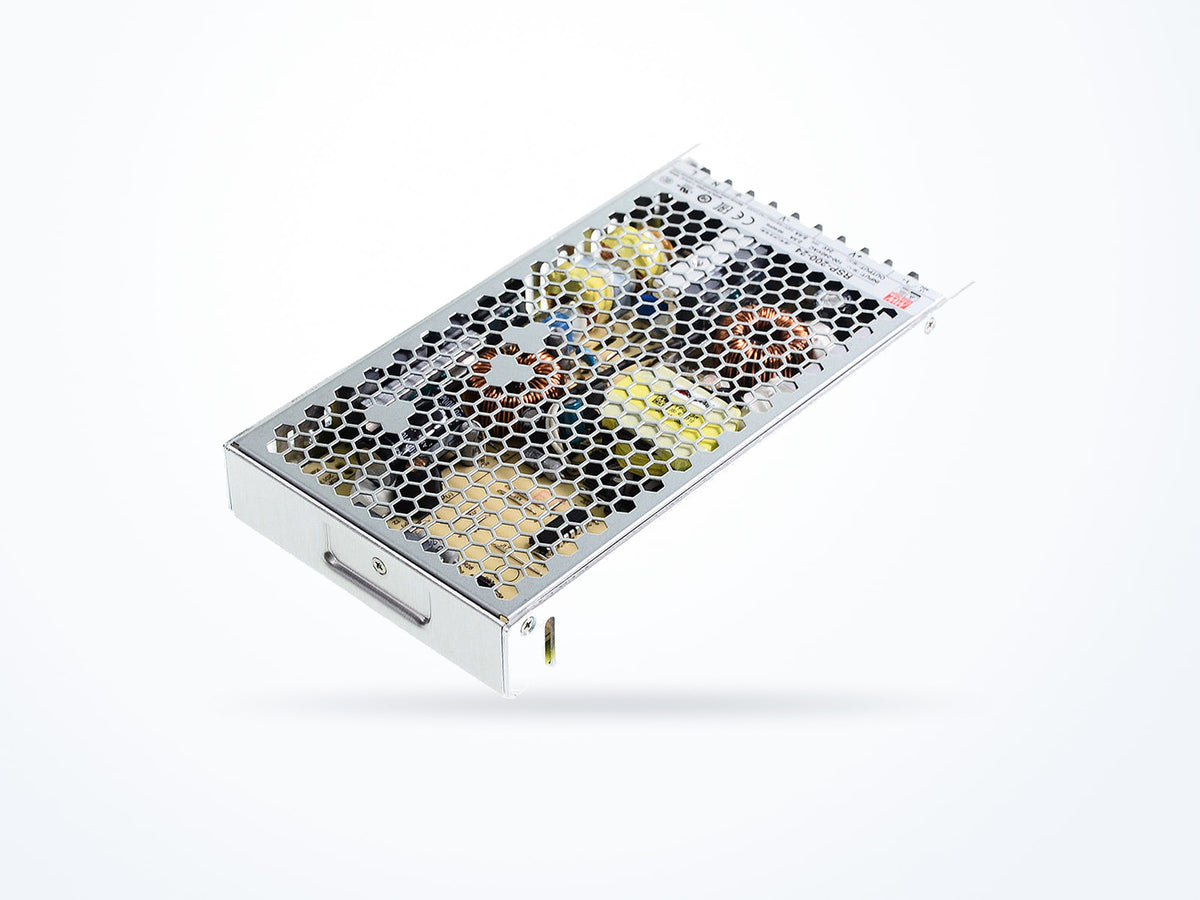

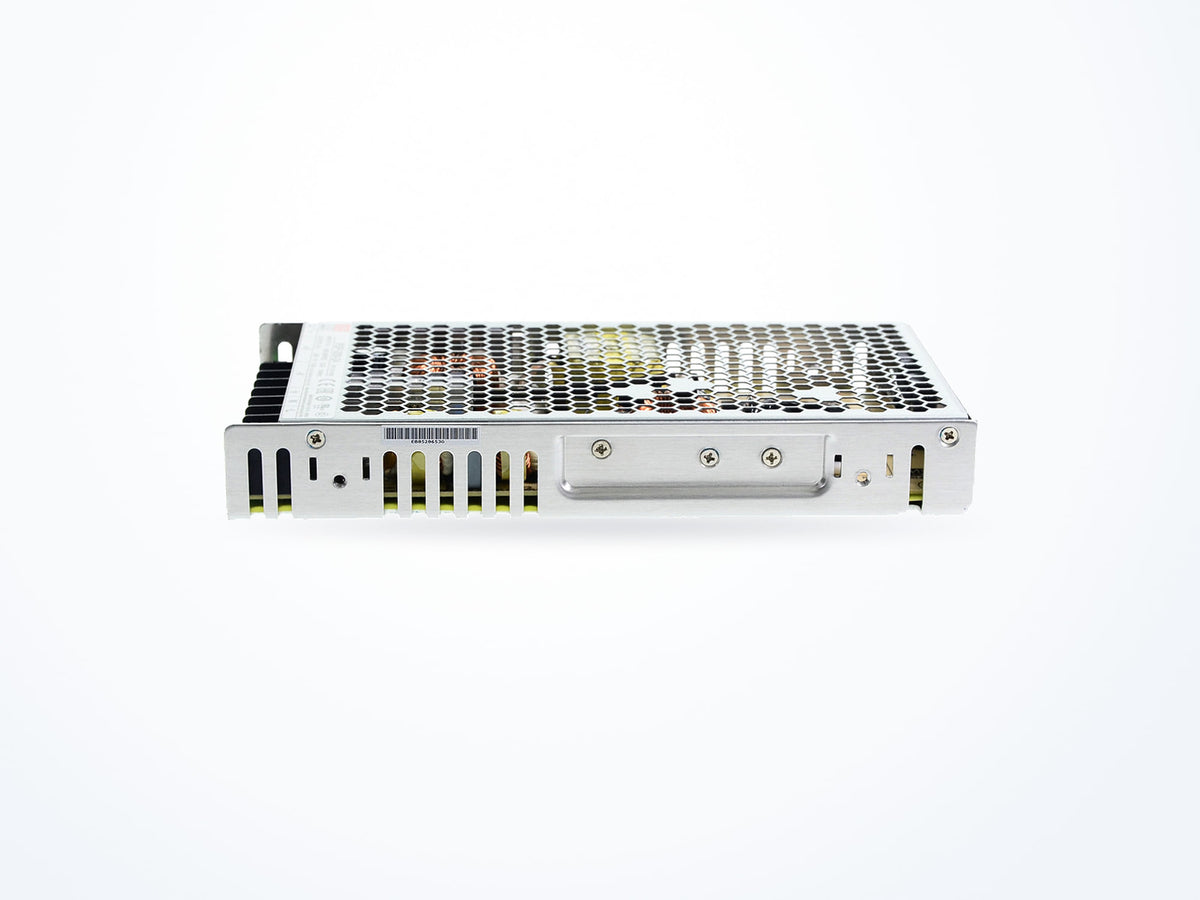

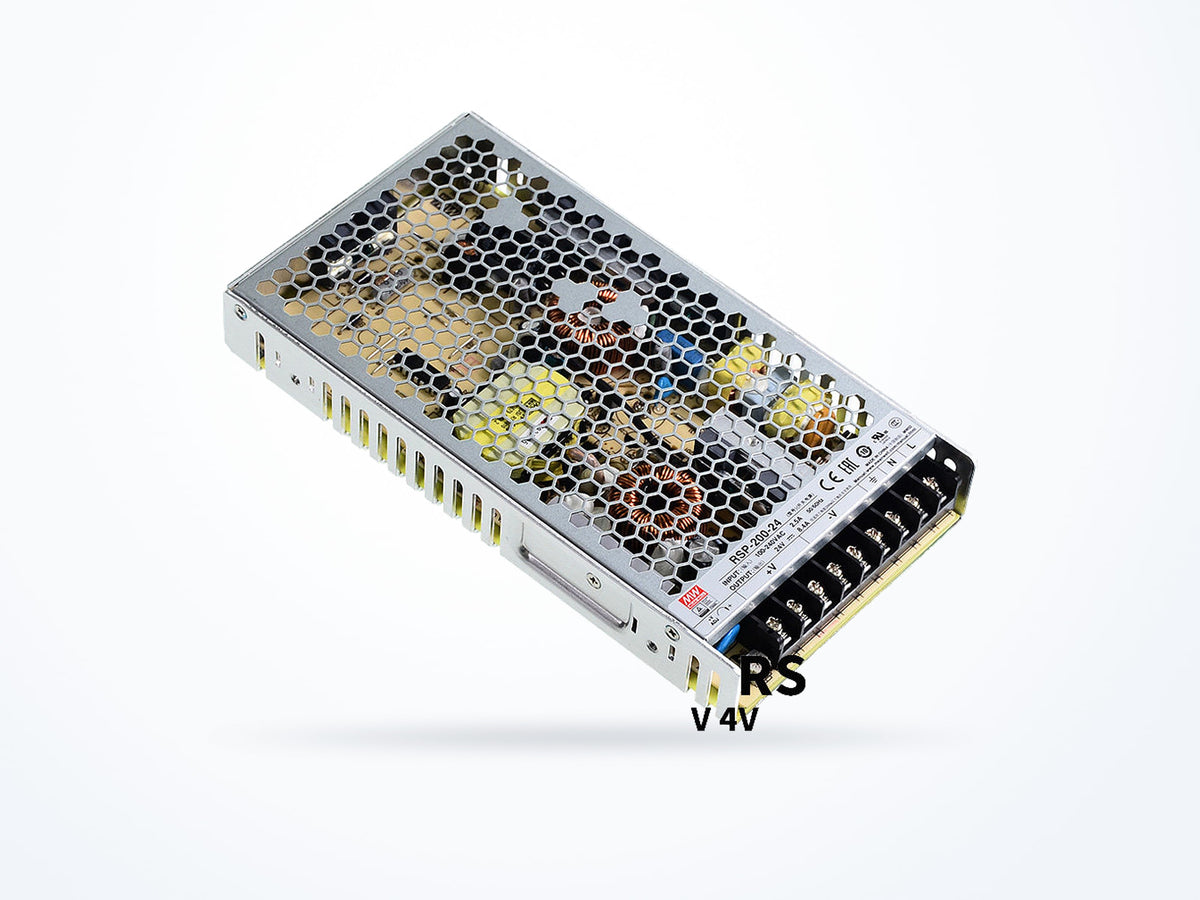

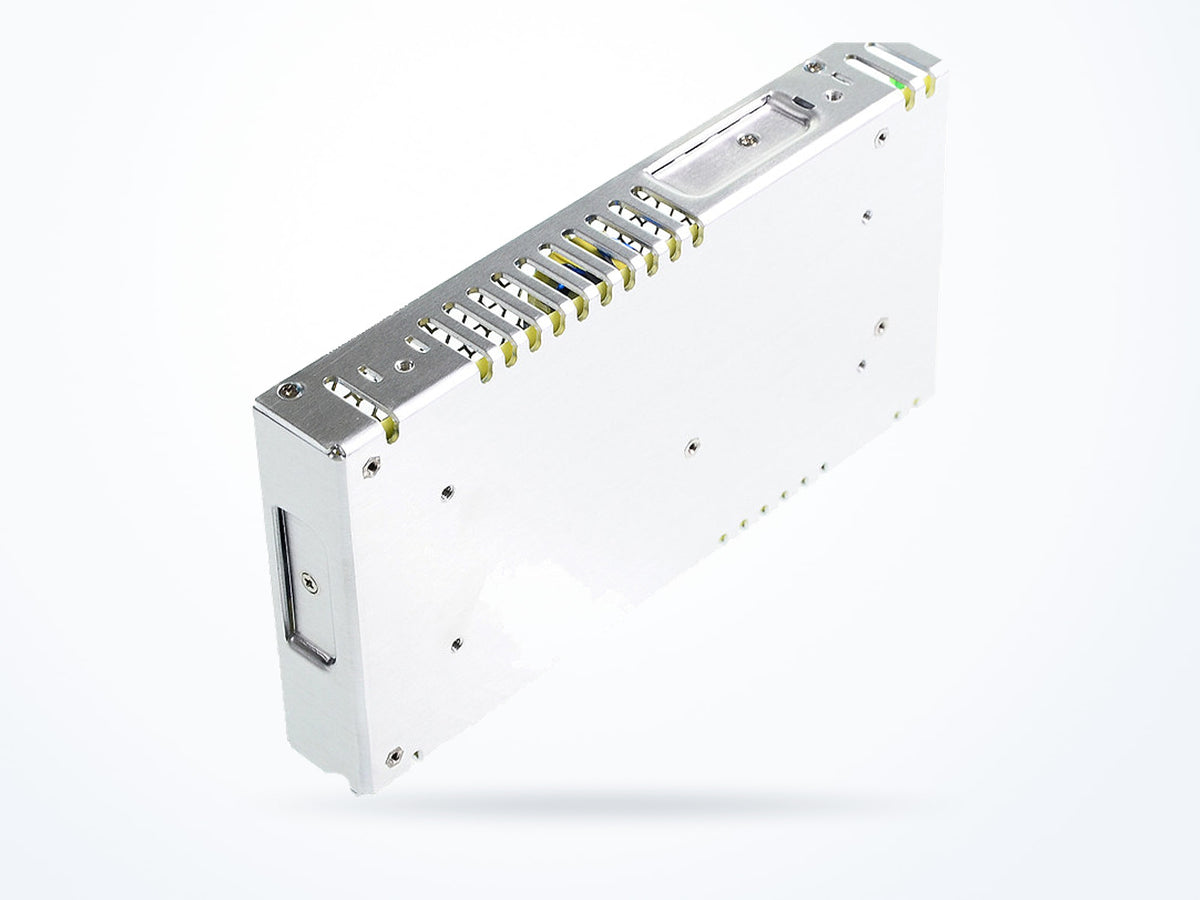

MEAN WELL RSP-200-4 160W 4V 40A Enclosed Type

Part numberRSP-200-4
Output voltage 4 V
Rated current 40 A
Rated power 160 W
$70.11Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RSP-200 model selection table RSP-75~500
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 4 V
Rated current 40 A
Rated power 160 W
AC input range 88–264 VAC
Typical efficiency 84 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 215 × 115 × 30 mm

Is this model right for you?

Within the RSP-200 series, the RSP-200-4 lists 4 V, 40 A, 160 W, 84%. By comparison RSP-200-12 lists 12 V, 16.7 A, 200.4 W, 89%; RSP-200-13.5 lists 13.5 V, 14.9 A, 201.15 W, 89%; RSP-200-15 lists 15 V, 13.4 A, 201 W, 89.5%; RSP-200-2.5 lists 2.5 V, 40 A, 100 W, 79.5%, and 7 further models. Select the model whose output voltage, output current, and rated power match the installation.

Product overview

The MEAN WELL RSP-200-4 is an Enclosed Type product from the RSP-200 Series. It provides a 4V output at 40A with 160W rated power, adjustable within 3.7 ~ 4.3V. The specification lists 84% typical efficiency and 100mVp-p ripple and noise. The input voltage range is 88 ~ 264VAC and 124 ~ 370VDC with a 47 ~ 63Hz frequency range. Listed dimensions are 215*115*30mm (L*W*H).

Complete technical specifications

Rev. 2025-01-10
Output
Output voltage 4 V
Rated current 40 A
Rated power 160 W
Voltage adjustment range 3.7–4.3 V
Ripple & noise 100 mVp-p
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 84 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 215 × 115 × 30 mm
Net weight 720.0 g
Safety & compliance
Safety standards UL62368-1,TUVBS EN/EN62368-1,EAC TP TC 004,CCC GB4943.1,BSMI CNS15598-1, AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models) , BIS IS13252(Part1): 2010/IEC 60950-1:2005(exceptfor 2 .5V ,4V,48V)approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RSP-200-4
Brand MEAN WELL
Category AC/DC Enclosed Type
Series RSP-200

Approvals and compliance

From the manufacturer's datasheet for this series
Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936, GB9254 Class B, GB17625.1,KN 32(only for 5V)
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 60950.1
  • CNS15598-1
  • EN 61558-1/2-16
  • EN62368-1
  • GB4943.1
  • IEC 60950-1
  • IEC 61558-1/2-16
  • IS13252
  • UL62368-1
Read the datasheet's exact wording

UL62368-1,TUVBS EN/EN62368-1,EAC TP TC 004,CCC GB4943.1,BSMI CNS15598-1, AS/NZS 60950.1, Dekra EN 61558-1/2-16,IEC 61558-1/2-16(for 12V or higher models) , BIS IS13252(Part1): 2010/IEC 60950-1:2005(exceptfor 2 .5V ,4V,48V)approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Ordering & shipping information

Order and delivery terms
Part number RSP-200-4
Minimum order quantity 1
Country of origin China
Typical packed weight 937 g
Unit weight 720 g

Downloads

RSP-200 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RSP-200-1212 V16.7 A200.4 W$70.11
Ships in 3–5 business days
RSP-200-4848 V4.2 A201.6 W$65.38
Ships in 3–5 business days
RSP-200-3.33.3 V40 A132 W$70.11
Ships in 3–5 business days
RSP-200-2727 V7.5 A202.5 W$65.38
Ships in 3–5 business days
RSP-200-2424 V8.4 A201.6 W$65.38
Ships in 3–5 business days
RSP-200-2.52.5 V40 A100 W$70.11
Ships in 3–5 business days
RSP-200-3636 V5.56 A200.16 W$70.11
Ships in 3–5 business days
RSP-200-13.513.5 V14.9 A201.15 W$70.11
Ships in 3–5 business days
RSP-200-4 4 V40 A160 W$70.11
Ships in 3–5 business days
RSP-200-55 V40 A200 W$70.11
Ships in 3–5 business days
RSP-200-7.57.5 V26.7 A200.25 W$65.38
Ships in 3–5 business days
RSP-200-1515 V13.4 A201 W$70.11
Ships in 3–5 business days

Output voltage: RSP-200-4: 4V; RSP-200-12: 12V; RSP-200-24: 24V; RSP-200-48: 48V.

Output current: RSP-200-4: 40A; RSP-200-12: 16.7A; RSP-200-24: 8.4A; RSP-200-48: 4.2A.

Rated power: RSP-200-4: 160W; RSP-200-5: 200W; RSP-200-24: 201.6W; RSP-200-48: 201.6W.

Ripple and noise: RSP-200-4: 100mVp-p; RSP-200-12: 150mVp-p; RSP-200-24: 150mVp-p; RSP-200-48: 240mVp-p.
