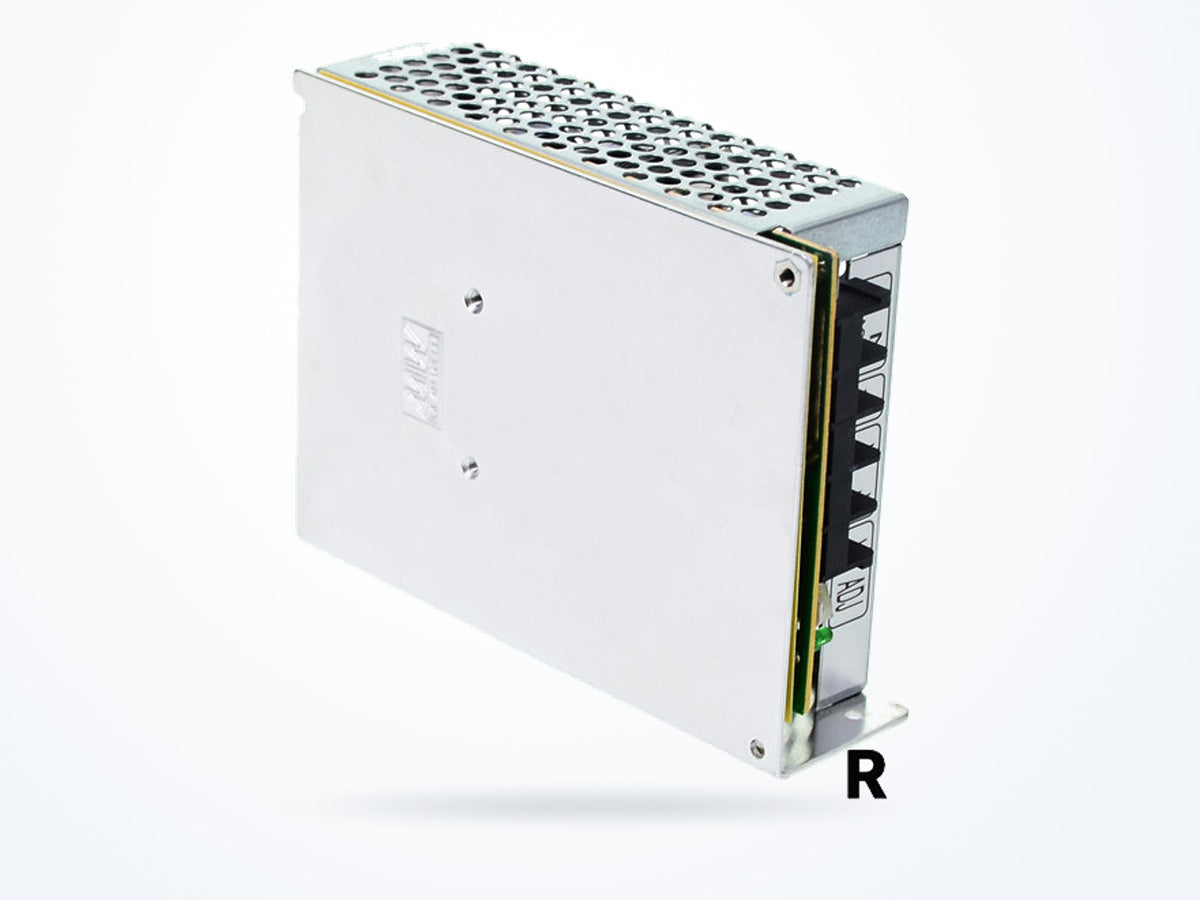

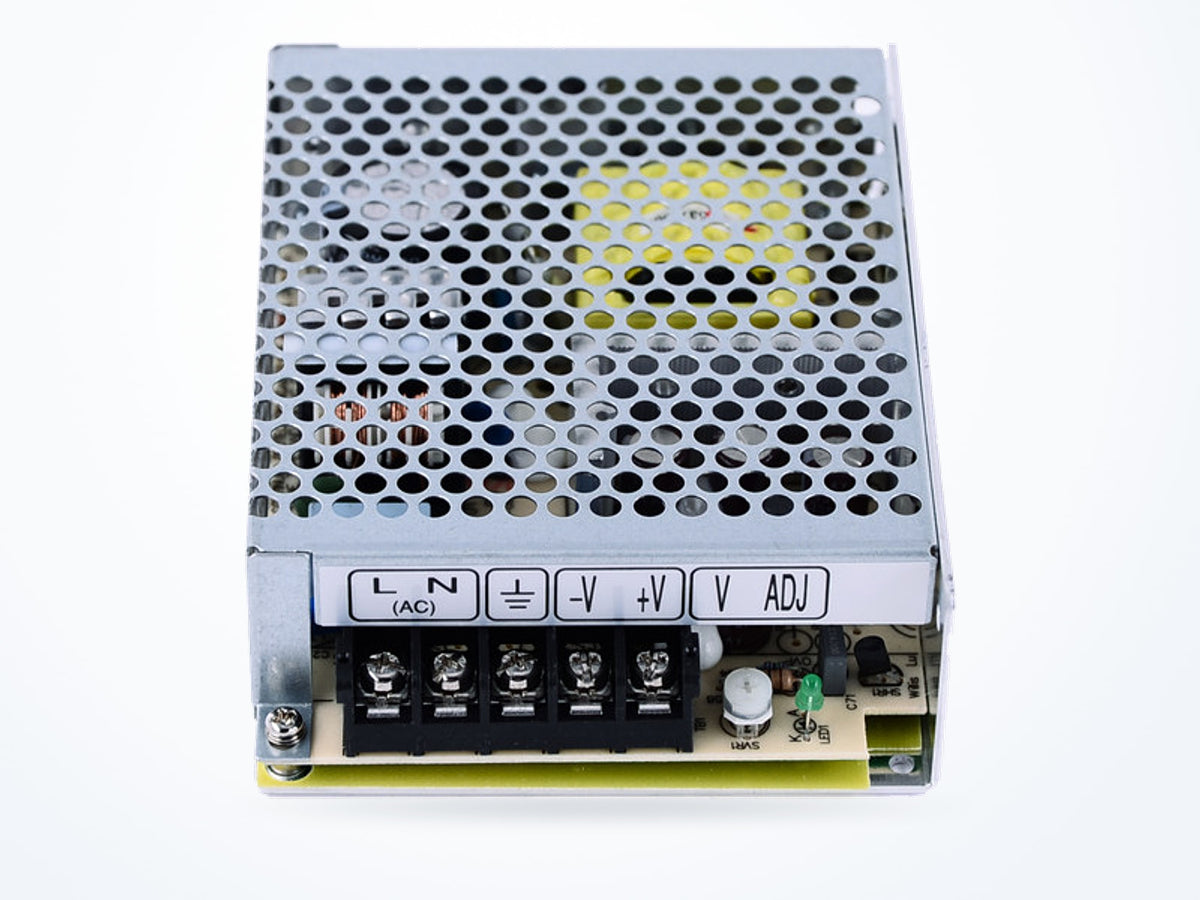

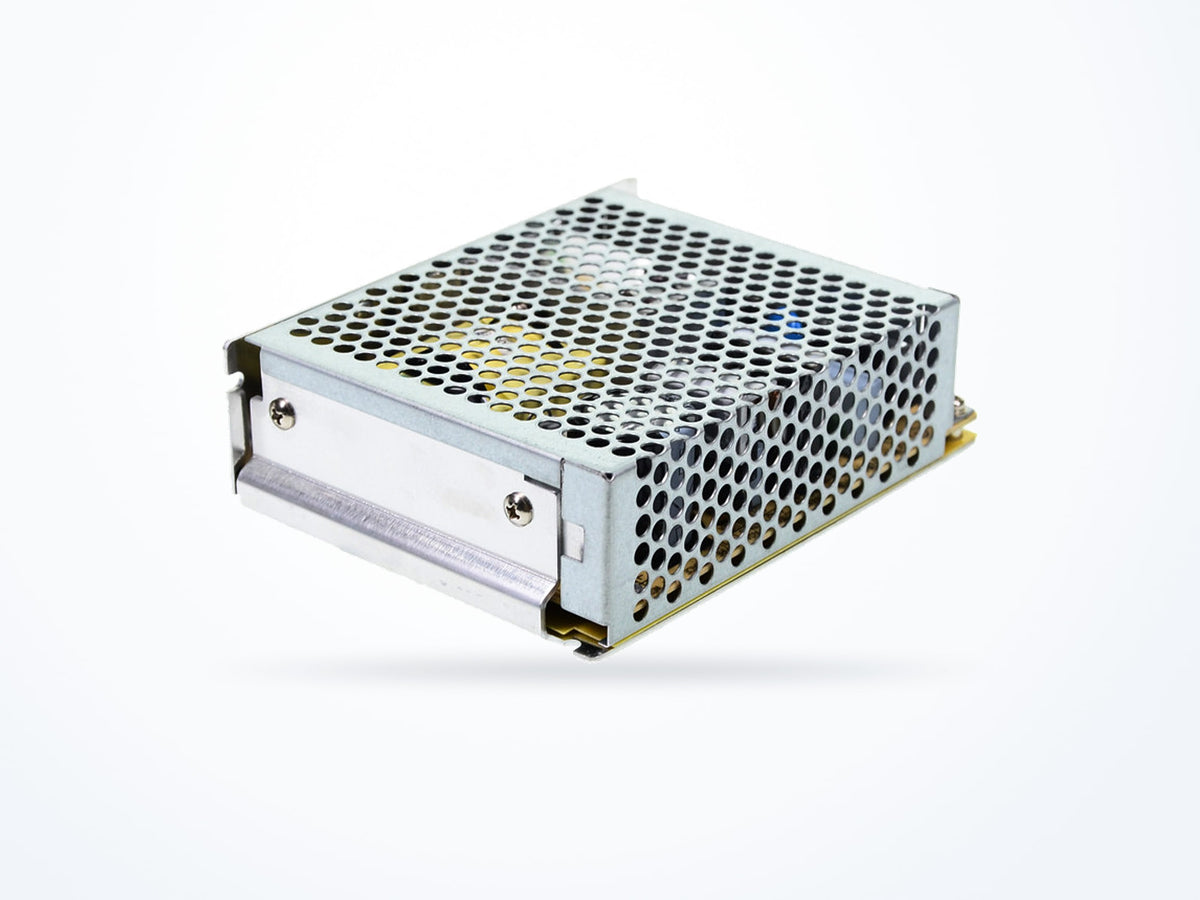

MEAN WELL RS-75-5 60W 5V 12A Enclosed Type

Part numberRS-75-5
Output voltage 5 V
Rated current 12 A
Rated power 60 W
$28.42Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RS-75 model selection table G3 Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 12 A
Rated power 60 W
AC input range 88–264 VAC
Typical efficiency 79 %
Mechanical
Operating temperature -25 to 70 °C
Dimensions (L × W × H) 129 × 98 × 38 mm

Is this model right for you?

Selecting among RS-75 series variants comes down to output specifications, which differ by model. Output voltage: RS-75-3.3 3.3V; RS-75-5 5V; RS-75-12 12V; RS-75-15 15V; RS-75-24 24V; RS-75-48 48V. Output current: RS-75-3.3 15A; RS-75-5 12A; RS-75-12 6A; RS-75-15 5A; RS-75-24 3.2A; RS-75-48 1.6A. Rated power: RS-75-3.3 49.5W; RS-75-5 60W; RS-75-12 72W; RS-75-15 75W; RS-75-24 76.8W; RS-75-48 76.8W. Typical efficiency: RS-75-3.3 75%; RS-75-5 79%; RS-75-12 84.5%; RS-75-15 86%; RS-75-24 88.5%; RS-75-48 89.5%.

Product overview

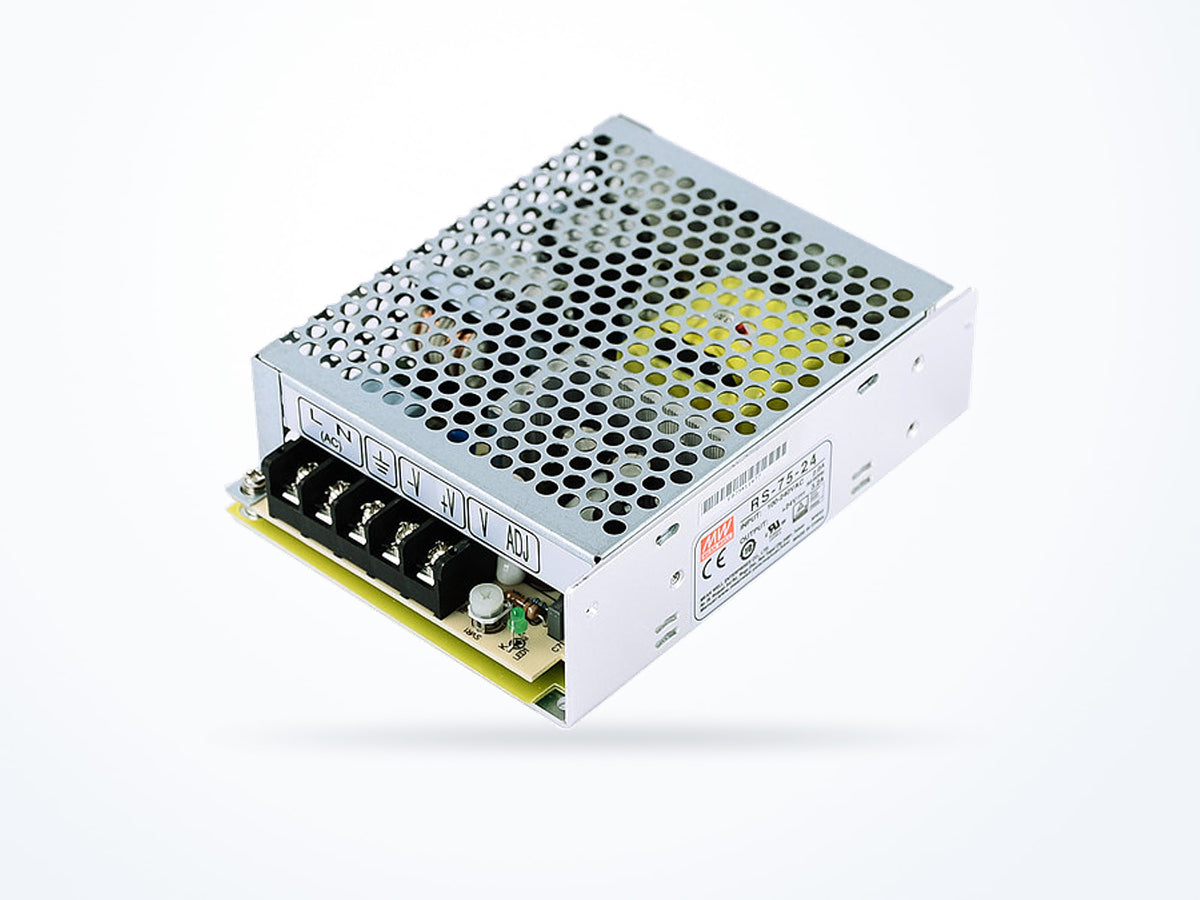

The MEAN WELL RS-75-5 is an Enclosed Type product in the RS-75 series (G3 Series family). It provides a 5V output at 12A with 60W rated power, 79% typical efficiency, and 80mVp-p ripple and noise. Across the RS-75 series, listed output voltages span 3.3V to 48V and rated power values span 49.5W to 76.8W; the RS-75-5 is the 5V variant of this model range.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 5 V
Rated current 12 A
Rated power 60 W
Ripple & noise 80 mVp-p
Input
AC input range 88–264 VAC
DC input range 125–373 VDC
Frequency range 47–63 Hz
Typical efficiency 79 %
Environmental
Operating temperature -25 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 129 × 98 × 38 mm
Net weight 410.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RS-75-5
Brand MEAN WELL
Category AC/DC Enclosed Type
Series RS-75

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RS-75-5
Minimum order quantity 1
Country of origin China
Typical packed weight 593 g
Unit weight 410 g

Downloads

RS-75 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RS-75-5 5 V12 A60 W$28.42
Ships in 3–5 business days
RS-75-4848 V1.6 A76.8 W$28.42
Ships in 3–5 business days
RS-75-2424 V3.2 A76.8 W$26.53
Ships in 3–5 business days

Output voltage: RS-75-5 provides 5V, compared with 3.3V (RS-75-3.3), 12V (RS-75-12), 15V (RS-75-15), 24V (RS-75-24), and 48V (RS-75-48).

Output current: RS-75-5 provides 12A; RS-75-3.3 lists 15A, RS-75-12 6A, RS-75-15 5A, RS-75-24 3.2A, and RS-75-48 1.6A.

Rated power: RS-75-5 lists 60W; RS-75-3.3 49.5W, RS-75-12 72W, RS-75-15 75W, RS-75-24 76.8W, and RS-75-48 76.8W.

Ripple and noise: RS-75-5 lists 80mVp-p; RS-75-12, RS-75-15, and RS-75-24 each list 120mVp-p, and RS-75-48 lists 200mVp-p.
