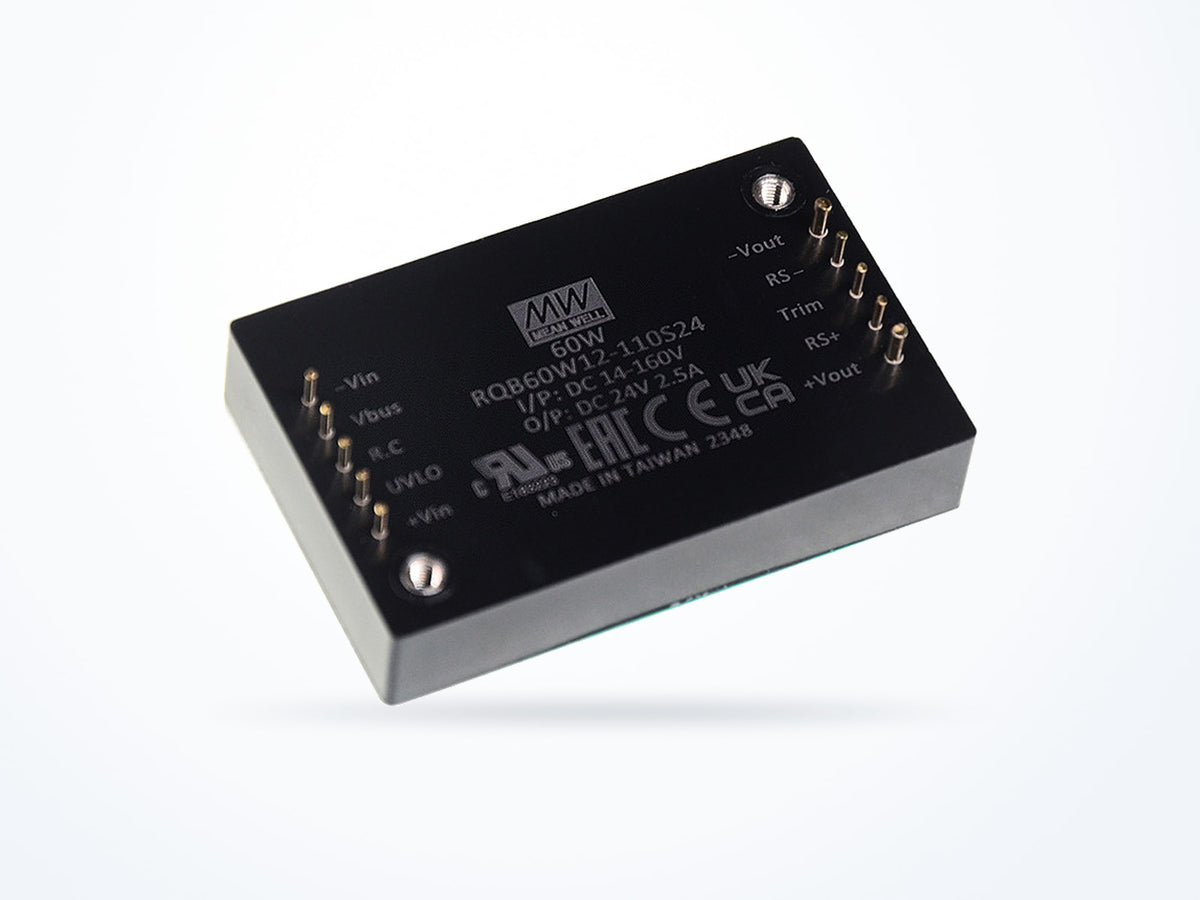

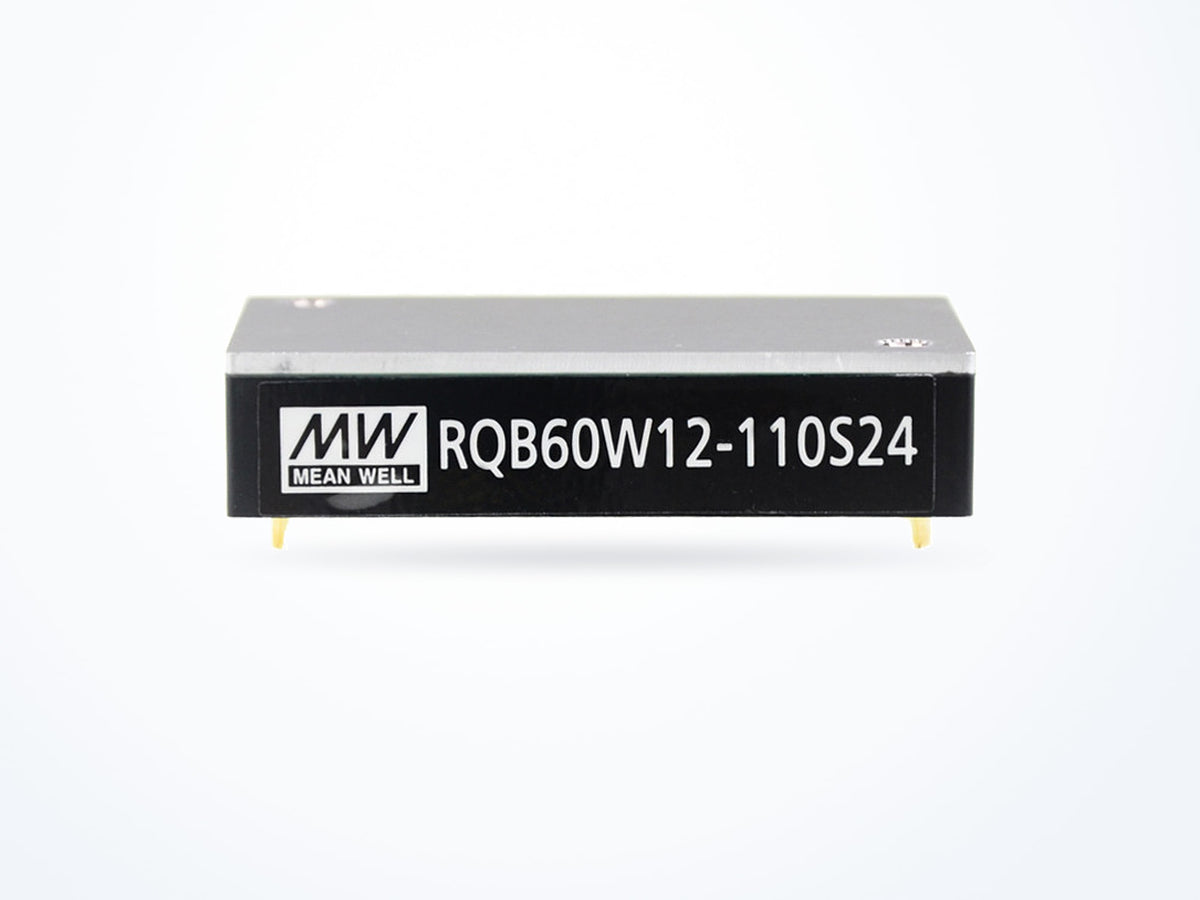

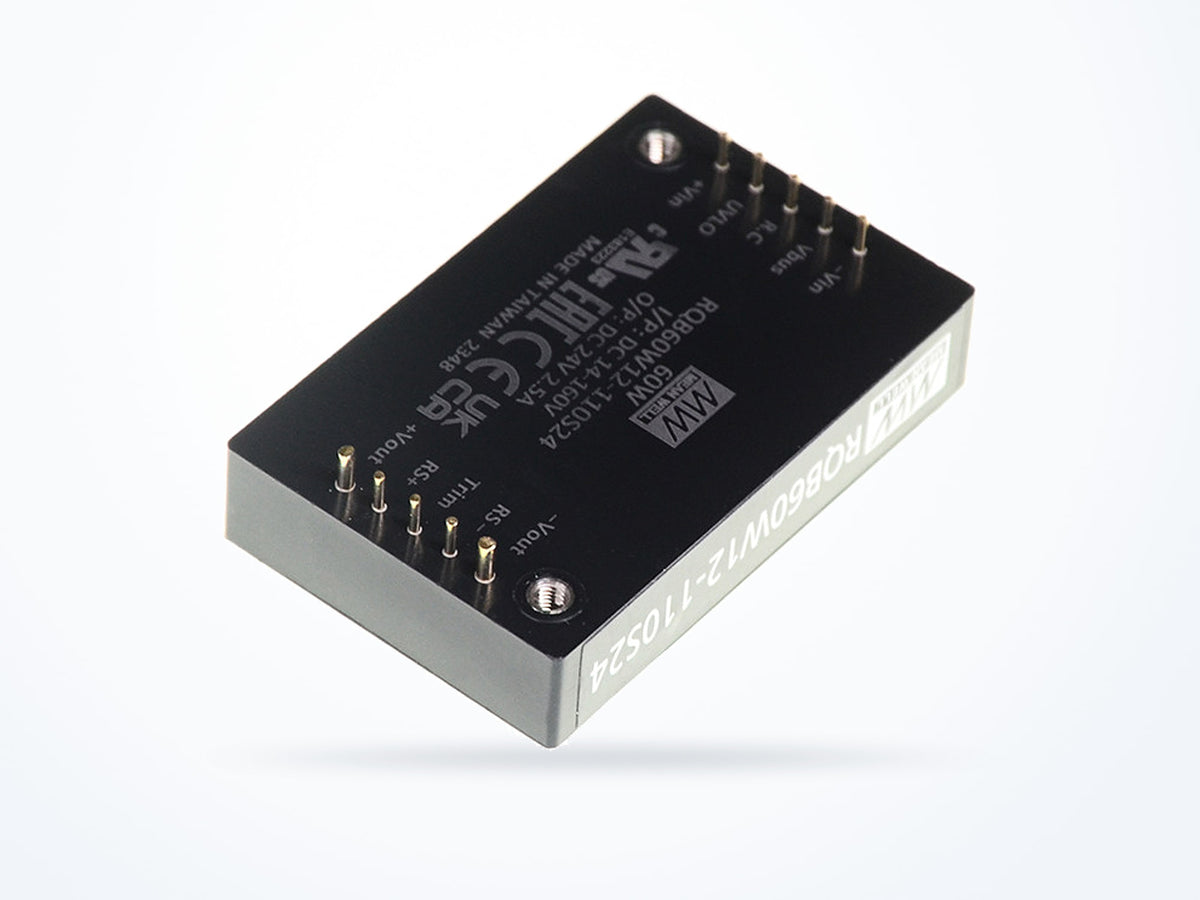

MEAN WELL RQB60W12-110S05 60W 5V 12A On Board Type (Module Potted)

Part numberRQB60W12-110S05
Output voltage 5 V
Rated current 12 A
Rated power 60 W
$186.34Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RQB60W12 model selection table Brick Type - 1/4 Brick
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 12 A
Rated power 60 W
Typical efficiency 89 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 90 °C
Dimensions (L × W × H) 57.9 × 36.8 × 12.7 mm

Is this model right for you?

Within the RQB60W12 series, the RQB60W12-110S05 lists a 5 V output at 12 A, while the RQB60W12-110S12 lists a 12 V output at 5 A. Select the model whose output voltage and current match the load requirement.

Product overview

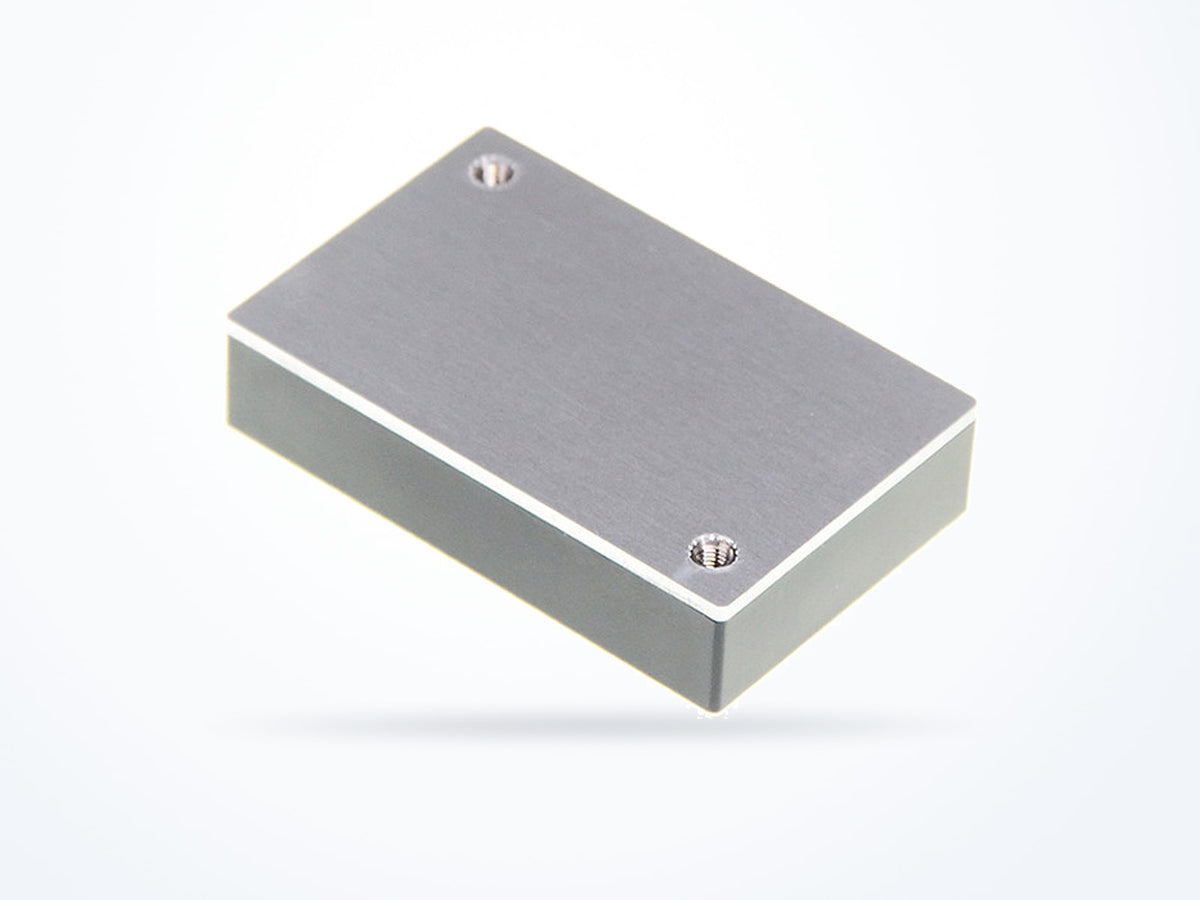

The RQB60W12-110S05 is a DC/DC on-board type module in the RQB60W12 series. It provides a 5 V output at 12 A with a 14 ~ 160 Vdc input range. The case combines an aluminum base plate with a plastic body, and cooling is by free-air convection. Dimensions are 57.9 × 36.8 × 12.7 mm and net weight is 68 g.

Where this model fits

The RQB60W12-110S05 is associated with embedded and board-level design. Its 5 V output at 12 A, 14 ~ 160 Vdc input range, free-air convection cooling, and 57.9 × 36.8 × 12.7 mm dimensions are the measurements relevant to board-mounted power conversion.

Complete technical specifications

Rev. 2025-10-09
Output
Output voltage 5 V
Rated current 12 A
Rated power 60 W
Input
AC input range 14 ~ 160Vdc
DC input range 14–160 VDC
Typical efficiency 89 %
Protection
Overload Protected
Over voltage Protected
Over temperature Protected
Recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 90 °C
Storage temperature -55 to 125 °C
Vibration EN61373
Mechanical
Dimensions (L × W × H) 57.9 × 36.8 × 12.7 mm
Net weight 68.0 g
Cooling Free-air convection
Fan Not supported
Case material Aluminum base plate with plastic case
Safety & compliance
Safety standards CB IEC62368-1, UL62368-1, EAC TP TC 020/2011 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RQB60W12-110S05
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series RQB60W12

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVDC or 2KVAC
Isolation resistance I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH non-condensing
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • IEC62368-1
  • UL62368-1
Read the datasheet's exact wording

CB IEC62368-1, UL62368-1, EAC TP TC 020/2011 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RQB60W12-110S05
Minimum order quantity 1
Country of origin China
Typical packed weight 223 g
Unit weight 68 g

Downloads

RQB60W12 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RQB60W12-110S05 5 V12 A60 W$186.34
Ships in 3–5 business days
RQB60W12-110S4848 V1.25 A60 W$186.34
Ships in 3–5 business days
RQB60W12-110S1212 V5 A60 W$186.34
Ships in 3–5 business days

RQB60W12-110S05: 5 V output, 12 A; RQB60W12-110S12: 12 V output, 5 A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RQB60W12-110S05

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RQB60W12-110S05 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-10-09
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
