MEAN WELL MSP-450-5 450W 5V 90A Enclosed Type

Part numberMSP-450-5
Output voltage 5 V
Rated current 90 A
Rated power 450 W
$265.30Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote

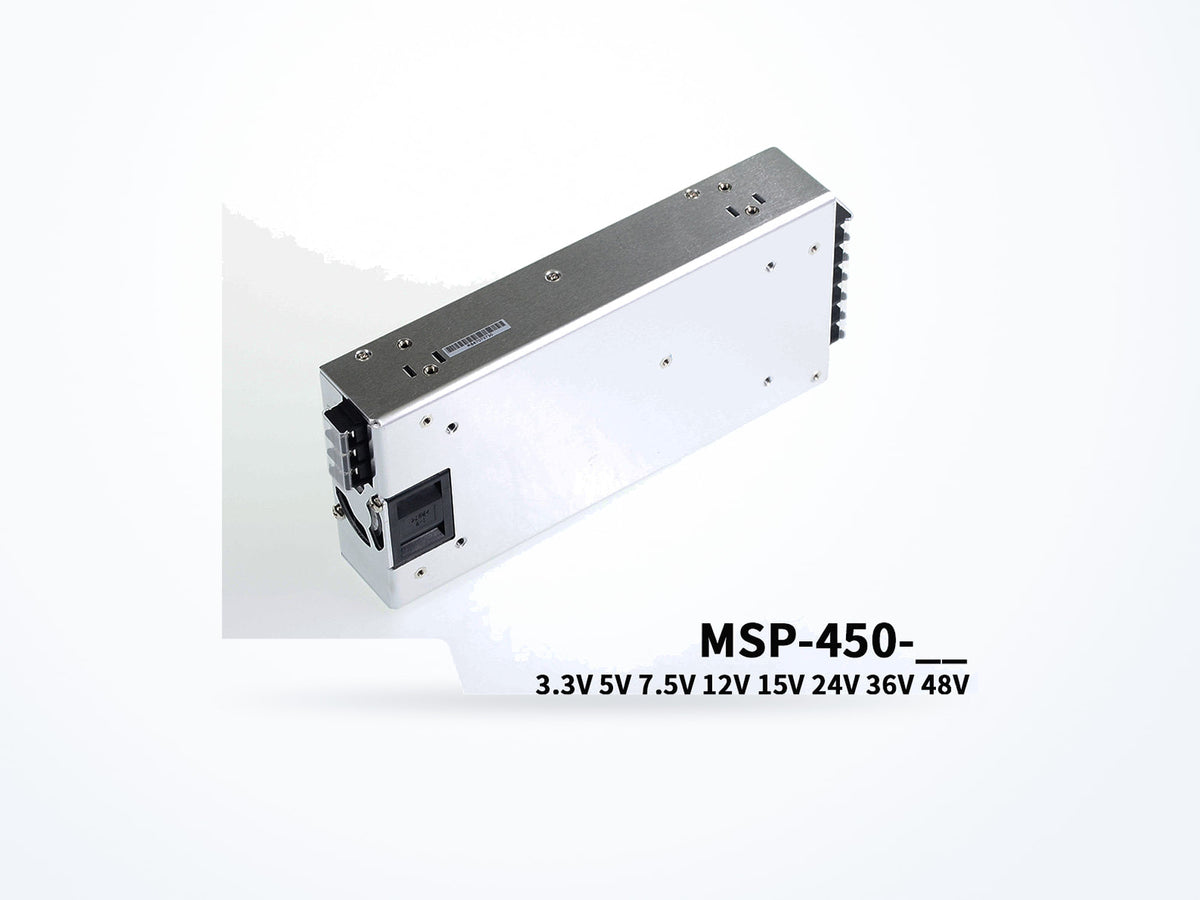

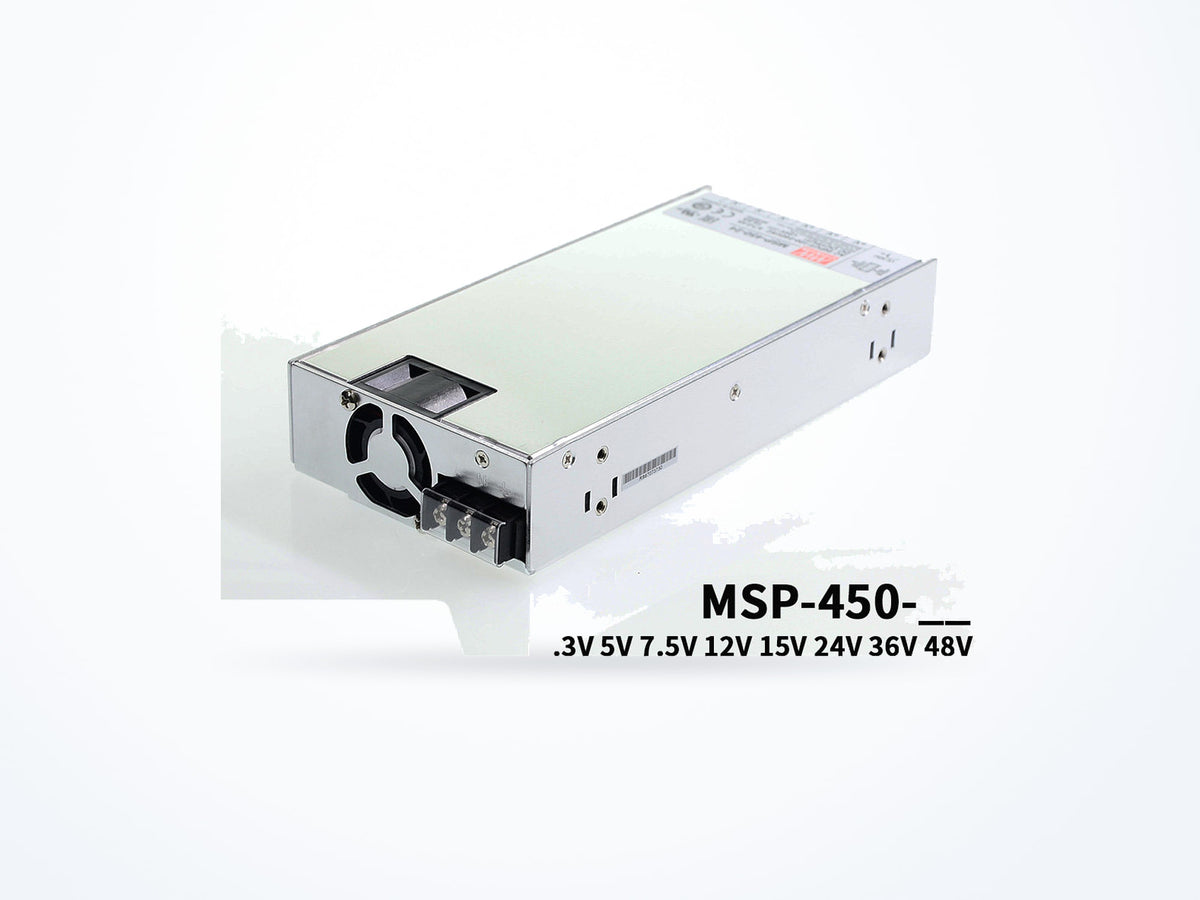

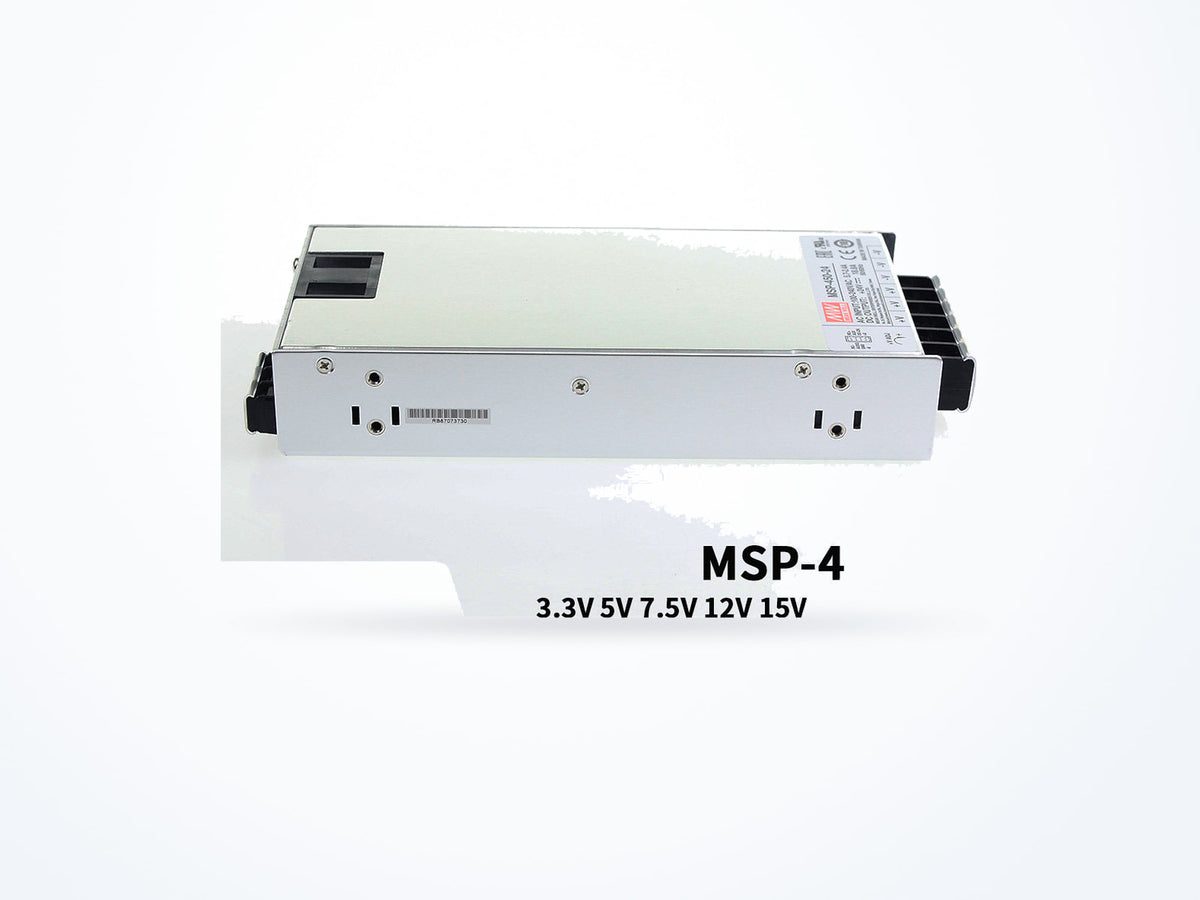

MSP-450 model selection table MSP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 90 A
Rated power 450 W
AC input range 85–264 VAC
Typical efficiency 83 %
Mechanical
Operating temperature -40 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 218 × 105 × 41 mm

Is this model right for you?

Within the MSP-450 series, the MSP-450-5 differs from siblings by output voltage and current. MSP-450-5: 5 V, 90 A; MSP-450-3.3: 3.3 V; MSP-450-7.5: 7.5 V, 60 A; MSP-450-12: 12 V, 37.5 A; MSP-450-15: 15 V, 30 A; MSP-450-24: 24 V, 18.8 A; MSP-450-36: 36 V, 12.5 A; MSP-450-48: 48 V, 9.5 A.

Product overview

The MSP-450-5 provides a 5 V output with 90 A output current and 450 W rated power. Its input voltage range is 85 ~ 264VAC 120 ~ 370VDC, with a frequency range of 47 ~ 63Hz. Typical efficiency is 83%, and ripple and noise is 80mVp-p. The output adjustment range is 4.3 ~ 5.8V. Dimensions are 218 × 105 × 41 mm and net weight is 1190 g.

Where this model fits

The MSP-450-5 is used in Industrial Automation and Test & Measurement applications. The operating temperature range is -40 to 70 °C, and the product measures 218 × 105 × 41 mm with a net weight of 1190 g.

Complete technical specifications

Rev. 2025-12-05
Output
Output voltage 5 V
Rated current 90 A
Rated power 450 W
Voltage adjustment range 4.3–5.8 V
Ripple & noise 80 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 83 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -40 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 218 × 105 × 41 mm
Net weight 1190.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved;Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MSP-450-5
Brand MEAN WELL
Category AC/DC Enclosed Type
Series MSP-450

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN60601-1-2, EAC TP TC 020

Standards certified against

  • ANSI/AAMI ES60601-1
  • IEC 60601-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN60335-1, BS EN/EN 62368-1(by request)

Read the datasheet's exact wording

IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved;Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MSP-450-5
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 1428 g
Unit weight 1190 g

Downloads

MSP-450 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MSP-450-5 5 V90 A450 W$265.30
Ships in 3–5 business days
MSP-450-3.33.3 V90 A297 W$265.30
Ships in 3–5 business days

MSP-450-5 lists 5 V output and 90 A output current; MSP-450-12 lists 12 V output and 37.5 A output current.

MSP-450-5 lists 5 V output and 90 A output current; MSP-450-24 lists 24 V output and 18.8 A output current.

MSP-450-5 lists 5 V output and 90 A output current; MSP-450-48 lists 48 V output and 9.5 A output current.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MSP-450-5

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MSP-450-5 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-12-05
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
