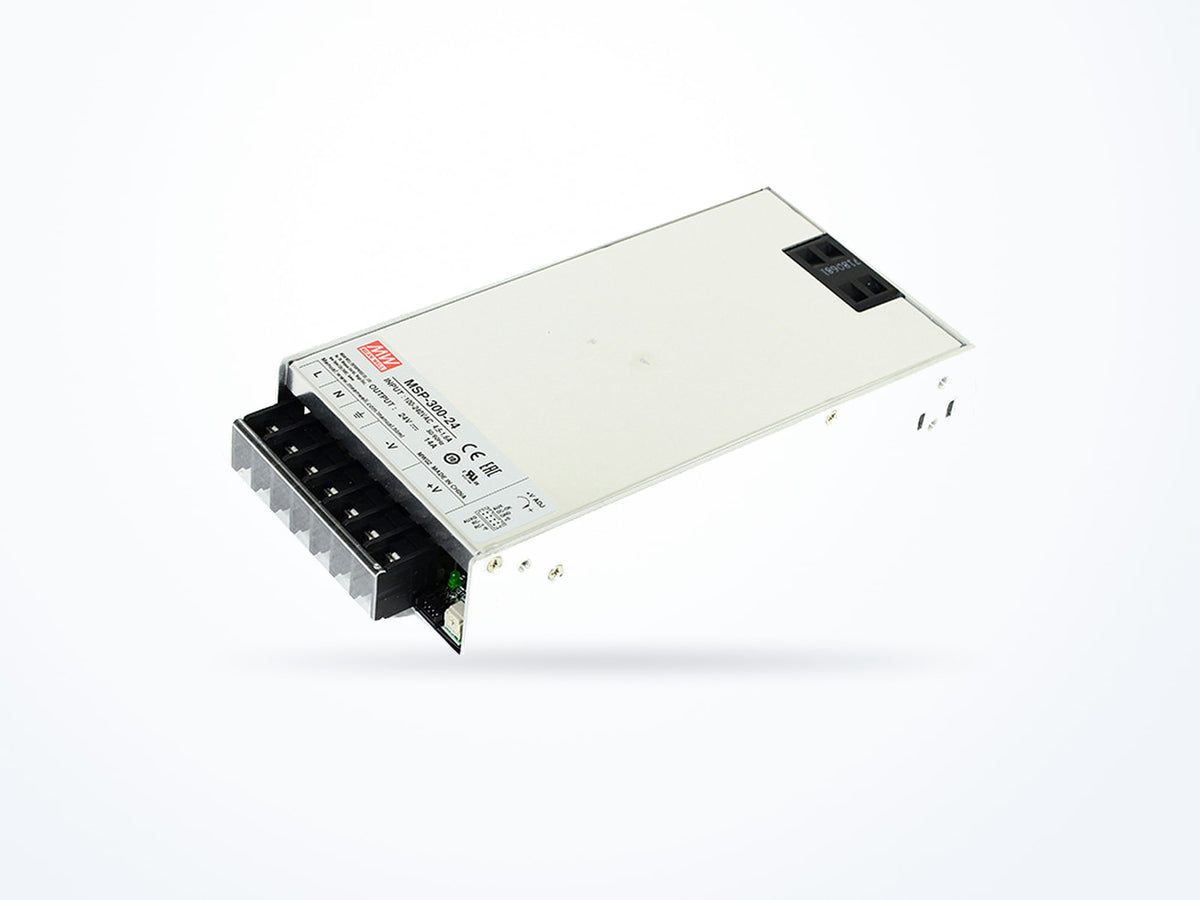

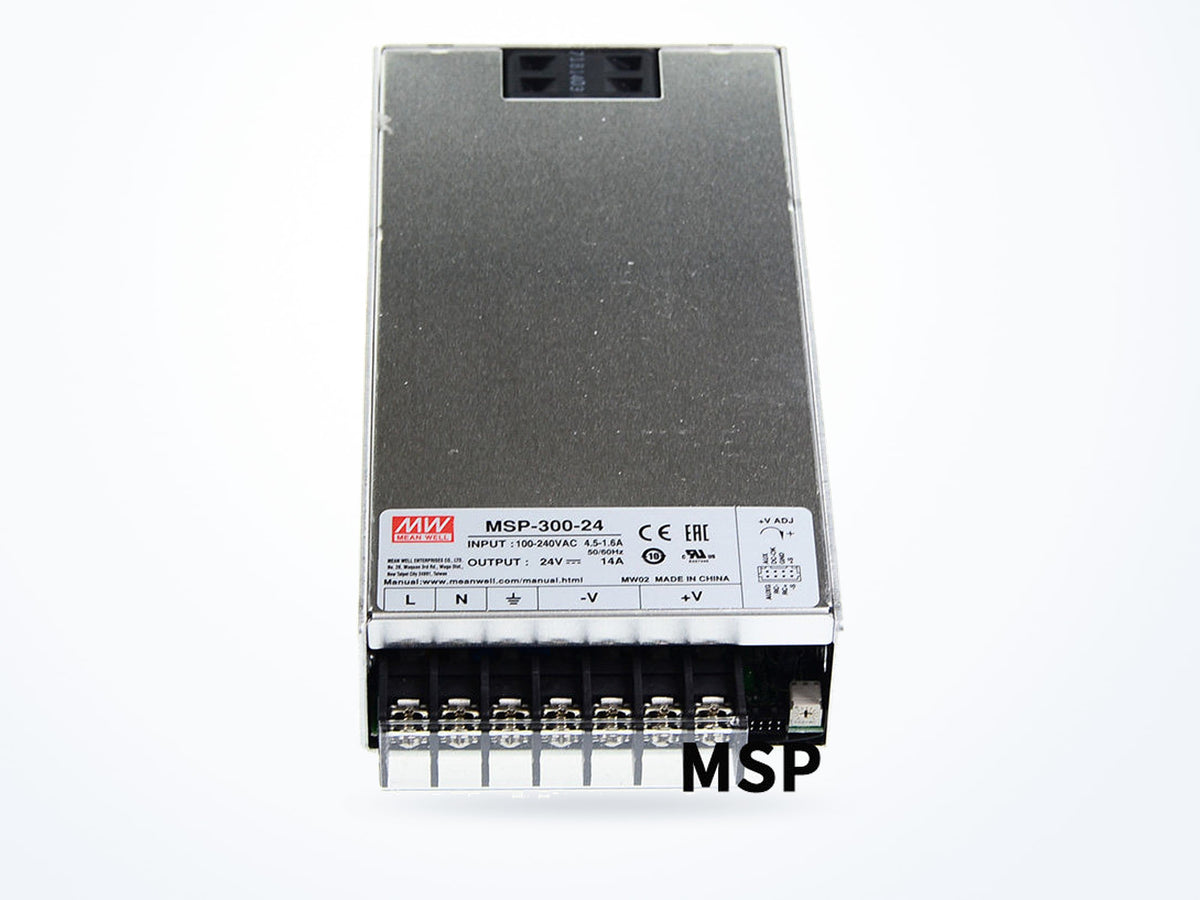

MEAN WELL MSP-300-24 336W 24V 14A Enclosed Type

Part numberMSP-300-24
Output voltage 24 V
Rated current 14 A
Rated power 336 W
$192.02Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MSP-300 model selection table MSP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 14 A
Rated power 336 W
AC input range 85–264 VAC
Typical efficiency 87 %
Mechanical
Operating temperature -40 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 199 × 105 × 41 mm

Is this model right for you?

Within the MSP-300 series, the MSP-300-24 differs from siblings by output voltage and current. MSP-300-24: 24 V, 14 A, 336 W. MSP-300-12: 12 V, 27 A, 324 W. MSP-300-15: 15 V, 22 A, 330 W. MSP-300-36: 36 V, 9 A, 324 W. MSP-300-48: 48 V, 7 A. MSP-300-3.3: 3.3 V, 60 A, 198 W. MSP-300-5: 5 V, 60 A, 300 W. MSP-300-7.5: 7.5 V, 40 A, 300 W.

Product overview

The MSP-300-24 provides a 24 V output with 14 A output current and 336 W rated power. Its input voltage range is 85 ~ 264VAC 120 ~ 370VDC at 47 ~ 63Hz. Typical efficiency is 87%, ripple and noise is 150mVp-p, and the output adjustment range is 21.6~28.8V. Dimensions are 199 × 105 × 41 mm and net weight is 950 g.

Where this model fits

The MSP-300-24 is used in Industrial Automation, Motor Drives, Security & Surveillance, Telecom & Datacom, and Test & Measurement. The operating temperature range is -40 to 70 °C and humidity range is 20 to 90%.

Complete technical specifications

Rev. 2026-02-09
Output
Output voltage 24 V
Rated current 14 A
Rated power 336 W
Voltage adjustment range 21.6–28.8 V
Ripple & noise 150 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 87 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -40 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 199 × 105 × 41 mm
Net weight 950.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MSP-300-24
Brand MEAN WELL
Category AC/DC Enclosed Type
Series MSP-300

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035,BS EN/EN60601-1-2, EAC TP TC 020

Standards certified against

  • ANSI/AAMI ES60601-1
  • IEC 60601-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN60335-1, BS EN/EN 62368-1(by request)

Read the datasheet's exact wording

IEC 60601-1:2005+A1+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2 EAC TP TC 004 approved; Design refer to BS EN/EN60335-1, BS EN/EN 62368-1(by request)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MSP-300-24
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 1170 g
Unit weight 950 g

Downloads

MSP-300 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MSP-300-1515 V22 A330 W$192.02
Ships in 3–5 business days
MSP-300-24 24 V14 A336 W$192.02
Ships in 3–5 business days

MSP-300-24 lists 24 V output and 14 A output current; MSP-300-12 lists 12 V output and 27 A output current.

MSP-300-24 lists 336 W rated power; MSP-300-15 lists 330 W rated power.

MSP-300-24 lists 150mVp-p ripple and noise; MSP-300-36 lists 250mVp-p ripple and noise.

MSP-300-24 lists 87% typical efficiency; MSP-300-48 lists 89% typical efficiency.
