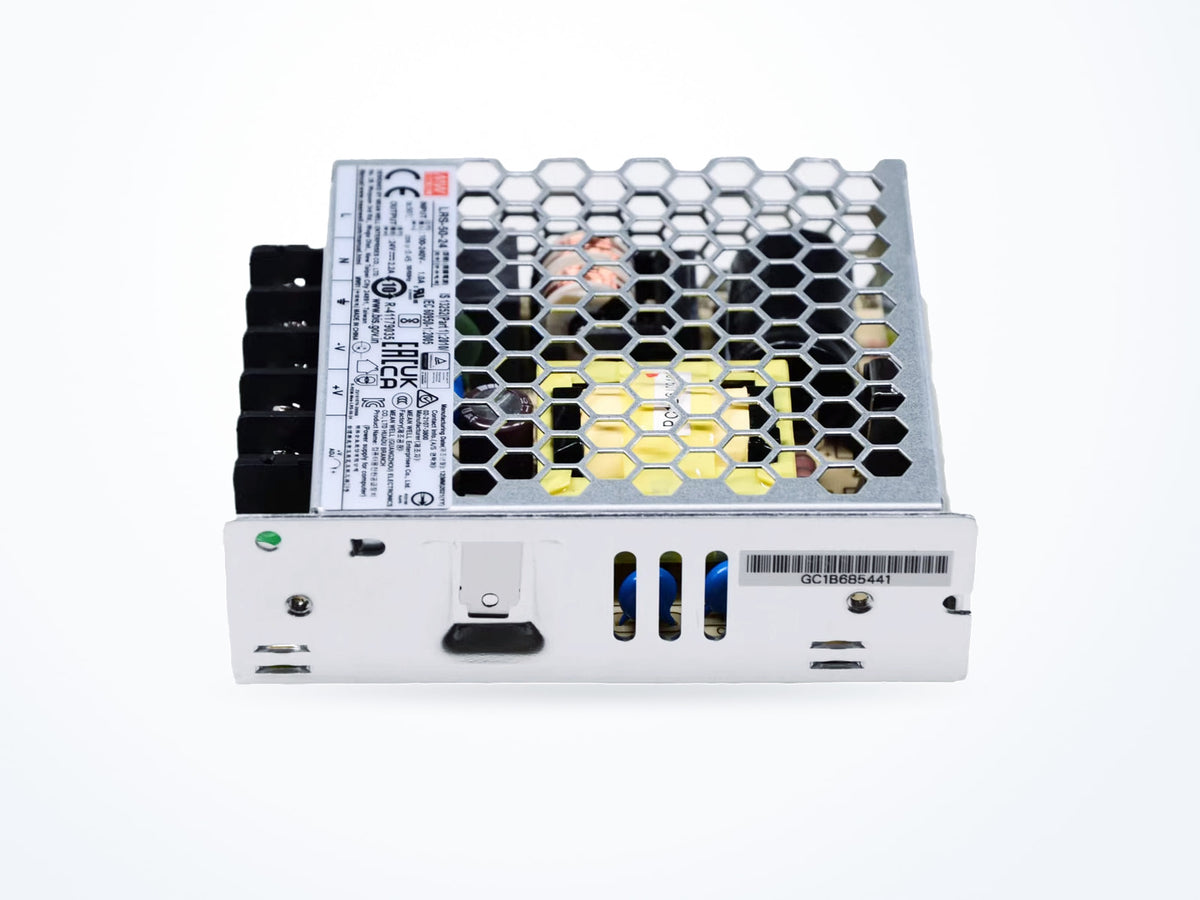

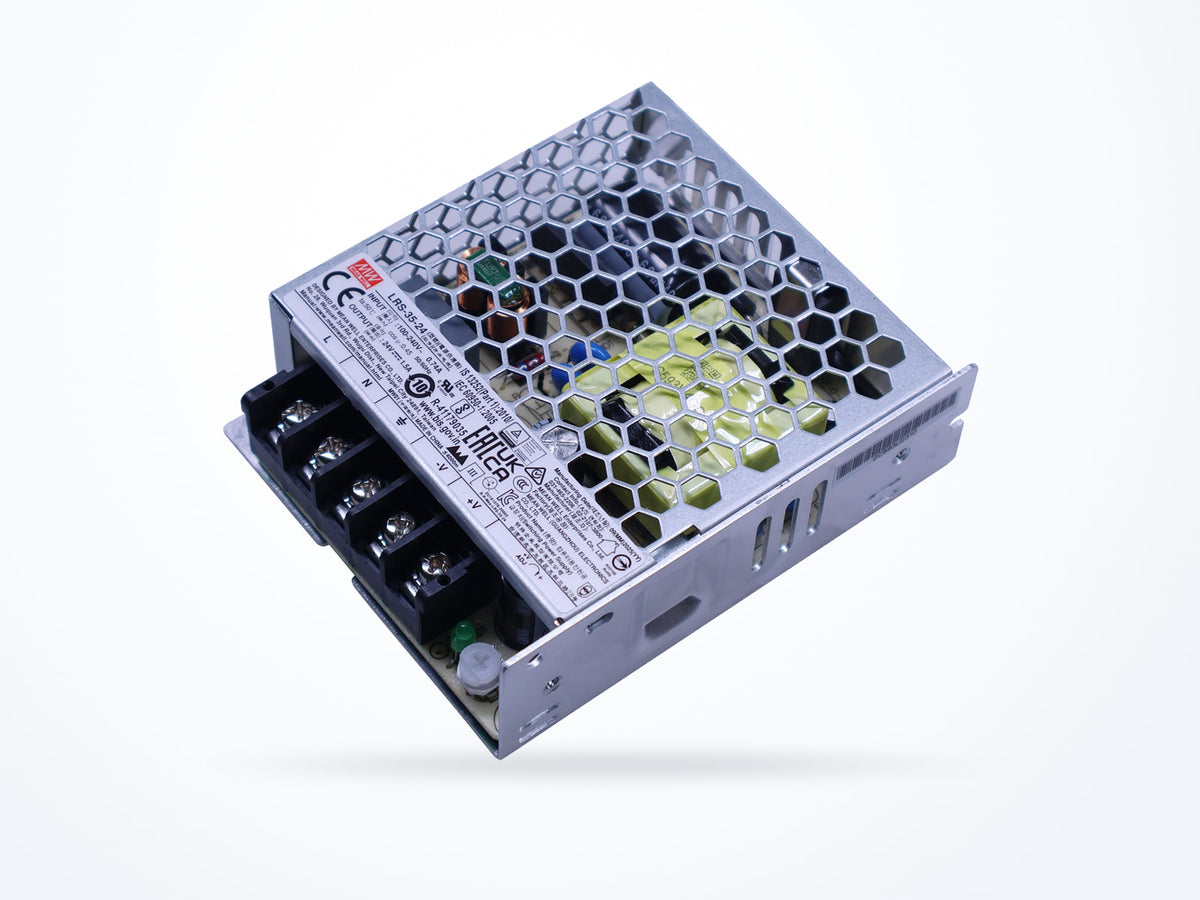

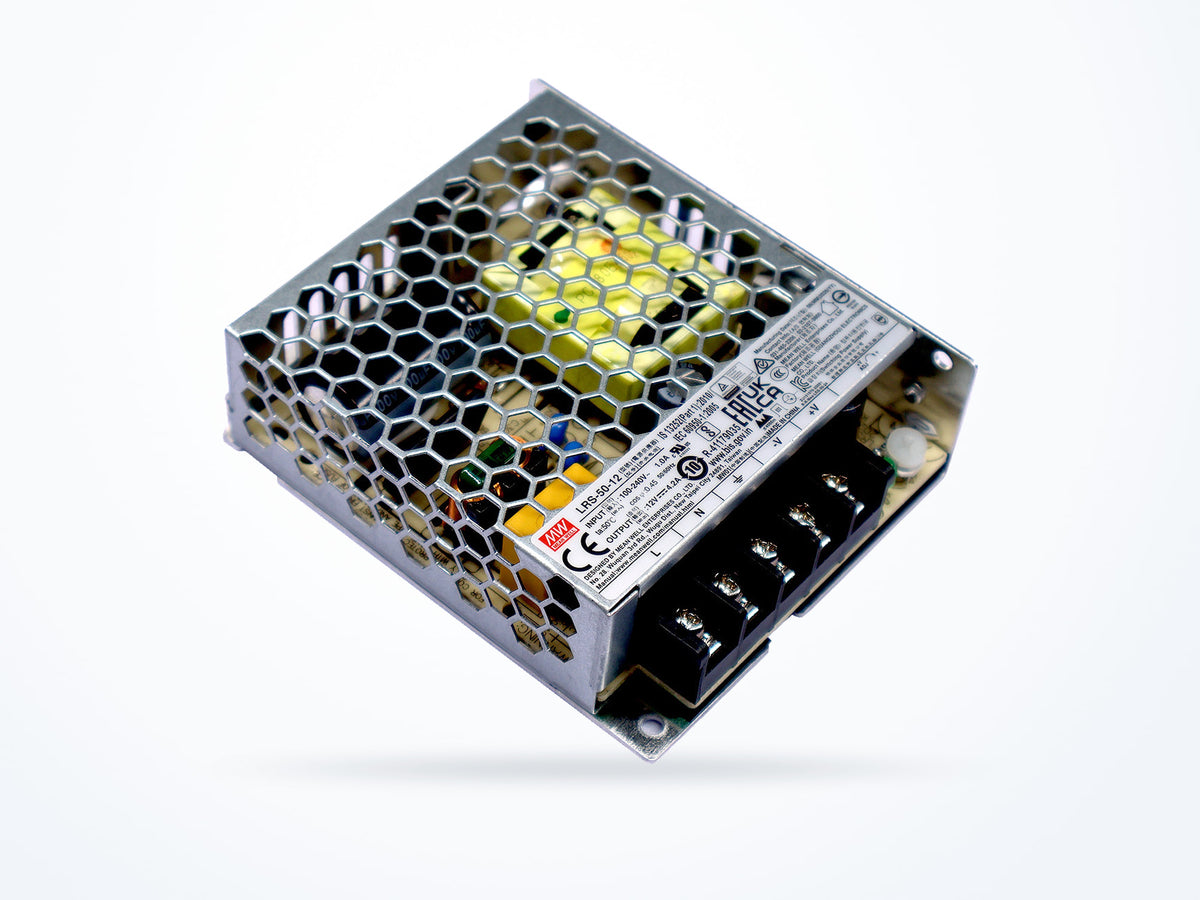

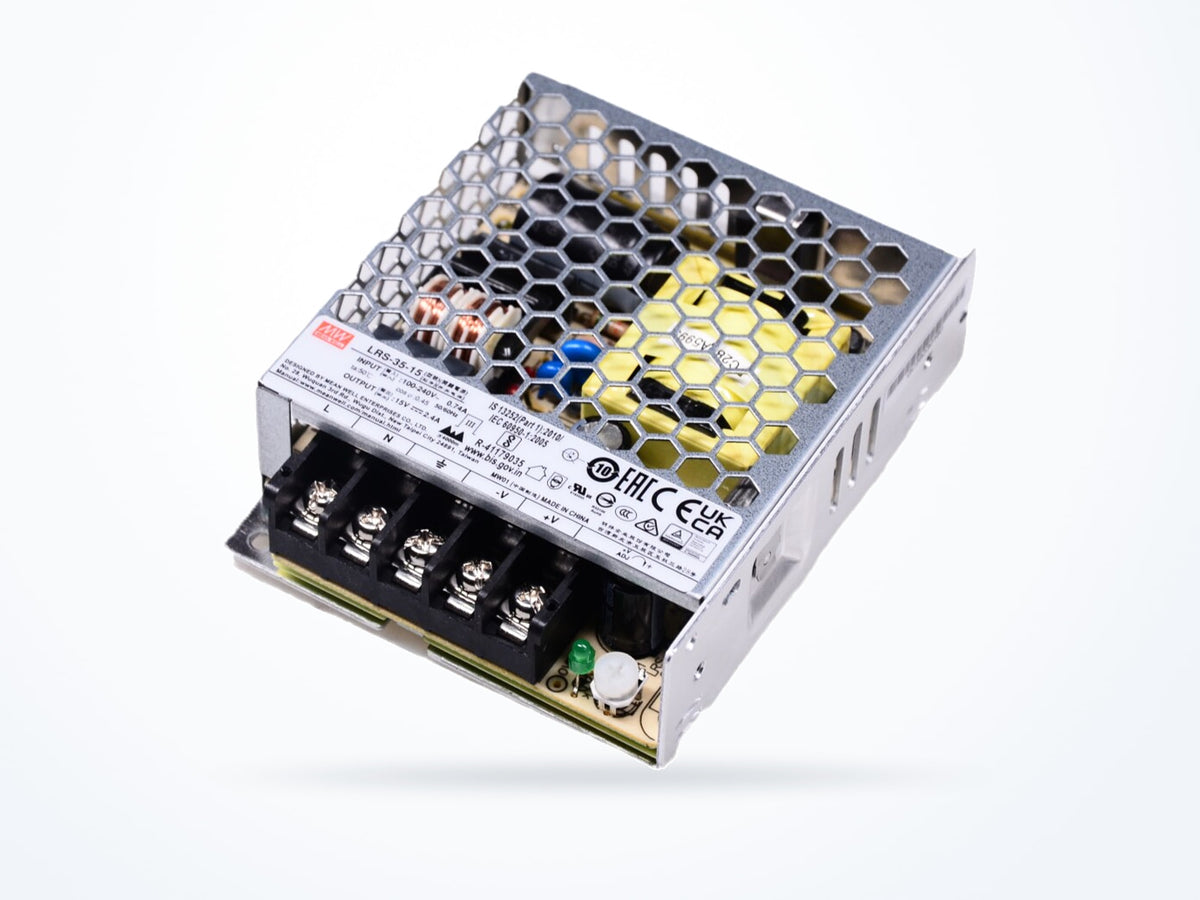

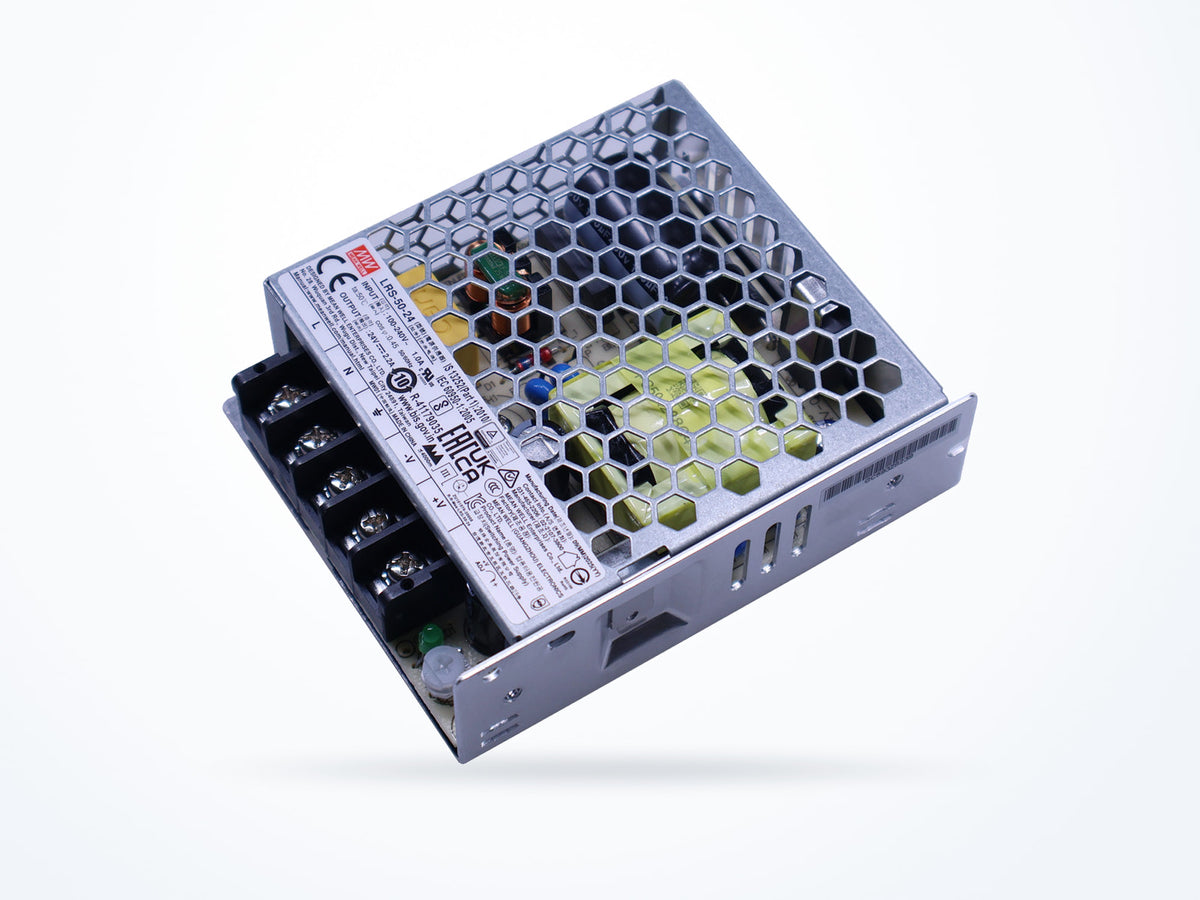

MEAN WELL LRS-35-15 36W 15V 2.4A Enclosed Type

Part numberLRS-35-15
Output voltage 15 V
Rated current 2.4 A
Rated power 36 W
$15.79Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LRS-35 model selection table LRS Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 2.4 A
Rated power 36 W
AC input range 85–264 VAC
Typical efficiency 86 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 99 × 82 × 30 mm

Is this model right for you?

Within the LRS-35 series, output voltage and rated output current distinguish each SKU. LRS-35-15 provides 15V at 2.4A, while LRS-35-5 provides 5V at 7A, LRS-35-12 provides 12V at 3A, LRS-35-24 provides 24V at 1.5A, LRS-35-36 provides 36V at 1A, and LRS-35-48 provides 48V at 0.8A. Output adjustment ranges differ as well: LRS-35-15 adjusts across 13.5 ~ 18V. Typical efficiency also differs, with LRS-35-15 listed at 86%.

Product overview

The MEAN WELL LRS-35-15 is an Enclosed Type product in the LRS-35 series. It provides a 15V output at 2.4A with 36W rated power. The AC input accepts 85 ~ 264VAC and the DC input accepts 120 ~ 373VDC at 47 ~ 63Hz. Typical efficiency is 86% and ripple noise is listed at 120mVp-p. The output is adjustable across 13.5 ~ 18V, and the product measures 99*82*30mm (L*W*H).

Complete technical specifications

Rev. 2025-04-07
Output
Output voltage 15 V
Rated current 2.4 A
Rated power 36 W
Voltage adjustment range 13.5–18 V
Ripple & noise 120 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–373 VDC
Frequency range 47–63 Hz
Typical efficiency 86 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 99 × 82 × 30 mm
Net weight 210.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,GB 4943.1, BSMI CNS15598-1, EAC TP TC 004,AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved (datasheet note applies)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LRS-35-15
Brand MEAN WELL
Category AC/DC Enclosed Type
Series LRS-35

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

South Korea

  • KC

    Korea Certification, mandatory for electrical equipment in scope. The KC number mirrors the IEC standard it is based on, so KC 62368-1 is assessment against the Korean adoption of IEC 62368-1.

    Covers only part of this series: for LRS-35-12/24 only

An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB17625.1,GB/T 9254.1, BSMI CNS15936, EAC TP TC 020,KC KN32,KN35(for LRS-35-12/24 only)
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN55035, heavy industry level, EAC TP TC 020,KC KN32,KN35(for LRS-35-12/24 only)

Standards certified against

  • AS/NZS 60950.1
  • CNS15598-1
  • EN60335-1
  • EN61558-1/-2-16
  • EN62368-1
  • GB 4943.1
  • IEC 60950-1
  • IS13252
  • K60950-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,GB 4943.1, BSMI CNS15598-1, EAC TP TC 004,AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved (datasheet note applies)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LRS-35-15
Minimum order quantity 1
Country of origin China
Typical packed weight 383 g
Unit weight 210 g

Downloads

LRS-35 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LRS-35-15 15 V2.4 A36 W$15.79
Ships in 3–5 business days
LRS-35-1212 V3 A36 W$14.59
Ships in 3–5 business days

LRS-35-15 provides 15V at 2.4A; LRS-35-5 provides 5V at 7A, LRS-35-12 provides 12V at 3A, LRS-35-24 provides 24V at 1.5A, LRS-35-36 provides 36V at 1A, and LRS-35-48 provides 48V at 0.8A.

LRS-35-15 output adjusts across 13.5 ~ 18V; LRS-35-5: 4.5 ~ 5.5V, LRS-35-12: 10.2 ~ 13.8V, LRS-35-24: 21.6 ~ 28.8V, LRS-35-36: 32.4 ~ 39.6V, LRS-35-48: 43.2 ~ 52.8V.

LRS-35-15 lists 86% typical efficiency; LRS-35-5 lists 82%, LRS-35-24 and LRS-35-36 list 88%, and LRS-35-48 lists 89%.

LRS-35-15 lists 120mVp-p ripple noise; LRS-35-5 lists 80mVp-p, LRS-35-24 lists 150mVp-p, and LRS-35-36 and LRS-35-48 list 200mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for LRS-35-15

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting LRS-35-15 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-04-07
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
