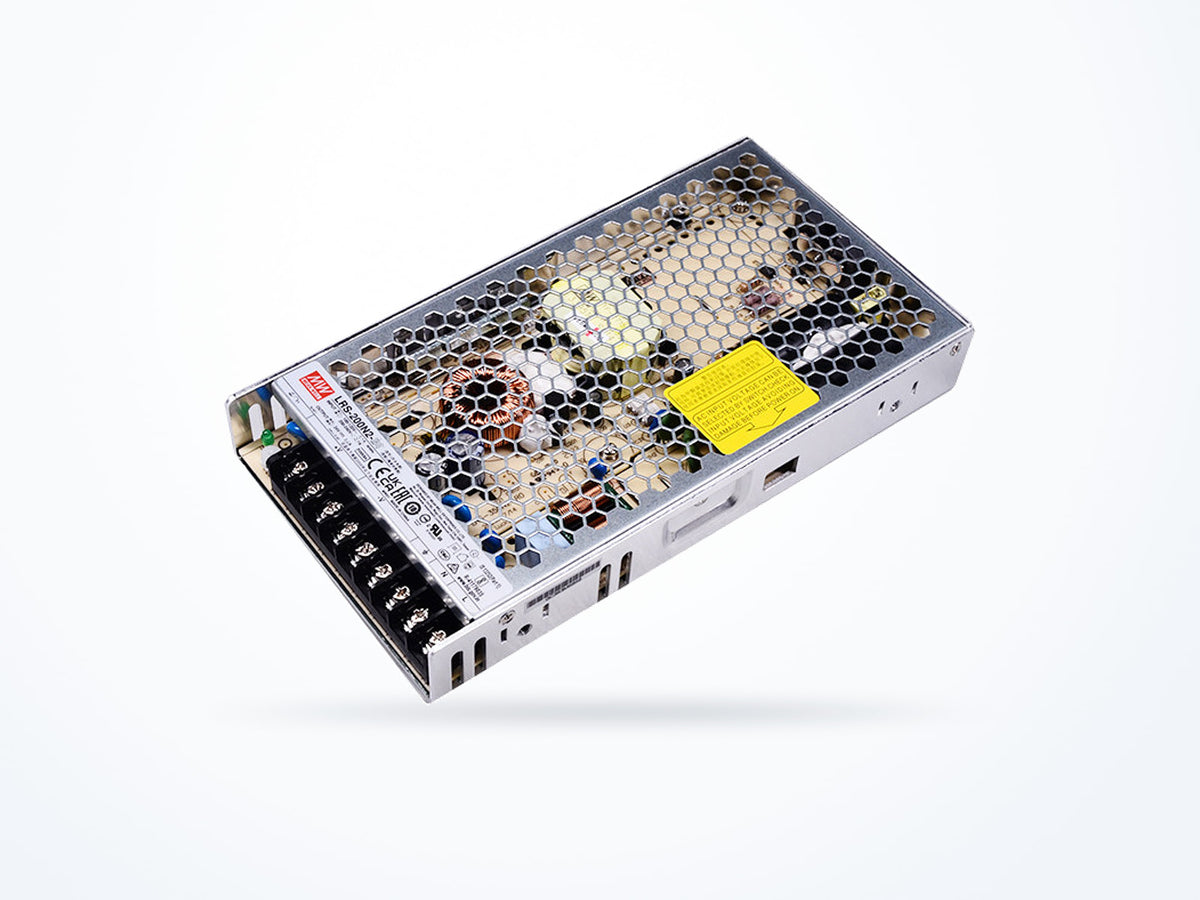

MEAN WELL LRS-200N2-48 211.2W 48V 4.4A Enclosed Type

Part numberLRS-200N2-48
Output voltage 48 V
Rated current 4.4 A
Rated power 211.2 W
$42.95Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
LRS-200N2 model selection table LRS Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 4.4 A
Rated power 211.2 W
Typical efficiency 90 %
Mechanical
Operating temperature -25 to 70 °C
Dimensions (L × W × H) 215 × 115 × 30 mm

Is this model right for you?

Within the LRS-200N2 series, the LRS-200N2-48 differs from siblings by output voltage and current. LRS-200N2-48: 48 V, 4.4 A; LRS-200N2-12: 12 V, 17 A; LRS-200N2-24: 24 V, 8.8 A; LRS-200N2-36: 36 V, 5.9 A. Rated power also differs: LRS-200N2-48 lists 211.2 W, LRS-200N2-12 lists 204 W, and LRS-200N2-36 lists 212.4 W.

Product overview

The LRS-200N2-48 provides a 48 V output with 4.4 A output current and 211.2 W rated power. Its output adjustment range is 43.2 ~ 52.8 V, typical efficiency is 90%, and ripple and noise is 200 mVp-p. The input frequency range is 47 ~ 63 Hz. Dimensions are 215 × 115 × 30 mm and net weight is 660 g.

Where this model fits

The LRS-200N2-48 is used in Industrial Automation and Security & Surveillance. Its 48 V output and 4.4 A output current are the electrical figures for these installations. The operating temperature range is -25 to 70 °C, humidity range is 20 to 90%, and net weight is 660 g.

Complete technical specifications

Rev. 2025-09-12
Output
Output voltage 48 V
Rated current 4.4 A
Rated power 211.2 W
Voltage adjustment range 43.2–52.8 V
Ripple & noise 200 mVp-p
Input
AC input range 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC)
DC input range 240–370 VDC
Frequency range 47–63 Hz
Typical efficiency 90 %
Environmental
Operating temperature -25 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 215 × 115 × 30 mm
Net weight 660.0 g
Safety & compliance
Safety standards GB 4943.1, BS EN/EN61558-1, BS EN61558-2-16; Designed by BS/EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number LRS-200N2-48
Brand MEAN WELL
Category AC/DC Enclosed Type
Series LRS-200N2

Approvals and compliance

From the manufacturer's datasheet for this series
Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BSMI CNS15936, EAC TP TC 020
EMC immunity Compliance to BS EN/EN55035, EAC TP TC 020

Standards certified against

  • EN61558-1
  • EN61558-2-16
  • GB 4943.1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS/EN/EN62368-1

Read the datasheet's exact wording

GB 4943.1, BS EN/EN61558-1, BS EN61558-2-16; Designed by BS/EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number LRS-200N2-48
Minimum order quantity 1
Country of origin China
Typical packed weight 863 g
Unit weight 660 g

Downloads

LRS-200N2 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
LRS-200N2-48 48 V4.4 A211.2 W$42.95
Ships in 3–5 business days
LRS-200N2-3636 V5.9 A212.4 W$42.95
Ships in 3–5 business days

LRS-200N2-48 output voltage is 48 V and output current is 4.4 A; LRS-200N2-12 output voltage is 12 V and output current is 17 A.

LRS-200N2-48 output voltage is 48 V and output current is 4.4 A; LRS-200N2-24 output voltage is 24 V and output current is 8.8 A.

LRS-200N2-48 output voltage is 48 V and output current is 4.4 A; LRS-200N2-36 output voltage is 36 V and output current is 5.9 A.

LRS-200N2-48 rated power is 211.2 W; LRS-200N2-12 rated power is 204 W; LRS-200N2-36 rated power is 212.4 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for LRS-200N2-48

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting LRS-200N2-48 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-09-12
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
