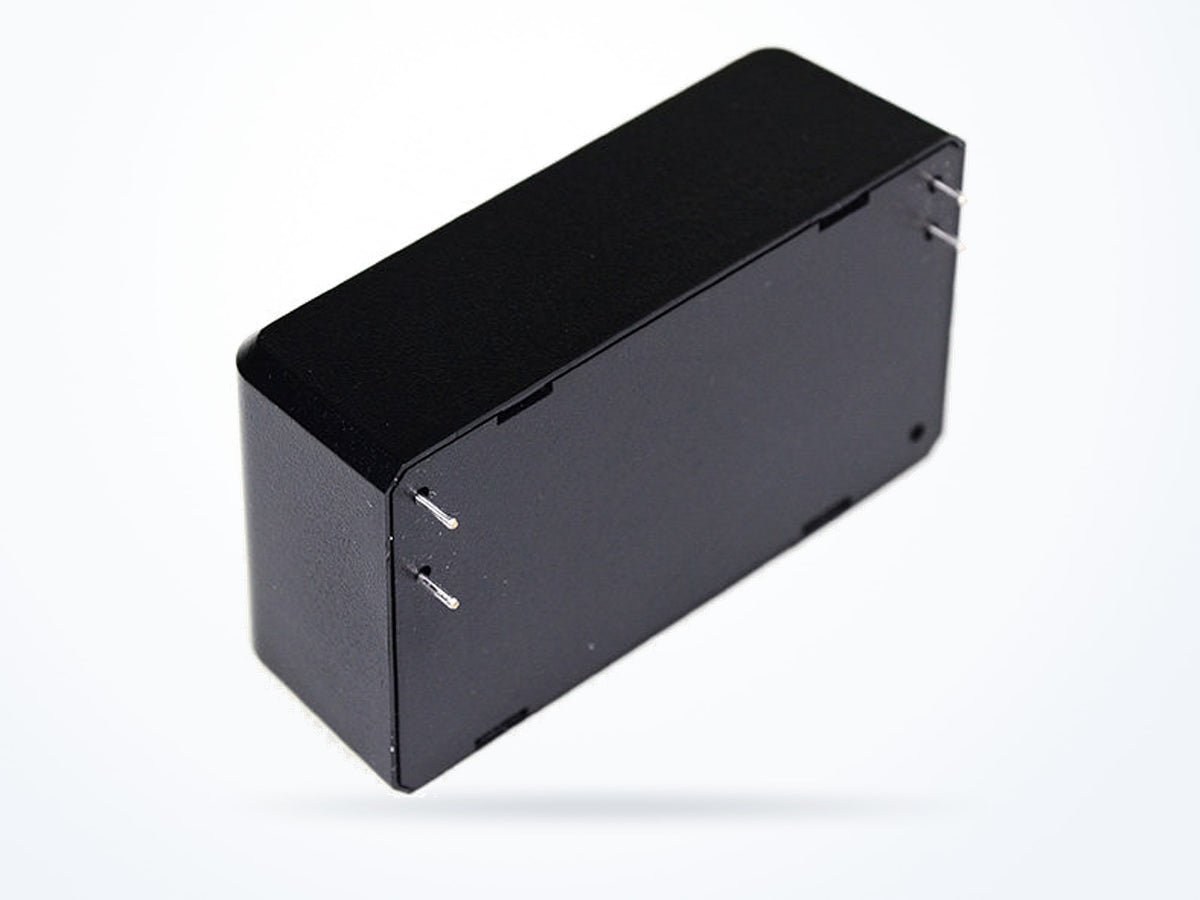

MEAN WELL IRM-30-12 30W 12V 2.5A Open Frame

Part numberIRM-30-12
Output voltage 12 V
Rated current 2.5 A
Rated power 30 W
$18.95Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
IRM-30 model selection table Industrial - On Board Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 2.5 A
Rated power 30 W
AC input range 85–305 VAC
Typical efficiency 8 %
Mechanical
Operating temperature -30 to 85 °C
Dimensions (L × W × H) 69.5 × 39 × 24 mm

Is this model right for you?

Within the IRM-30 series, the IRM-30-12 differs from siblings by output voltage and current. IRM-30-5: 5 V, 6 A; IRM-30-12: 12 V, 2.5 A; IRM-30-15: 15 V, 2 A; IRM-30-24: 24 V, 1.3 A; IRM-30-48: 48 V, 0.63 A. Ripple and noise also differs: IRM-30-5 lists 120 mVp-p, IRM-30-12 lists 150 mVp-p, IRM-30-15 lists 200 mVp-p, IRM-30-24 lists 240 mVp-p, and IRM-30-48 lists 300 mVp-p.

Product overview

The IRM-30-12 is part of the IRM-30 series in the Industrial - On Board Type family. It provides a 12 V output at 2.5 A with 30 W rated power. The input voltage range is 85 to 305 VAC at 47 to 440 Hz. Ripple and noise is 150 mVp-p. Dimensions are 69.5 × 39 × 24 mm.

Where this model fits

The IRM-30-12 is used in Embedded & Board-level Design. Its 12 V output and 2.5 A output current are the electrical figures for this model. The operating temperature range is -30 to 85 °C, and the dimensions are 69.5 × 39 × 24 mm.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 12 V
Rated current 2.5 A
Rated power 30 W
Ripple & noise 150 mVp-p
Input
AC input range 85–305 VAC
Frequency range 47–440 Hz
Typical efficiency 8 %
Environmental
Operating temperature -30 to 85 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 69.5 × 39 × 24 mm
Net weight 113.0 g
Safety & compliance
Safety standards IEC62368-1,IEC61558-1/-2-16, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number IRM-30-12
Brand MEAN WELL
Category AC/DC Open Frame
Series IRM-30

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4.2KVac

Standards certified against

  • CNS15598-1
  • EN60335-1
  • EN61558-1/-2-16
  • EN62368-1
  • IEC61558-1/-2-16
  • IEC62368-1
  • UL62368-1
Read the datasheet's exact wording

IEC62368-1,IEC61558-1/-2-16, UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,EAC TP TC 004, BSMI CNS15598-1 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number IRM-30-12
Minimum order quantity 1
Country of origin China
Typical packed weight 272 g
Unit weight 113 g

Downloads

IRM-30 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
IRM-30-12 12 V2.5 A30 W$18.95
Ships in 3–5 business days
IRM-30-1515 V2 A30 W$18.95
Ships in 3–5 business days

IRM-30-12: 12 V output, 2.5 A; IRM-30-5: 5 V output, 6 A.

IRM-30-12: 12 V output, 2.5 A; IRM-30-15: 15 V output, 2 A.

IRM-30-12: 12 V output, 2.5 A; IRM-30-24: 24 V output, 1.3 A.

IRM-30-12: 12 V output, 2.5 A; IRM-30-48: 48 V output, 0.63 A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for IRM-30-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting IRM-30-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
