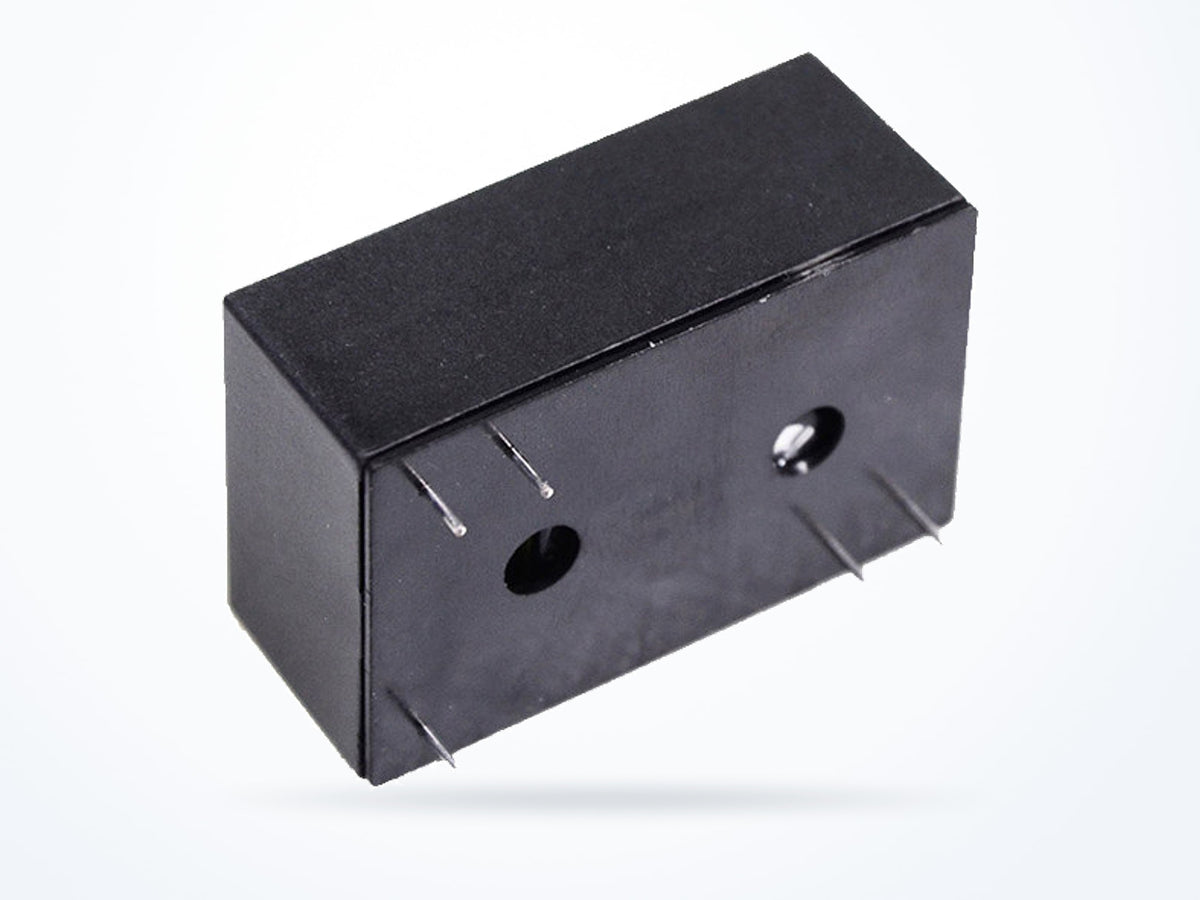

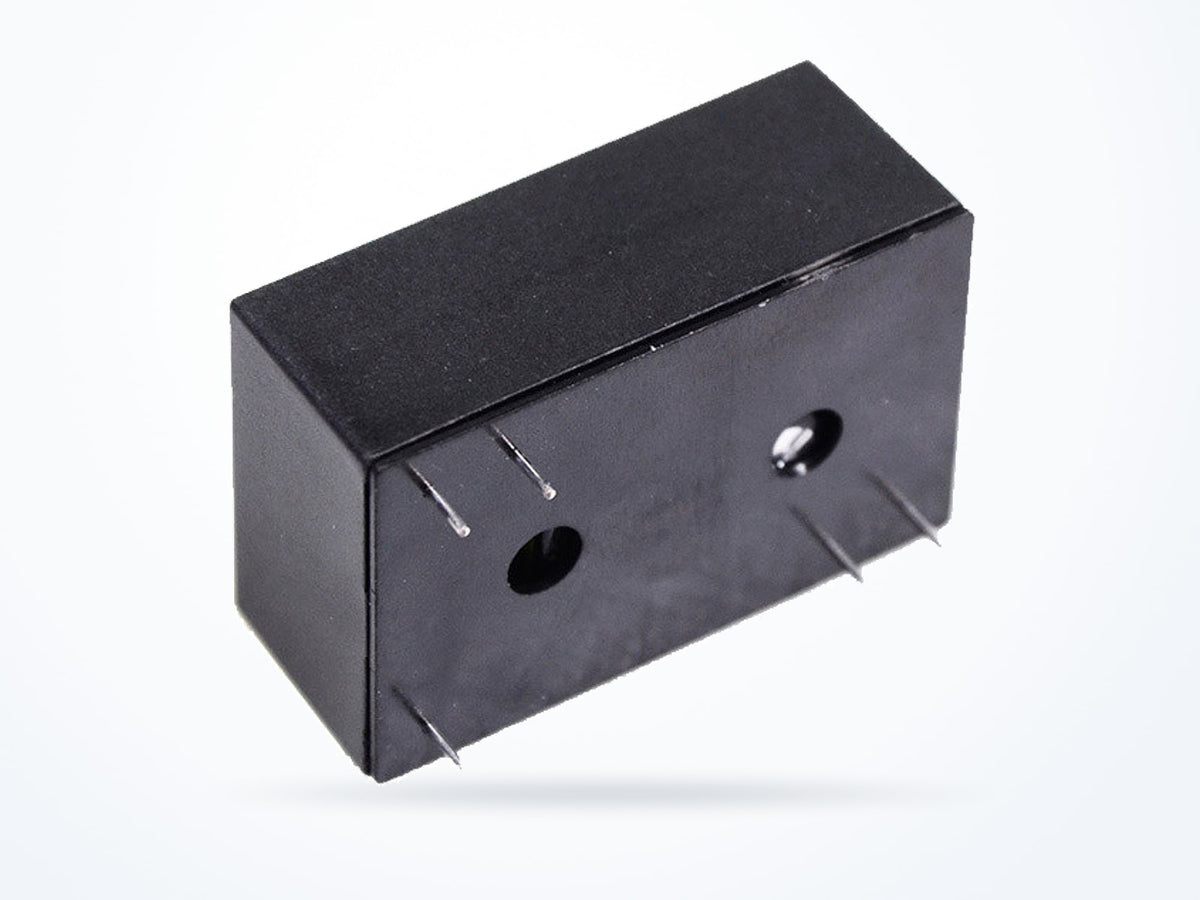

MEAN WELL IRM-03-15 3W 15V 0.2A Open Frame

Part numberIRM-03-15
Output voltage 15 V
Rated current 0.2 A
Rated power 3 W
$9.16Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
IRM-03 model selection table Industrial - On Board Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 0.2 A
Rated power 3 W
AC input range 85–305 VAC
Typical efficiency 78 %
Mechanical
Cooling Free-air convection
Operating temperature -30 to 85 °C
Dimensions (L × W × H) 37 × 24 × 15 mm

Is this model right for you?

Within the IRM-03 series, the IRM-03-15 is distinguished by its 15 V output and 0.2 A output current. IRM-03-12 provides 12 V at 0.25 A, IRM-03-24 provides 24 V at 0.125 A, IRM-03-3.3 provides 3.3 V at 0.9 A, IRM-03-5 provides 5 V at 0.6 A, and IRM-03-9 provides 9 V at 0.333 A.

Product overview

The IRM-03-15 is part of the IRM-03 series from MEAN WELL. It provides a 15 V output at 0.2 A with a rated power of 3 W. The input range is 85 ~ 305Vac or 120~430Vdc at 47 ~ 63Hz. Typical efficiency is 78%, and ripple and noise is 200mVp-p. Dimensions are 37 × 24 × 15 mm.

Where this model fits

The IRM-03-15 is used in Embedded & Board-level Design. Its 15 V output and 0.2 A output current are the electrical figures for this model. The operating temperature range is -30 to 85 °C, and the dimensions are 37 × 24 × 15 mm.

Complete technical specifications

Output
Output voltage 15 V
Rated current 0.2 A
Rated power 3 W
Ripple & noise 200 mVp-p
Input
AC input range 85–305 VAC
DC input range 120–430 VDC
Frequency range 47–63 Hz
Typical efficiency 78 %
Environmental
Operating temperature -30 to 85 °C
Storage temperature -40 to 100 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 37 × 24 × 15 mm
Net weight 23.0 g
Cooling Free-air convection
Fan Not supported
Safety & compliance
Safety standards IEC62368-1,IEC61558-1/-2-16,UL62368-1, TUV BS EN/EN62368, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, EAC TP TC 004, BSMI CNS15598-1 approved, design refer to IEC60601-1 (By request)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number IRM-03-15
Brand MEAN WELL
Category AC/DC Open Frame
Series IRM-03

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4.2KVac
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, heavy industry level (surge L-N : 1KV), EAC TP TC 020

Standards certified against

  • CNS15598-1
  • EN60335-1
  • EN61558-1/-2-16
  • EN62368
  • IEC61558-1/-2-16
  • IEC62368-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

IEC60601-1 (By request)

Read the datasheet's exact wording

IEC62368-1,IEC61558-1/-2-16,UL62368-1, TUV BS EN/EN62368, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, EAC TP TC 004, BSMI CNS15598-1 approved, design refer to IEC60601-1 (By request)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number IRM-03-15
Minimum order quantity 1
Country of origin China
Warranty 3-year limited warranty, as stated in the product datasheet.
Typical packed weight 175 g
Unit weight 23 g

Downloads

IRM-03 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
IRM-03-15 15 V0.2 A3 W$9.16
Ships in 3–5 business days
IRM-03-2424 V0.125 A3 W$8.53
Ships in 3–5 business days

IRM-03-15 provides 15 V output; IRM-03-12 provides 12 V output.

IRM-03-15 provides 0.2 A output current; IRM-03-24 provides 0.125 A output current.

IRM-03-15 provides 200mVp-p ripple and noise; IRM-03-3.3 provides 100mVp-p ripple and noise.

IRM-03-15 provides 78% typical efficiency; IRM-03-24 provides 80% typical efficiency.
