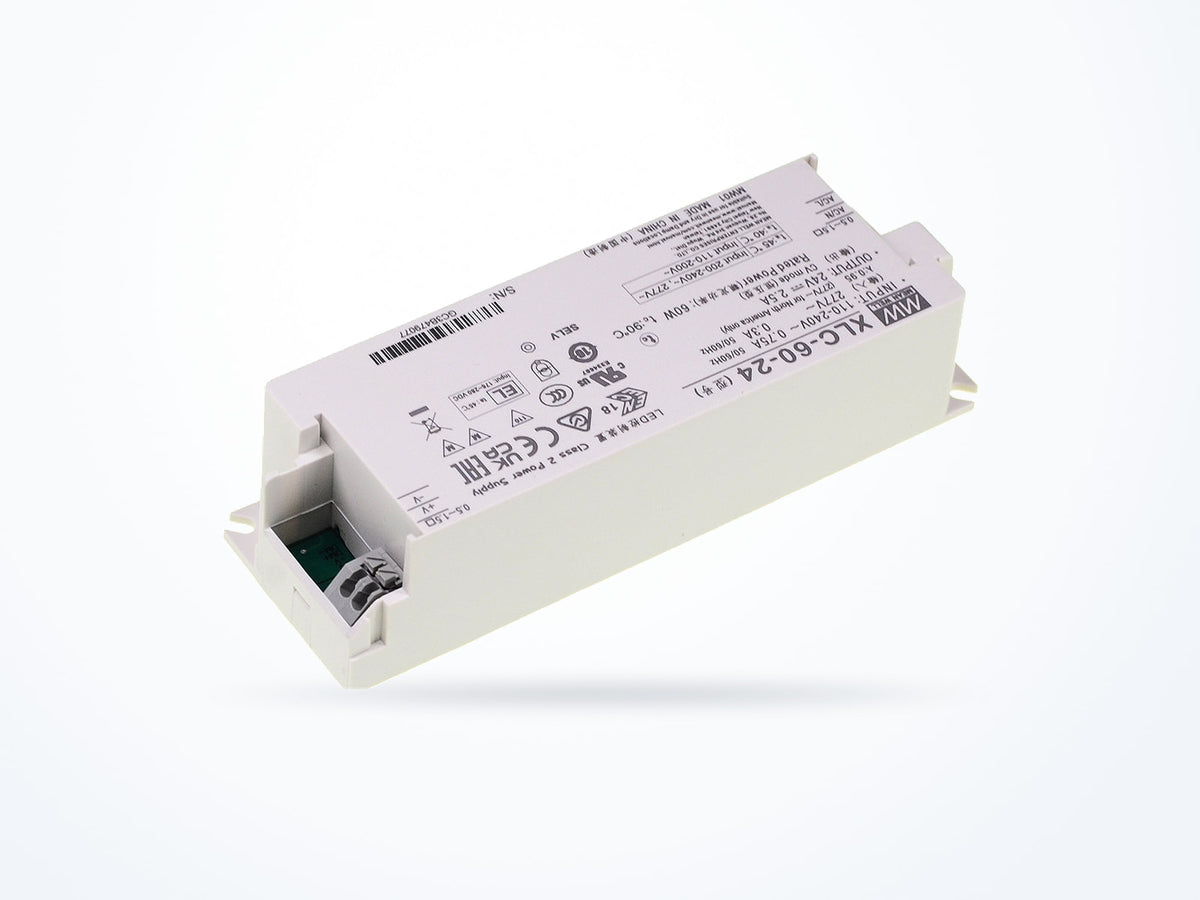

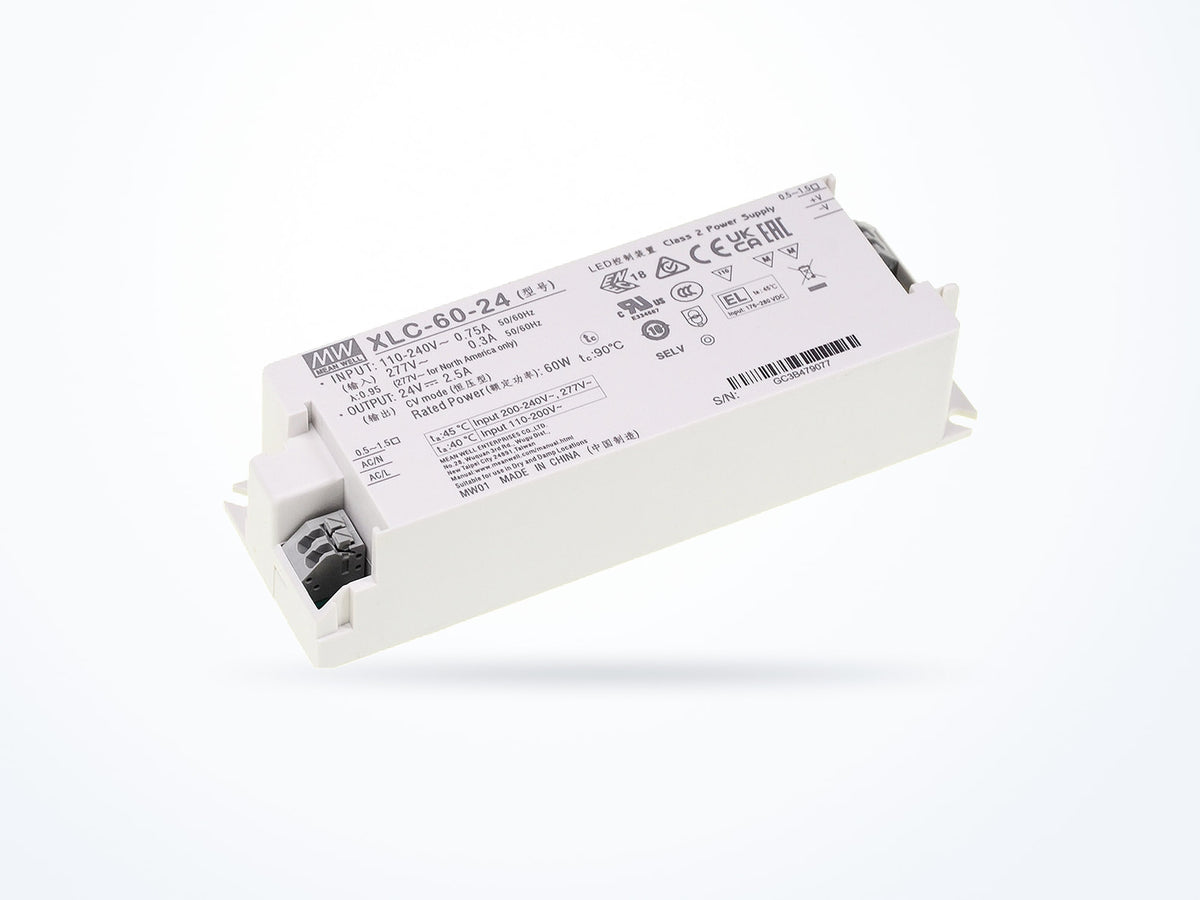

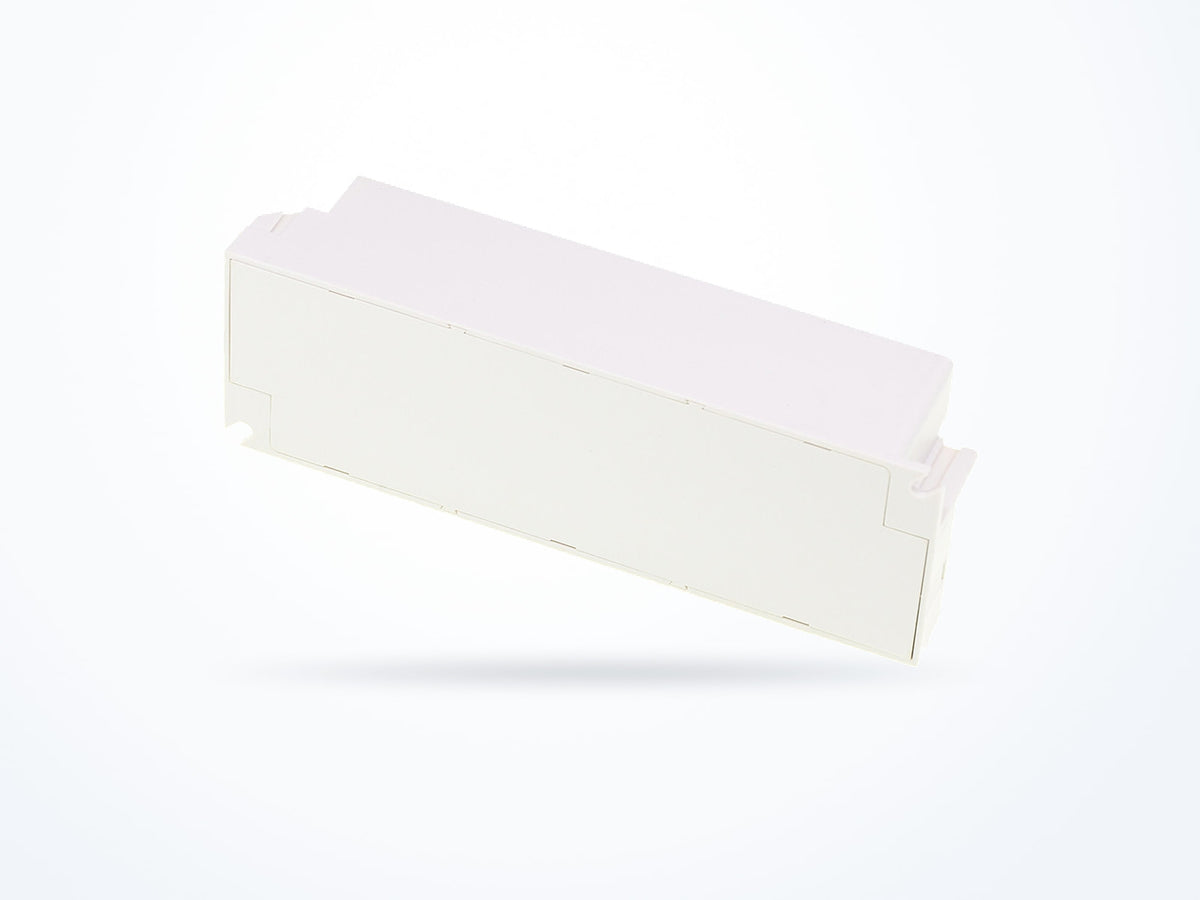

MEAN WELL XLC-60-24 60W 24V 2.5A LED Driver
Part numberXLC-60-24
Output voltage
24 V
Rated current
2.5 A
Rated power
60 W
$37.58Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 24 V |
|---|---|
| Rated current | 2.5 A |
| Rated power | 60 W |
| Typical efficiency | 87 % |
| Power factor correction | Supported |
|---|---|
| Dimensions (L × W × H) | 176 × 45 × 32 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2025-01-24| Output voltage | 24 V |
|---|---|
| Rated current | 2.5 A |
| Rated power | 60 W |
| Frequency range | 47–63 Hz |
|---|---|
| Typical efficiency | 87 % |
| Power factor | 0.95 |
| Power factor correction | Supported |
| Short circuit | Protected |
|---|---|
| Overload | Protected |
| Over voltage | Protected |
| Over temperature | Protected |
Hiccup mode, recovers automatically after fault condition is removed.
| Storage temperature | -40 to 80 °C |
|---|---|
| Operating humidity | 20–90 % RH |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Dimensions (L × W × H) | 176 × 45 × 32 mm |
|---|---|
| Net weight | 320.0 g |
| Part number | XLC-60-24 |
|---|---|
| Brand | MEAN WELL |
| Category | AC/DC LED Driver |
| Series | XLC-60 |
Approvals and compliance
From the manufacturer's datasheet for this series| Withstand voltage | I/P-O/P:3.75KVAC |
|---|---|
| Isolation resistance | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC emission | Parameter Standard Test Level/Note |
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | XLC-60-24 |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Warranty | 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement. |
| Typical packed weight | 495 g |
| Unit weight | 320 g |
XLC-60 model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| XLC-60-48 | 48 V | 1.25 A | 60 W | $37.58 |
Ships in 3–5 business days
|
| XLC-60-24 Currently viewing | 24 V | 2.5 A | 60 W | $37.58 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for XLC-60-24
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2025-01-24
- Last verified
View the manufacturer datasheet How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
