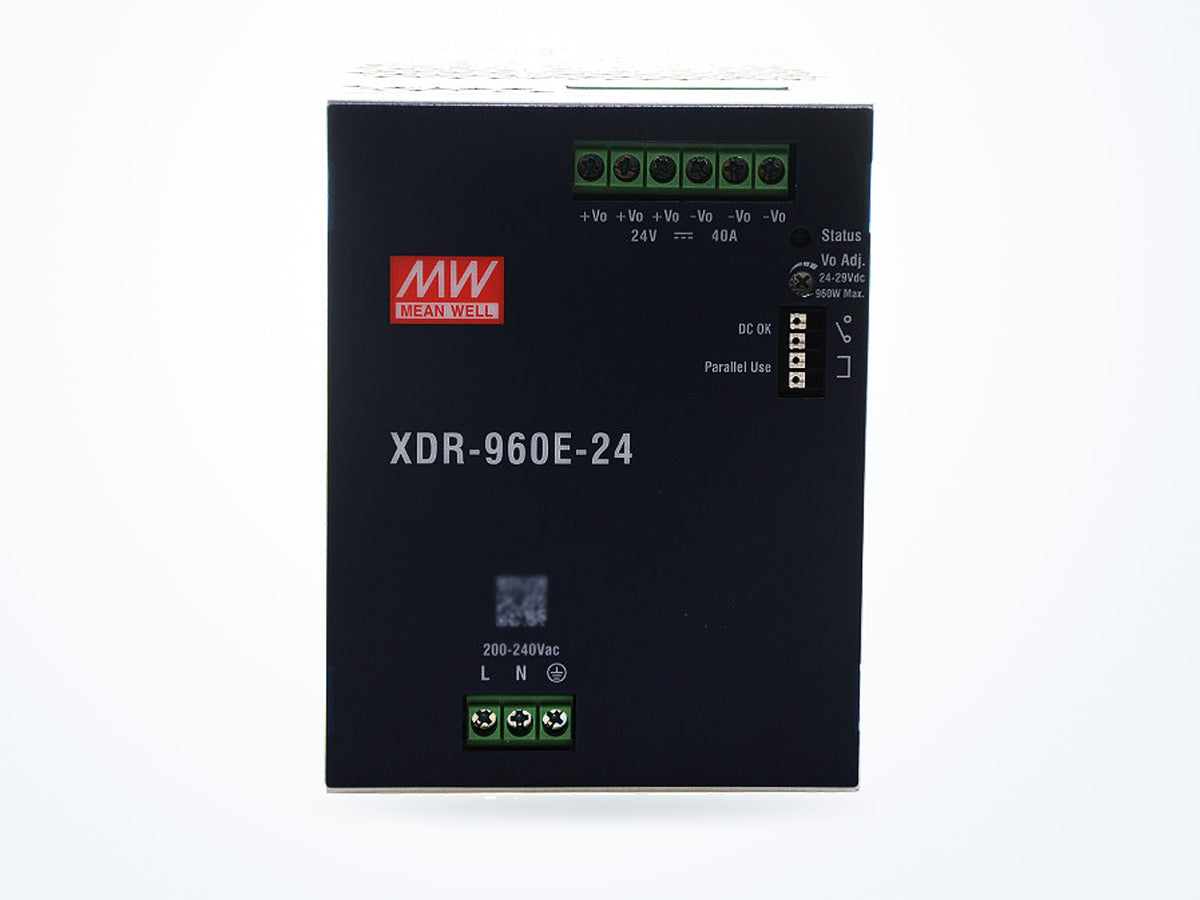

MEAN WELL XDR-960E-24 960W 24V 40A DIN Rail

Part numberXDR-960E-24
Output voltage 24 V
Rated current 40 A
Rated power 960 W
$316.15Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote

Procurement confidence

  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.
Output
Output voltage 24 V
Rated current 40 A
Rated power 960 W
Mechanical
Operating temperature -40 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 96 × 125.2 × 132 mm

Is this model right for you?

The XDR-960E-24 is one of 3 models in the XDR-960E series. It lists 24 V at 40 A (960 W).

Product overview

The XDR-960E-24 belongs to the MEAN WELL XDR-E Series and the XDR-960E series, classified as an AC/DC DIN Rail product. Its input frequency range is 47 ~ 63Hz. The product measures 96 × 125.2 × 132 mm and has a net weight of 1930 g. Relative humidity is listed from 20% to 95%.

Complete technical specifications

Rev. 2026-04-10
Output
Output voltage 24 V
Rated current 40 A
Rated power 960 W
Input
Frequency range 47–63 Hz
No-load consumption 3.9 W
Power factor 0.95
Power factor correction Supported
Protection
Overload Protected
Over voltage Protected
Over temperature Protected
Shut down o/p voltage, re-power on to recover
Environmental
Operating temperature -40 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Mechanical
Dimensions (L × W × H) 96 × 125.2 × 132 mm
Net weight 1930.0 g
Safety & compliance
Safety standards CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL UL/CUL 61010-1/-2-201 CCC GB4943.1 BSMI CNS15598-1 EAC TPTC004 approved KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number XDR-960E-24
Brand MEAN WELL
Category AC/DC DIN Rail
Series XDR-960E

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

China

  • CCC

    China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

South Korea

  • KC

    Korea Certification, mandatory for electrical equipment in scope. The KC number mirrors the IEC standard it is based on, so KC 62368-1 is assessment against the Korean adoption of IEC 62368-1.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac
Isolation resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500Vdc/25℃/ 70%RH

Standards certified against

  • CNS15598-1
  • EN 61010-1/-2-201
  • EN 61558-1/-2-16
  • EN 62368-1
  • GB4943.1
  • IEC 61010-1/-2-201
  • IEC 61558-1/2-16
  • IEC 62368-1
  • IS 13252
  • KC 62368-1
  • UL 61010-1/-2-201
Read the datasheet's exact wording

CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 TUV BS EN/EN 62368-1, BS EN /EN 61558-1/-2-16, BS EN/EN 61010-1/-2-201 UL UL/CUL 61010-1/-2-201 CCC GB4943.1 BSMI CNS15598-1 EAC TPTC004 approved KC/BIS KC 62368-1 and BIS IS 13252 (Part 1) certified, No stock ,contact sales by request

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.
  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number XDR-960E-24
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 2304 g
Unit weight 1930 g

XDR-960E model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
XDR-960E-24 Currently viewing24 V40 A960 W$316.15
Ships in 3–5 business days
XDR-960E-4848 V20 A960 W$341.41
Ships in 3–5 business days

XDR-960E-24: 24 V output; XDR-960E-36: 36 V; XDR-960E-48: 48 V.

XDR-960E-24: 40 A output current; XDR-960E-48: 20 A; XDR-960E-36: 26.6 A.

XDR-960E-24: 960 W rated power; XDR-960E-36: 958 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for XDR-960E-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting XDR-960E-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-10
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
