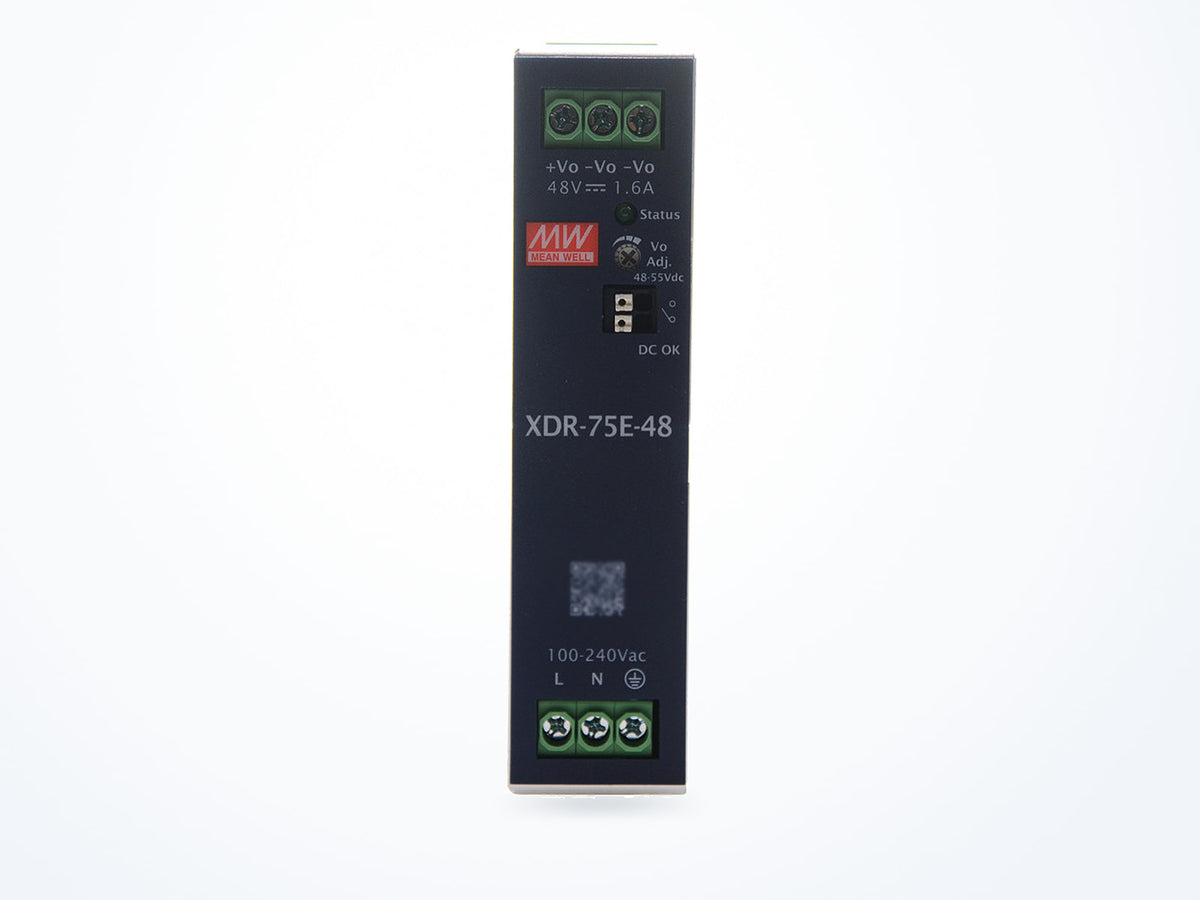

MEAN WELL XDR-75E-48 76.8W 48V 1.6A DIN Rail
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 48 V |
|---|---|
| Rated current | 1.6 A |
| Rated power | 76.8 W |
| Operating temperature | -40 to 70 °C |
|---|---|
| Dimensions (L × W × H) | 30 × 125.2 × 116 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2026-04-10| Output voltage | 48 V |
|---|---|
| Rated current | 1.6 A |
| Rated power | 76.8 W |
| Frequency range | 47–63 Hz |
|---|---|
| No-load consumption | 0.5 W |
| Overload | Protected |
|---|---|
| Over voltage | Protected |
| Over temperature | Protected |
| Operating temperature | -40 to 70 °C |
|---|---|
| Storage temperature | -40 to 85 °C |
| Operating humidity | 20–95 % RH |
| Vibration | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| Dimensions (L × W × H) | 30 × 125.2 × 116 mm |
|---|---|
| Net weight | 465.0 g |
| Safety standards | CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201 |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | XDR-75E-48 |
|---|---|
| Brand | MEAN WELL |
| Category | AC/DC DIN Rail |
| Series | XDR-75E |
Approvals and compliance
From the manufacturer's datasheet for this series| Withstand voltage | I/P-O/P: 4KVac I/P-FG: 2KVac O/P-FG: 1.5KVac O/P-DC OK: 0.5KVac |
|---|---|
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500Vdc/25℃/ 70%RH |
Standards certified against
- IEC 61010-1/-2-201
- IEC 61558-1/2-16
- IEC 62368-1
Read the datasheet's exact wording
CB IEC 62368-1, IEC 61558-1/2-16, IEC 61010-1/-2-201
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | XDR-75E-48 |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Warranty | 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement. |
| Typical packed weight | 656 g |
| Unit weight | 465 g |
XDR-75E model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| XDR-75E-36 | 36 V | 2.1 A | 75.6 W | $35.37 |
Ships in 3–5 business days
|
| XDR-75E-48 Currently viewing | 48 V | 1.6 A | 76.8 W | $35.37 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for XDR-75E-48
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2026-04-10
- Last verified
View the manufacturer datasheet How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
