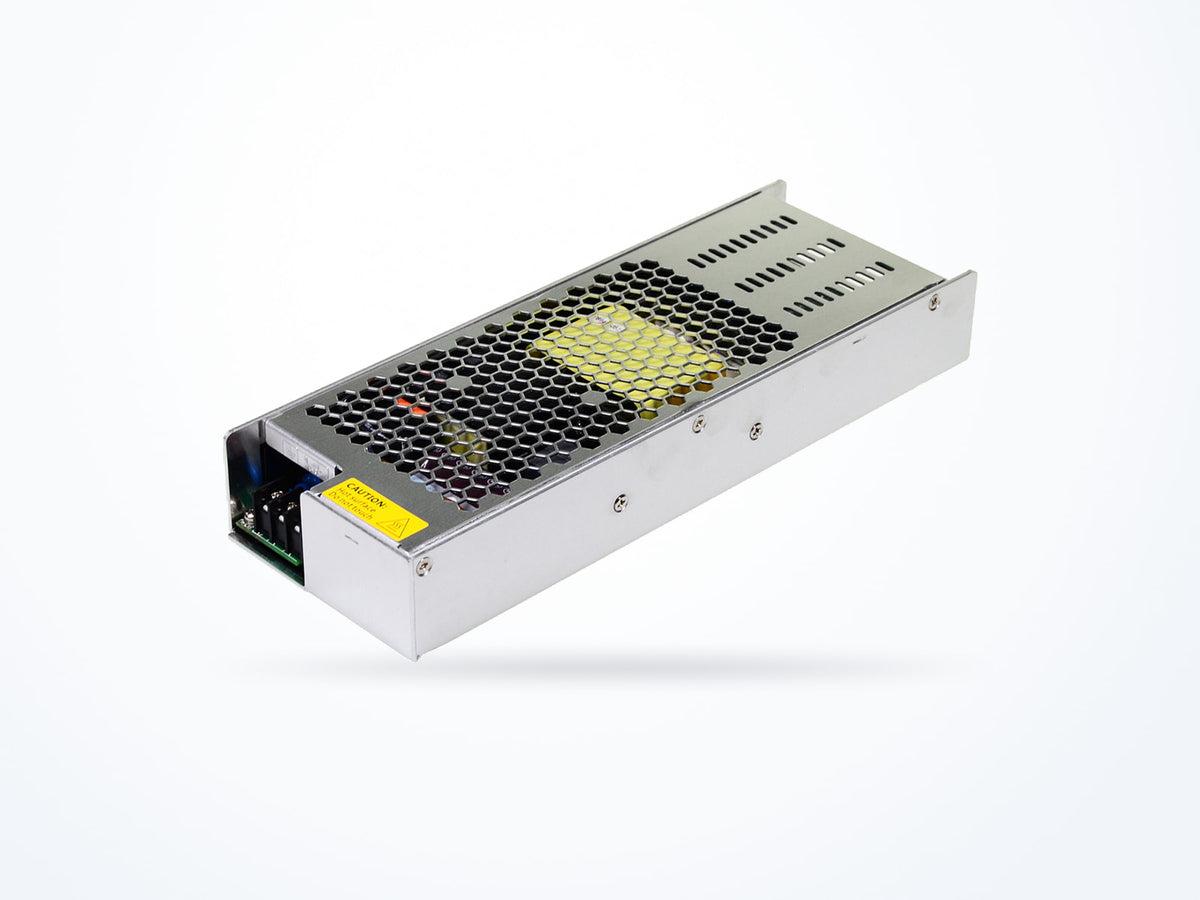

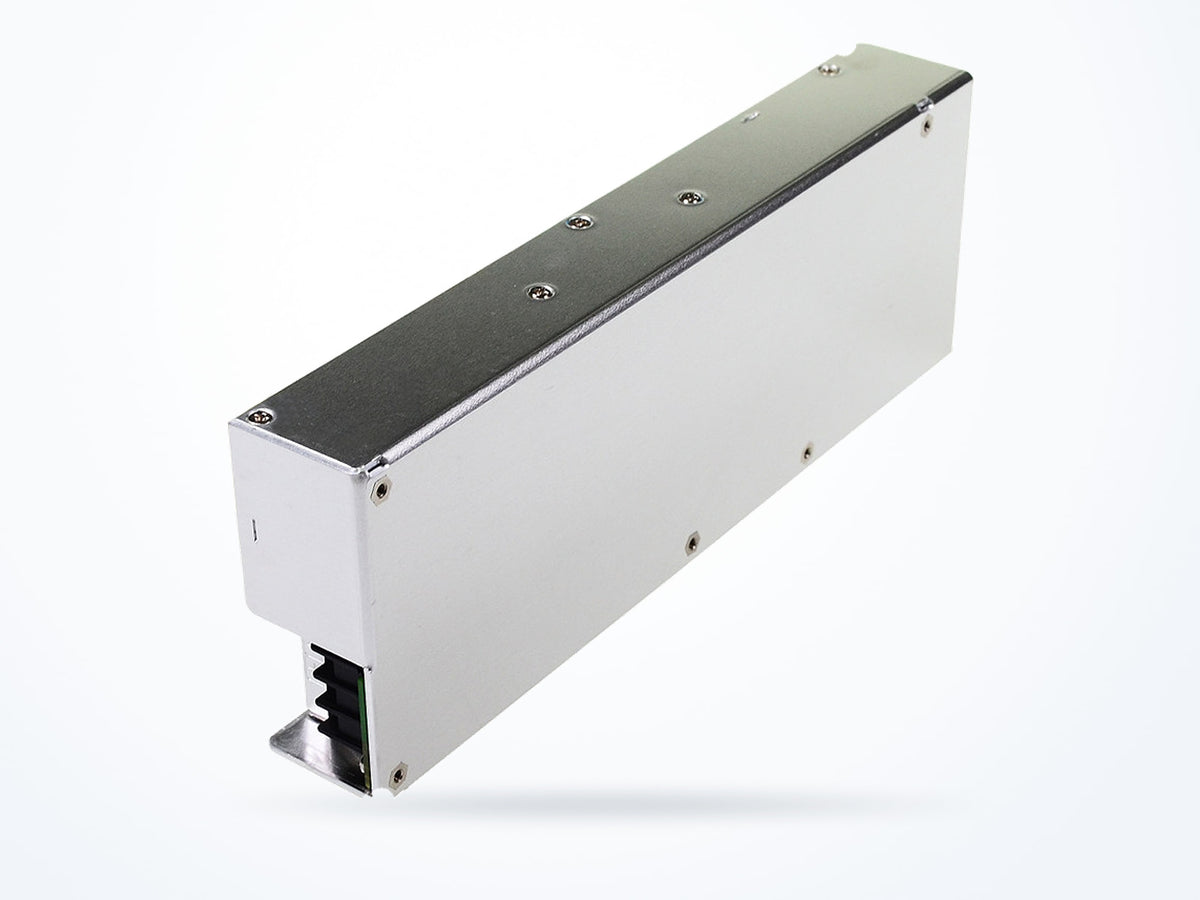

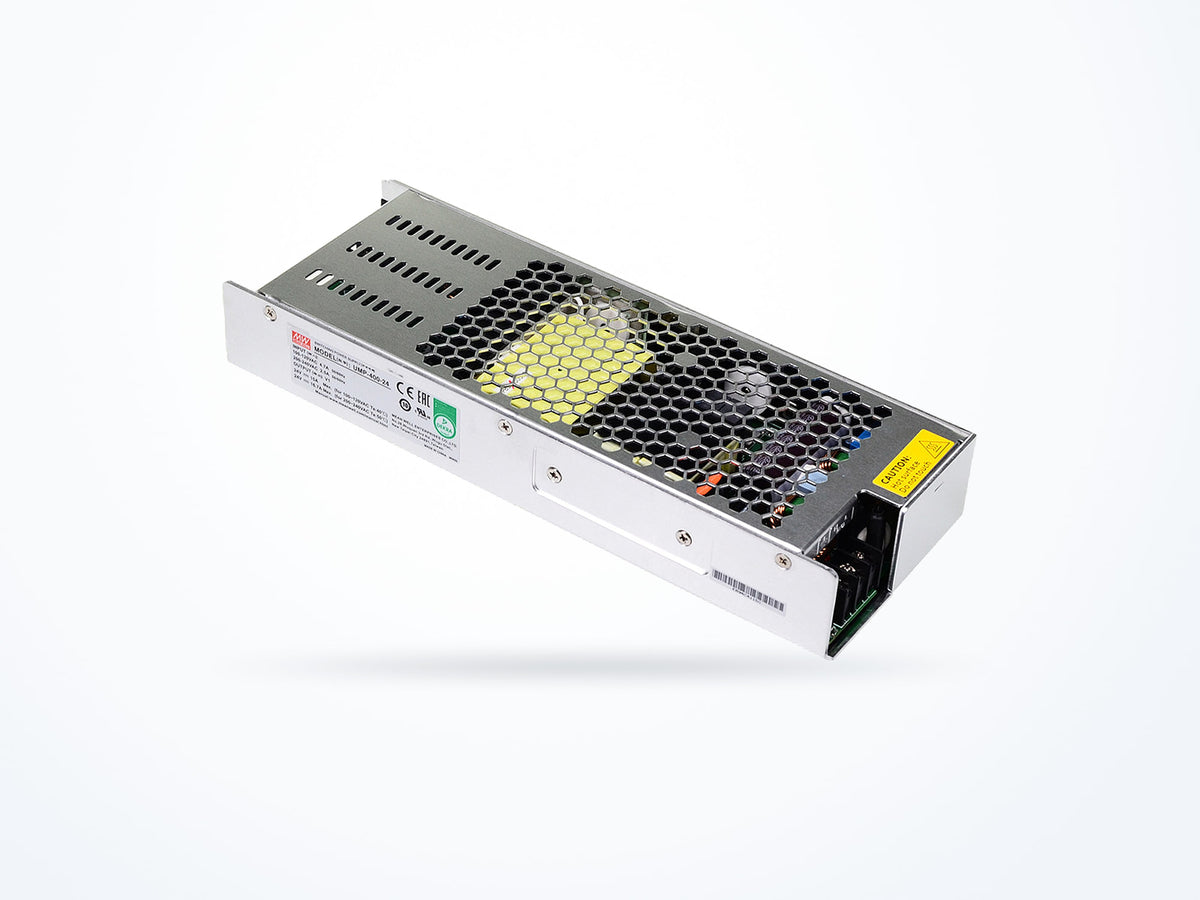

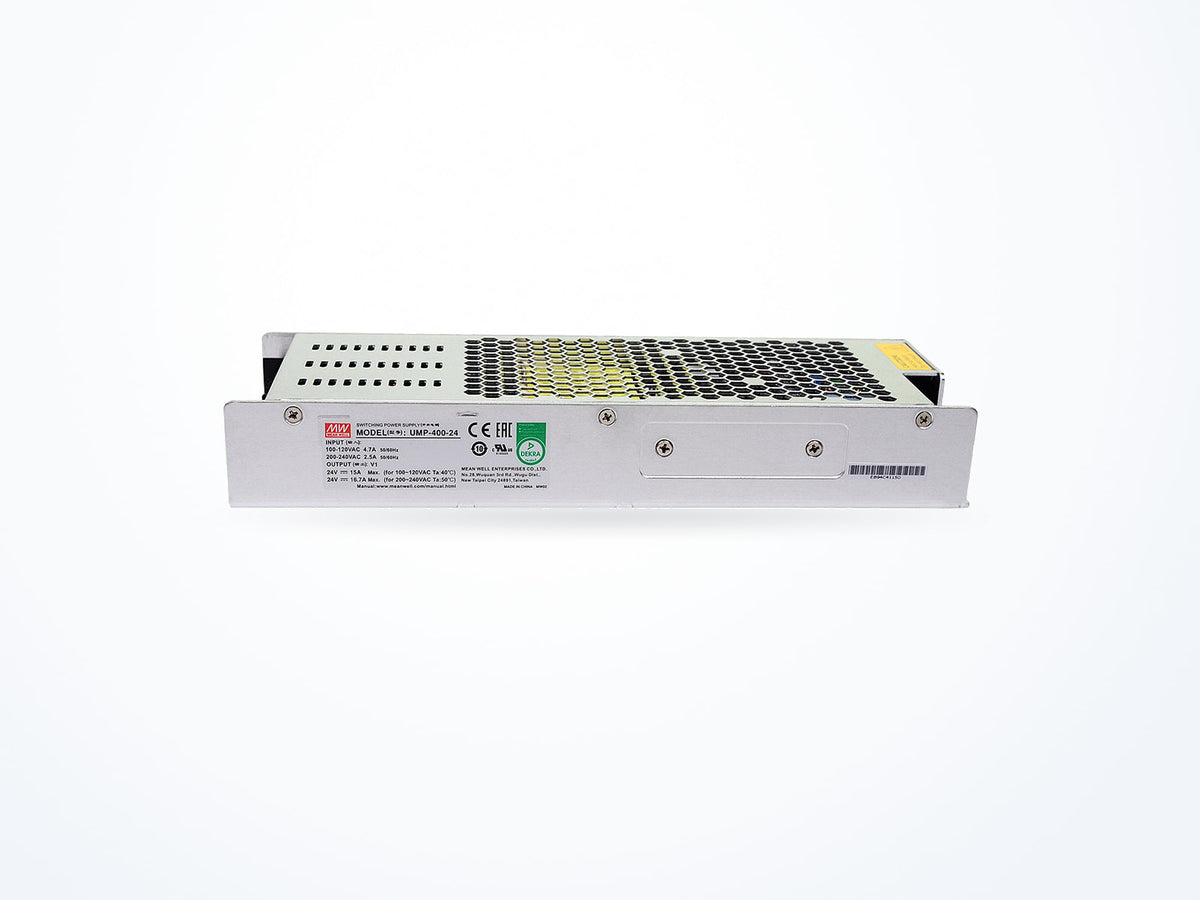

MEAN WELL UMP-400-24 400.8W 24V 16.7A Configurable

Part numberUMP-400-24
Output voltage 24 V
Rated current 16.7 A
Rated power 400.8 W
$137.70Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
UMP-400 model selection table UMP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 16.7 A
Rated power 400.8 W
AC input range 90–264 VAC
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported

Is this model right for you?

Within the UMP-400 series, choose between the two output voltage options. UMP-400-24 provides 24 V at 16.7 A, while UMP-400-48 provides 48 V at 8.3 A. Select the model whose output voltage matches the required level.

Product overview

The UMP-400-24 belongs to the MEAN WELL UMP-400 series and is classified as an AC/DC Configurable product. Its output is 24 V at 16.7 A. The input range is 90 ~ 264 VAC or 127 ~ 370 VDC, with a frequency range of 47 ~ 63 Hz. Net weight is 880 g.

Where this model fits

The UMP-400-24 is used in Test & Measurement applications. Its operating temperature range is -30 to 70 °C, and its net weight is 880 g.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 24 V
Rated current 16.7 A
Rated power 400.8 W
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Power factor 0.95
Power factor correction Supported
Protection
Short circuit Protected
Over voltage Protected
Over temperature Protected
shut down o/p voltage, re-power on to recover
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10~500Hz, 2G 10min./1 cycle, 60 min. each along X, Y, Z axes
Mechanical
Net weight 880.0 g
Safety & compliance
Safety standards EAC TP TC 004; UL62368-1, Dekra BS EN/EN62368-1 approved; Design refer to ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC 60601-1 (3rd edition)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number UMP-400-24
Brand MEAN WELL
Category AC/DC Configurable
Series UMP-400

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.5KVAC
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • EN62368-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC 60601-1 (3rd edition)

Read the datasheet's exact wording

EAC TP TC 004; UL62368-1, Dekra BS EN/EN62368-1 approved; Design refer to ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC 60601-1 (3rd edition)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number UMP-400-24
Minimum order quantity 1
Country of origin China
Typical packed weight 1079 g
Unit weight 880 g

Downloads

UMP-400 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
UMP-400-24 24 V16.7 A400.8 W$137.70
Ships in 3–5 business days
UMP-400-4848 V8.3 A398.4 W$137.70
Ships in 3–5 business days

UMP-400-24 provides 24 V output and 16.7 A output current; UMP-400-48 provides 48 V output and 8.3 A output current.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for UMP-400-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting UMP-400-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-11-22
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
