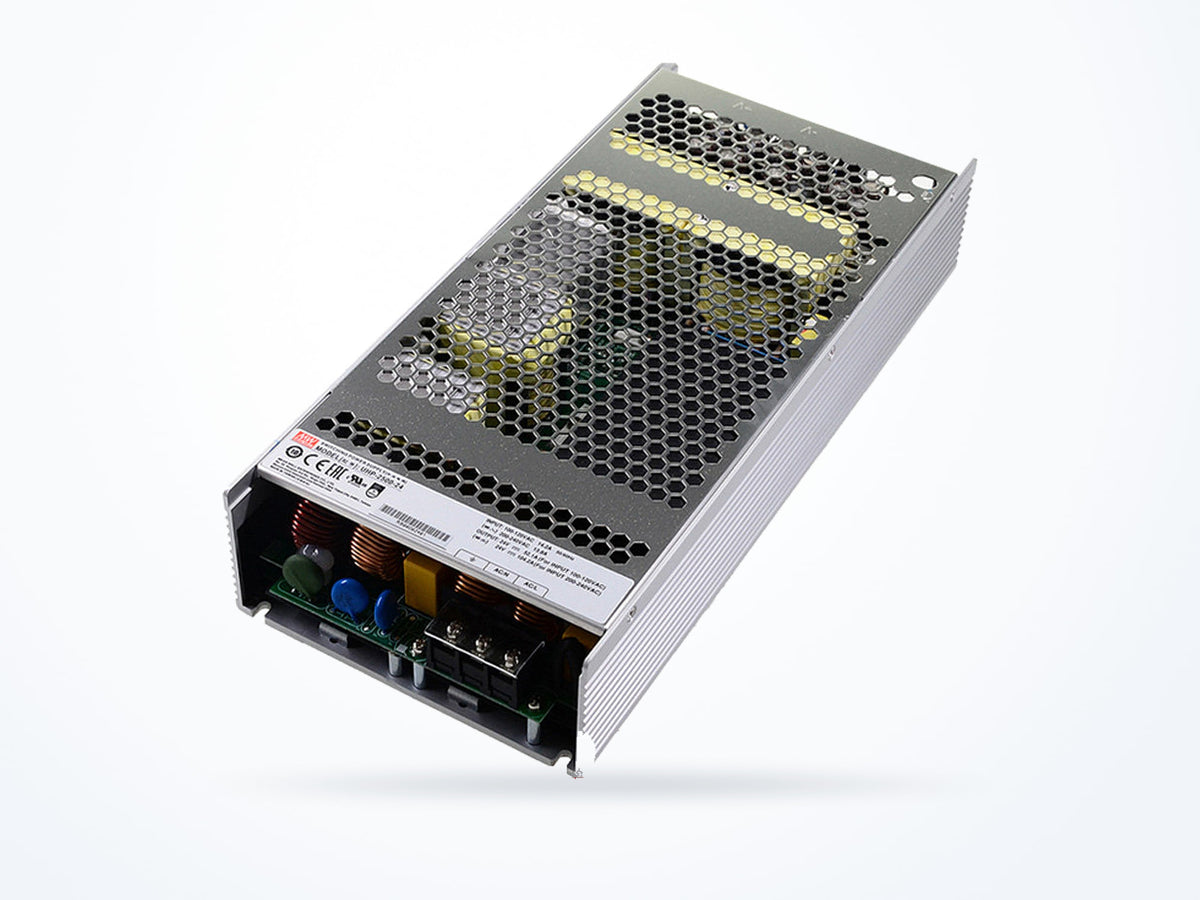

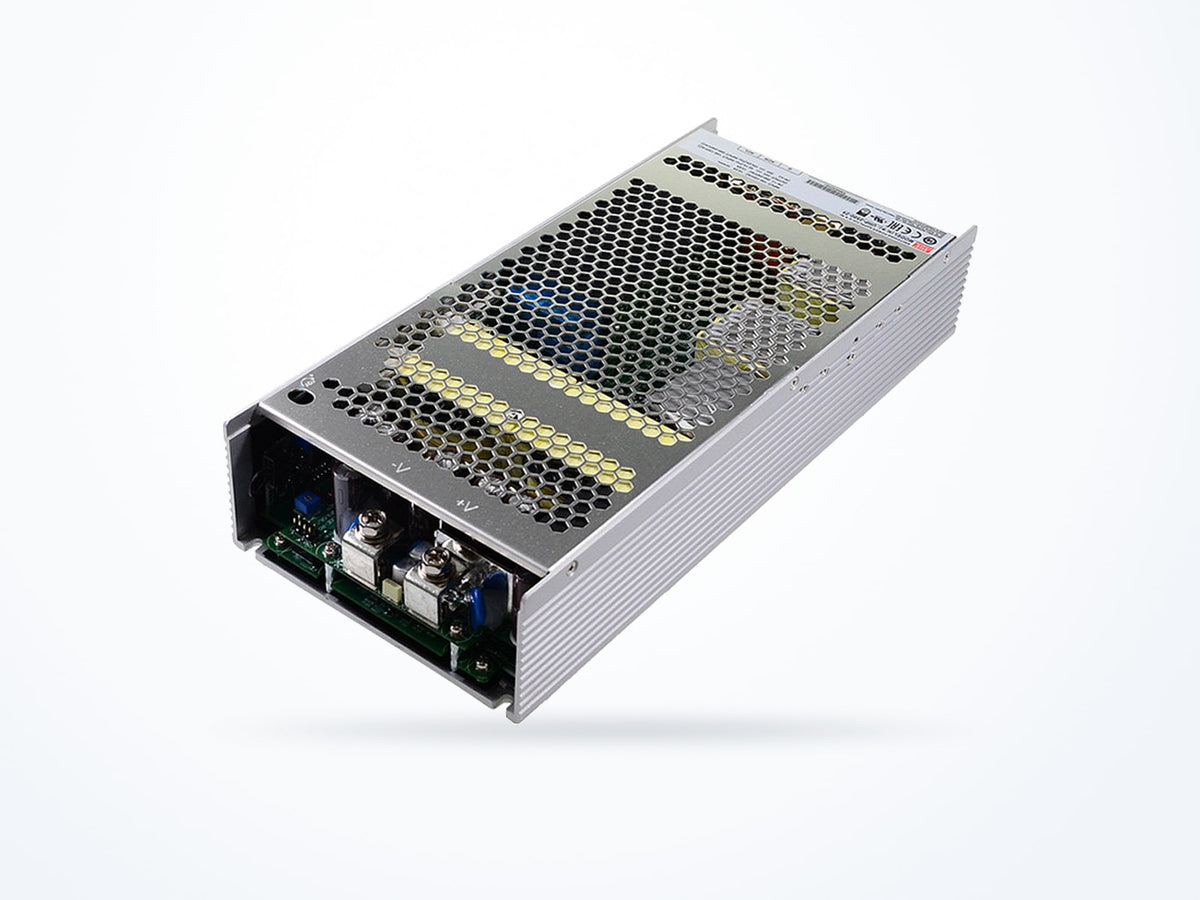

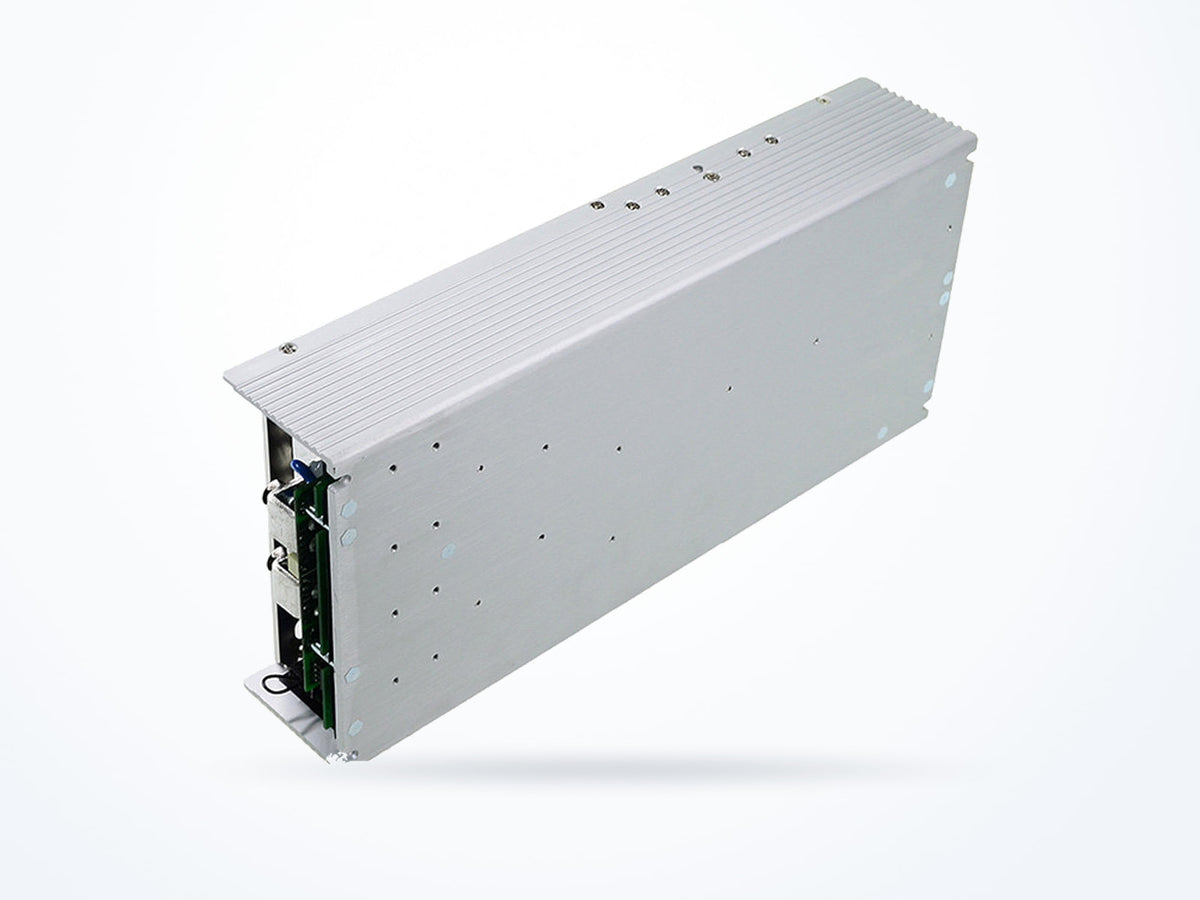

MEAN WELL UHP-2500-36 2498.4W 36V 69.4A Enclosed Type

Part numberUHP-2500-36
Output voltage 36 V
Rated current 69.4 A
Rated power 2498.4 W
$943.71Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
UHP-2500 model selection table UHP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 36 V
Rated current 69.4 A
Rated power 2498.4 W
AC input range 90–264 VAC
Typical efficiency 95.5 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 310 × 140 × 60 mm

Is this model right for you?

Within the UHP-2500 series, the UHP-2500-36 lists a 36 V output and 69.4 A output current. The UHP-2500-24 lists 24 V and 104.2 A, while the UHP-2500-48 lists 48 V and 52.1 A. Rated power differs: UHP-2500-36 lists 2498.4 W; UHP-2500-24 and UHP-2500-48 each list 2500.8 W.

Product overview

The UHP-2500-36 provides a 36 V output at 69.4 A with 2498.4 W rated power. Its input voltage range is 90 ~ 264Vac 250 ~ 370Vdc, with a frequency range of 47 ~ 63Hz. Typical efficiency is 95.5% and ripple and noise is 360mVp-p. Dimensions are 310 × 140 × 60 mm and net weight is 4070 g.

Where this model fits

The UHP-2500-36 provides a 36 V output at 69.4 A with 2498.4 W rated power. Its input voltage range is 90 ~ 264Vac 250 ~ 370Vdc and operating temperature range is -30 to 70 °C. The product is used in Industrial Automation and Motor Drives applications.

Complete technical specifications

Rev. 2025-12-05
Output
Output voltage 36 V
Rated current 69.4 A
Rated power 2498.4 W
Ripple & noise 360 mVp-p
Input
AC input range 90–264 VAC
DC input range 250–370 VDC
Frequency range 47–63 Hz
Typical efficiency 95.5 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 310 × 140 × 60 mm
Net weight 4070.0 g
Safety & compliance
Safety standards UL62368-1, Dekra seal BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number UHP-2500-36
Brand MEAN WELL
Category AC/DC Enclosed Type
Series UHP-2500

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.75KVac I/P-FG:2KVac O/P-FG:1.25KVac
Isolation resistance I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500Vdc/25℃/ 70%RH
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, Dekra seal BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number UHP-2500-36
Minimum order quantity 1
Country of origin China
Typical packed weight 4658 g
Unit weight 4070 g

Downloads

UHP-2500 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
UHP-2500-2424 V104.2 A2500.8 W$943.71
Ships in 3–5 business days
UHP-2500-36 36 V69.4 A2498.4 W$943.71
Ships in 3–5 business days
UHP-2500-4848 V52.1 A2500.8 W$943.71
Ships in 3–5 business days

UHP-2500-36 lists 36 V output and 69.4 A output current; UHP-2500-24 lists 24 V and 104.2 A.

UHP-2500-36 lists 36 V output and 69.4 A output current; UHP-2500-48 lists 48 V and 52.1 A.

UHP-2500-36 lists 2498.4 W rated power; UHP-2500-24 and UHP-2500-48 each list 2500.8 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for UHP-2500-36

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting UHP-2500-36 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-12-05
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
