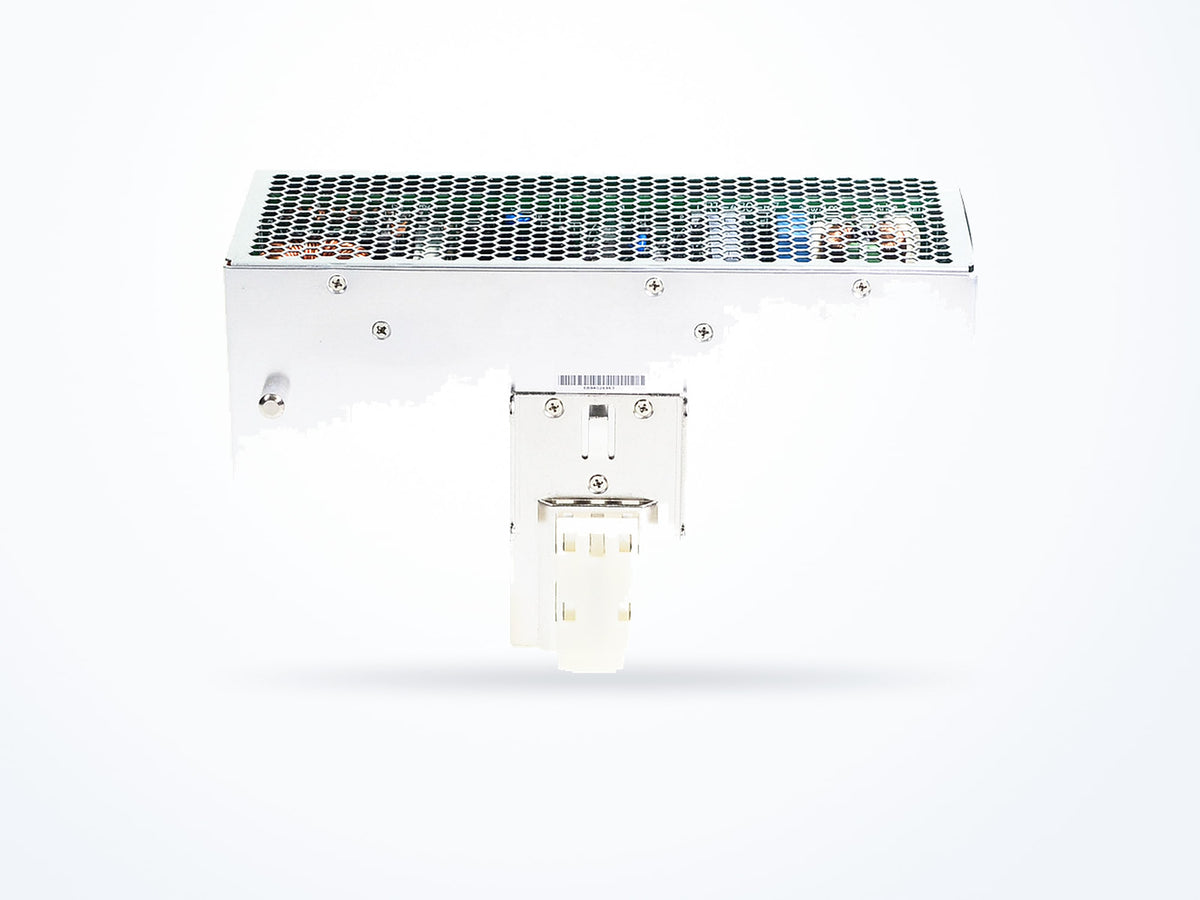

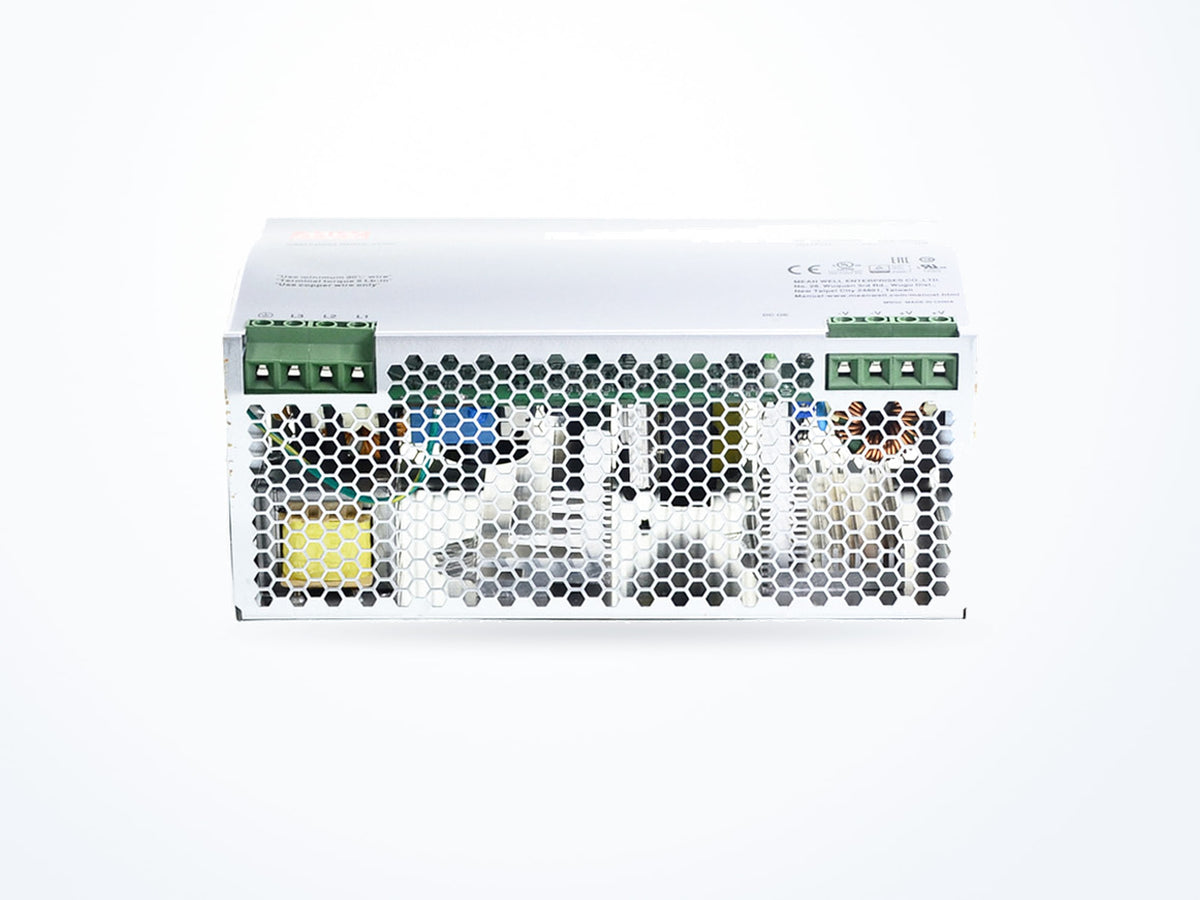

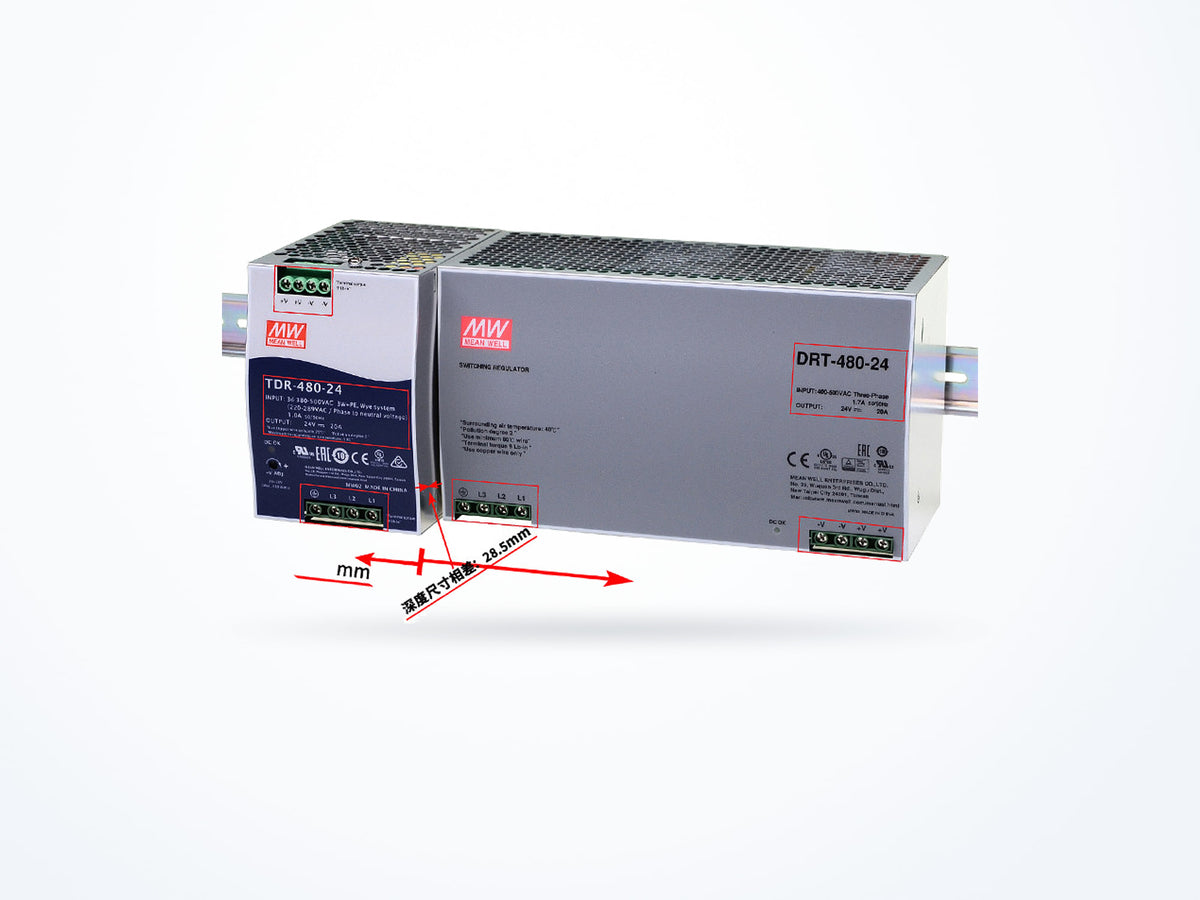

MEAN WELL TDR-480-24 480W 24V 20A DIN Rail

Part numberTDR-480-24
Output voltage 24 V
Rated current 20 A
Rated power 480 W
$172.44Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
TDR-480 model selection table TDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 20 A
Rated power 480 W
AC input range 340–550 VAC
Typical efficiency 92.5 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 85.5 × 125.2 × 128.5 mm

Is this model right for you?

Within the TDR-480 series, the TDR-480-24 lists 24 V output, 20 A output current, and 24 ~ 28V adjustment range. The TDR-480-48 lists 48 V output, 10 A output current, and 48 ~ 55V adjustment range. Typical efficiency is 92.5% for TDR-480-24 and 93% for TDR-480-48.

Product overview

The TDR-480-24 provides a 24 V output with 20 A output current and 480 W rated power. Its output adjustment range is 24 ~ 28V, ripple and noise is 150mVp-p, and typical efficiency is 92.5%. The input frequency range is 47 ~ 63Hz. Dimensions are 85.5 × 125.2 × 128.5 mm and net weight is 1510 g.

Where this model fits

The TDR-480-24 powers 24 V DC rails in industrial automation, including control cabinets, PLC racks, sensor networks, and machine controls. Its operating temperature range is -30 to 70 °C, humidity range is 20 to 95%, and net weight is 1510 g.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 24 V
Rated current 20 A
Rated power 480 W
Voltage adjustment range 24–28 V
Ripple & noise 150 mVp-p
Input
AC input range 340–550 VAC
DC input range 480–780 VDC
Frequency range 47–63 Hz
Typical efficiency 92.5 %
Power factor 0.9
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 85.5 × 125.2 × 128.5 mm
Net weight 1510.0 g
Safety & compliance
Safety standards UL508, IEC62368-1,UL 62368-1, AS/NZS 62368.1, BIS IS13252(Part1)(only for 24V),EAC TP TC 004 approved, Design refer to BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number TDR-480-24
Brand MEAN WELL
Category AC/DC DIN Rail
Series TDR-480

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

    Covers only part of this series: only for 24V

An approval above is held by only some models in this series. The datasheet's own wording is quoted beside the mark; read it against this part number, and ask us for the certificate if your approval process needs it.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK(optional):0.5KVAC
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • AS/NZS 62368.1
  • IEC62368-1
  • IS13252
  • UL 62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN62368-1

Read the datasheet's exact wording

UL508, IEC62368-1,UL 62368-1, AS/NZS 62368.1, BIS IS13252(Part1)(only for 24V),EAC TP TC 004 approved, Design refer to BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number TDR-480-24
Minimum order quantity 1
Country of origin China
Typical packed weight 1805 g
Unit weight 1510 g

Downloads

TDR-480 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
TDR-480-4848 V10 A480 W$172.44
Ships in 3–5 business days
TDR-480-24 24 V20 A480 W$172.44
Ships in 3–5 business days

TDR-480-24: 24 V output, 20 A output current, 24 ~ 28V adjustment range; TDR-480-48: 48 V output, 10 A output current, 48 ~ 55V adjustment range.

TDR-480-24: 92.5% typical efficiency; TDR-480-48: 93% typical efficiency.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for TDR-480-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting TDR-480-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-11-22
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
