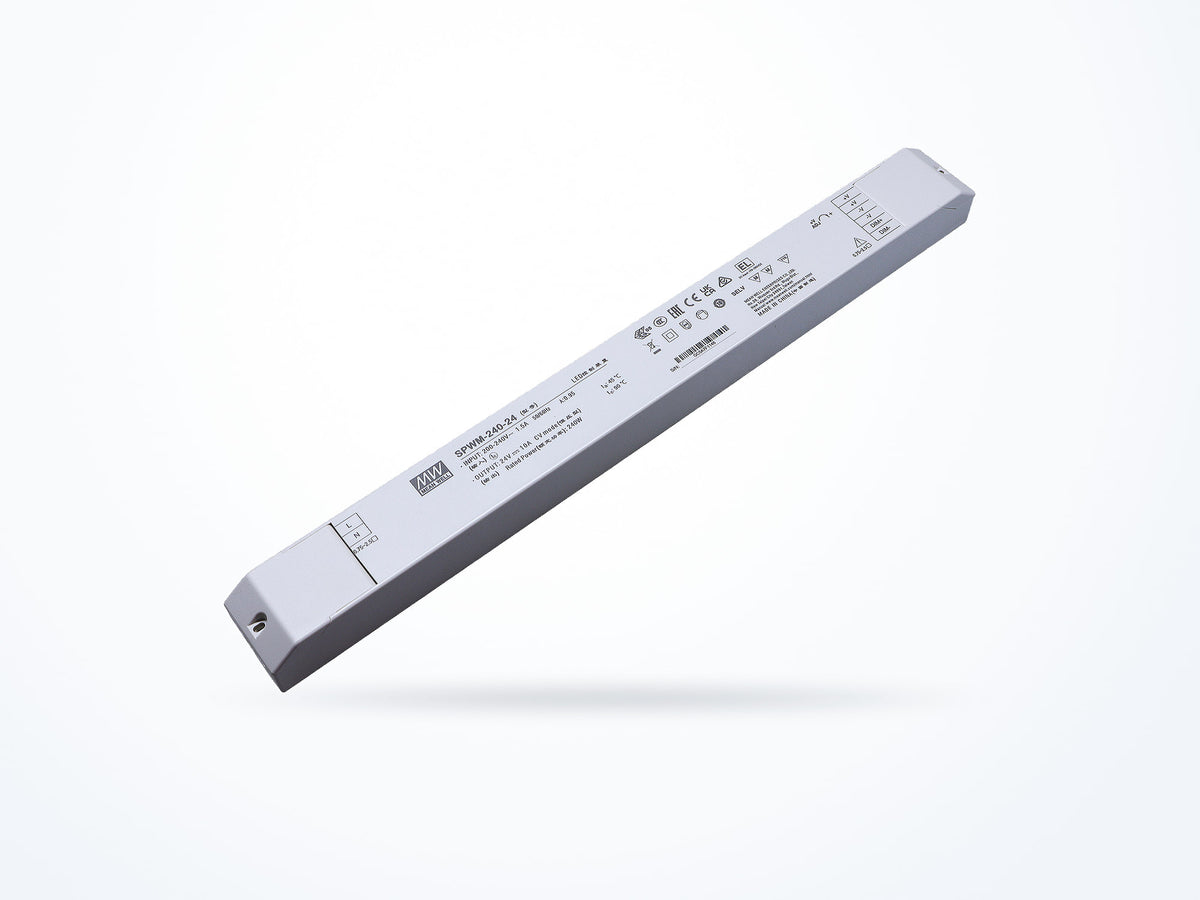

MEAN WELL SPWM-240-48 240W 48V 5A LED Driver

Part numberSPWM-240-48
Output voltage 48 V
Rated current 5 A
Rated power 240 W
$78.32Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SPWM-240 model selection table SPWM Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 5 A
Rated power 240 W
AC input range 180–305 VAC
Mechanical
Operating temperature -20 to 90 °C
Power factor correction Supported
Dimensions (L × W × H) 380 × 38 × 28.5 mm

Is this model right for you?

The SPWM-240-48 lists 180 ~ 305VAC 255 ~ 410VDC (referenced datasheet operating conditions apply) input, the same as the other models in the SPWM-240 series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The SPWM-240-48 is an AC/DC LED Driver from MEAN WELL in the SPWM-240 series. It measures 380 × 38 × 28.5 mm. The product lists an input frequency range of 47 ~ 63Hz, an operating temperature range of -20 to 90 °C, and a humidity range of 20 to 95%.

Where this model fits

The SPWM-240-48 is used in Building & Home Automation and LED Lighting. It measures 380 × 38 × 28.5 mm and lists an operating temperature range of -20 to 90 °C and a humidity range of 20 to 95%.

Complete technical specifications

Rev. 2025-12-22
Output
Output voltage 48 V
Rated current 5 A
Rated power 240 W
Input
AC input range 180–305 VAC
DC input range 255–410 VDC
Frequency range 47–63 Hz
Power factor 0.95
Power factor correction Supported
Protection
Short circuit Protected
Overload Protected
Over voltage Protected
Over temperature Protected
Environmental
Operating temperature -20 to 90 °C
Storage temperature -40 to 80 °C
Operating humidity 20–95 % RH
Vibration 5 ~ 100Hz, 2G 12min./1cycle, period for 72min.each along X,Y,Z axes
Mechanical
Dimensions (L × W × H) 380 × 38 × 28.5 mm
Net weight 540.0 g
Safety & compliance
Safety standards ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SPWM-240-48
Brand MEAN WELL
Category AC/DC LED Driver
Series SPWM-240

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • ENEC

    ENEC is a pan-European mark for electrical equipment, issued by a national certification body and recognised across the member schemes. It covers both product testing and factory surveillance, which is what separates it from a self-declared CE mark.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Parameter Standard Test Level/Note

Standards certified against

  • EN61347-1
  • EN61347-2-13
  • EN62384
  • GB/T19510.1
  • GB/T19510.213

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

AS/NZS 61347-1, AS/NZS 61347-2-13

Read the datasheet's exact wording

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SPWM-240-48
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 702 g
Unit weight 540 g

Downloads

SPWM-240 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SPWM-240-48 48 V5 A240 W$78.32
Ships in 3–5 business days

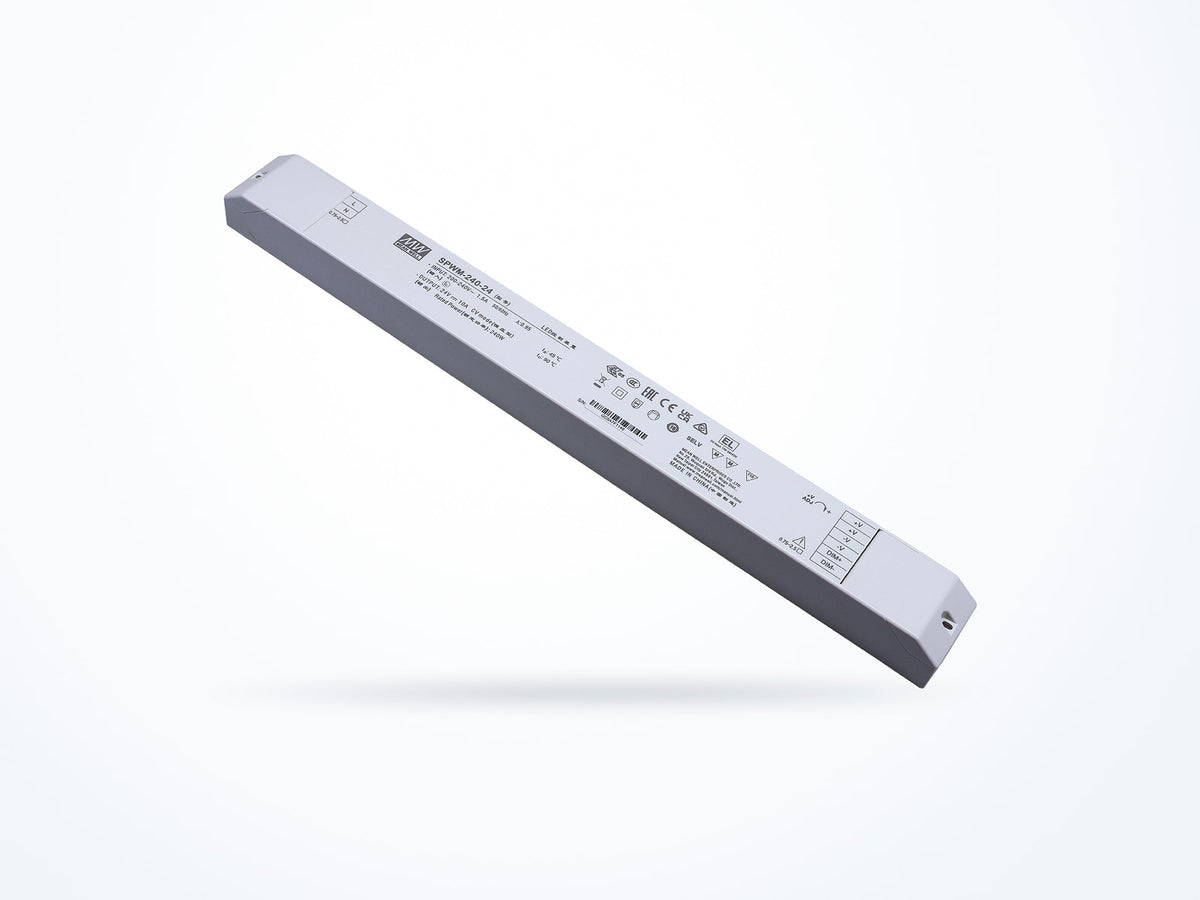

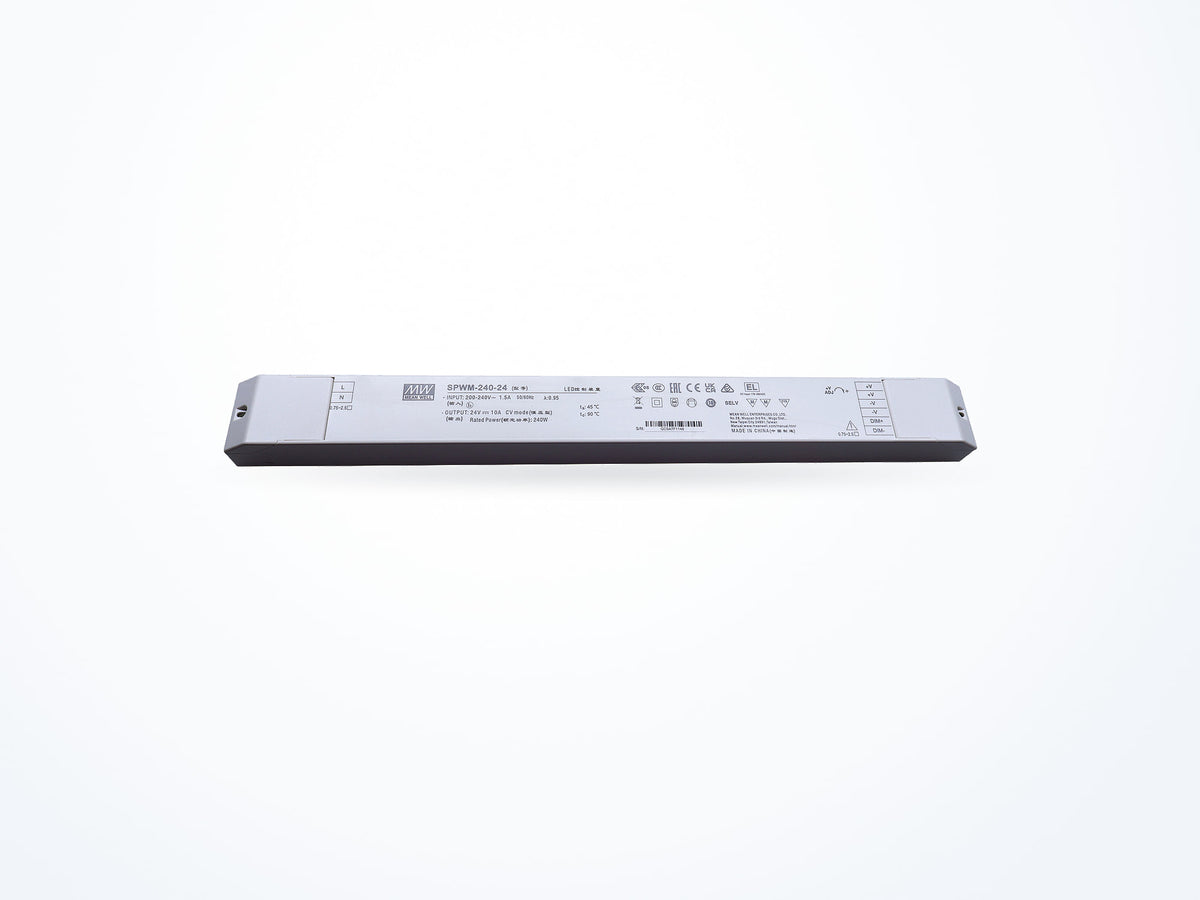

SPWM-240-2424 V10 A240 W$78.32
Ships in 3–5 business days

SPWM-240-48: 48 V output; SPWM-240-24: 24 V.

SPWM-240-48: 5 A output current; SPWM-240-24: 10 A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SPWM-240-48

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SPWM-240-48 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-12-22
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
