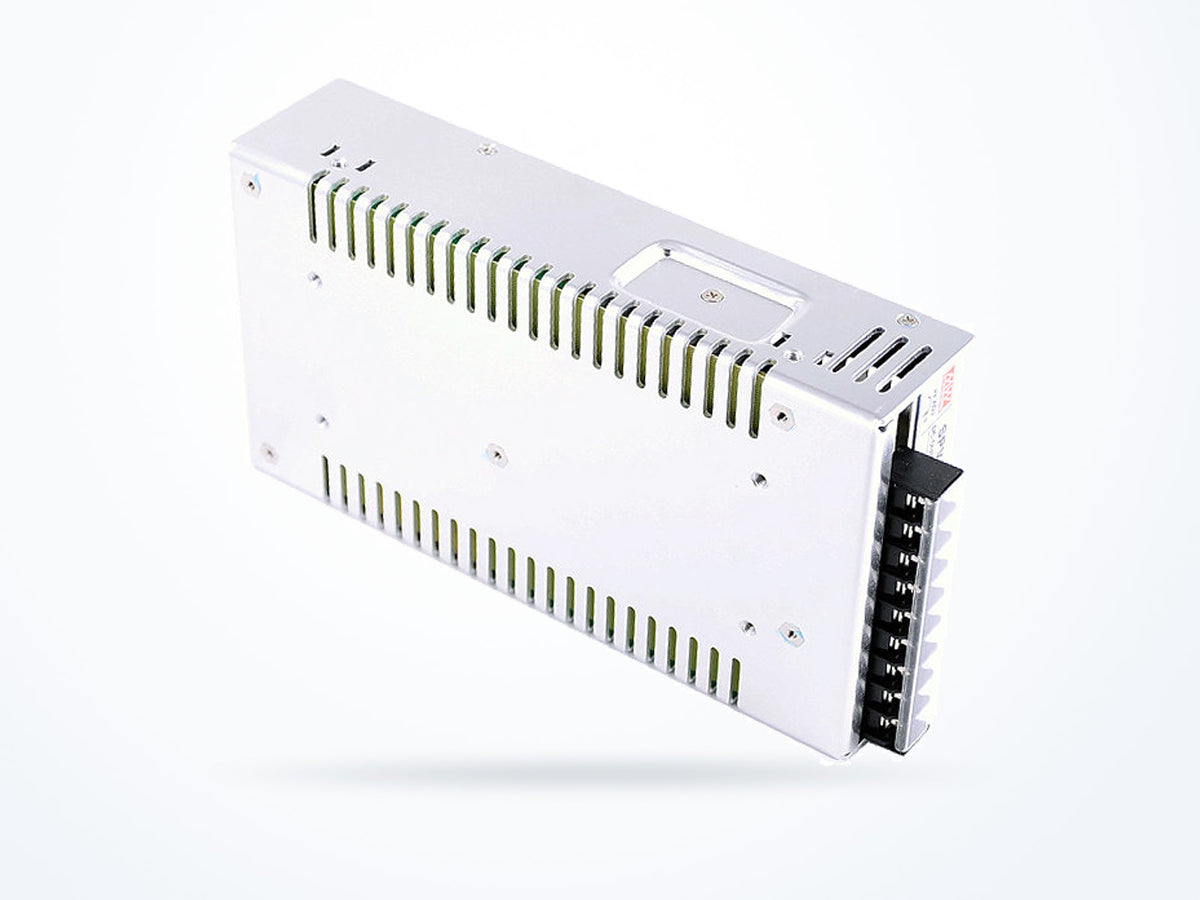

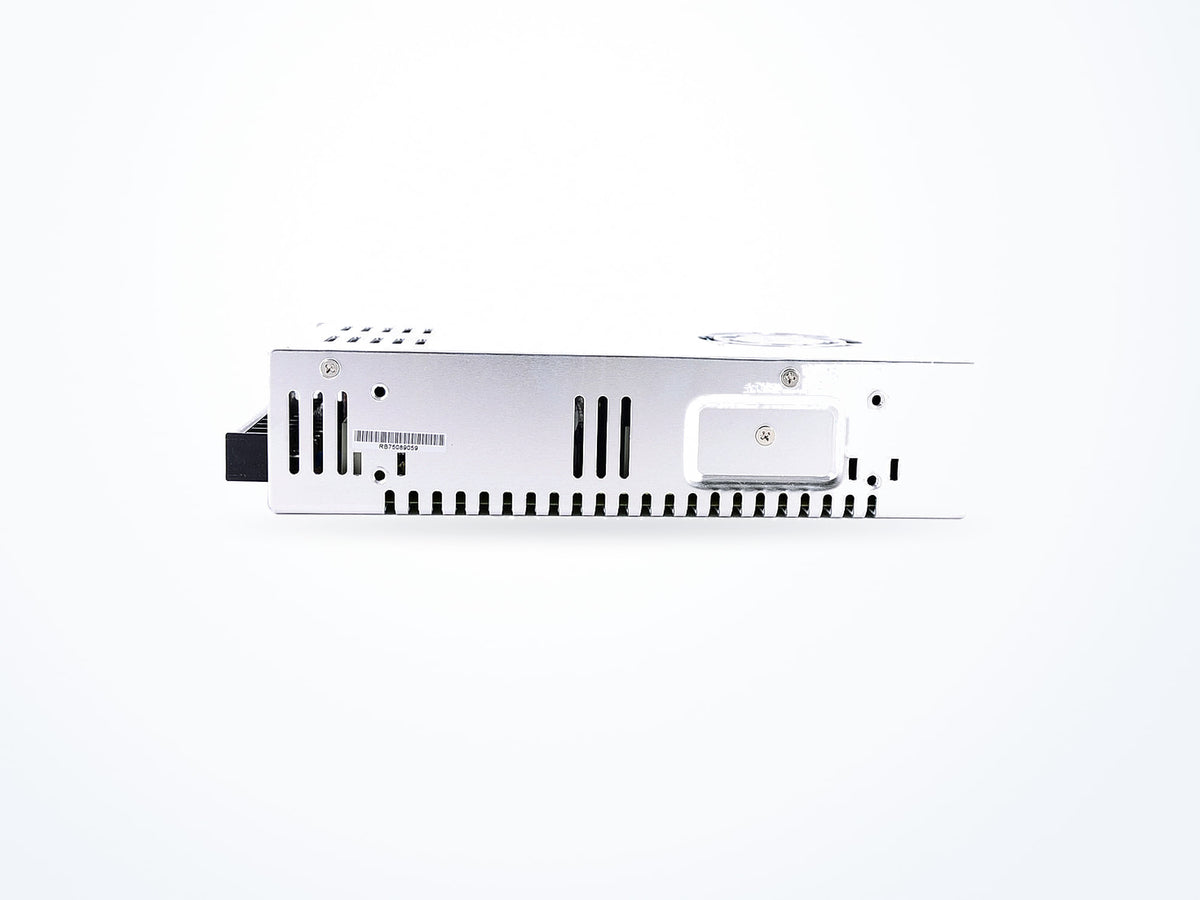

MEAN WELL SPV-300-48 300W 48V 6.25A Programmable Power

Part numberSPV-300-48
Output voltage 48 V
Rated current 6.25 A
Rated power 300 W
$160.13Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SPV-300 model selection table SPV Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 6.25 A
Rated power 300 W
AC input range 88–264 VAC
Typical efficiency 86.5 %
Mechanical
Operating temperature -20 to 65 °C
Power factor correction Supported
Dimensions (L × W × H) 215 × 115 × 50 mm

Is this model right for you?

The SPV-300-48 differs from the SPV-300-12 and SPV-300-24 by output voltage and current. SPV-300-48: 48 V, 6.25 A; SPV-300-24: 24 V, 12.5 A; SPV-300-12: 12 V, 25 A. Output adjustment ranges are 41~52.8V, 20~26.4V, and 10.8~13.2V respectively. Typical efficiency is 86.5% for SPV-300-48, 85% for SPV-300-24, and 83.5% for SPV-300-12.

Product overview

The SPV-300-48 provides a 48 V output with 6.25 A output current and 300 W rated power. The output adjustment range is 41~52.8V, and typical efficiency is 86.5%. The input voltage range is 88 ~ 264VAC 124 ~ 370VDC at 47 ~ 63Hz. Ripple and noise is 240mVp-p. Dimensions are 215 × 115 × 50 mm and net weight is 1100 g.

Where this model fits

The SPV-300-48 is used in Test & Measurement. Its output adjustment range is 41~52.8V, ripple and noise is 240mVp-p, and typical efficiency is 86.5%. The input voltage range is 88 ~ 264VAC 124 ~ 370VDC at 47 ~ 63Hz.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 48 V
Rated current 6.25 A
Rated power 300 W
Voltage adjustment range 41–52.8 V
Ripple & noise 240 mVp-p
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 86.5 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -20 to 65 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 215 × 115 × 50 mm
Net weight 1100.0 g
Safety & compliance
Safety standards UL60950-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SPV-300-48
Brand MEAN WELL
Category AC/DC Programmable Power
Series SPV-300

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • IEC62368-1
  • UL60950-1
Read the datasheet's exact wording

UL60950-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SPV-300-48
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 1317 g
Unit weight 1100 g

Downloads

SPV-300 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SPV-300-48 48 V6.25 A300 W$160.13
Ships in 3–5 business days
SPV-300-2424 V12.5 A300 W$160.13
Ships in 3–5 business days
SPV-300-1212 V25 A300 W$160.13
Ships in 3–5 business days

SPV-300-48: 48 V output, 6.25 A; SPV-300-24: 24 V output, 12.5 A.

SPV-300-48: 48 V output, 6.25 A; SPV-300-12: 12 V output, 25 A.

SPV-300-48: typical efficiency 86.5%; SPV-300-24: 85%; SPV-300-12: 83.5%.

SPV-300-48: ripple and noise 240mVp-p; SPV-300-24 and SPV-300-12: 150mVp-p.
