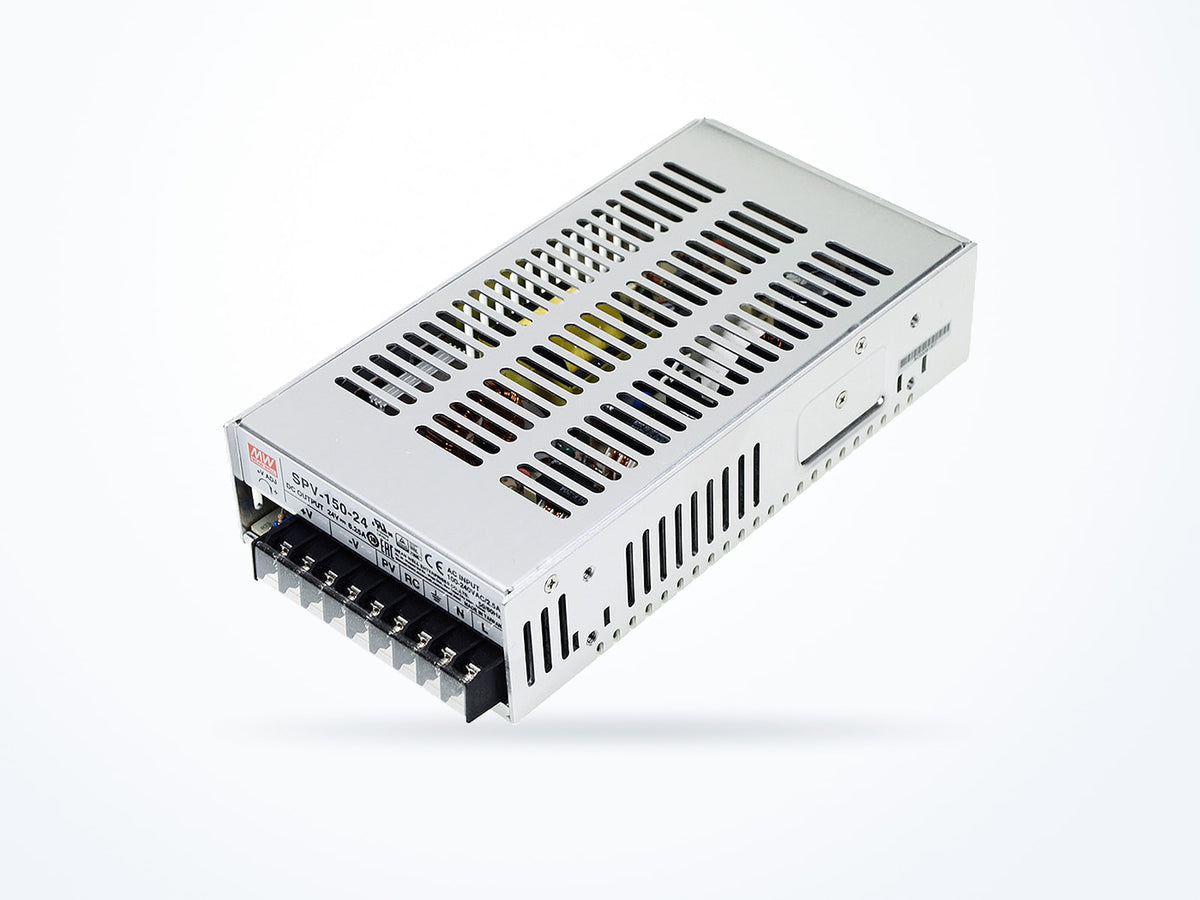

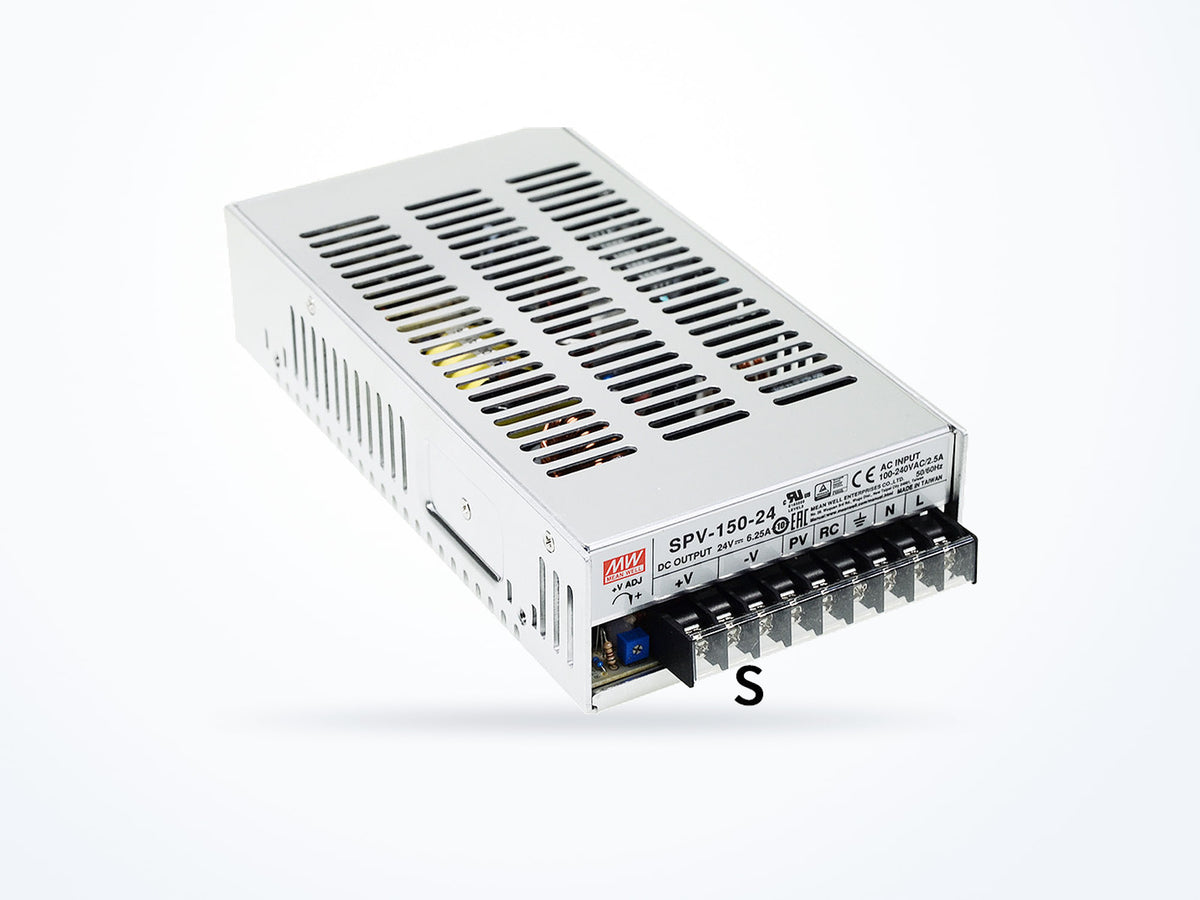

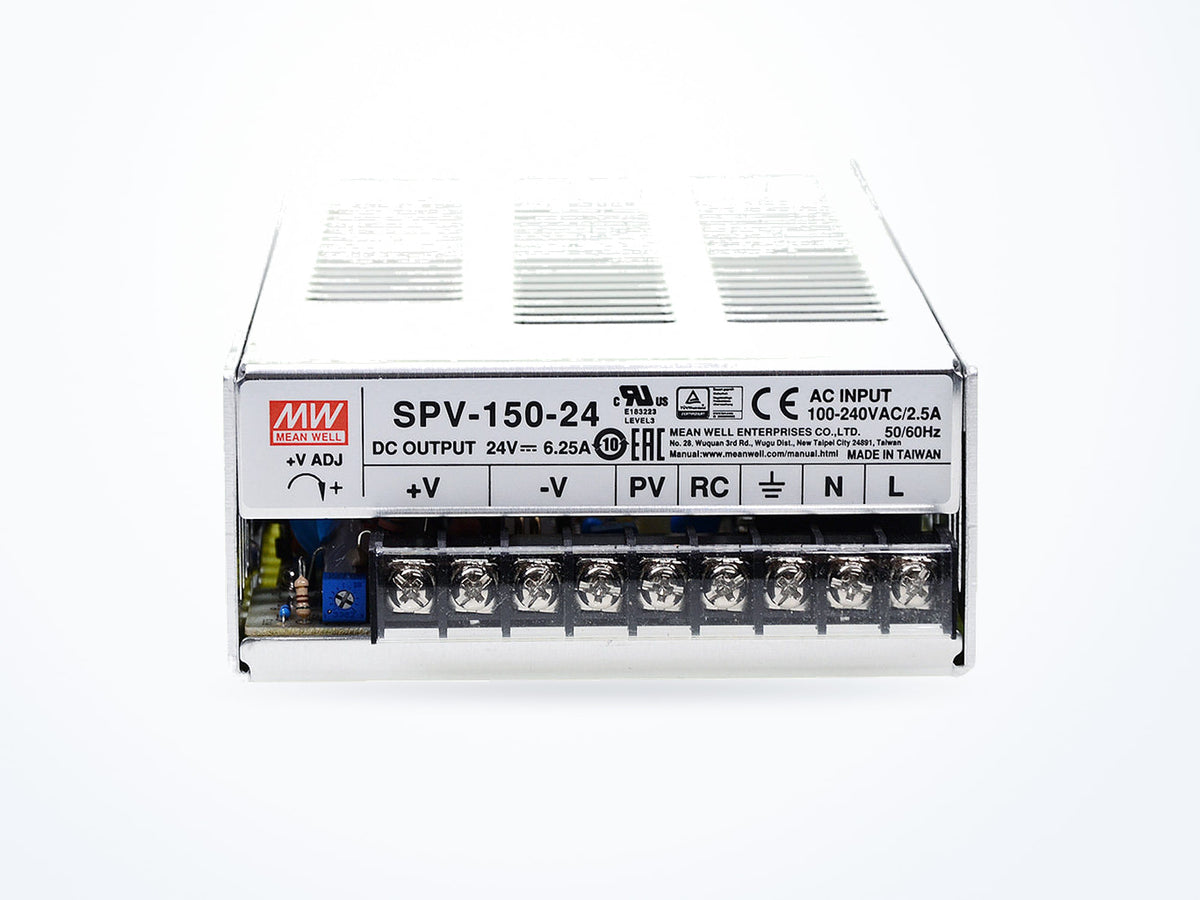

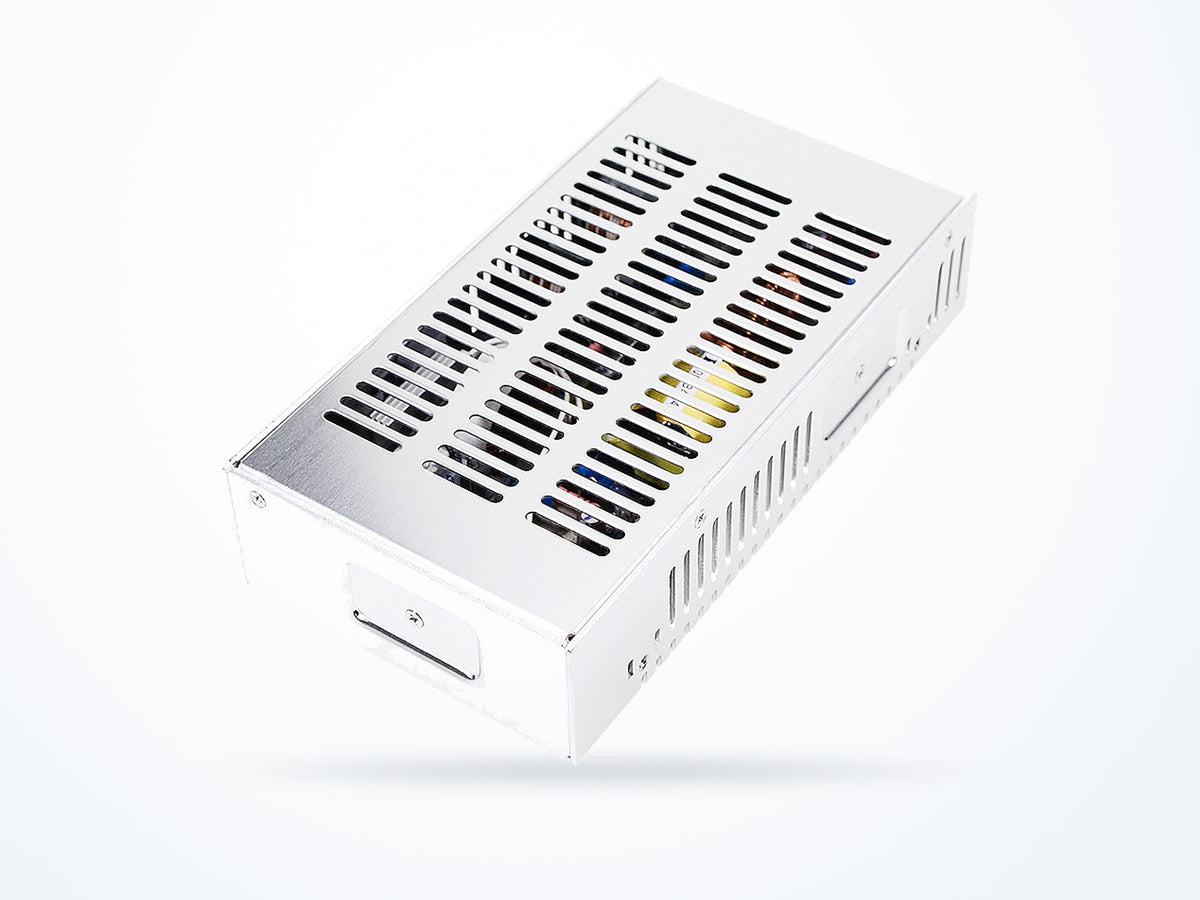

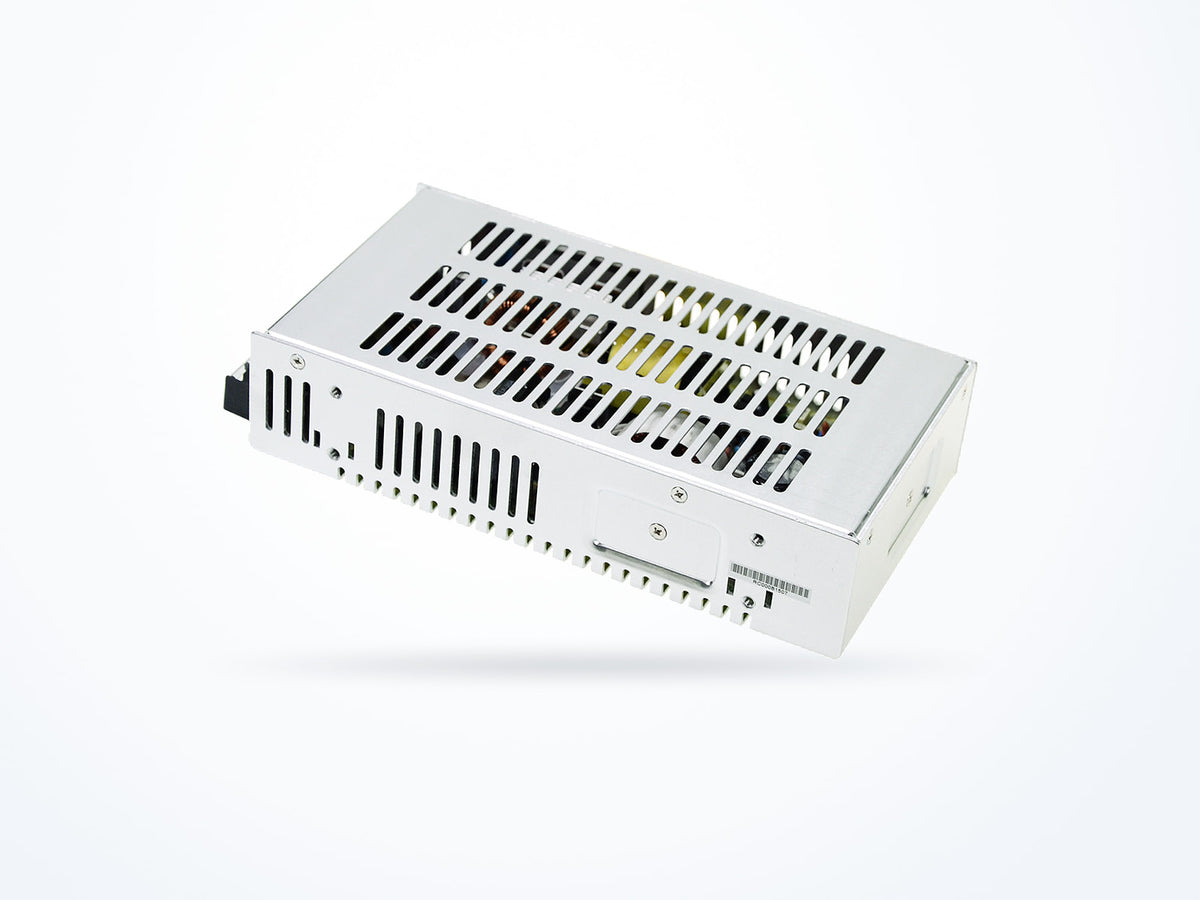

MEAN WELL SPV-150-24 150W 24V 6.25A Programmable Power

Part numberSPV-150-24
Output voltage 24 V
Rated current 6.25 A
Rated power 150 W
$132.33Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SPV-150 model selection table SPV Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 6.25 A
Rated power 150 W
AC input range 88–264 VAC
Typical efficiency 83 %
Mechanical
Operating temperature -20 to 65 °C
Power factor correction Supported
Dimensions (L × W × H) 215 × 115 × 50 mm

Is this model right for you?

SPV-150-24: 24 V, 6.25 A, 20~26.4 V adjustment, 150 mVp-p ripple and noise. SPV-150-12: 12 V, 12.5 A, 10.8~13.2 V adjustment. SPV-150-48: 48 V, 3.125 A, 41~52.8 V adjustment, 240 mVp-p ripple and noise. Select by required output voltage and current.

Product overview

The SPV-150-24 provides a 24 V output at 6.25 A with 150 W rated power. The output adjustment range is 20~26.4 V, and typical efficiency is 83%. Input voltage range is 88 ~ 264 VAC and 124 ~ 370 VDC at 47 ~ 63 Hz. Ripple and noise is 150 mVp-p. Dimensions are 215 × 115 × 50 mm and net weight is 1100 g.

Where this model fits

The SPV-150-24 is used in Test & Measurement. Its 24 V output, 6.25 A output current, and 150 mVp-p ripple and noise are the measurements relevant to production test rigs, burn-in racks, laboratory benches, and automated test equipment.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 24 V
Rated current 6.25 A
Rated power 150 W
Voltage adjustment range 20–26.4 V
Ripple & noise 150 mVp-p
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 83 %
Power factor 0.94
Power factor correction Supported
Environmental
Operating temperature -20 to 65 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 215 × 115 × 50 mm
Net weight 1100.0 g
Safety & compliance
Safety standards UL60950-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SPV-150-24
Brand MEAN WELL
Category AC/DC Programmable Power
Series SPV-150

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • IEC62368-1
  • UL60950-1
Read the datasheet's exact wording

UL60950-1, TUV BS EN/EN62368-1, IEC62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SPV-150-24
Minimum order quantity 1
Country of origin China
Warranty 5-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 1317 g
Unit weight 1100 g

Downloads

SPV-150 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SPV-150-1212 V12.5 A150 W$132.33
Ships in 3–5 business days
SPV-150-4848 V3.125 A150 W$132.33
Ships in 3–5 business days
SPV-150-24 24 V6.25 A150 W$132.33
Ships in 3–5 business days

SPV-150-24: 24 V, 6.25 A; SPV-150-12: 12 V, 12.5 A.

SPV-150-24: 24 V, 6.25 A; SPV-150-48: 48 V, 3.125 A.

SPV-150-24: 20~26.4 V adjustment; SPV-150-12: 10.8~13.2 V; SPV-150-48: 41~52.8 V.

SPV-150-24: 150 mVp-p ripple and noise; SPV-150-48: 240 mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SPV-150-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SPV-150-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-11-22
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
