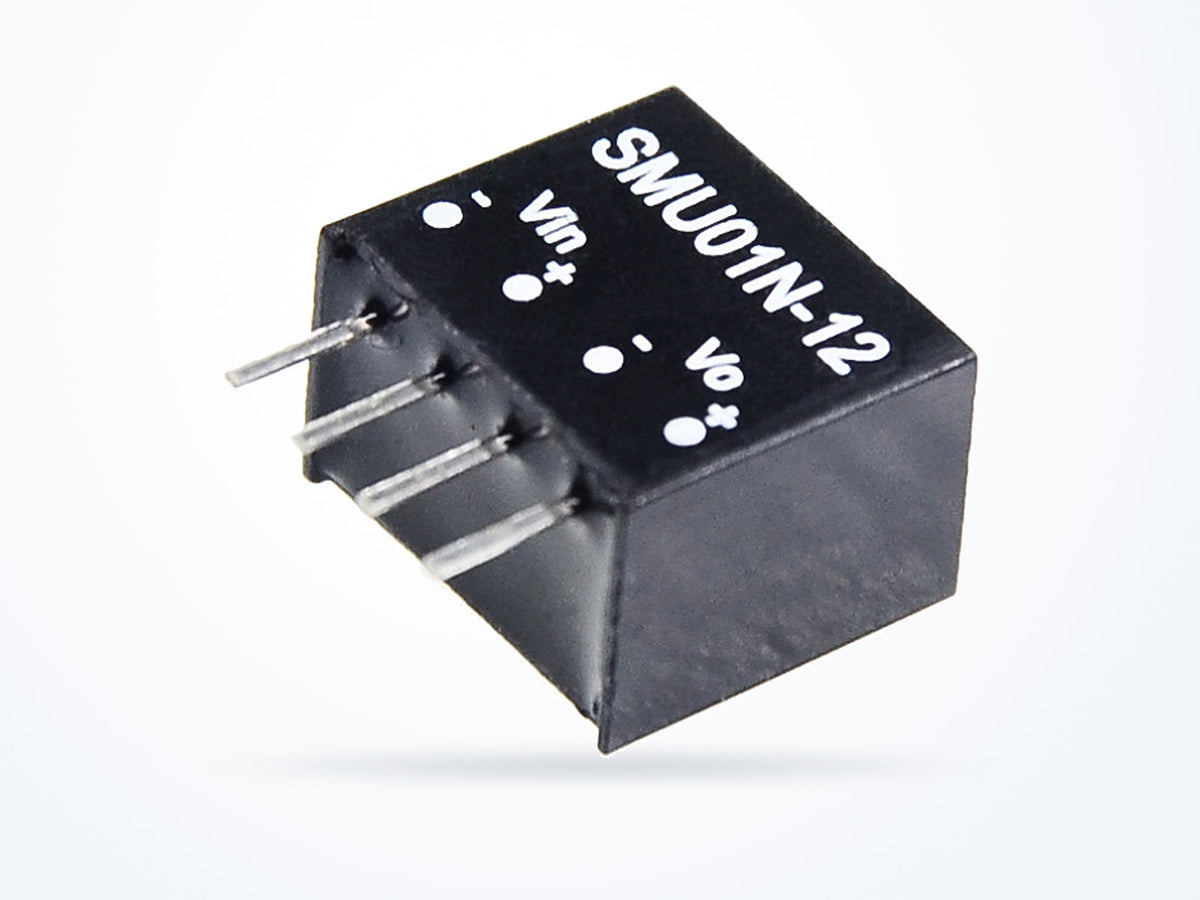

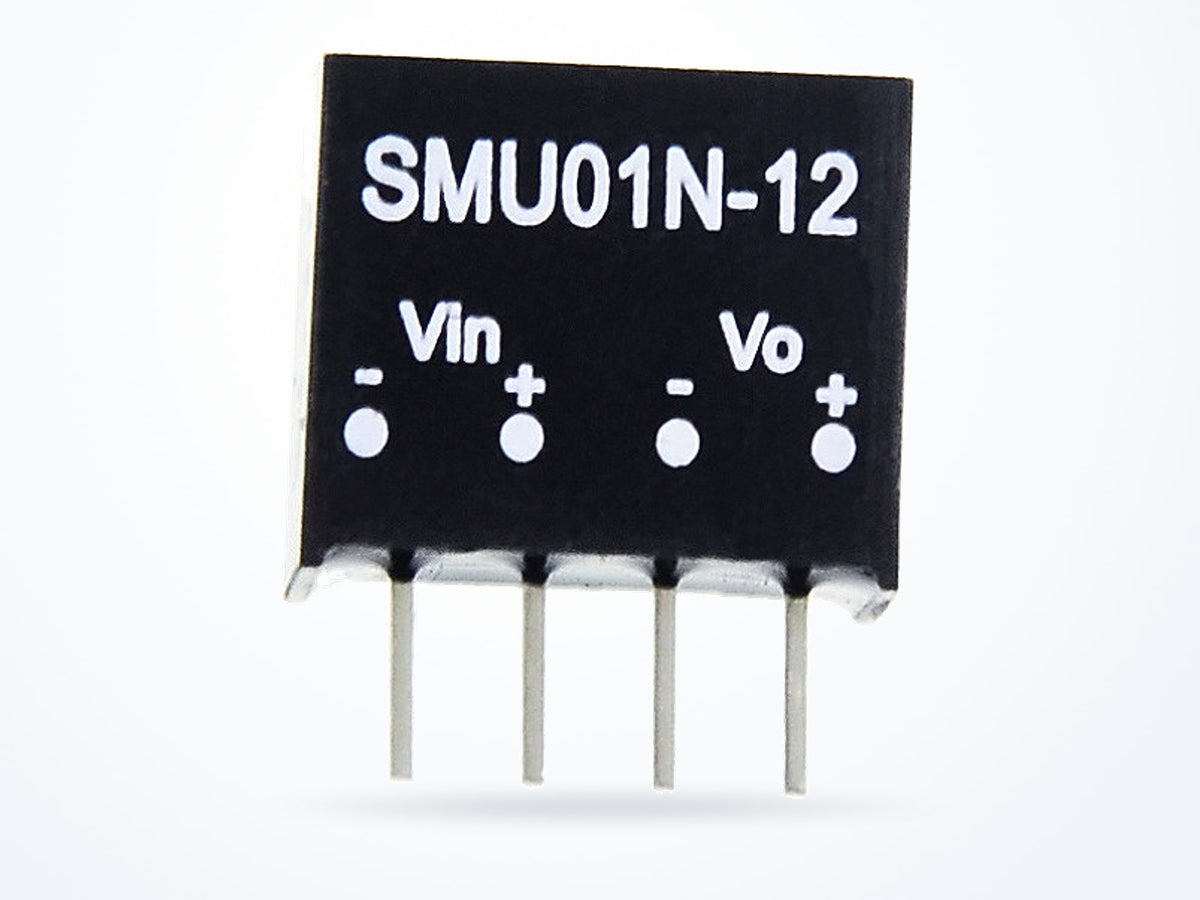

MEAN WELL SMU01M-09 0.99W 9V 0.11A On Board Type (Module Potted)

Part numberSMU01M-09
Output voltage 9 V
Rated current 0.11 A
Rated power 0.99 W
$11.37Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SMU01 model selection table SIP Package
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 9 V
Rated current 0.11 A
Rated power 0.99 W
Typical efficiency 79 %
Mechanical
Operating temperature -40 to 90 °C
Dimensions (L × W × H) 11.6 × 6.1 × 10.14 mm

Is this model right for you?

Within the SMU01 series, the SMU01M-09 lists 9 V, 0.11 A, 10.8 ~ 13.2VDC input, 79%. By comparison SMU01L-05 lists 5 V, 0.2 A, 4.5 ~ 5.5VDC input, 77%; SMU01L-09 lists 9 V, 0.11 A, 4.5 ~ 5.5VDC input, 77%; SMU01L-12 lists 12 V, 0.084 A, 4.5 ~ 5.5VDC input, 78%; SMU01L-15 lists 15 V, 0.067 A, 4.5 ~ 5.5VDC input, 78%, and 7 further models. Select the model whose output voltage, output current, and input range match the installation.

Product overview

The SMU01M-09 is a DC/DC On Board Type (Module Potted) product from MEAN WELL in the SMU01 series. It belongs to the SIP Package family. The product measures 11.6 × 6.1 × 10.14 mm and has an operating temperature range of -40 to 90 °C. Its input voltage range is 10.8 ~ 13.2VDC, and 21.6 ~ 26.4V.

Where this model fits

The SMU01M-09 is a DC/DC On Board Type (Module Potted) product for Embedded & Board-level Design. It measures 11.6 × 6.1 × 10.14 mm and has an operating temperature range of -40 to 90 °C. Its input voltage range is 10.8 ~ 13.2VDC, and 21.6 ~ 26.4V.

Complete technical specifications

Rev. 2024-08-02
Output
Output voltage 9 V
Rated current 0.11 A
Rated power 0.99 W
Input
AC input range 10.8 ~ 13.2VDC
DC input range 10.8–13.2 VDC
Typical efficiency 79 %
Environmental
Operating temperature -40 to 90 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 11.6 × 6.1 × 10.14 mm
Net weight 1.4 g
Safety & compliance
Safety standards EAC TP TC 020/2011 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SMU01M-09
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SMU01

Approvals and compliance

From the manufacturer's datasheet for this series

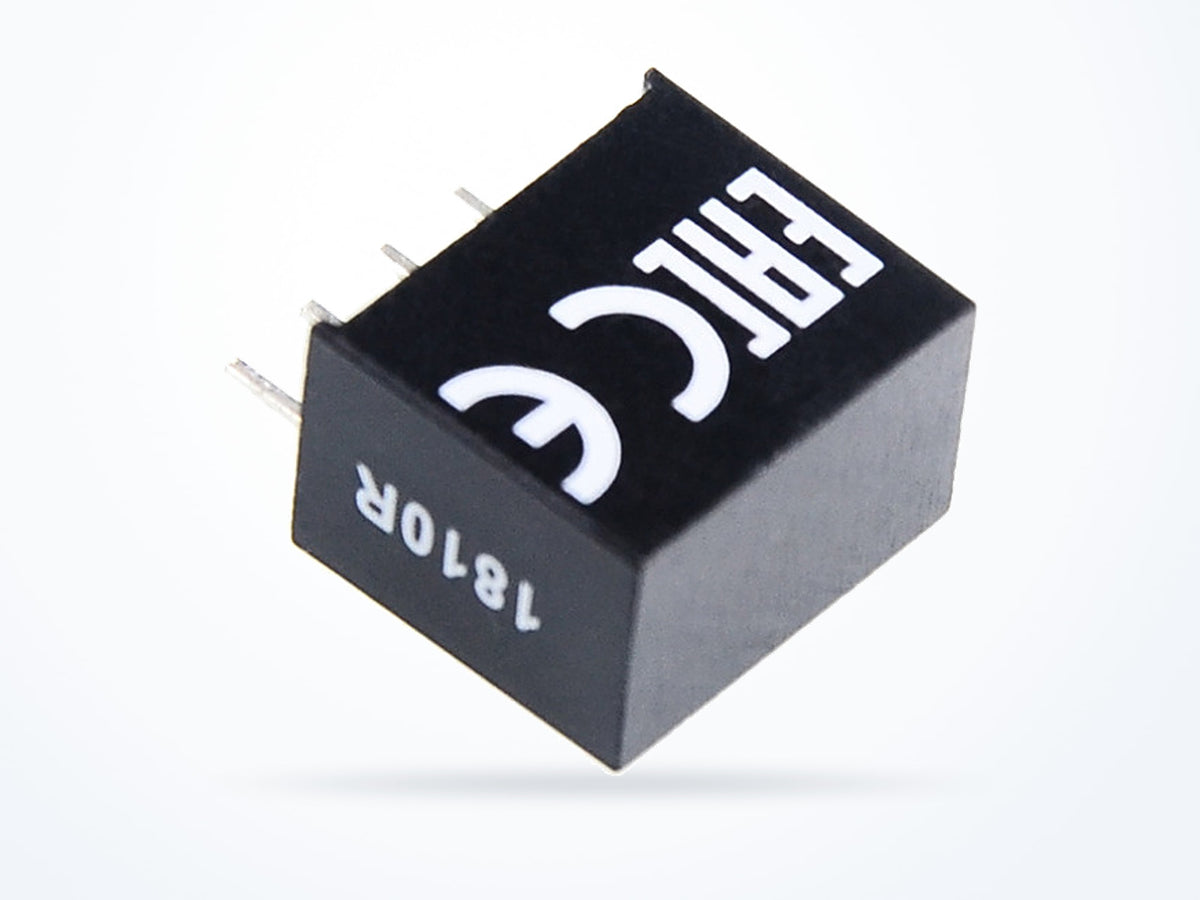

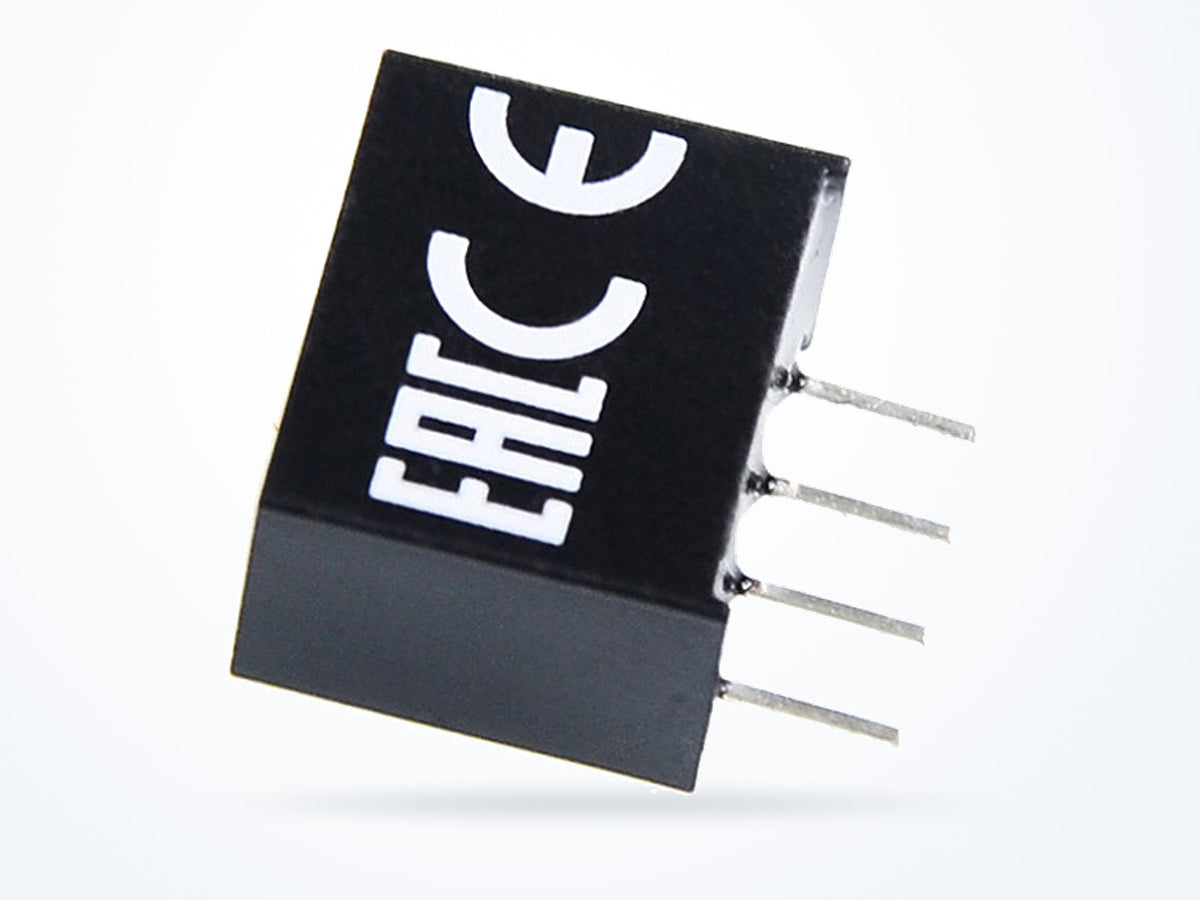

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:1.5KVDC
Isolation resistance I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
Read the datasheet's exact wording

EAC TP TC 020/2011 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SMU01M-09
Minimum order quantity 1
Country of origin China
Typical packed weight 152 g
Unit weight 1.4 g

Downloads

SMU01 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SMU01M-09 9 V0.11 A0.99 W$11.37
Ships in 3–5 business days
SMU01L-055 V0.2 A1 W$11.37
Ships in 3–5 business days
SMU01M-1515 V0.067 A1 W$5.01
Ships in 3–5 business days

SMU01M-09: 9 V output; the rest of the series runs 5 V to 15 V.

SMU01M-09: 0.11 A output current; the rest of the series runs 0.067 A to 0.2 A.

SMU01M-09: 0.99 W rated power; 9 other models: 1 W.

SMU01M-09: 79% typical efficiency; the rest of the series runs 76% to 80%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SMU01M-09

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SMU01M-09 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-08-02
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
