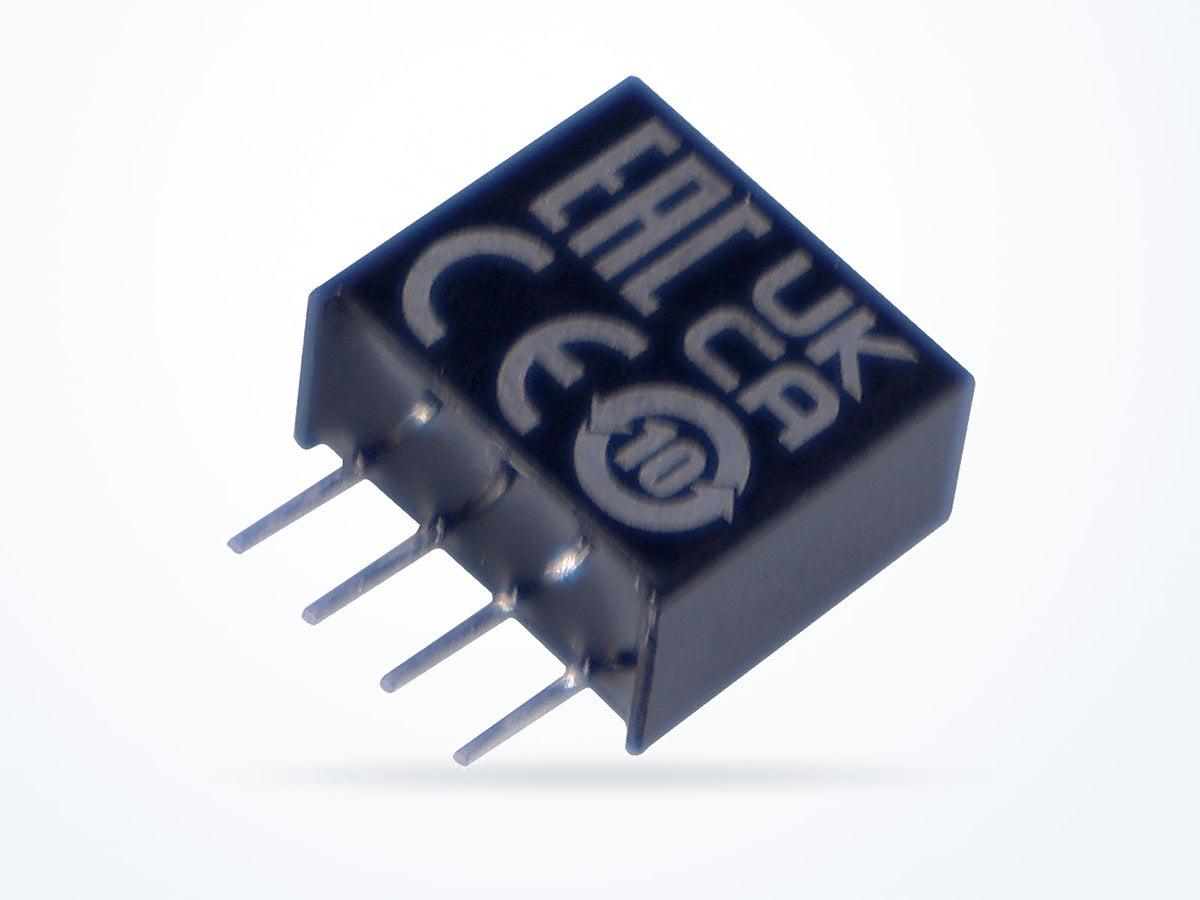

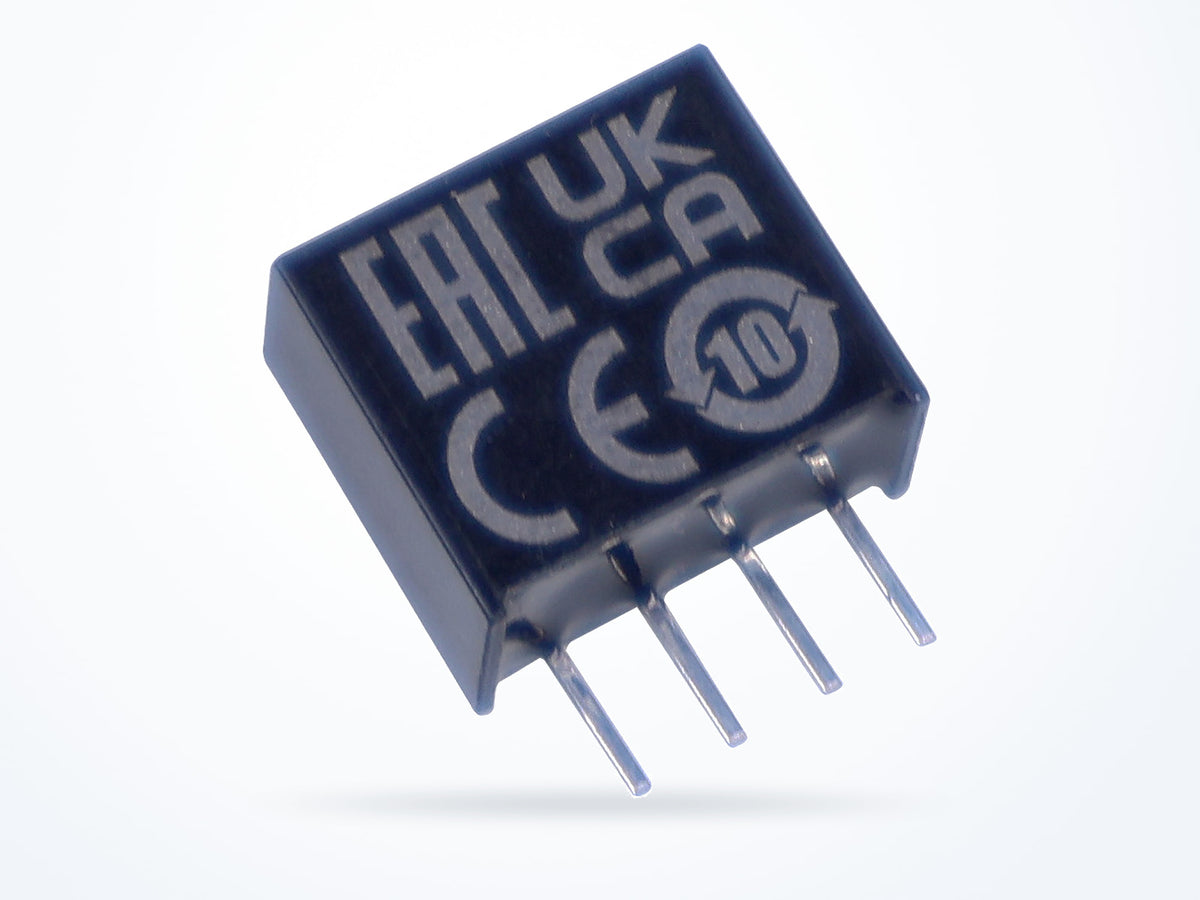

MEAN WELL SMU01K-05N 1W 5V 0.2A On Board Type (Module Potted)
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 5 V |
|---|---|
| Rated current | 0.2 A |
| Rated power | 1 W |
| Typical efficiency | 80 % |
| Cooling | Free-air convection |
|---|---|
| Operating temperature | -40 to 105 °C |
| Dimensions (L × W × H) | 11.7 × 6 × 10.2 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2024-11-26| Output voltage | 5 V |
|---|---|
| Rated current | 0.2 A |
| Rated power | 1 W |
| AC input range | 2.97 ~ 3.63Vdc |
|---|---|
| DC input range | 2.97–3.63 VDC |
| Typical efficiency | 80 % |
| Operating temperature | -40 to 105 °C |
|---|---|
| Storage temperature | -55 to 125 °C |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Dimensions (L × W × H) | 11.7 × 6 × 10.2 mm |
|---|---|
| Net weight | 1.3 g |
| Cooling | Free-air convection |
| Fan | Not supported |
| Case material | Non-Conductive black plastic (UL 94V-0 rated) |
| Safety standards | EAC TP TC 020/2011 approved |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | SMU01K-05N |
|---|---|
| Brand | MEAN WELL |
| Category | DC/DC On Board Type (Module Potted) |
| Series | SMU01-N |
Approvals and compliance
From the manufacturer's datasheet for this seriesEurasian Economic Union
- EAC
Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.
| Withstand voltage | I/P-O/P:1.5KVDC |
|---|---|
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC emission | Parameter Standard Test Level / Note (datasheet note applies) |
Read the datasheet's exact wording
EAC TP TC 020/2011 approved
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | SMU01K-05N |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Typical packed weight | 151 g |
| Unit weight | 1.3 g |
SMU01-N model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| SMU01N-03N | 3.3 V | 0.3 A | 0.99 W | $9.47 |
Ships in 3–5 business days
|
| SMU01K-05N Currently viewing | 5 V | 0.2 A | 1 W | $9.47 |
Ships in 3–5 business days
|
| SMU01L-05N | 5 V | 0.2 A | 1 W | $9.47 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for SMU01K-05N
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2024-11-26
- Last verified
View the manufacturer datasheet How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
