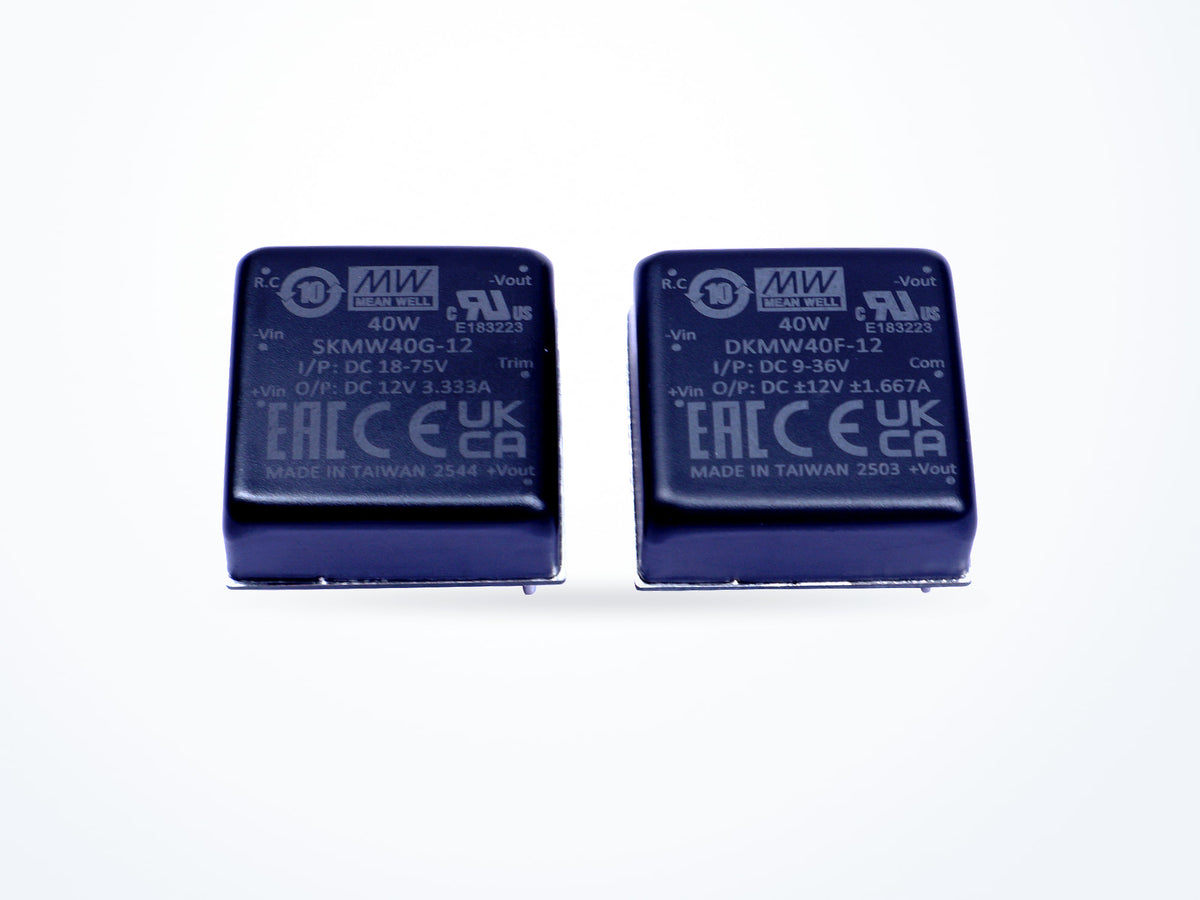

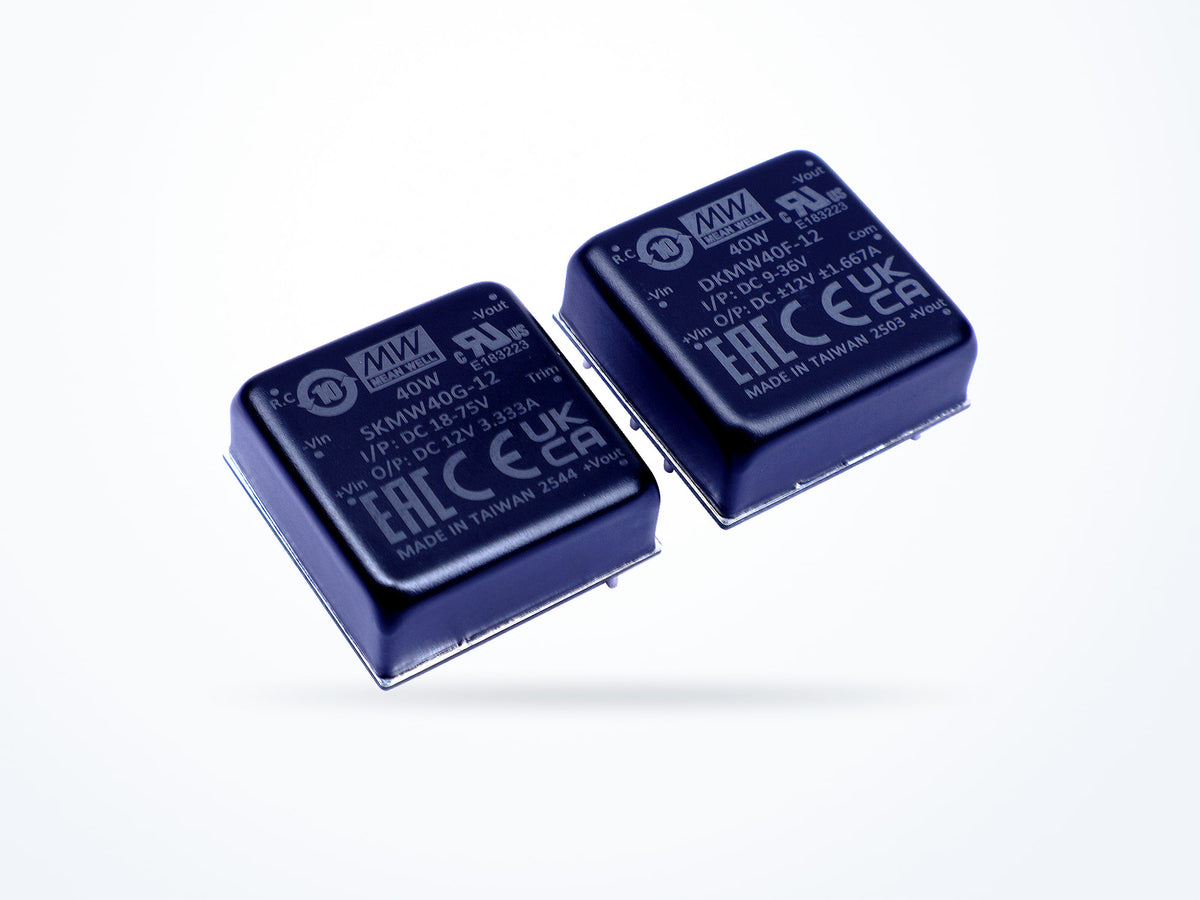

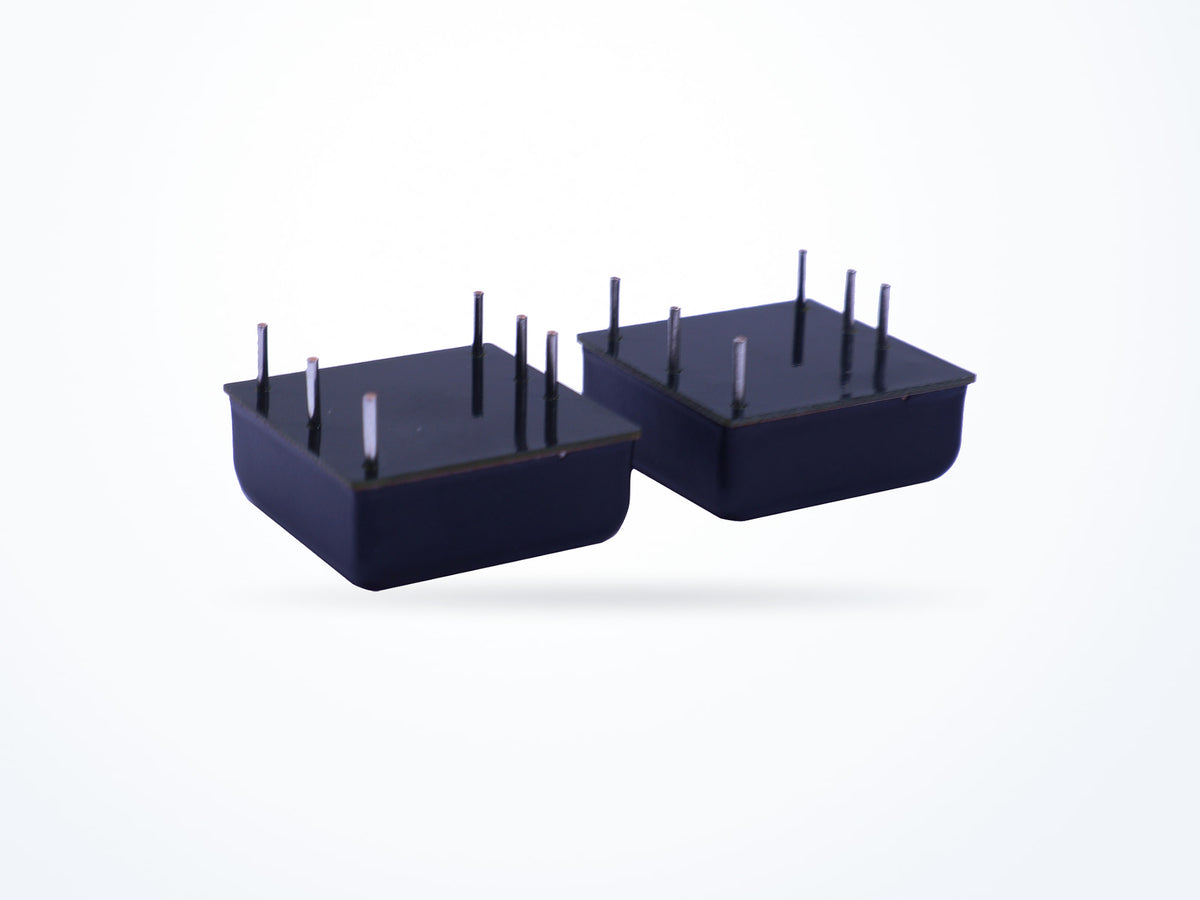

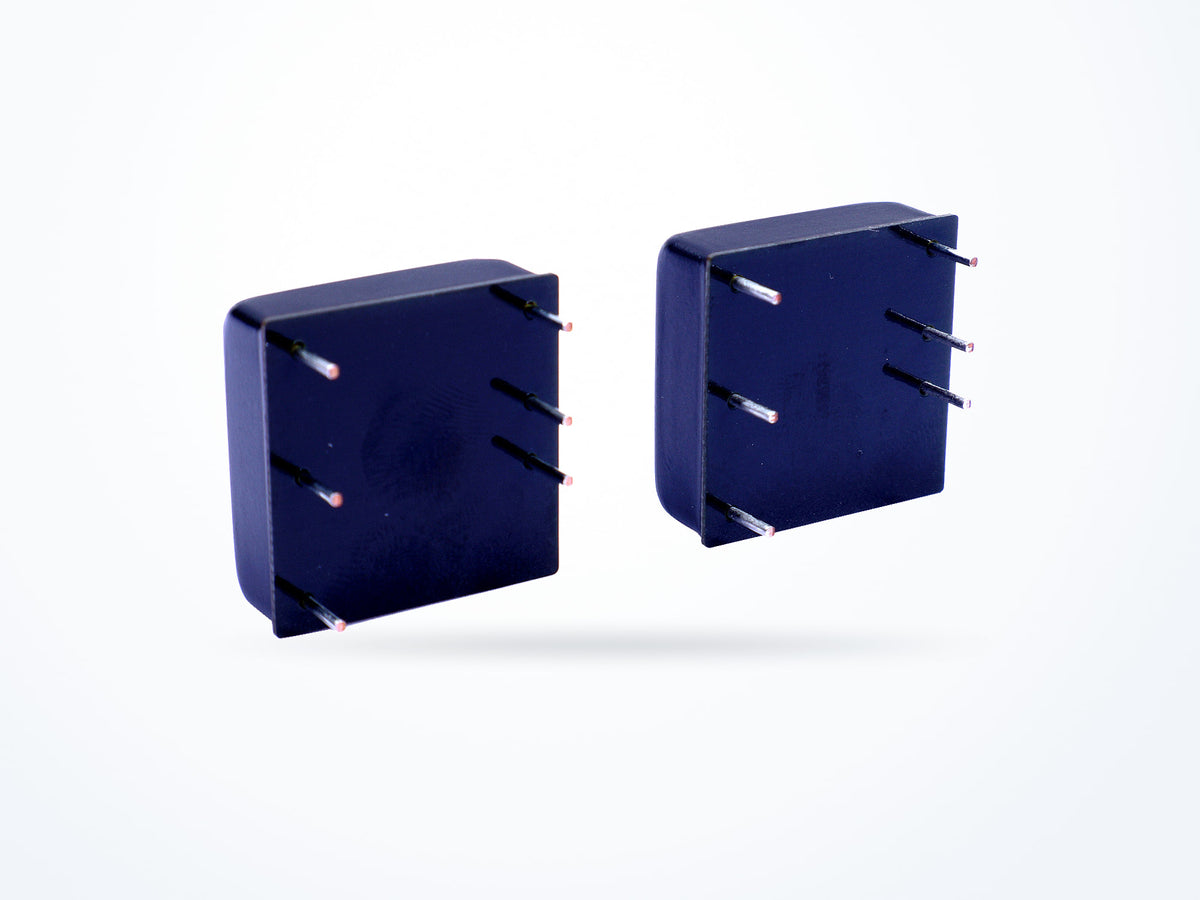

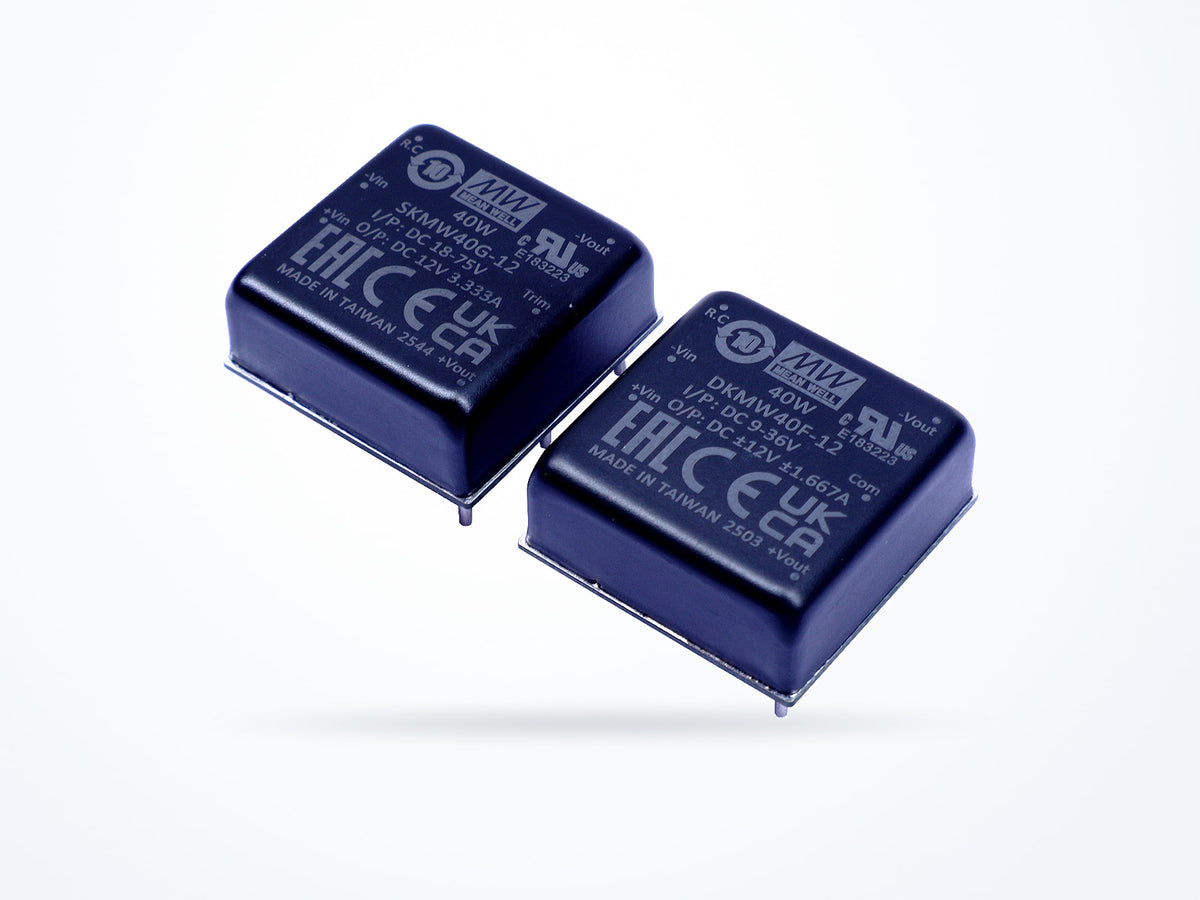

MEAN WELL SKMW40F-24 40.008W 24V 1.667A On Board Type (Module Potted)

Part numberSKMW40F-24
Output voltage 24 V
Rated current 1.667 A
Rated power 40.008 W
$99.49Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SKMW40,DKMW40 model selection table DIP - 1" x 1" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 1.667 A
Rated power 40.008 W
Typical efficiency 89 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 80 °C
Dimensions (L × W × H) 25.4 × 25.4 × 10 mm

Is this model right for you?

Within the SKMW40,DKMW40 series, the SKMW40F-24 lists 24 V, 1.667 A, 40.008 W, 9~36Vdc input, 89%. By comparison DKMW40F-12 lists 12 V, 1.667 A, 40.008 W, 9~36Vdc input, 88%; DKMW40F-15 lists 15 V, 1.333 A, 39.99 W, 9~36Vdc input, 88%; DKMW40G-12 lists 12 V, 1.667 A, 40.008 W, 18~75Vdc input, 89%; DKMW40G-15 lists 15 V, 1.333 A, 39.99 W, 18~75Vdc input, 88%, and 9 further models. Select the model whose output voltage, output current, rated power, and input range match the installation.

Product overview

The MEAN WELL SKMW40F-24 is a DC/DC On Board Type (Module Potted) product with 24 V output at 1.667 A, 40 W rated power, 9~36Vdc input, 89% typical efficiency, 25.4 × 25.4 × 10 mm, free-air convection.

Complete technical specifications

Rev. 2024-10-24
Output
Output voltage 24 V
Rated current 1.667 A
Rated power 40.008 W
Input
AC input range 9~36Vdc
DC input range 9–36 VDC
Typical efficiency 89 %
Protection
Overload Protected
Over voltage Protected
Over temperature Protected
Recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 80 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 55Hz, 10G 1min./1cycle, period for 120min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 25.4 × 25.4 × 10 mm
Net weight 21.0 g
Cooling Free-air convection
Fan Not supported
Case material Metal
Safety & compliance
Safety standards UL62368-1, CAN/CSA C22.2 No. 62368-1, LVD EN62368, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SKMW40F-24
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SKMW40,DKMW40

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:2KVDC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

Standards certified against

  • EN62368
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, CAN/CSA C22.2 No. 62368-1, LVD EN62368, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SKMW40F-24
Minimum order quantity 1
Country of origin China
Typical packed weight 173 g
Unit weight 21 g

Downloads

SKMW40,DKMW40 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SKMW40F-24 24 V1.667 A40.008 W$99.49
Ships in 3–5 business days
SKMW40G-1515 V2.667 A40.005 W$99.49
Ships in 3–5 business days
SKMW40G-033.3 V10 A33 W$99.49
Ships in 3–5 business days

SKMW40F-24: 24 V output; the rest of the series runs 3.3 V to 15 V.

SKMW40F-24: 1.67 A output current; the rest of the series runs 1.33 A to 10 A.

SKMW40F-24: 40 W rated power; SKMW40F-03 and SKMW40G-03: 33 W.

SKMW40F-24: 89% typical efficiency; 6 other models: 88%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SKMW40F-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SKMW40F-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-24
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
