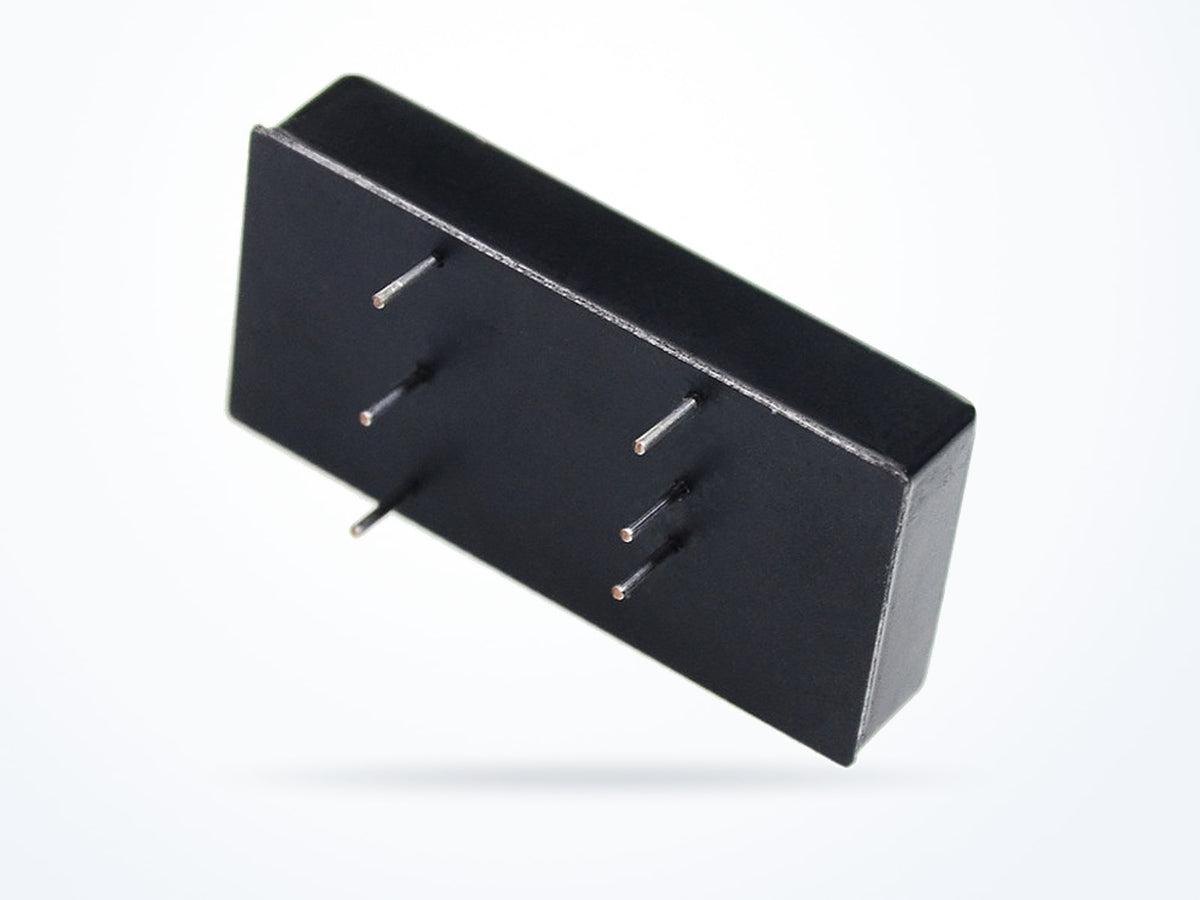

MEAN WELL SKA20A-12 20W 12V 1.66667A On Board Type (Module Potted)

Part numberSKA20A-12
Output voltage 12 V
Rated current 1.66667 A
Rated power 20 W
$58.74Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SKA20 model selection table DIP - 2" x 1" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 1.66667 A
Rated power 20 W
Typical efficiency 88 %
Mechanical
Operating temperature -40 to 85 °C
Dimensions (L × W × H) 50.8 × 25.4 × 11.2 mm

Is this model right for you?

Within the SKA20 series, the SKA20A-12 lists a 9 ~ 18VDC input range. SKA20B-05, SKA20B-12, and SKA20B-15 list 18 ~ 36VDC. SKA20C-05, SKA20C-12, and SKA20C-15 list 36 ~ 75VDC.

Product overview

The SKA20A-12 belongs to the SKA20 series and the DIP - 2" x 1" Footprint family. Its DC input range is 9 ~ 18VDC. The operating temperature range is -40 to 85 °C. Dimensions are 50.8 × 25.4 × 11.2 mm, and net weight is 31.2 g.

Where this model fits

The SKA20A-12 is used in Embedded & Board-level Design. Its operating temperature range is -40 to 85 °C, its dimensions are 50.8 × 25.4 × 11.2 mm, and its net weight is 31.2 g.

Complete technical specifications

Rev. 2024-08-02
Output
Output voltage 12 V
Rated current 1.66667 A
Rated power 20 W
Input
AC input range 9 ~ 18VDC
DC input range 9–18 VDC
Typical efficiency 88 %
Protection
Short circuit Protected
Over voltage Protected
Shut down o/p voltage, recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 85 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 50.8 × 25.4 × 11.2 mm
Net weight 31.2 g
Safety & compliance
Safety standards EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SKA20A-12
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series SKA20

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:1.5KVDC
Isolation resistance I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Compliance to BS EN/EN55032 Class A, FCC part 15 Class A, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
Read the datasheet's exact wording

EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SKA20A-12
Minimum order quantity 1
Country of origin China
Typical packed weight 184 g
Unit weight 31.2 g

Downloads

SKA20 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SKA20B-1212 V1.66667 A20 W$58.74
Ships in 3–5 business days
SKA20A-12 12 V1.66667 A20 W$58.74
Ships in 3–5 business days

SKA20A-12: 9 ~ 18VDC input range; SKA20B-05: 18 ~ 36VDC input range.

SKA20A-12: 9 ~ 18VDC input range; SKA20C-12: 36 ~ 75VDC input range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SKA20A-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SKA20A-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-08-02
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
