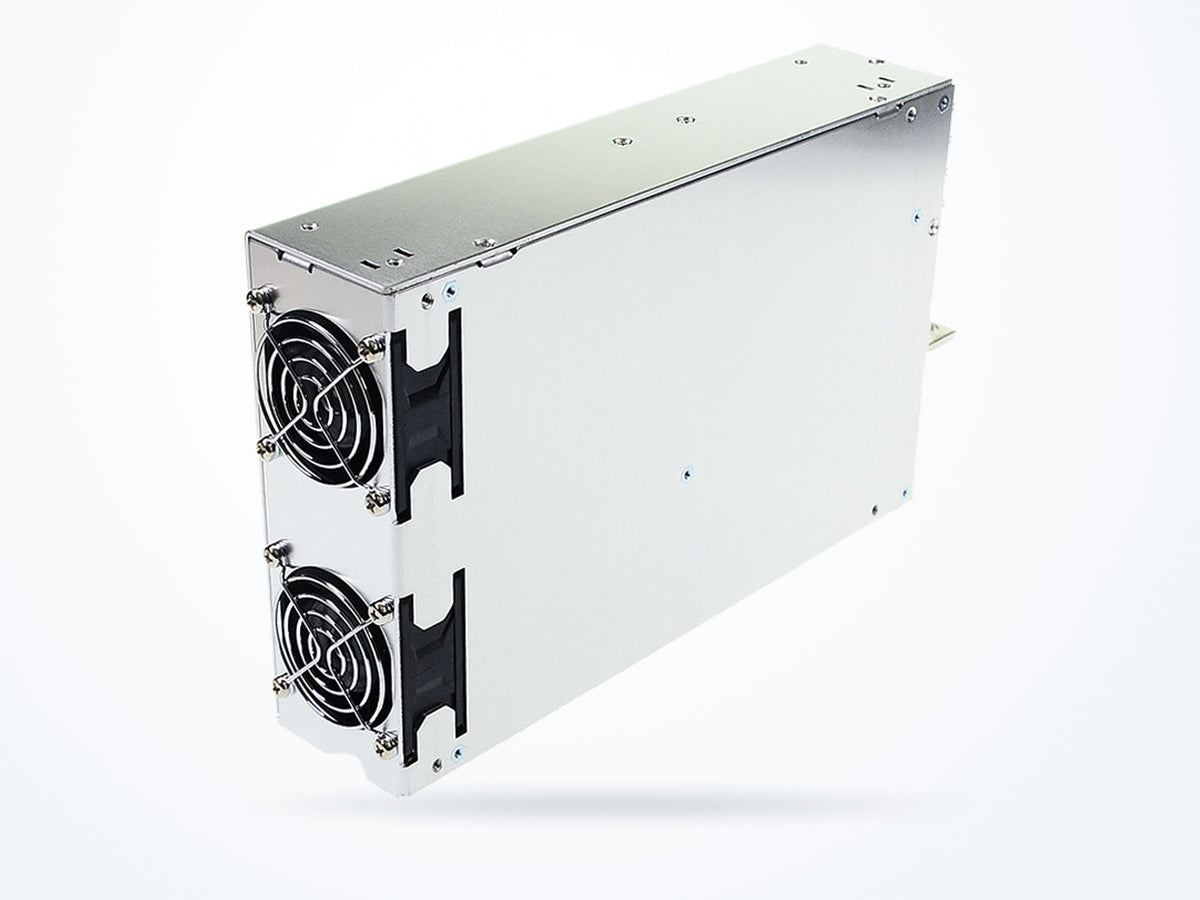

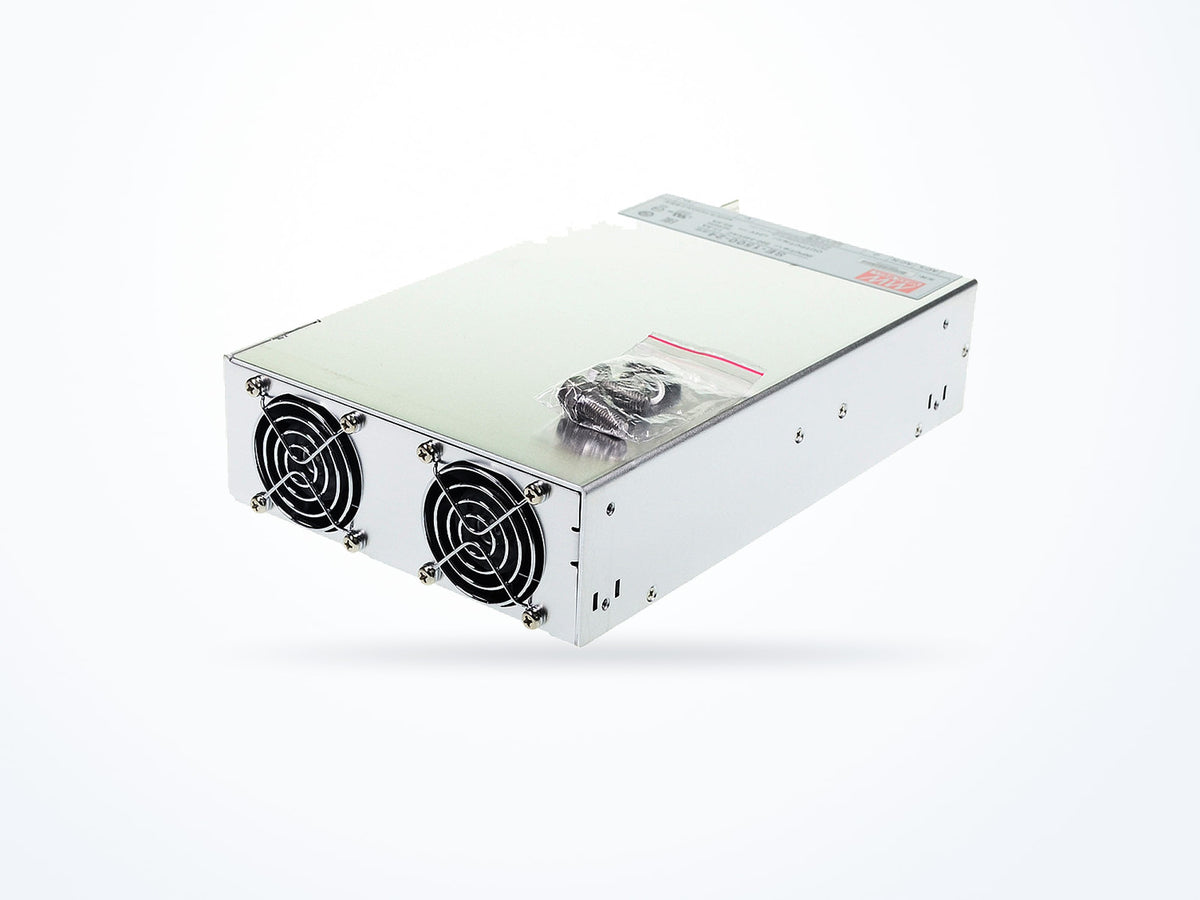

MEAN WELL SE-1500-24 1500W 24V 62.5A Enclosed Type

Part numberSE-1500-24
Output voltage 24 V
Rated current 62.5 A
Rated power 1500 W
$397.95Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SE-1500 model selection table SE Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 62.5 A
Rated power 1500 W
AC input range 180–264 VAC
Typical efficiency 87 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 278 × 177.8 × 63.5 mm

Is this model right for you?

Within the SE-1500 series, the SE-1500-24 differs from siblings by output voltage and output current. SE-1500-24: 24 V, 62.5 A; SE-1500-5: 5 V, 300 A; SE-1500-12: 12 V, 125 A; SE-1500-15: 15 V, 100 A; SE-1500-27: 27 V, 55.6 A; SE-1500-48: 48 V, 31.3 A. Typical efficiency also differs: SE-1500-24 lists 87%.

Product overview

The SE-1500-24 provides a 24 V output with 62.5 A output current and 1500 W rated power. Its input voltage range is 180 ~ 264VAC 254 ~ 370VDC at 47 ~ 63Hz. The output adjustment range is 21.6 ~ 26.4V, typical efficiency is 87%, and ripple and noise is 150mVp-p. Dimensions are 278 × 177.8 × 63.5 mm and net weight is 3300 g.

Where this model fits

The SE-1500-24 provides a 24 V output with 62.5 A output current and 1500 W rated power. Its operating temperature range is -20 to 70 °C and humidity range is 20 to 90%. Dimensions are 278 × 177.8 × 63.5 mm and net weight is 3300 g.

Complete technical specifications

Rev. 2024-09-25
Output
Output voltage 24 V
Rated current 62.5 A
Rated power 1500 W
Voltage adjustment range 21.6–26.4 V
Ripple & noise 150 mVp-p
Input
AC input range 180–264 VAC
DC input range 254–370 VDC
Frequency range 47–63 Hz
Typical efficiency 87 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 278 × 177.8 × 63.5 mm
Net weight 3300.0 g
Safety & compliance
Safety standards UL62368-1, BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SE-1500-24
Brand MEAN WELL
Category AC/DC Enclosed Type
Series SE-1500

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Standards certified against

  • CNS15598-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN62368-1

Read the datasheet's exact wording

UL62368-1, BSMI CNS15598-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SE-1500-24
Minimum order quantity 1
Country of origin China
Typical packed weight 3853 g
Unit weight 3300 g

Downloads

SE-1500 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SE-1500-2727 V55.6 A1501.2 W$427.32
Ships in 3–5 business days
SE-1500-24 24 V62.5 A1500 W$397.95
Ships in 3–5 business days

SE-1500-24 provides 24 V output and 62.5 A output current; SE-1500-5 provides 5 V output and 300 A output current.

SE-1500-24 provides 24 V output and 62.5 A output current; SE-1500-12 provides 12 V output and 125 A output current.

SE-1500-24 provides 24 V output and 62.5 A output current; SE-1500-48 provides 48 V output and 31.3 A output current.

SE-1500-24 lists typical efficiency of 87%; SE-1500-48 lists typical efficiency of 89%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SE-1500-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SE-1500-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-09-25
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
