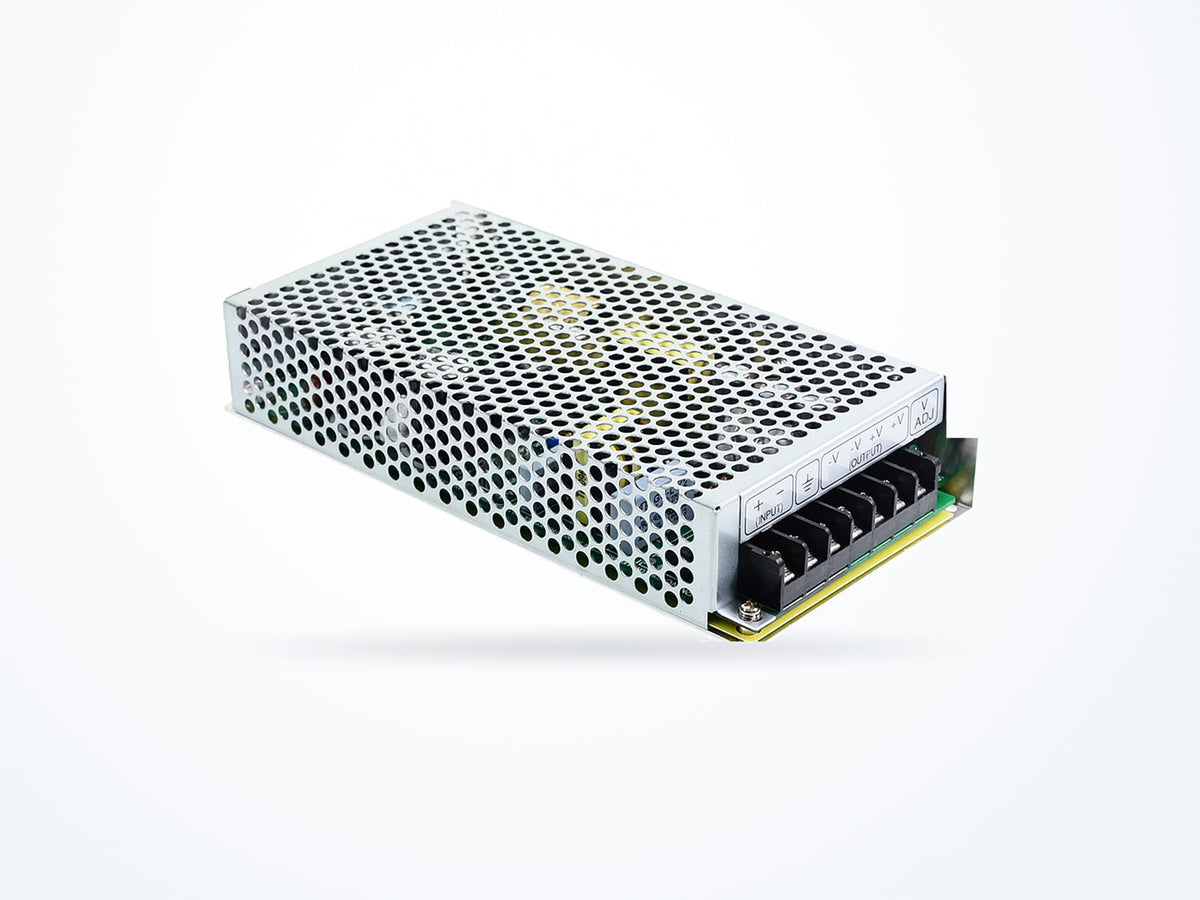

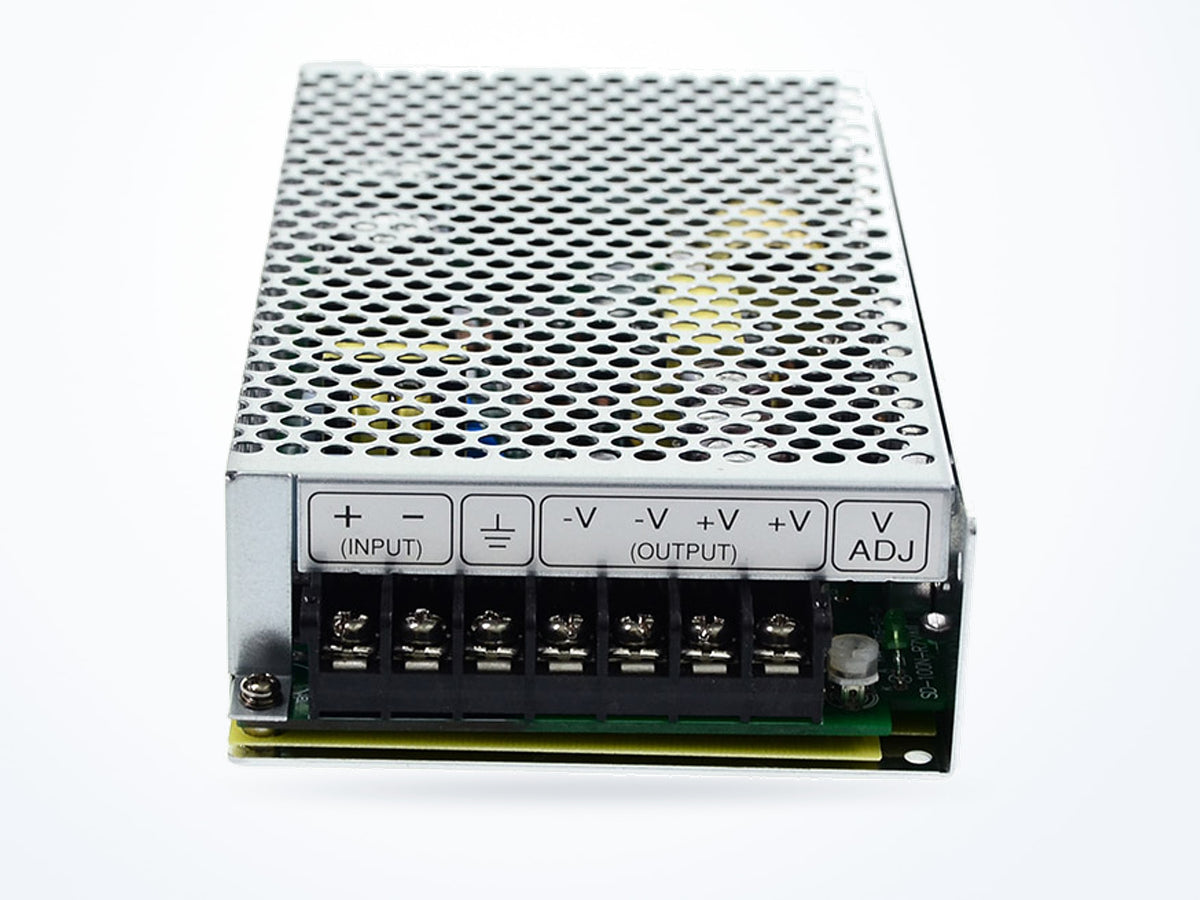

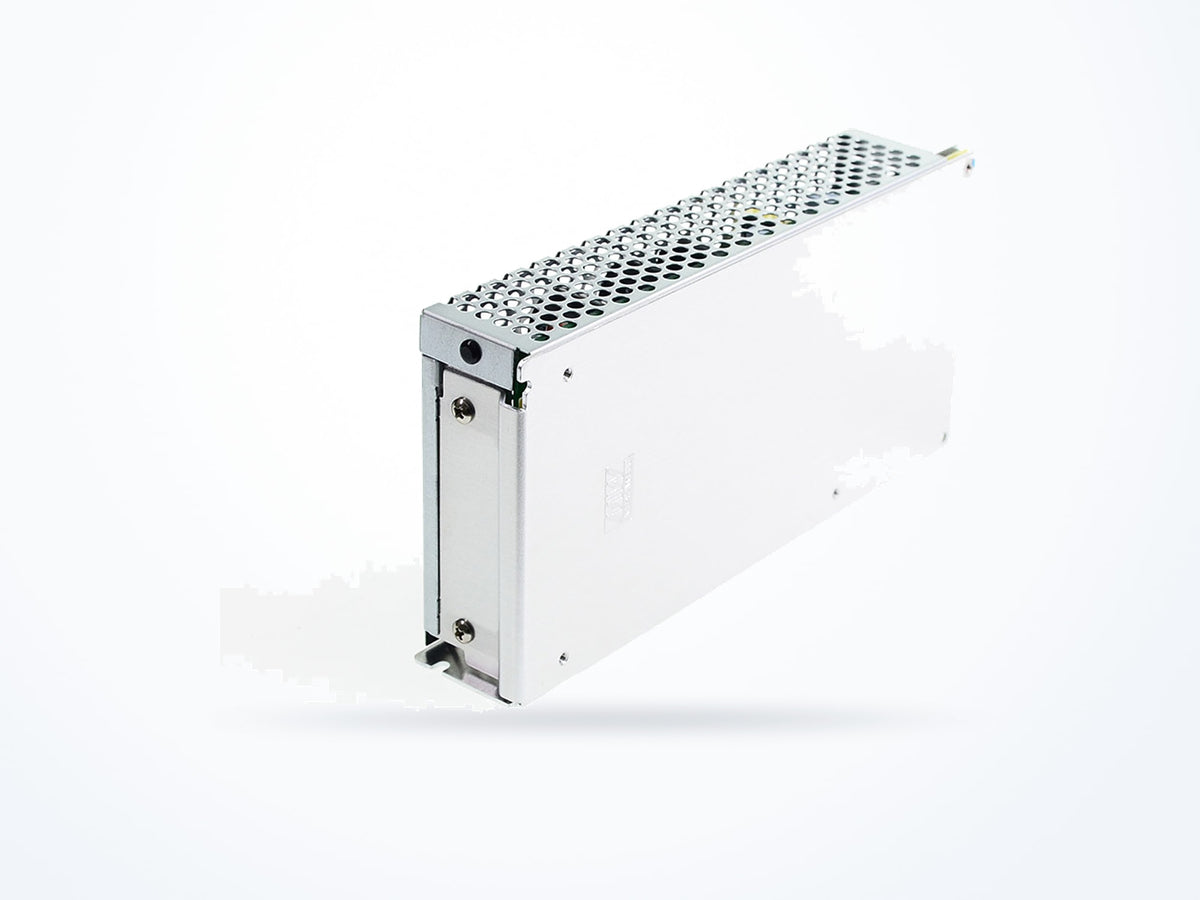

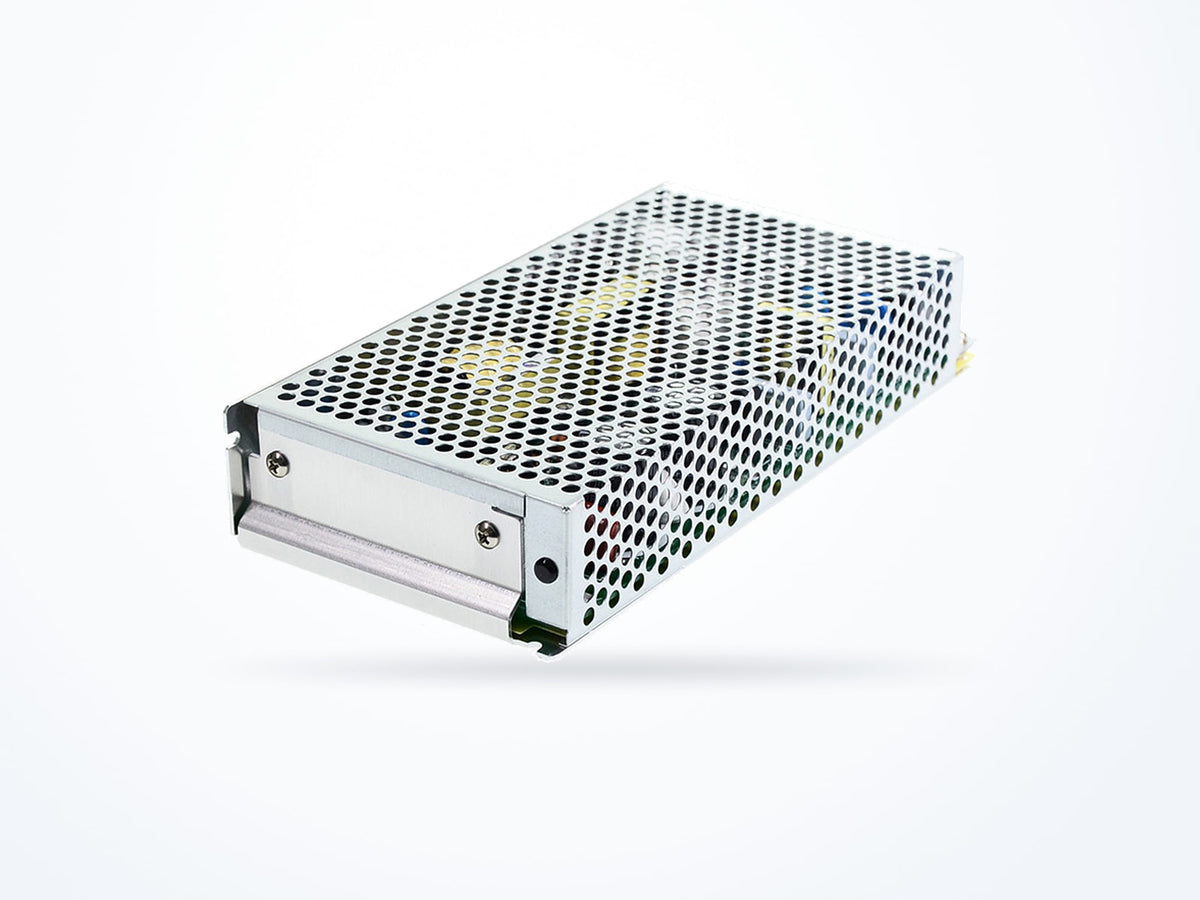

MEAN WELL SD-100D-12 102W 12V 8.5A Enclosed Type

Part numberSD-100D-12
Output voltage 12 V
Rated current 8.5 A
Rated power 102 W
$65.06Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SD-100 model selection table SD Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 8.5 A
Rated power 102 W
AC input range 85–132 VAC
Typical efficiency 80 %
Mechanical
Dimensions (L × W × H) 199 × 98 × 38 mm

Is this model right for you?

Within the SD-100 series, input voltage range distinguishes the models. SD-100D-12 lists 72 ~ 144VDC or 85 ~ 132VAC. SD-100A-12 lists 9.5 ~ 18VDC, SD-100B-12 lists 19 ~ 36VDC, and SD-100C-12 lists 36 ~ 72VDC.

Product overview

The SD-100D-12 belongs to the SD-100 series and is classified as a DC/DC Enclosed Type product. Its input voltage range is 72 ~ 144VDC or 85 ~ 132VAC. The unit measures 199 × 98 × 38 mm and has a net weight of 650 g. Humidity range is 20 to 90%.

Where this model fits

The SD-100D-12 is used in Telecom & Datacom applications. Its input voltage range is 72 ~ 144VDC or 85 ~ 132VAC, and its dimensions are 199 × 98 × 38 mm with a net weight of 650 g.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 12 V
Rated current 8.5 A
Rated power 102 W
Input
AC input range 85–132 VAC
DC input range 72–144 VDC
Typical efficiency 80 %
Environmental
Operating temperature -15 ~ +60℃(SD-100A), -10 ~ +60℃(SD-100B/C/D) (Refer to "Derating Curve")
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 199 × 98 × 38 mm
Net weight 650.0 g
Safety & compliance
Safety standards IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SD-100D-12
Brand MEAN WELL
Category DC/DC Enclosed Type
Series SD-100

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,6,8, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • EN 62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

AS/NZS 62368.1

Read the datasheet's exact wording

IEC/BS EN/EN 62368-1(for D type only), EAC TP TC 004 approved, design refer to AS/NZS 62368.1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SD-100D-12
Minimum order quantity 1
Country of origin China
Typical packed weight 840 g
Unit weight 650 g

Downloads

SD-100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability

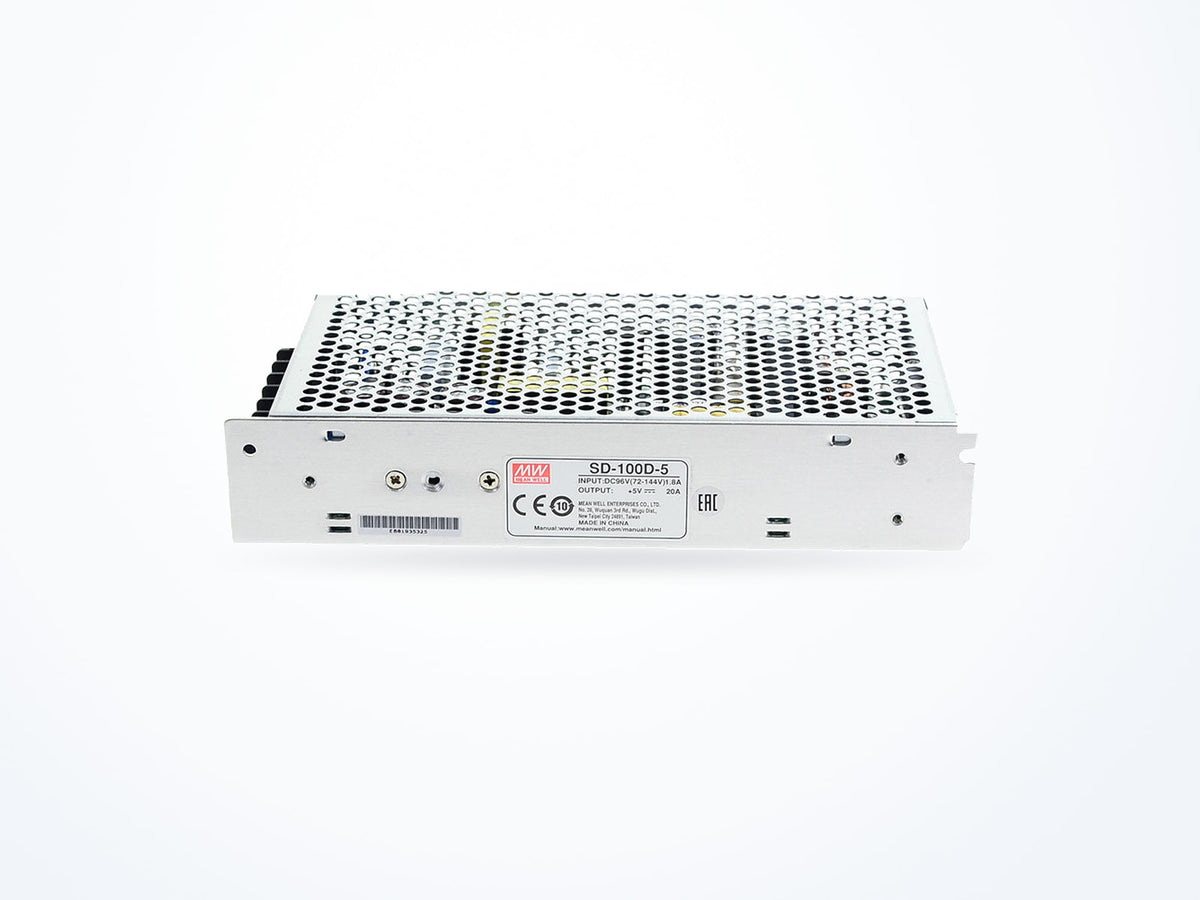

SD-100D-55 V20 A100 W$65.06
Ships in 3–5 business days
SD-100D-12 12 V8.5 A102 W$65.06
Ships in 3–5 business days

SD-100D-12 input voltage range: 72 ~ 144VDC or 85 ~ 132VAC; SD-100A-12 input voltage range: 9.5 ~ 18VDC.

SD-100D-12 input voltage range: 72 ~ 144VDC or 85 ~ 132VAC; SD-100B-12 input voltage range: 19 ~ 36VDC.

SD-100D-12 input voltage range: 72 ~ 144VDC or 85 ~ 132VAC; SD-100C-12 input voltage range: 36 ~ 72VDC.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for SD-100D-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting SD-100D-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-11-22
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
