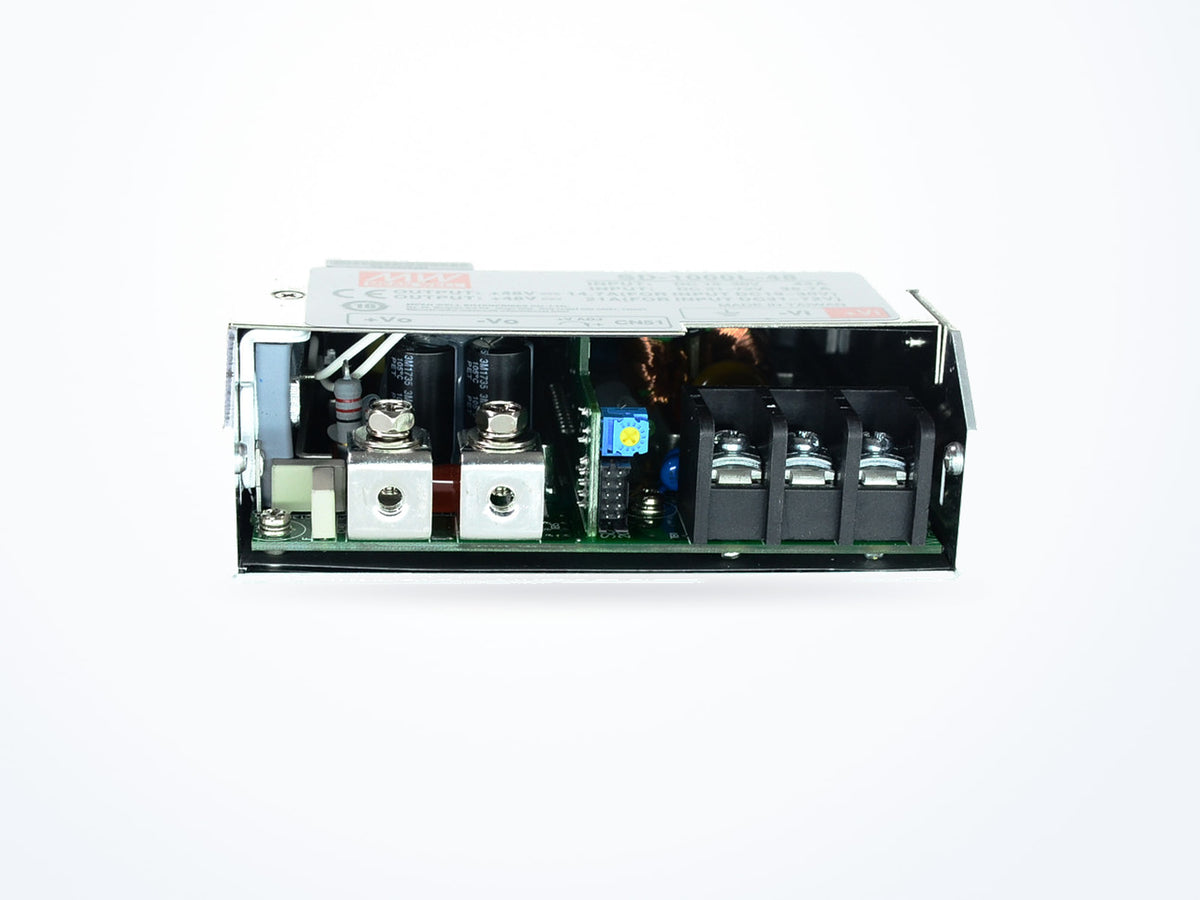

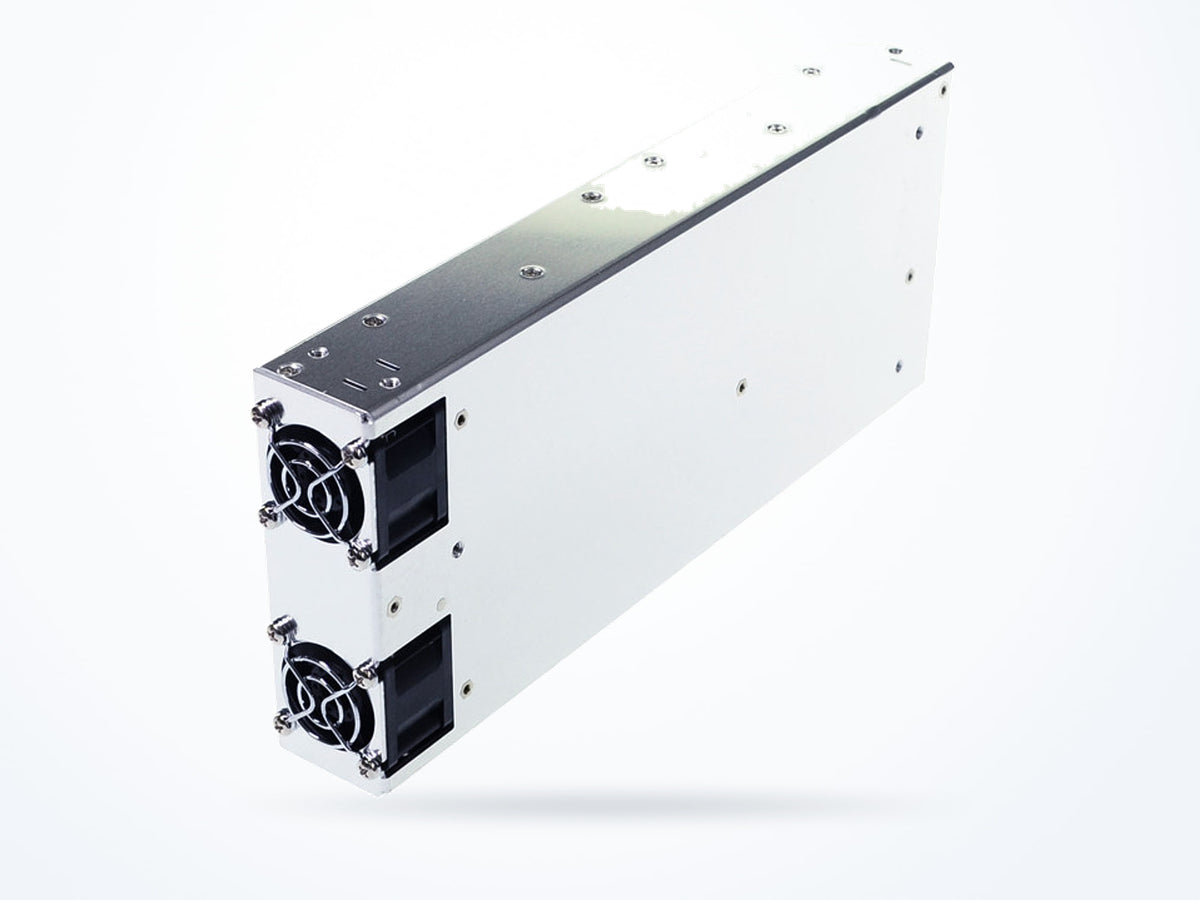

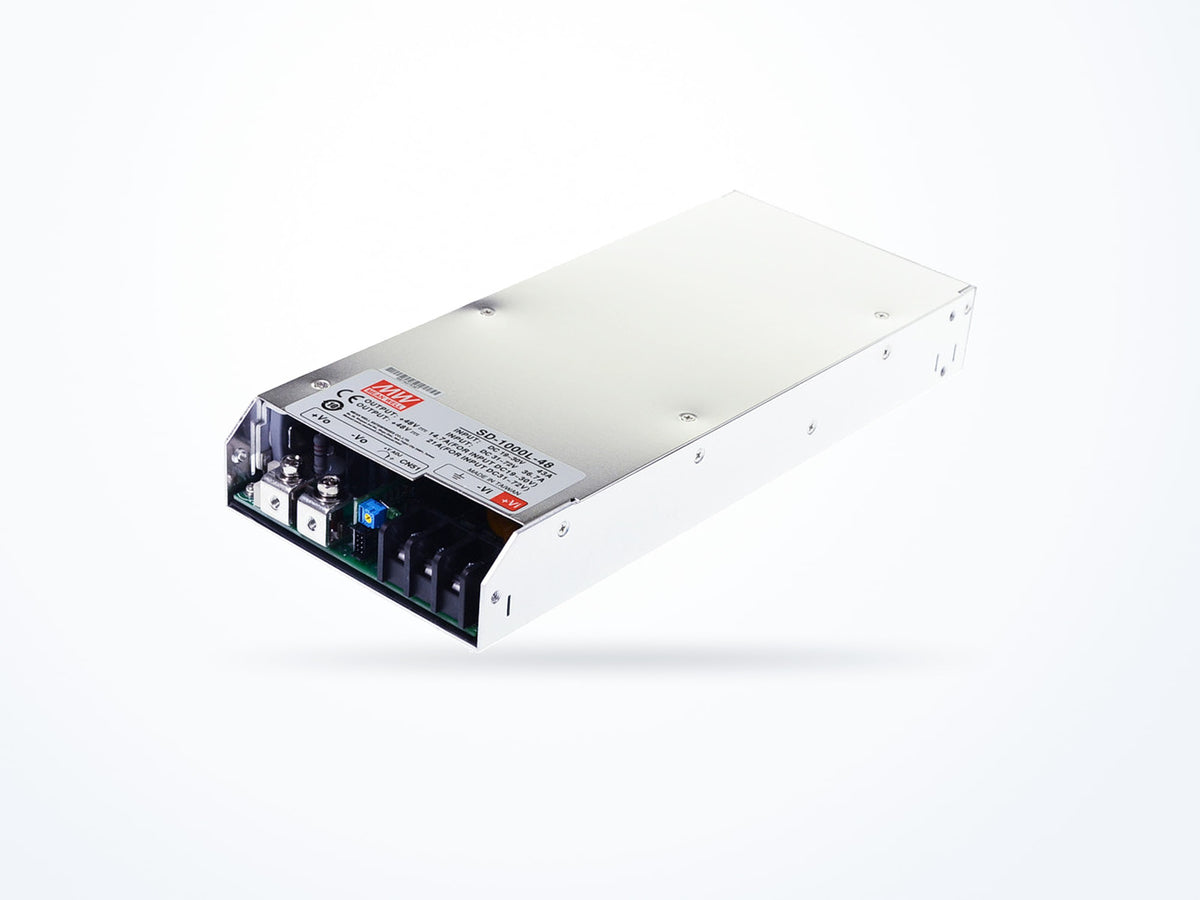

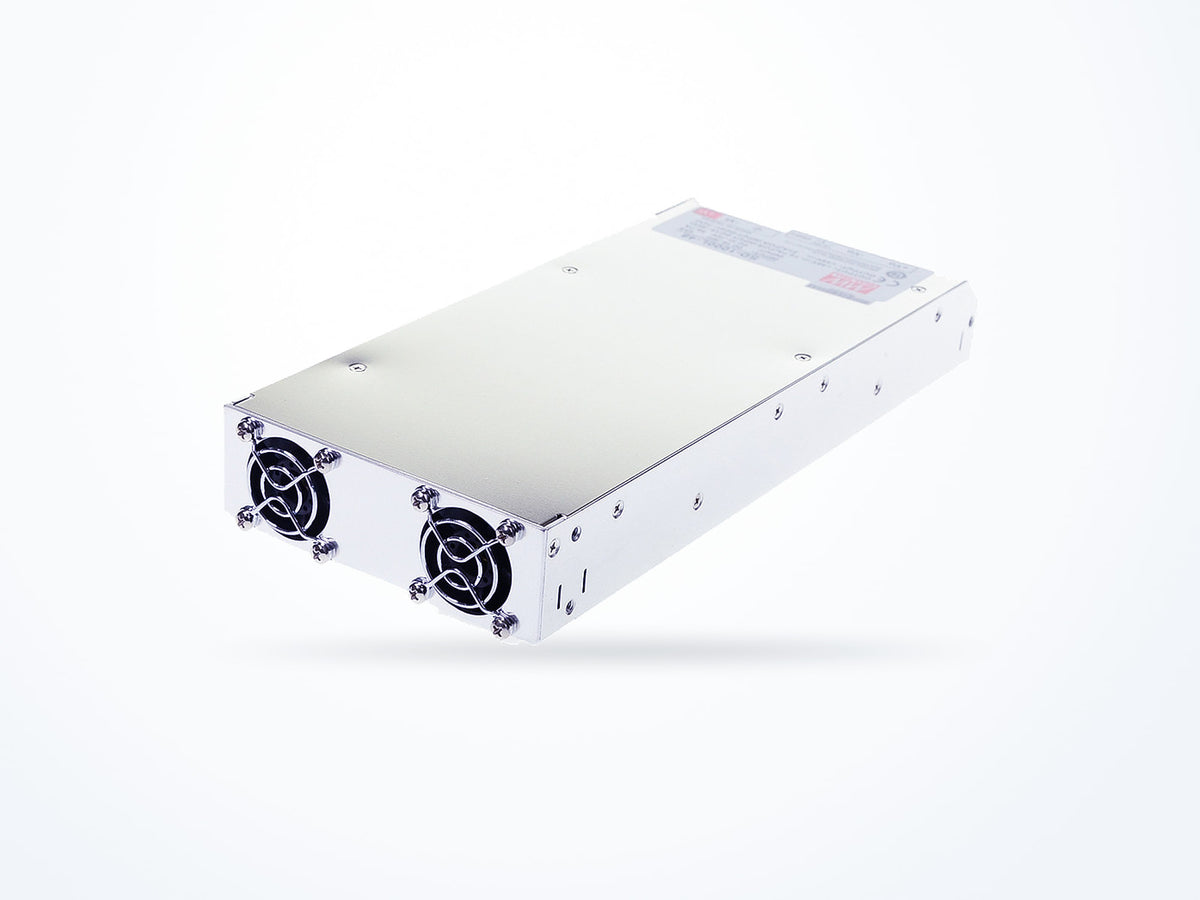

MEAN WELL SD-1000H-24 960W 24V 40A Enclosed Type

Part numberSD-1000H-24
Output voltage 24 V
Rated current 40 A
Rated power 960 W
$476.59Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SD-1000 model selection table SD Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 40 A
Rated power 960 W
Typical efficiency 89 %
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 295 × 127 × 41 mm

Is this model right for you?

Within the SD-1000 series, the SD-1000H-24 lists 24 V, 40 A, 960 W, 72 ~ 144VDC input, 89%. By comparison SD-1000H-12 lists 12 V, 60 A, 720 W, 72 ~ 144VDC input, 85%; SD-1000H-48 lists 48 V, 21 A, 1008 W, 72 ~ 144VDC input, 92%; SD-1000L-12 lists 12 V, 60 A, 720 W, 19 ~ 72VDC input, 84%; SD-1000L-24 lists 24 V, 40 A, 960 W, 19 ~ 72VDC input, 88%, and 1 further model. Select the model whose output voltage, output current, rated power, and input range match the installation.

Product overview

The SD-1000H-24 belongs to the MEAN WELL SD-1000 series and is classified as a DC/DC Enclosed Type product. Its dimensions are 295 × 127 × 41 mm and its net weight is 1940 g. The operating temperature range is -20 to 60 °C, and the humidity range is 20 to 90%.

Where this model fits

The SD-1000H-24 is used in Telecom & Datacom. Its operating temperature range is -20 to 60 °C and its humidity range is 20 to 90%. The product measures 295 × 127 × 41 mm and has a net weight of 1940 g.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 24 V
Rated current 40 A
Rated power 960 W
Input
AC input range 72 ~ 144VDC
DC input range 72–144 VDC
Typical efficiency 89 %
Environmental
Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 295 × 127 × 41 mm
Net weight 1940.0 g
Safety & compliance
Safety standards IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SD-1000H-24
Brand MEAN WELL
Category DC/DC Enclosed Type
Series SD-1000

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32), EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS62368.1
  • EN62368-1
  • IEC62368-1
Read the datasheet's exact wording

IEC62368-1 CB approved by TUV, TUV BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SD-1000H-24
Minimum order quantity 1
Country of origin China
Typical packed weight 2313 g
Unit weight 1940 g

Downloads

SD-1000 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SD-1000L-1212 V60 A720 W$476.59
Ships in 3–5 business days
SD-1000H-24 24 V40 A960 W$476.59
Ships in 3–5 business days

SD-1000H-24: 24 V output; SD-1000H-12 and SD-1000L-12: 12 V; SD-1000H-48 and SD-1000L-48: 48 V.

SD-1000H-24: 40 A output current; SD-1000H-48 and SD-1000L-48: 21 A; SD-1000H-12 and SD-1000L-12: 60 A.

SD-1000H-24: 960 W rated power; SD-1000H-48 and SD-1000L-48: 1.01e+03 W; SD-1000H-12 and SD-1000L-12: 720 W.

SD-1000H-24: 89% typical efficiency; the rest of the series runs 84% to 92%.
