MEAN WELL SCP-50-24 49.7W 27.6V 1.8A Security & Specific

Part numberSCP-50-24
Output voltage 27.6 V
Rated current 1.8 A
Rated power 49.7 W
$33.48Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
SCP-50 model selection table Security—SCP & AD/ ADS/ ADD/ LAD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 27.6 V
Rated current 1.8 A
Rated power 49.7 W
AC input range 85–264 VAC
Typical efficiency 85 %
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 129 × 98 × 38 mm

Is this model right for you?

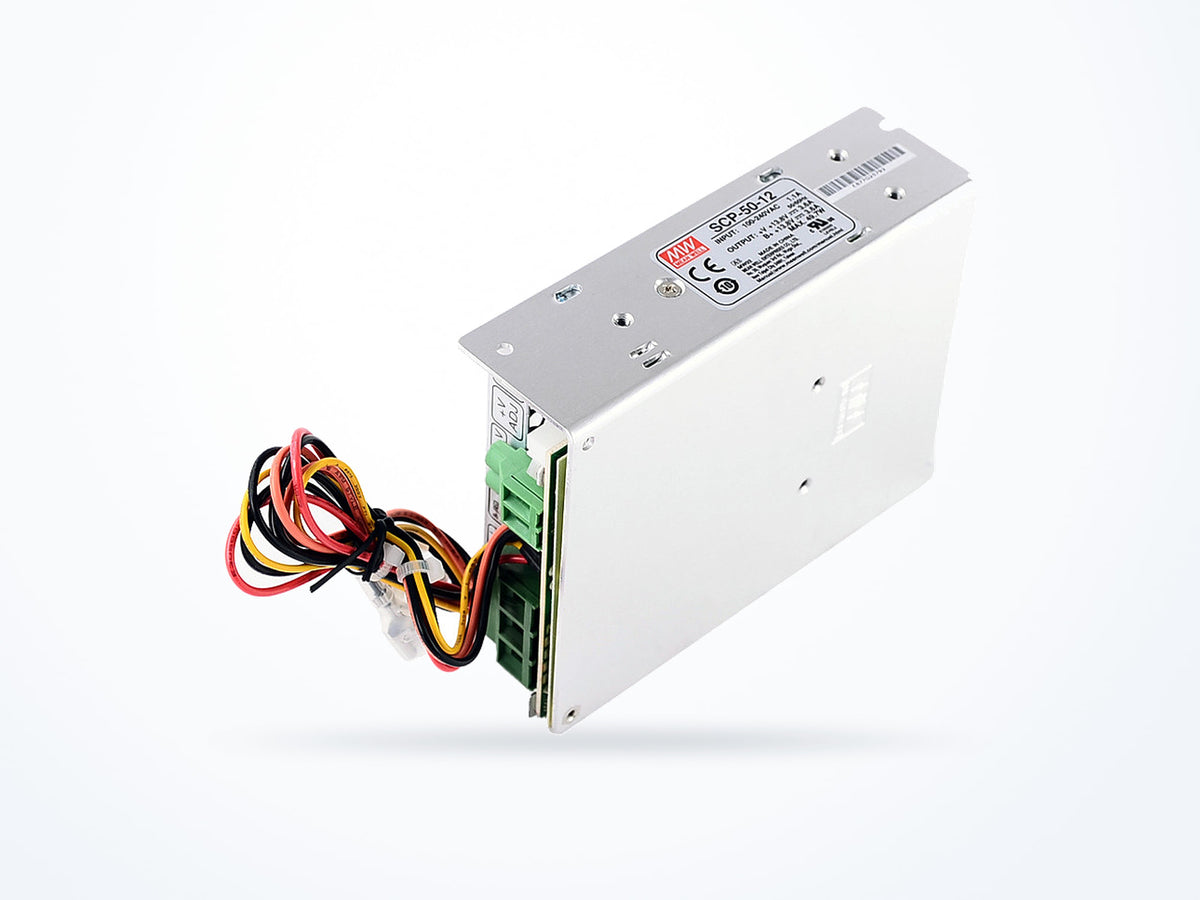

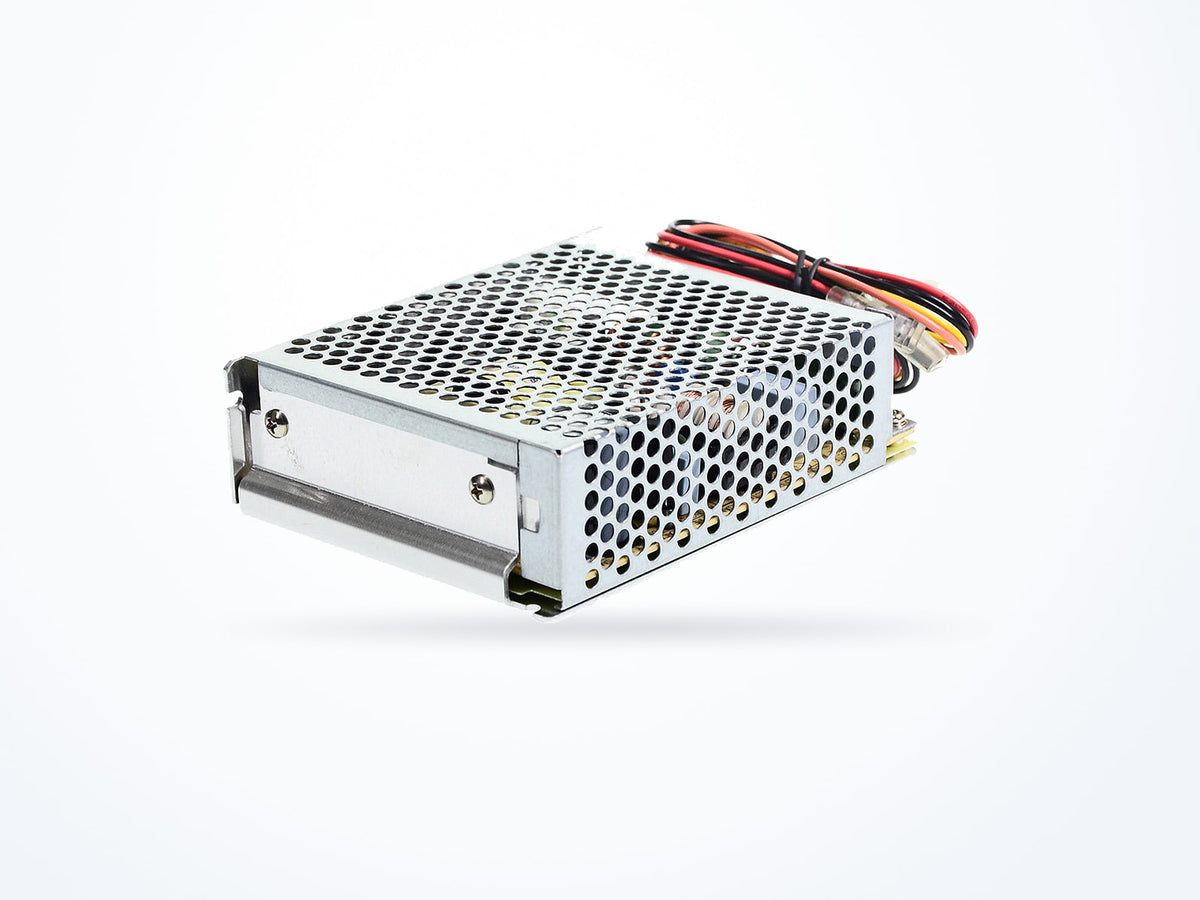

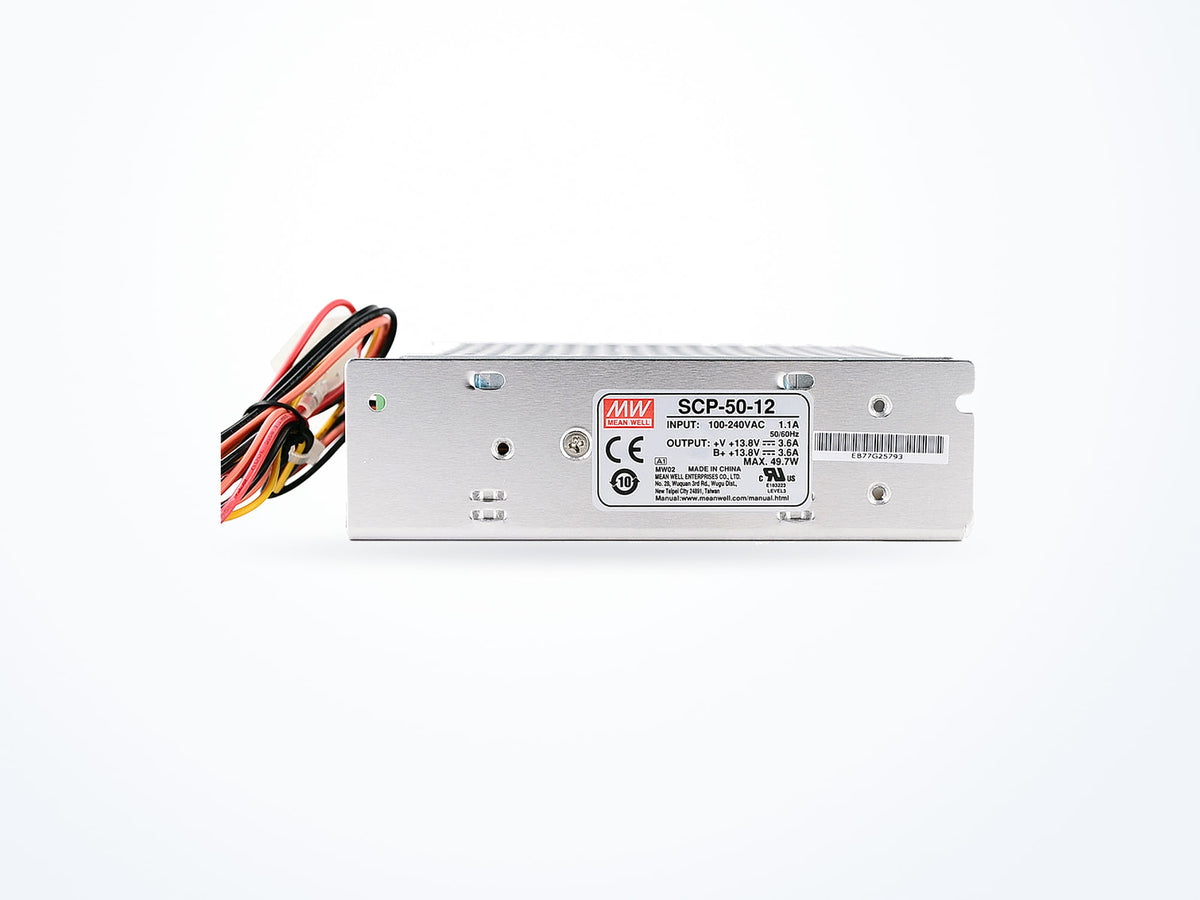

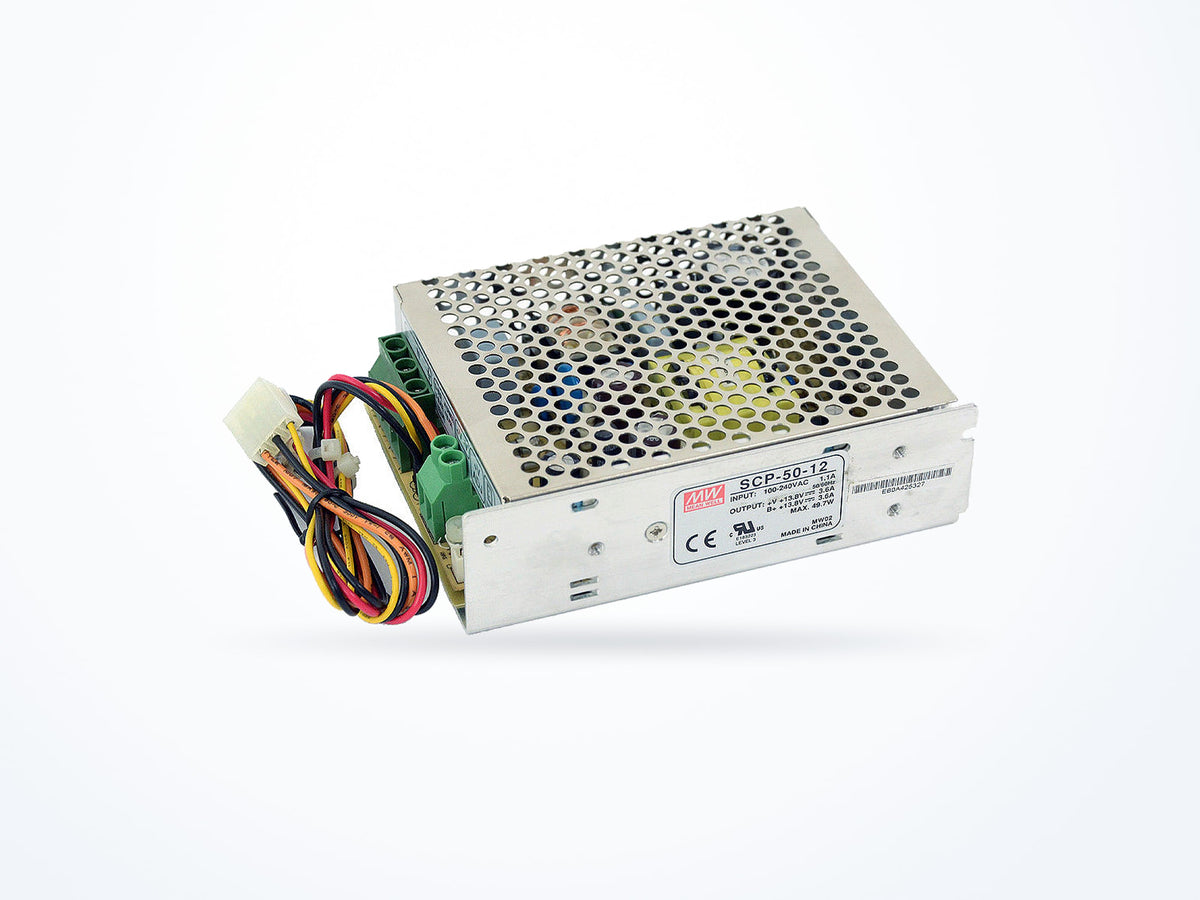

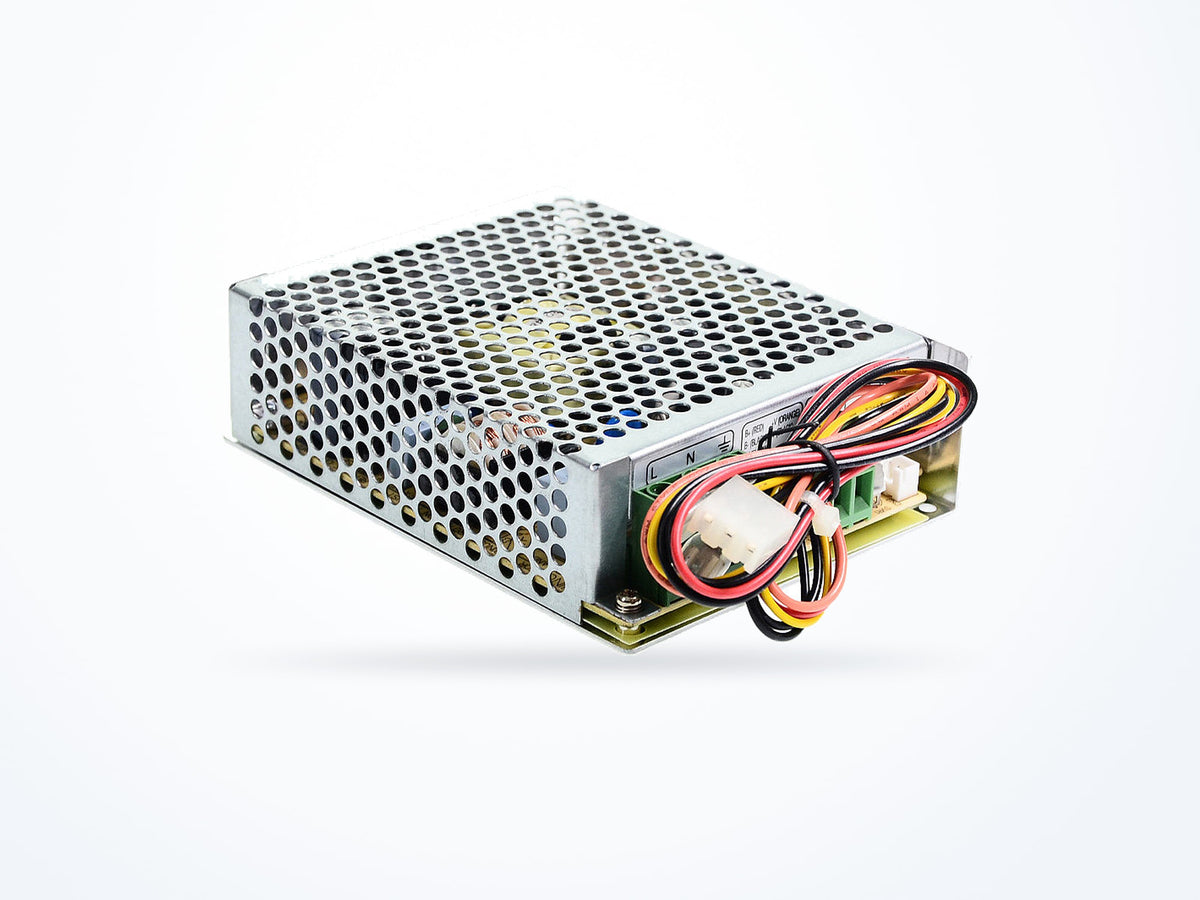

Within the SCP-50 series, the SCP-50-24 provides 27.6 V at 1.8 A, while the SCP-50-12 provides 13.8 V at 3.6 A. Typical efficiency is 85% for the SCP-50-24 and 81% for the SCP-50-12. Ripple and noise is 200mVp-p for the SCP-50-24 and 120mVp-p for the SCP-50-12.

Product overview

The SCP-50-24 is part of the SCP-50 series. It provides a 27.6 V output at 1.8 A and a rated power of 49.7 W. The input range is 85 ~ 264VAC 120 ~ 370VDC at 47 ~ 63Hz. Typical efficiency is 85%. Ripple and noise is 200mVp-p. Dimensions are 129 × 98 × 38 mm and net weight is 450 g.

Where this model fits

The SCP-50-24 is used in Security & Surveillance. Its operating temperature range is -20 to 60 °C and humidity range is 20 to 90%. Dimensions are 129 × 98 × 38 mm and net weight is 450 g.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 27.6 V
Rated current 1.8 A
Rated power 49.7 W
Voltage adjustment range +15,-5%
Ripple & noise 200 mVp-p
Input
AC input range 85–264 VAC
DC input range 120–370 VDC
Frequency range 47–63 Hz
Typical efficiency 85 %
Environmental
Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 129 × 98 × 38 mm
Net weight 450.0 g
Safety & compliance
Safety standards UL62368-1, CB(IEC62368-1), EAC TP TC 004 approved, Design refer to BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number SCP-50-24
Brand MEAN WELL
Category AC/DC Security & Specific
Series SCP-50

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B,BS EN/EN61000-3-2,3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8,11, BS EN/ENV50204, BS EN/EN55035, BS EN/EN61000-6-1, light industry level, EAC TP TC 020

Standards certified against

  • IEC62368-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN62368-1

Read the datasheet's exact wording

UL62368-1, CB(IEC62368-1), EAC TP TC 004 approved, Design refer to BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number SCP-50-24
Minimum order quantity 1
Country of origin China
Typical packed weight 633 g
Unit weight 450 g

Downloads

SCP-50 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
SCP-50-24 27.6 V1.8 A49.7 W$33.48
Ships in 3–5 business days
SCP-50-1213.8 V3.6 A49.7 W$33.48
Ships in 3–5 business days

SCP-50-24: 27.6 V output, 1.8 A; SCP-50-12: 13.8 V output, 3.6 A.

SCP-50-24: typical efficiency 85%; SCP-50-12: typical efficiency 81%.

SCP-50-24: ripple and noise 200mVp-p; SCP-50-12: ripple and noise 120mVp-p.
