MEAN WELL RST-5000-48 5040W 48V 105A Programmable Power

Part numberRST-5000-48
Output voltage 48 V
Rated current 105 A
Rated power 5040 W
$3,120.75Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RST-5000 model selection table RST Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 105 A
Rated power 5040 W
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 460 × 211 × 83.5 mm

Is this model right for you?

Within the RST-5000 series, the RST-5000-48 differs from the RST-5000-24 and RST-5000-36 by output voltage and output current. RST-5000-48: 48 V, 105 A, 5040 W; RST-5000-36: 36 V, 138 A, 4968 W; RST-5000-24: 24 V, 200 A, 4800 W. Ripple and noise also differs: RST-5000-48 lists 200mVp-p while RST-5000-24 lists 150mVp-p.

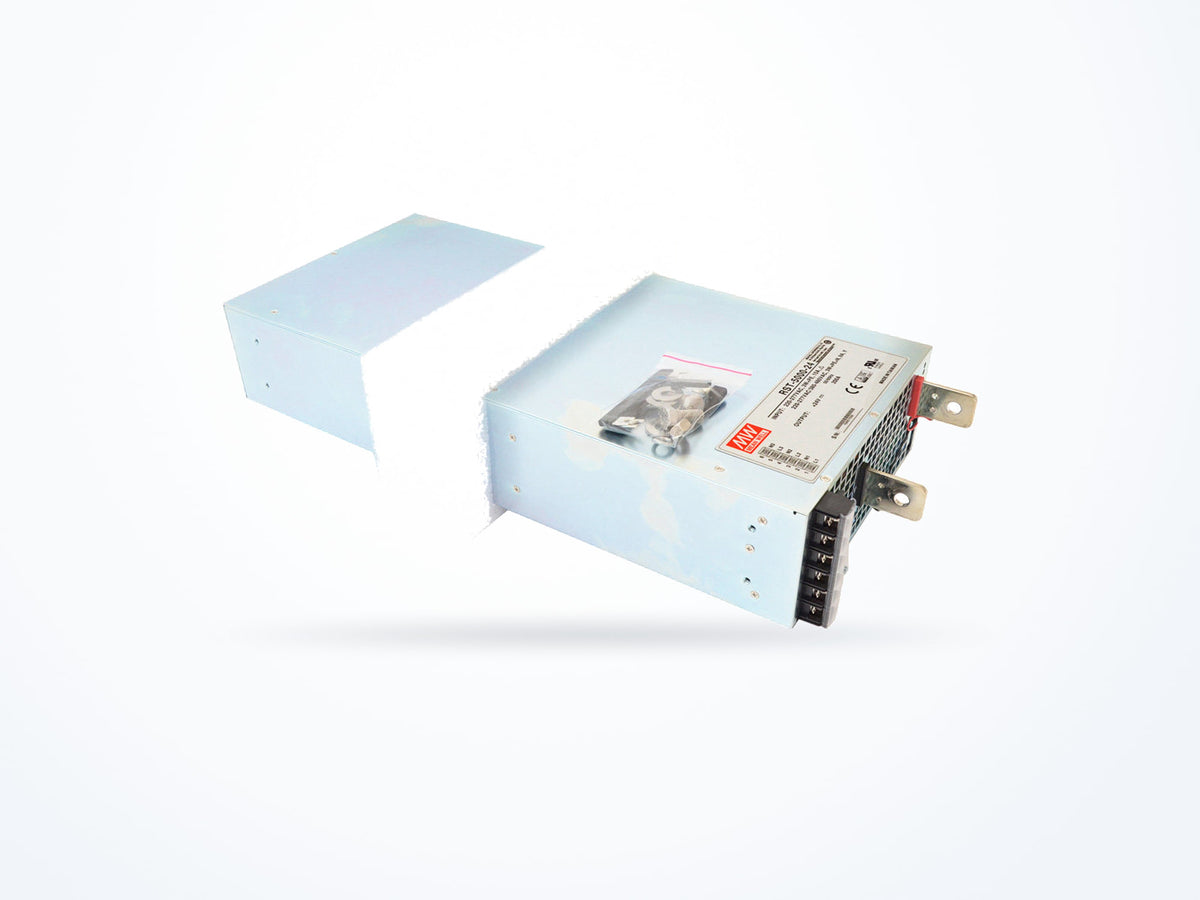

Product overview

The RST-5000-48 is an AC/DC Programmable Power in the RST-5000 series. It provides a 48 V output at 105 A with 5040 W rated power. The input frequency range is 47 ~ 63Hz, and the input voltage range is 3φ 3-wire / △ 196 ~ 305VAC or 3φ 4-wire / Y 340 ~ 530VAC. Ripple and noise is 200mVp-p. Dimensions are 460 × 211 × 83.5 mm and net weight is 10000 g.

Where this model fits

The RST-5000-48 is used in Test & Measurement applications. Its operating temperature range is -30 to 70 °C, and its humidity range is 20 to 90 %. The enclosure measures 460 × 211 × 83.5 mm and the net weight is 10000 g.

Complete technical specifications

Rev. 2026-01-12
Output
Output voltage 48 V
Rated current 105 A
Rated power 5040 W
Ripple & noise 200 mVp-p
Input
AC input range 3φ 3-wire / △ 196 ~ 305VAC or 3φ 4-wire / Y 340 ~ 530VAC
Frequency range 47–63 Hz
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 460 × 211 × 83.5 mm
Net weight 10000.0 g
Safety & compliance
Safety standards UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RST-5000-48
Brand MEAN WELL
Category AC/DC Programmable Power
Series RST-5000

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RST-5000-48
Minimum order quantity 1
Country of origin China
Typical packed weight 10908 g
Unit weight 10000 g

Downloads

RST-5000 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RST-5000-3636 V138 A4968 W$3,120.75
Ships in 3–5 business days
RST-5000-2424 V200 A4800 W$3,120.75
Ships in 3–5 business days
RST-5000-48 48 V105 A5040 W$3,120.75
Ships in 3–5 business days

RST-5000-48 provides 48 V output and 105 A output current; RST-5000-24 provides 24 V output and 200 A output current.

RST-5000-48 provides 48 V output and 105 A output current; RST-5000-36 provides 36 V output and 138 A output current.

RST-5000-48 lists 5040 W rated power; RST-5000-24 lists 4800 W rated power.

RST-5000-48 lists 200mVp-p ripple and noise; RST-5000-24 lists 150mVp-p ripple and noise.
