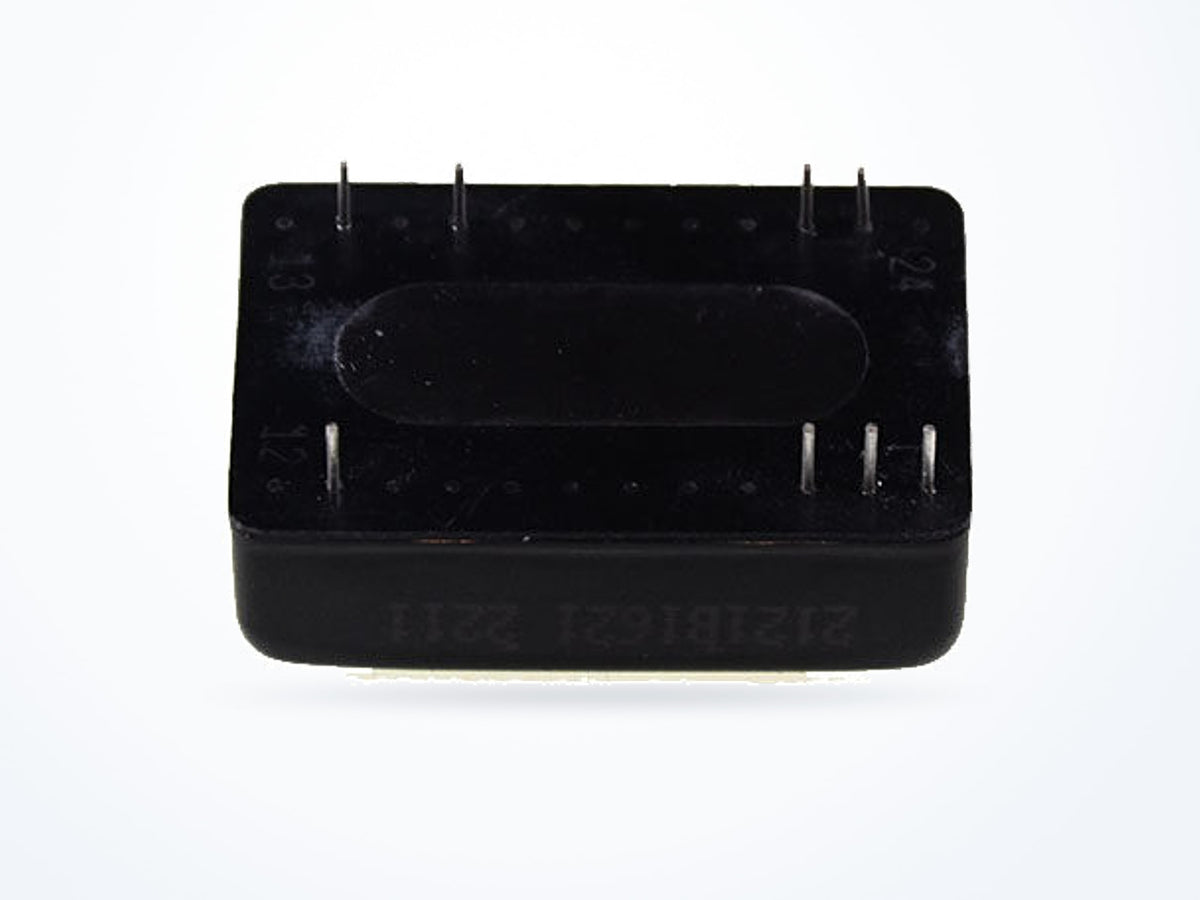

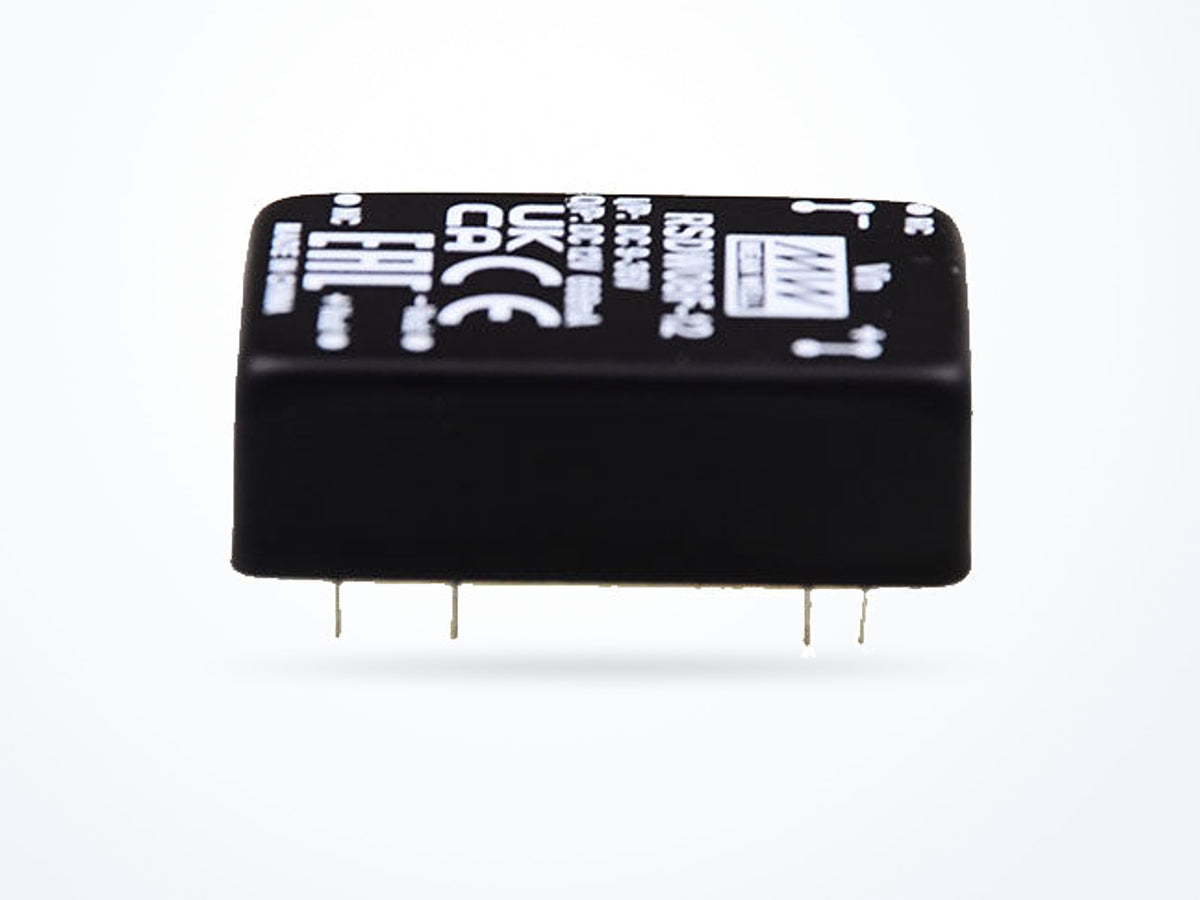

MEAN WELL RSDW08G-15 7.95W 15V 0.53A On Board Type (Module Potted)

Part numberRSDW08G-15
Output voltage 15 V
Rated current 0.53 A
Rated power 7.95 W
$27.48Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RSDW08,RDDW08 model selection table DIP - 1.25" x 0.8" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 0.53 A
Rated power 7.95 W
Typical efficiency 86 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 85 °C
Dimensions (L × W × H) 31.8 × 20.3 × 10.2 mm

Is this model right for you?

Within the RSDW08,RDDW08 series, the RSDW08G-15 lists an 18~75Vdc input voltage range. RDDW08F-05, RDDW08F-12, RDDW08F-15, RSDW08F-03, RSDW08F-05, RSDW08F-12, and RSDW08F-15 each list a 9~36Vdc input voltage range. Select based on the input voltage window required.

Product overview

The RSDW08G-15 belongs to the RSDW08,RDDW08 series and is classified as a DC/DC On Board Type (Module Potted) product. It lists an 18~75Vdc input voltage range, a black coated copper case with non-conductive base, and free-air convection cooling. Dimensions are 31.8 × 20.3 × 10.2 mm and net weight is 18.4 g.

Where this model fits

The RSDW08G-15 is used in Embedded & Board-level Design. It lists an 18~75Vdc input voltage range, a black coated copper case with non-conductive base, free-air convection cooling, dimensions of 31.8 × 20.3 × 10.2 mm, and a net weight of 18.4 g.

Complete technical specifications

Rev. 2024-04-30
Output
Output voltage 15 V
Rated current 0.53 A
Rated power 7.95 W
Input
AC input range 18~75Vdc
DC input range 18–75 VDC
Typical efficiency 86 %
Protection
Overload Protected
Over voltage Protected
Recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 85 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B)
Mechanical
Dimensions (L × W × H) 31.8 × 20.3 × 10.2 mm
Net weight 18.4 g
Cooling Free-air convection
Fan Not supported
Case material Black coated copper with non-conductive base
Safety & compliance
Safety standards EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RSDW08G-15
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series RSDW08,RDDW08

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:1.5KVDC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
Read the datasheet's exact wording

EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RSDW08G-15
Minimum order quantity 1
Country of origin China
Typical packed weight 170 g
Unit weight 18.4 g

Downloads

RSDW08,RDDW08 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RSDW08G-15 15 V0.53 A7.95 W$27.48
Ships in 3–5 business days
RDDW08G-055 V0.8 A8 W$28.74
Ships in 3–5 business days
RDDW08F-1515 V0.265 A7.95 W$28.74
Ships in 3–5 business days

RSDW08G-15 lists an 18~75Vdc input voltage range; RDDW08F-05, RDDW08F-12, RDDW08F-15, RSDW08F-03, RSDW08F-05, RSDW08F-12, and RSDW08F-15 each list a 9~36Vdc input voltage range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RSDW08G-15

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RSDW08G-15 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-04-30
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
