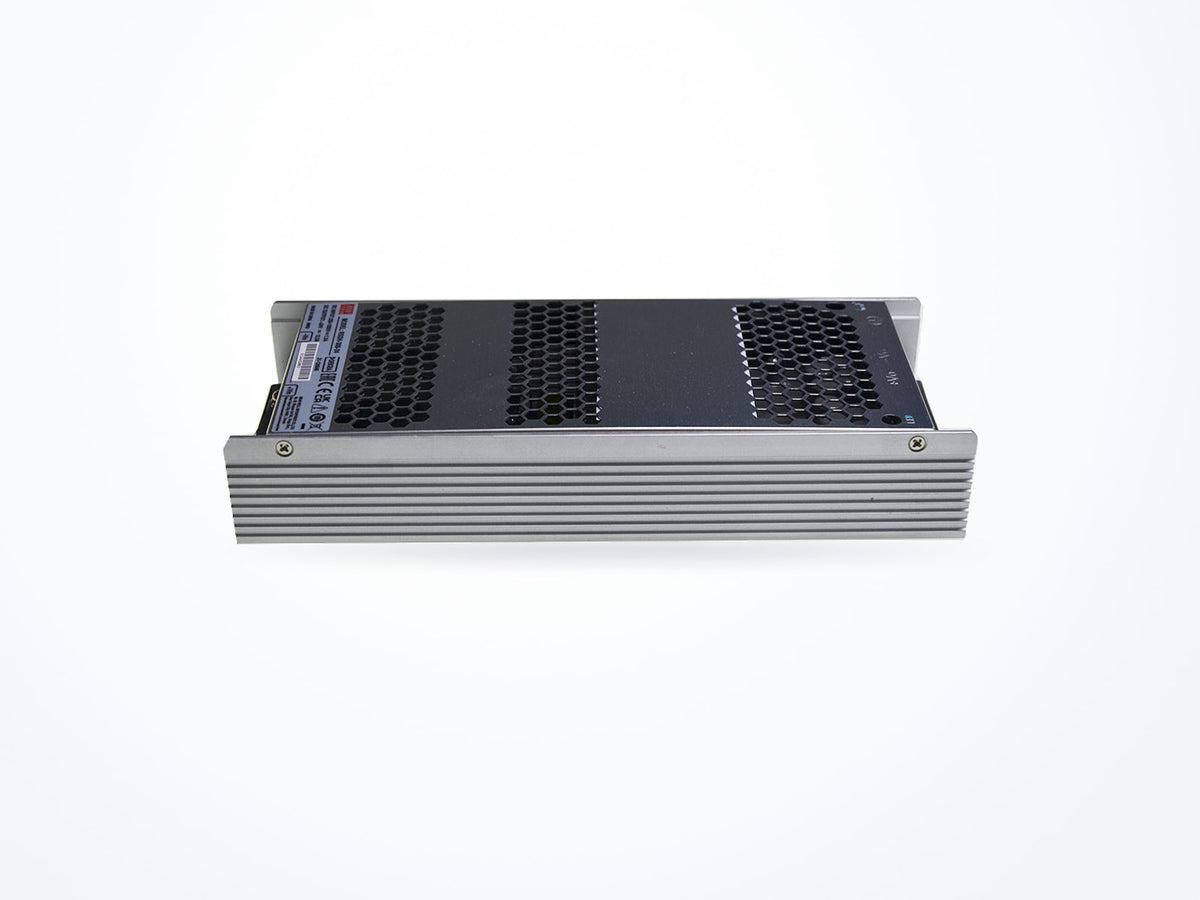

MEAN WELL RSDH-300-48 300W 48V 6.25A Enclosed Type

Part numberRSDH-300-48
Output voltage 48 V
Rated current 6.25 A
Rated power 300 W
$149.39Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RSDH-300 model selection table RSDH Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 6.25 A
Rated power 300 W
Mechanical
Operating temperature -40 to 80 °C
Dimensions (L × W × H) 237 × 100 × 41 mm

Is this model right for you?

Within the RSDH-300 series, the RSDH-300-48 differs from siblings by output voltage and current. RSDH-300-48: 48 V, 6.25 A; RSDH-300-12: 12 V, 20 A; RSDH-300-24: 24 V, 12.5 A; RSDH-300-32: 32 V, 9.37 A. Rated power is 300 W for RSDH-300-48, while RSDH-300-12 lists 240 W.

Product overview

The RSDH-300-48 provides a 48 V output with an output adjustment range of 48 ~ 58V and an output current of 6.25 A. Rated power is 300 W, and ripple and noise are 300mVp-p. The input voltage range is 250 ~ 1500Vdc. Dimensions are 237 × 100 × 41 mm and net weight is 1100 g.

Where this model fits

The RSDH-300-48 is used in Telecom & Datacom. Its input voltage range is 250 ~ 1500Vdc, and its operating temperature range is -40 to 80 °C. Dimensions are 237 × 100 × 41 mm and net weight is 1100 g.

Complete technical specifications

Rev. 2026-08-31
Output
Output voltage 48 V
Rated current 6.25 A
Rated power 300 W
Voltage adjustment range 48–58 V
Ripple & noise 300 mVp-p
Input
AC input range 250 ~ 1500Vdc
DC input range 250–1500 VDC
Protection
Reverse polarity Protected
Environmental
Operating temperature -40 to 80 °C
Storage temperature -40 to 80 °C
Operating humidity 20–90 % RH
Vibration Component: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 237 × 100 × 41 mm
Net weight 1100.0 g
Safety & compliance
Safety standards UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RSDH-300-48
Brand MEAN WELL
Category DC/DC Enclosed Type
Series RSDH-300

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC I/P-FG:3.75KVAC O/P-FG:2KVAC

Standards certified against

  • EN62109-1
  • IEC62109-1
  • UL1741
Read the datasheet's exact wording

UL1741, CSA C22.2 No.107.1-16 , IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RSDH-300-48
Minimum order quantity 1
Country of origin China
Typical packed weight 1422 g
Unit weight 1100 g

Downloads

RSDH-300 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RSDH-300-1212 V20 A240 W$149.39
Ships in 3–5 business days
RSDH-300-48 48 V6.25 A300 W$149.39
Ships in 3–5 business days
RSDH-300-2424 V12.5 A300 W$149.39
Ships in 3–5 business days

RSDH-300-48 lists 48 V output and 6.25 A output current; RSDH-300-12 lists 12 V and 20 A.

RSDH-300-48 lists 48 V output and 6.25 A output current; RSDH-300-24 lists 24 V and 12.5 A.

RSDH-300-48 lists 48 V output and 6.25 A output current; RSDH-300-32 lists 32 V and 9.37 A.

RSDH-300-48 lists 300 W rated power; RSDH-300-12 lists 240 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RSDH-300-48

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RSDH-300-48 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-08-31
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
