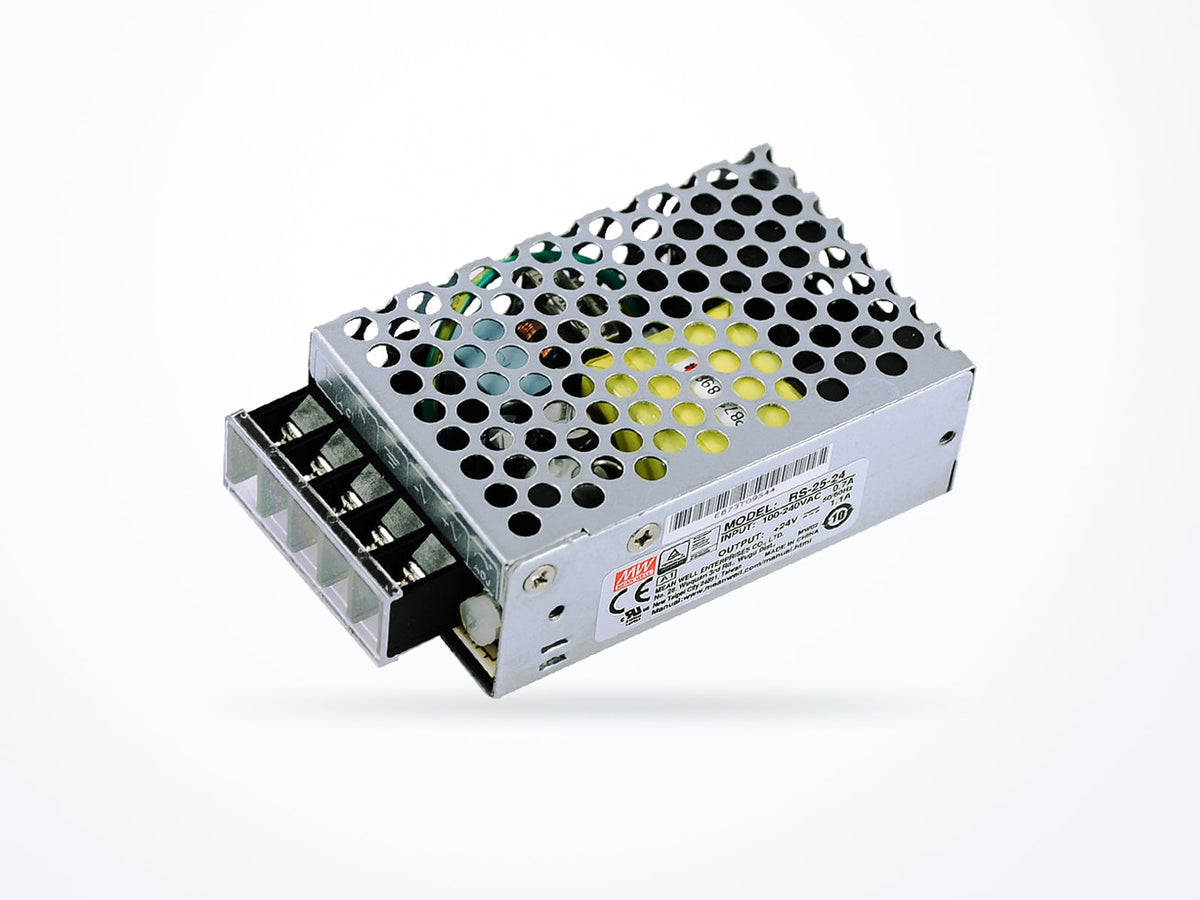

MEAN WELL RS-25-5 25W 5V 5A Enclosed Type

Part numberRS-25-5
Output voltage 5 V
Rated current 5 A
Rated power 25 W
$15.79Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RS-25 model selection table G3 Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 5 A
Rated power 25 W
AC input range 88–264 VAC
Typical efficiency 78.5 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 78 × 51 × 28 mm

Is this model right for you?

Within the RS-25 series, the RS-25-5 differs from siblings by output voltage and current. RS-25-5: 5 V, 5 A; RS-25-3.3: 3.3 V, 6 A; RS-25-12: 12 V, 2.1 A; RS-25-15: 15 V, 1.7 A; RS-25-24: 24 V, 1.1 A; RS-25-48: 48 V, 0.57 A. Ripple and noise also differ: RS-25-5 lists 80 mVp-p, while RS-25-12, RS-25-15, and RS-25-24 list 120 mVp-p and RS-25-48 lists 200 mVp-p.

Product overview

The RS-25-5 provides a 5 V output with a 5 A output current and 25 W rated power. The output adjustment range is 4.75 to 5.5 V, and ripple and noise are 80 mVp-p. The input frequency range is 47 to 63 Hz. Typical efficiency is 78.5%. Dimensions are 78 × 51 × 28 mm and net weight is 200 g.

Where this model fits

The RS-25-5 is used in Industrial Automation, Motor Drives, Security & Surveillance, Telecom & Datacom, and Test & Measurement. Its operating temperature range is -20 to 70 °C, humidity range is 20 to 90%, and net weight is 200 g.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 5 V
Rated current 5 A
Rated power 25 W
Voltage adjustment range 4.75–5.5 V
Ripple & noise 80 mVp-p
Input
AC input range 88–264 VAC
DC input range 125–373 VDC
Frequency range 47–63 Hz
Typical efficiency 78.5 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 78 × 51 × 28 mm
Net weight 200.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RS-25-5
Brand MEAN WELL
Category AC/DC Enclosed Type
Series RS-25

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

China

  • CCC

    China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

India

  • BIS

    Registration under India's Compulsory Registration Scheme, against an IS standard. IS 13252 is the Indian transposition of IEC 60950-1 and IS 15885 of IEC 61347, so the IS number identifies the product category.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • CNS15598-1
  • EN62368-1
  • GB4943.1
  • IEC 60950-1
  • IS13252
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RS-25-5
Minimum order quantity 1
Country of origin China
Typical packed weight 367 g
Unit weight 200 g

Downloads

RS-25 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RS-25-1515 V1.7 A25.5 W$15.79
Ships in 3–5 business days
RS-25-2424 V1.1 A26.4 W$15.79
Ships in 3–5 business days
RS-25-5 5 V5 A25 W$15.79
Ships in 3–5 business days

RS-25-5 lists 5 V output and 5 A output current; RS-25-3.3 lists 3.3 V output and 6 A output current.

RS-25-5 lists 5 V output and 5 A output current; RS-25-12 lists 12 V output and 2.1 A output current.

RS-25-5 lists 5 V output and 5 A output current; RS-25-24 lists 24 V output and 1.1 A output current.

RS-25-5 lists 80 mVp-p ripple and noise; RS-25-48 lists 200 mVp-p ripple and noise.
