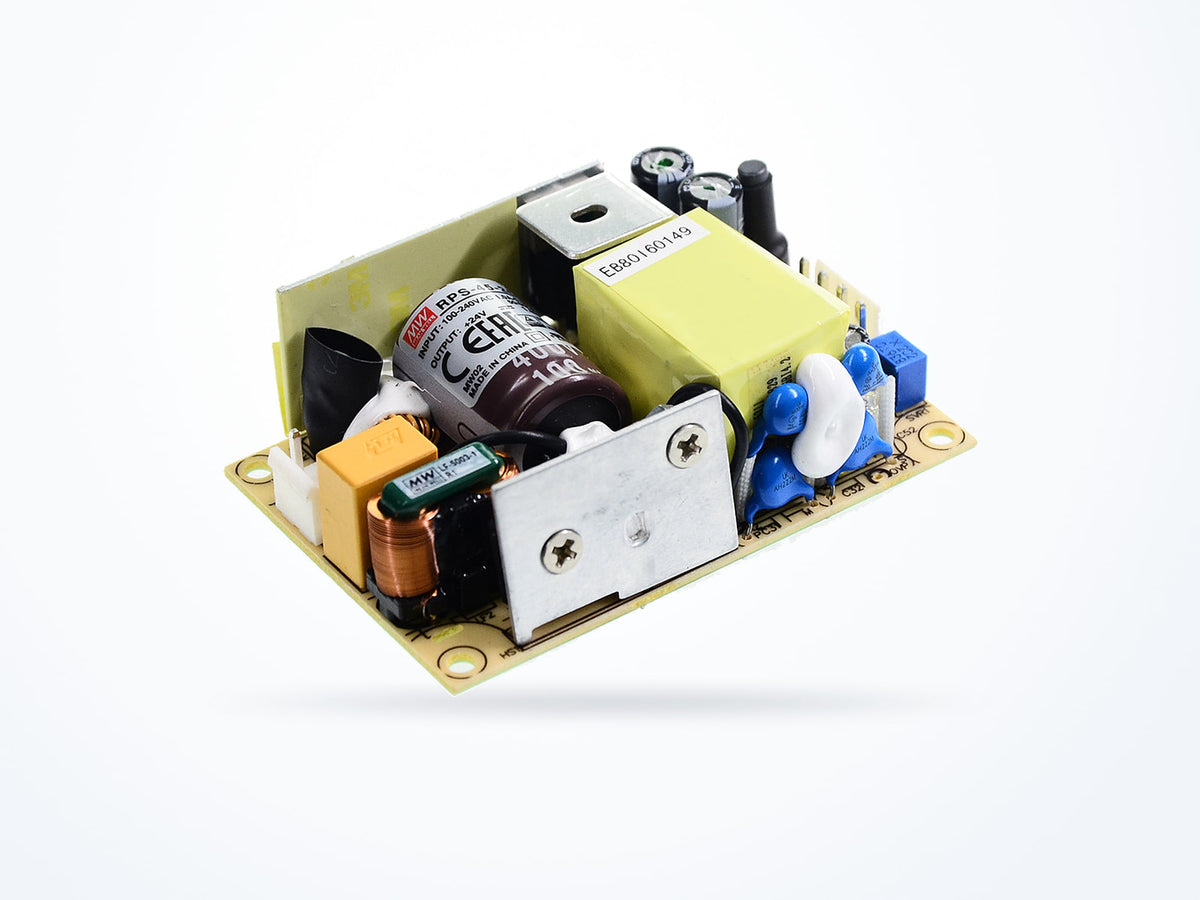

MEAN WELL RPS-45-24 45.6W 24V 1.9A Open Frame

Part numberRPS-45-24
Output voltage 24 V
Rated current 1.9 A
Rated power 45.6 W
$21.79Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RPS-45 model selection table Medical - PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 1.9 A
Rated power 45.6 W
AC input range 80–264 VAC
Mechanical
Cooling Free-air convection
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 76.2 × 50.8 × 24 mm

Is this model right for you?

The RPS-45-24 lists 80 ~ 264VAC input, the same as the other models in the RPS-45 series. They are distinguished by details this page does not carry; the datasheet lists them in full.

Product overview

The RPS-45-24 belongs to the RPS-45 series and the Medical - PCB Type family. It lists an 80 ~ 264VAC input voltage range and a 47 ~ 63Hz frequency range. The product measures 76.2 × 50.8 × 24 mm and has a net weight of 110 g.

Where this model fits

The RPS-45-24 is used in Embedded & Board-level Design. It measures 76.2 × 50.8 × 24 mm and has a net weight of 110 g. Its input voltage range is 80 ~ 264VAC and its frequency range is 47 ~ 63Hz.

Complete technical specifications

Rev. 2024-11-22
Output
Output voltage 24 V
Rated current 1.9 A
Rated power 45.6 W
Input
AC input range 80–264 VAC
Frequency range 47–63 Hz
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 76.2 × 50.8 × 24 mm
Net weight 110.0 g
Cooling Free-air convection
Fan Not supported
Identification
Part number RPS-45-24
Brand MEAN WELL
Category AC/DC Open Frame
Series RPS-45

Approvals and compliance

From the manufacturer's datasheet for this series
Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P: 4KVAC
EMC emission Parameter Standard Test Level / Note

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RPS-45-24
Minimum order quantity 1
Country of origin China
Typical packed weight 268 g
Unit weight 110 g

Downloads

RPS-45 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RPS-45-1212 V3.8 A45.6 W$21.79
Ships in 3–5 business days
RPS-45-24 24 V1.9 A45.6 W$21.79
Ships in 3–5 business days

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RPS-45-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RPS-45-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-11-22
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
