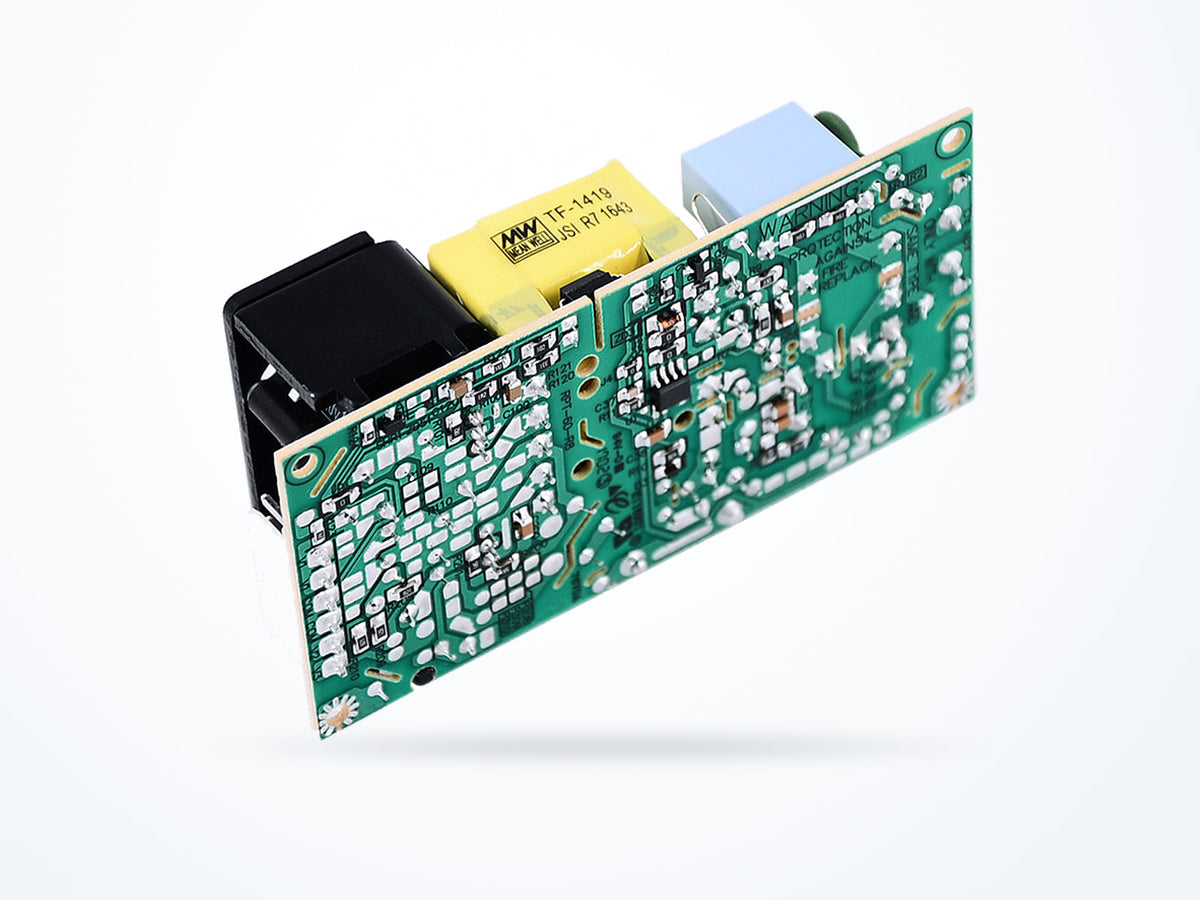

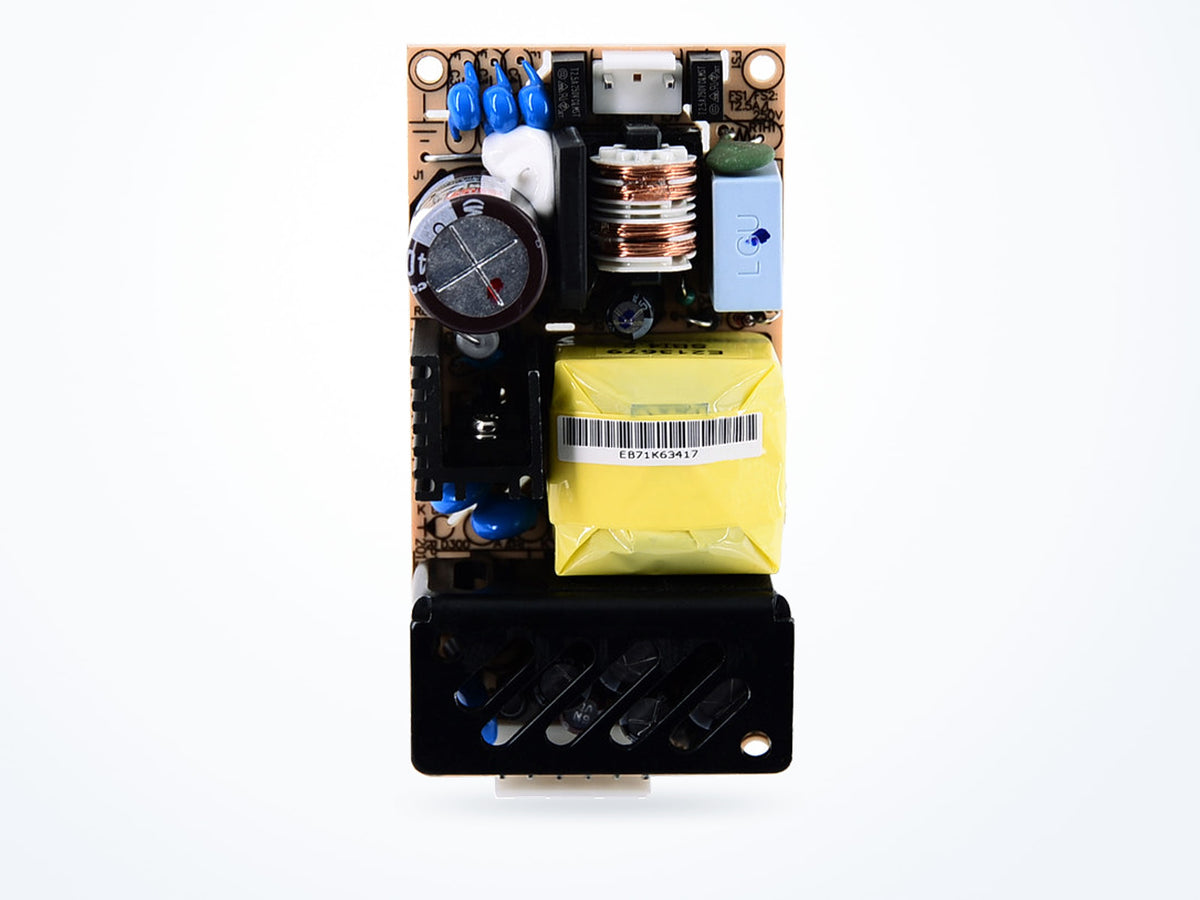

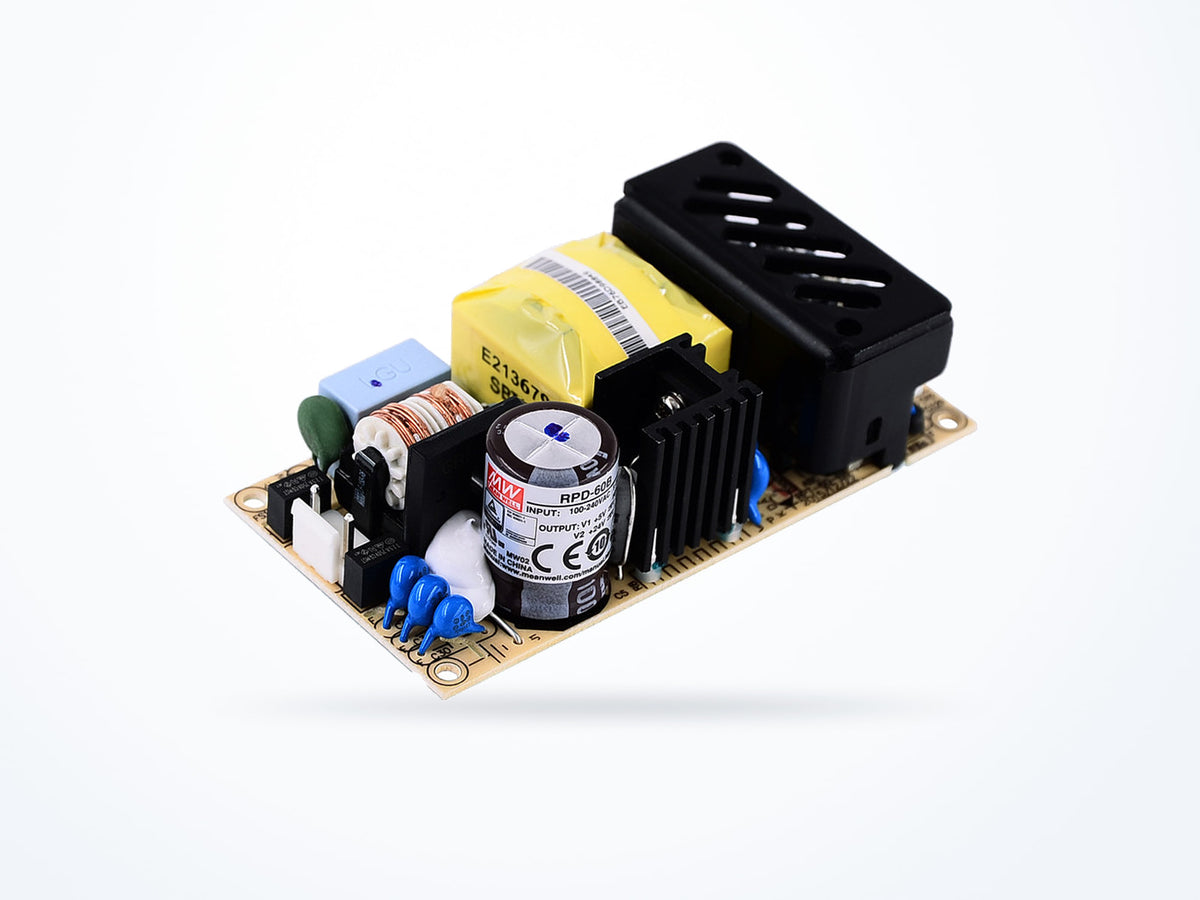

MEAN WELL RPD-60A 49W 5V 5A Open Frame
Procurement confidence
- Genuine product Sourced through our documented supply chain.
- Worldwide shipping Export documentation handled for you.
- Commercial invoice Available for every order.
- Specification support Talk to someone who reads datasheets.
Key specifications
Complete technical specifications| Output voltage | 5 V |
|---|---|
| Rated current | 5 A |
| Rated power | 49 W |
| AC input range | 90–264 VAC |
| Typical efficiency | 78 % |
| Cooling | Free-air convection |
|---|---|
| Operating temperature | -20 to 65 °C |
| Dimensions (L × W × H) | 101.6 × 50.8 × 29 mm |
Is this model right for you?
Product overview
Where this model fits
Complete technical specifications
Rev. 2024-11-22| Output voltage | 5 V |
|---|---|
| Rated current | 5 A |
| Rated power | 49 W |
| AC input range | 90–264 VAC |
|---|---|
| DC input range | 127–370 VDC |
| Frequency range | 47–63 Hz |
| Typical efficiency | 78 % |
| Operating temperature | -20 to 65 °C |
|---|---|
| Storage temperature | -40 to 85 °C |
| Operating humidity | 20–90 % RH |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| Dimensions (L × W × H) | 101.6 × 50.8 × 29 mm |
|---|---|
| Net weight | 150.0 g |
| Cooling | Free-air convection |
| Fan | Not supported |
| Safety standards | IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved |
|---|
These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.
| Part number | RPD-60A |
|---|---|
| Brand | MEAN WELL |
| Category | AC/DC Open Frame |
| Series | RPD-60 |
Approvals and compliance
From the manufacturer's datasheet for this seriesUnited States
- UL
UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.
Canada
- CSA
Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.
Europe
- TÜV
A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.
Eurasian Economic Union
- EAC
Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.
| Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
|---|
Standards certified against
- ANSI/AAMI ES60601-1
- EN 60601-1
- EN 62368-1
- IEC 60601-1
- IEC 62368-1
- UL 62368-1
Read the datasheet's exact wording
IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2, IEC 62368-1:2014, UL 62368-1, 2nd Ed, CSA C22.2 No. 62368-1-14, 2nd Ed, TUV BS EN/ EN 62368-1:2014+A11, EAC TP TC 004 approved
Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.
Certificates
Certificate copy supplied with this model.
Enlarge
CE · Certificate number R50453592
Ordering & shipping information
| Part number | RPD-60A |
|---|---|
| Minimum order quantity | 1 |
| Country of origin | China |
| Warranty | 3-year limited warranty, as stated in the product datasheet. |
| Typical packed weight | 310 g |
| Unit weight | 150 g |
RPD-60 model comparison
View all models| Model | Output voltage | Rated current | Rated power | Price | Availability |
|---|---|---|---|---|---|
| RPD-60A Currently viewing | 5 V | 5 A | 49 W | $26.53 |
Ships in 3–5 business days
|
| RPD-60B | 5 V | 3.5 A | 53.5 W | $26.53 |
Ships in 3–5 business days
|
Request a bulk quote
Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.
- 1 We confirm the part number and quantity against current stock.
- 2 You receive pricing, lead time and freight options by email.
- 3 Approve the quotation and we issue the invoice and shipping documents.
Request a quote for RPD-60A
Confirm quantity and destination and we will come back with pricing and lead time.
Technical data source
- Primary source
- MEAN WELL
- Datasheet revision
- 2024-11-22
- Last verified
View the manufacturer datasheet How we source and verify product data
Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
