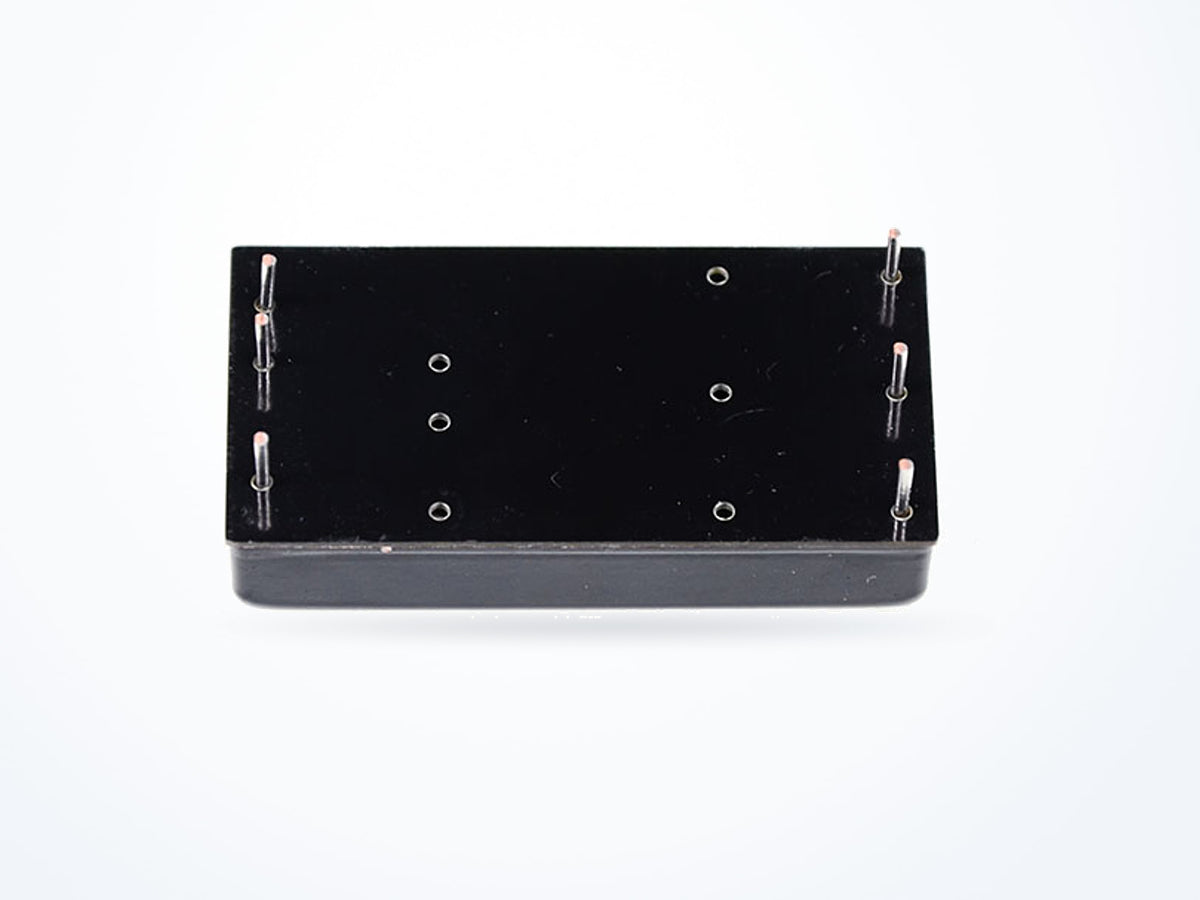

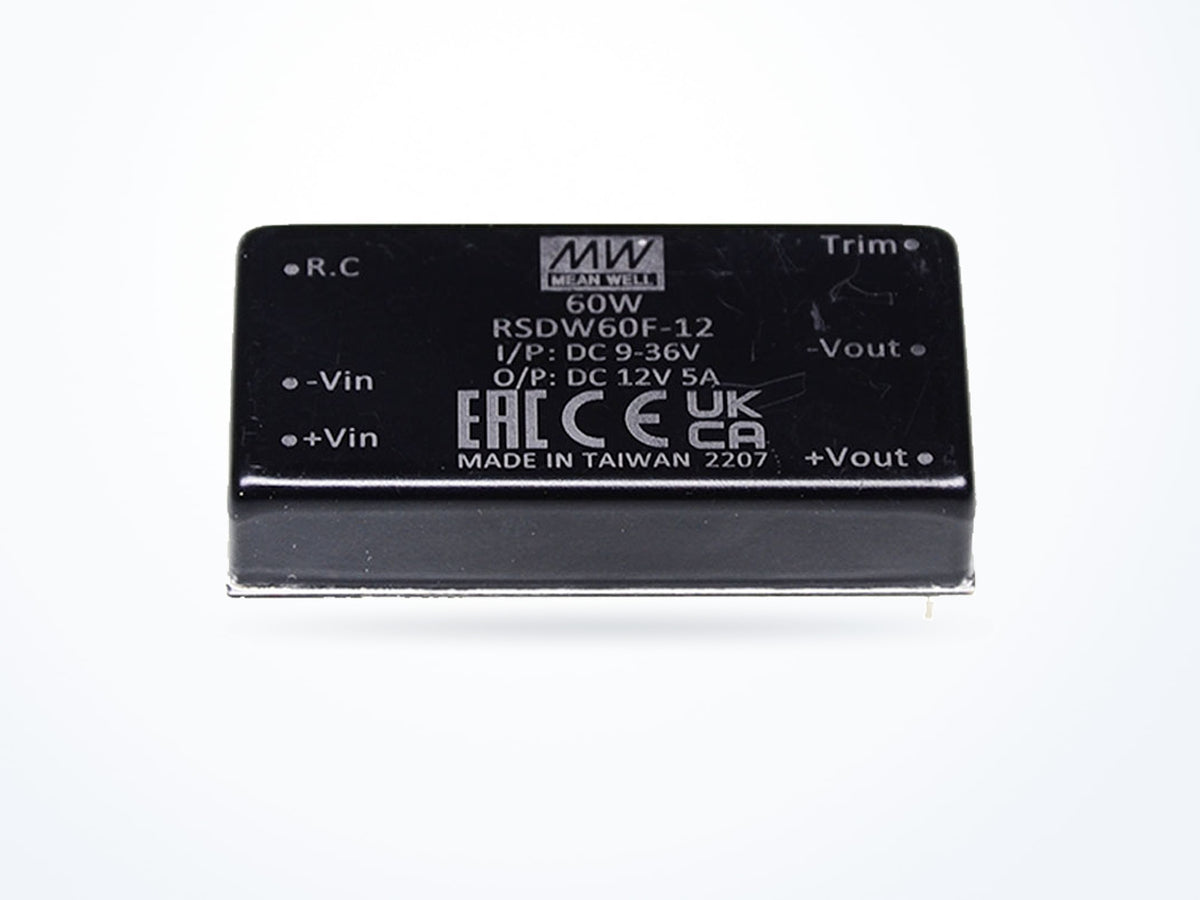

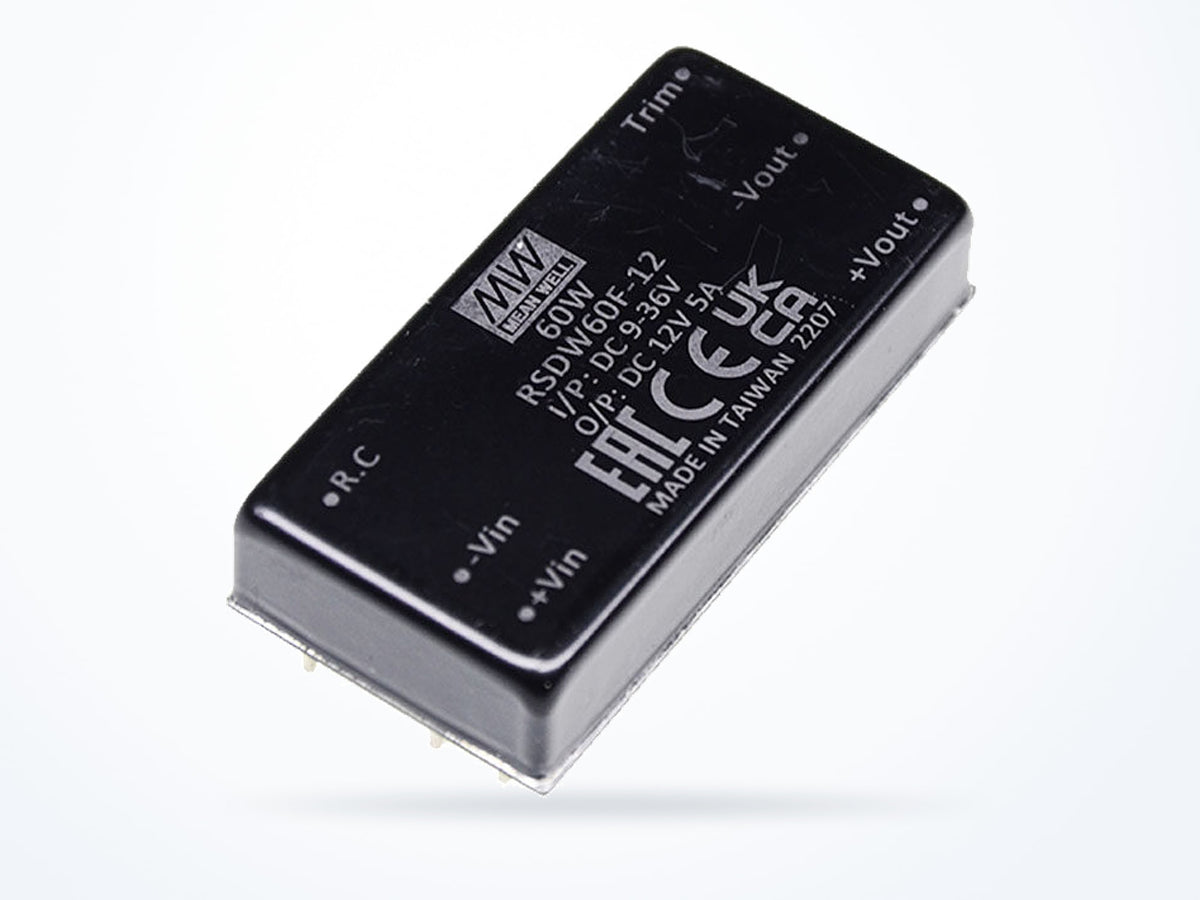

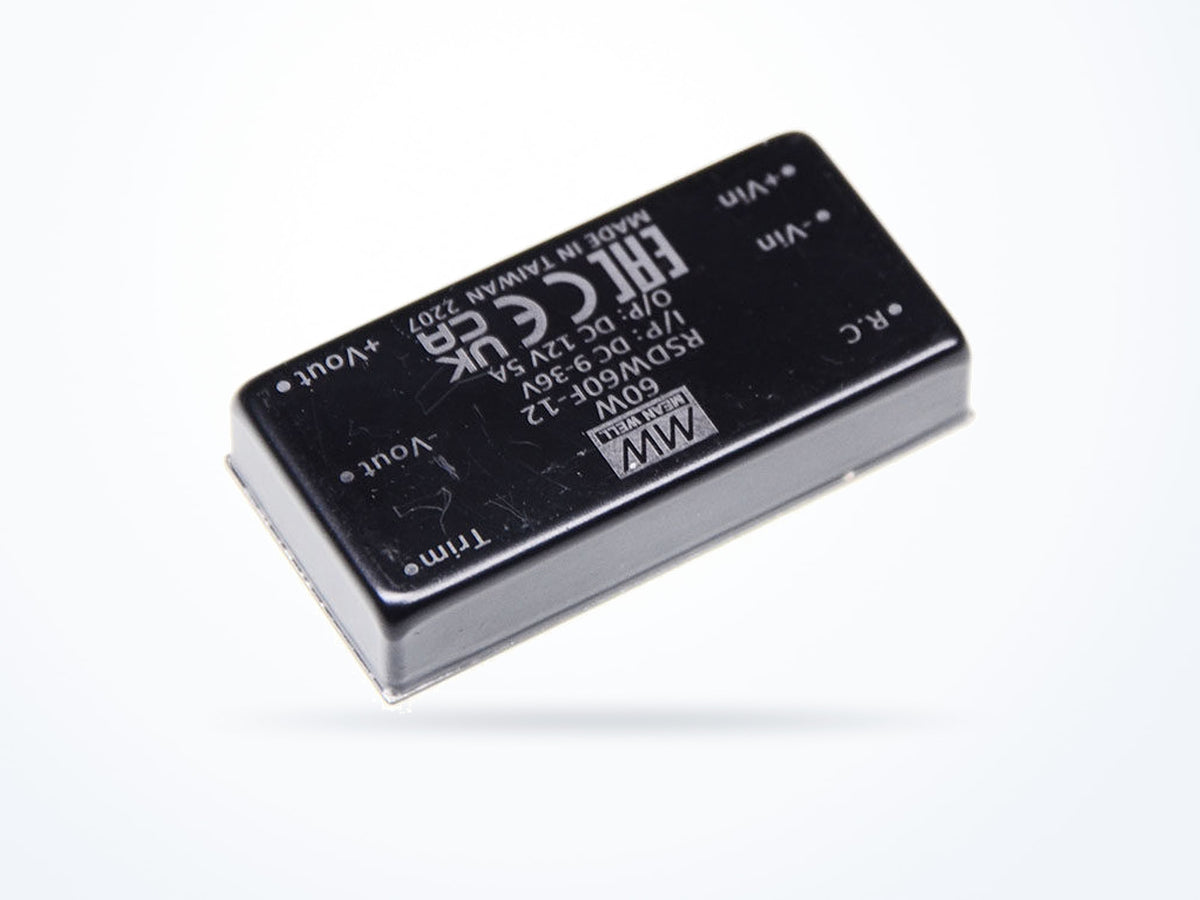

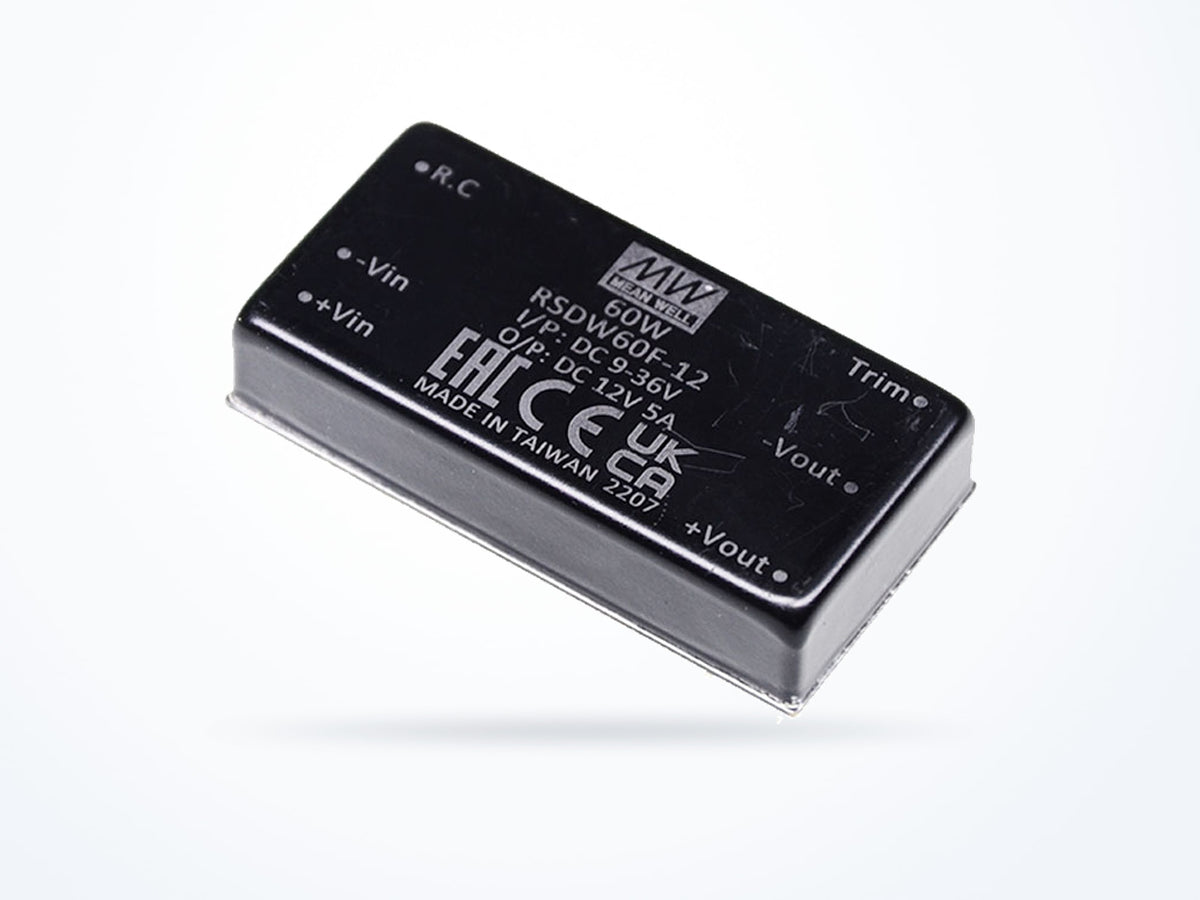

MEAN WELL RDDW60F-15 60W 15V 2A On Board Type (Module Potted)

Part numberRDDW60F-15
Output voltage 15 V
Rated current 2 A
Rated power 60 W
$119.38Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RSDW60,RDDW60 model selection table DIP - 2" x 1" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 2 A
Rated power 60 W
Typical efficiency 91 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 85 °C
Dimensions (L × W × H) 50.8 × 25.4 × 10.5 mm

Is this model right for you?

Within the RSDW60,RDDW60 series, the RDDW60F-15 lists a 9~36Vdc input range. RDDW60G-12, RDDW60G-15, RSDW60G-03, RSDW60G-05, RSDW60G-12, RSDW60G-15, and RSDW60G-24 list 18~75Vdc. RSDW60H-05, RSDW60H-12, RSDW60H-24, and RSDW60H-48 list 40~160Vdc.

Other voltages in RSDW60,RDDW60

View all models

Product overview

The RDDW60F-15 is a DC/DC On Board Type (Module Potted) product in the DIP - 2" x 1" Footprint family. It lists a 9~36Vdc input range, a metal case, and free-air convection cooling. Dimensions are 50.8 × 25.4 × 10.5 mm, and the operating temperature range is -40 to 85 °C.

Where this model fits

The RDDW60F-15 is used in Embedded & Board-level Design. Its metal case, free-air convection cooling, and 50.8 × 25.4 × 10.5 mm dimensions are the physical characteristics relevant to board-level mounting.

Complete technical specifications

Rev. 2024-04-30
Output
Output voltage 15 V
Rated current 2 A
Rated power 60 W
Input
AC input range 9~36Vdc
DC input range 9–36 VDC
Typical efficiency 91 %
Protection
Overload Protected
Over voltage Protected
Over temperature Protected
Recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 85 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 50.8 × 25.4 × 10.5 mm
Net weight 45.0 g
Cooling Free-air convection
Fan Not supported
Case material Metal Case
Safety & compliance
Safety standards EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RDDW60F-15
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series RSDW60,RDDW60

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage 24Vin / 48Vin models: I/P-O/P 1.6KVDC, 110Vin models: 3KVDC
Isolation resistance I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note Class A/B with external components (see page 6~7)
Read the datasheet's exact wording

EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RDDW60F-15
Minimum order quantity 1
Country of origin China
Typical packed weight 199 g
Unit weight 45 g

Downloads

RSDW60,RDDW60 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RDDW60F-15 15 V2 A60 W$119.38
Ships in 3–5 business days
RSDW60F-1212 V5 A60 W$116.22
Ships in 3–5 business days

RDDW60F-15 lists a 9~36Vdc input range; RDDW60G-12 lists 18~75Vdc.

RDDW60F-15 lists a 9~36Vdc input range; RSDW60H-05 lists 40~160Vdc.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RDDW60F-15

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RDDW60F-15 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-04-30
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
