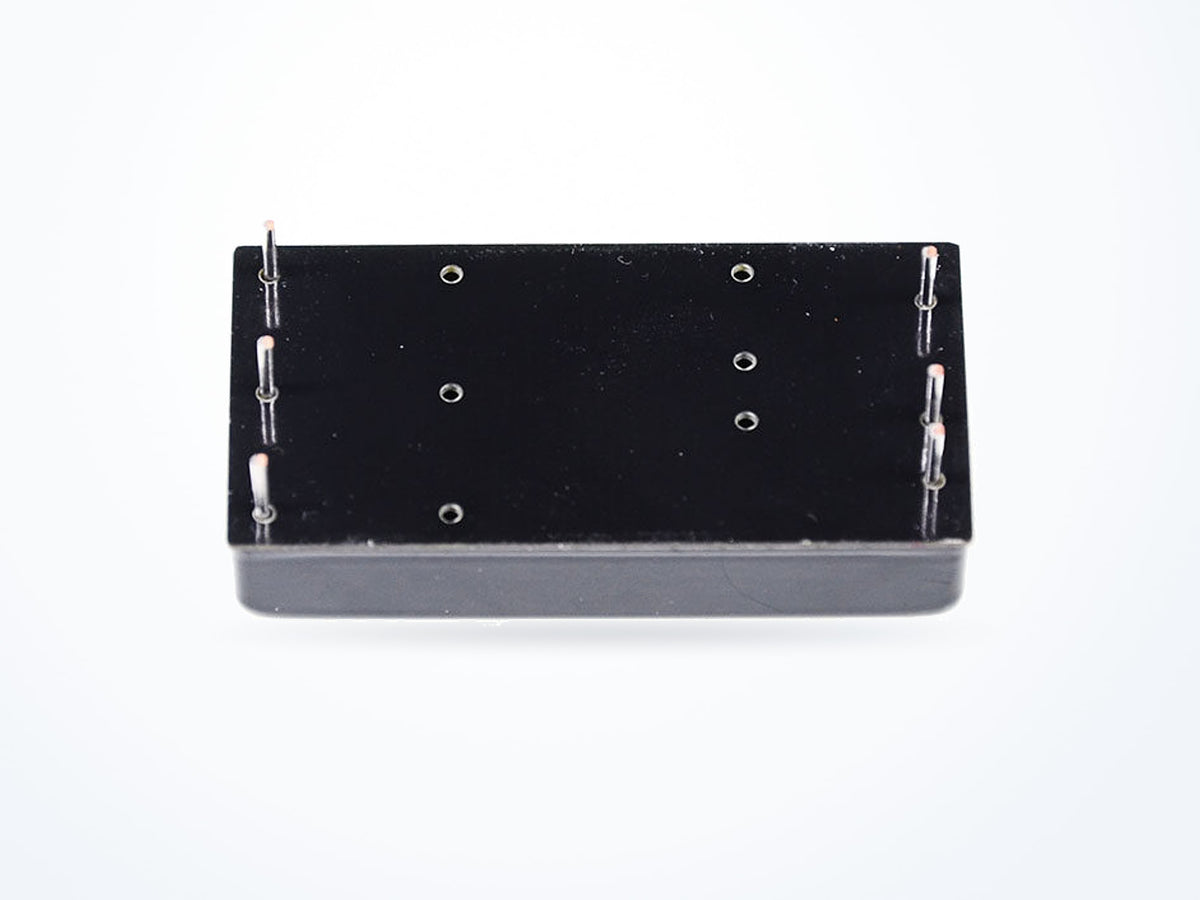

MEAN WELL RDDW40F-12 39.984W 12V 1.666A On Board Type (Module Potted)

Part numberRDDW40F-12
Output voltage 12 V
Rated current 1.666 A
Rated power 39.984 W
$95.38Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
RSDW40,RDDW40 model selection table DIP - 2" x 1" Footprint
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 1.666 A
Rated power 39.984 W
Typical efficiency 89 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 90 °C
Dimensions (L × W × H) 50.8 × 25.4 × 10.5 mm

Is this model right for you?

Within the RSDW40,RDDW40 series, the RDDW40F-12 provides a 9~36Vdc input range. The RDDW40G-12 provides 18~75Vdc, and the RSDW40H-12 provides 40~160Vdc. Select the model whose input range matches the available DC rail.

Other voltages in RSDW40,RDDW40

View all models

Product overview

The RDDW40F-12 is a DC/DC on board type module in the RSDW40,RDDW40 series. It accepts a 9~36Vdc input range and is housed in a metal case. Cooling is by free-air convection, with no fan. The module measures 50.8 × 25.4 × 10.5 mm and has an operating temperature range of -40 to 90 °C.

Where this model fits

The RDDW40F-12 is a DC/DC on board type module for embedded and board-level design. It has a metal case, free-air convection cooling, and a 50.8 × 25.4 × 10.5 mm footprint. Its operating temperature range is -40 to 90 °C.

Complete technical specifications

Rev. 2022-05-24
Output
Output voltage 12 V
Rated current 1.666 A
Rated power 39.984 W
Input
AC input range 9~36Vdc
DC input range 9–36 VDC
Typical efficiency 89 %
Protection
Overload Protected
Over voltage Protected
Over temperature Protected
Recovers automatically after fault condition is removed
Environmental
Operating temperature -40 to 90 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 50.8 × 25.4 × 10.5 mm
Net weight 45.0 g
Cooling Free-air convection
Fan Not supported
Case material Metal Case
Safety & compliance
Safety standards EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number RDDW40F-12
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series RSDW40,RDDW40

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage 24Vin / 48Vin models: I/P-O/P 1.6KVDC, 110Vin models: 3KVDC
Isolation resistance I/P-O/P:1000M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note Class A/B with external components (see page 6~7)
Read the datasheet's exact wording

EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number RDDW40F-12
Minimum order quantity 1
Country of origin China
Typical packed weight 199 g
Unit weight 45 g

Downloads

RSDW40,RDDW40 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
RDDW40F-12 12 V1.666 A39.984 W$95.38
Ships in 3–5 business days
RSDW40G-1212 V3.333 A39.996 W$92.85
Ships in 3–5 business days

RDDW40F-12: 9~36Vdc input range; RDDW40G-12: 18~75Vdc input range.

RDDW40F-12: 9~36Vdc input range; RSDW40H-12: 40~160Vdc input range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for RDDW40F-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting RDDW40F-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2022-05-24
Last verified

How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
