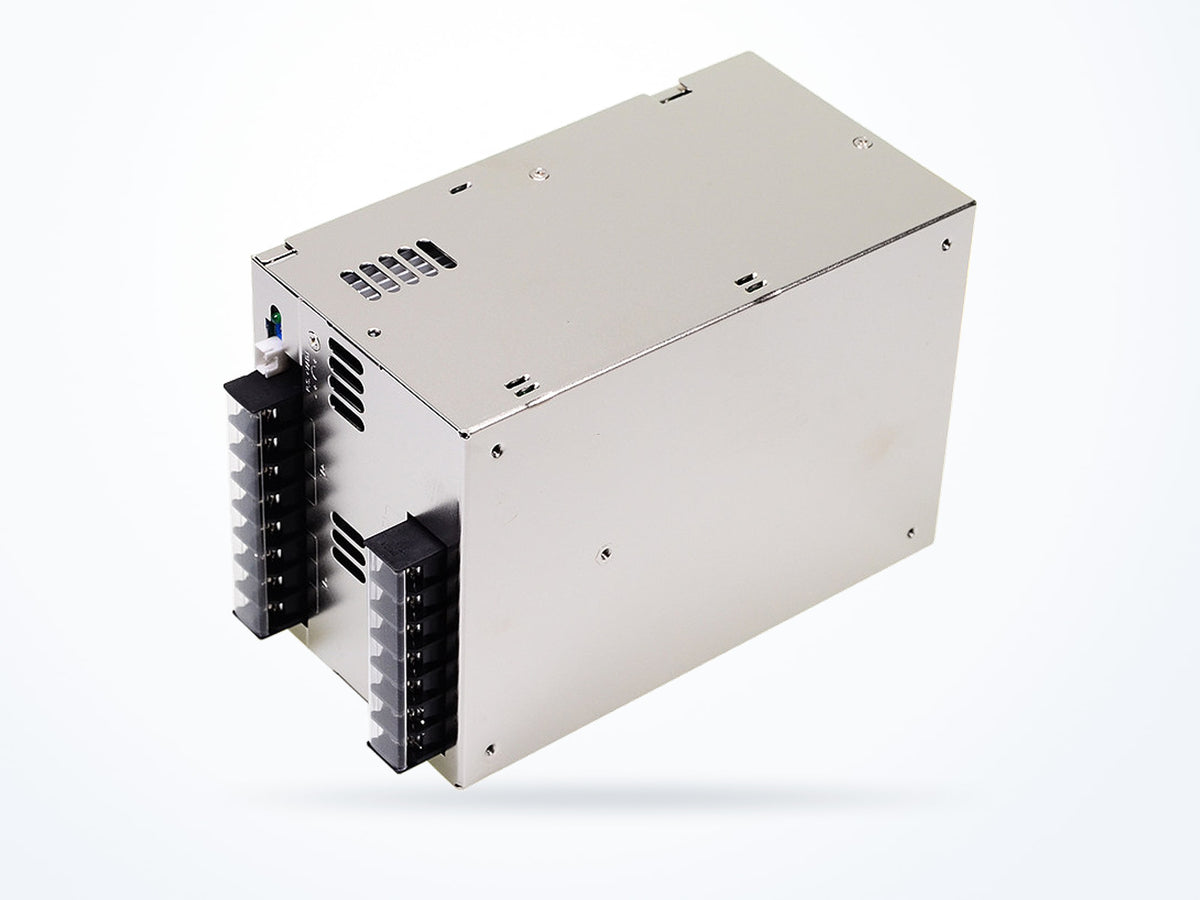

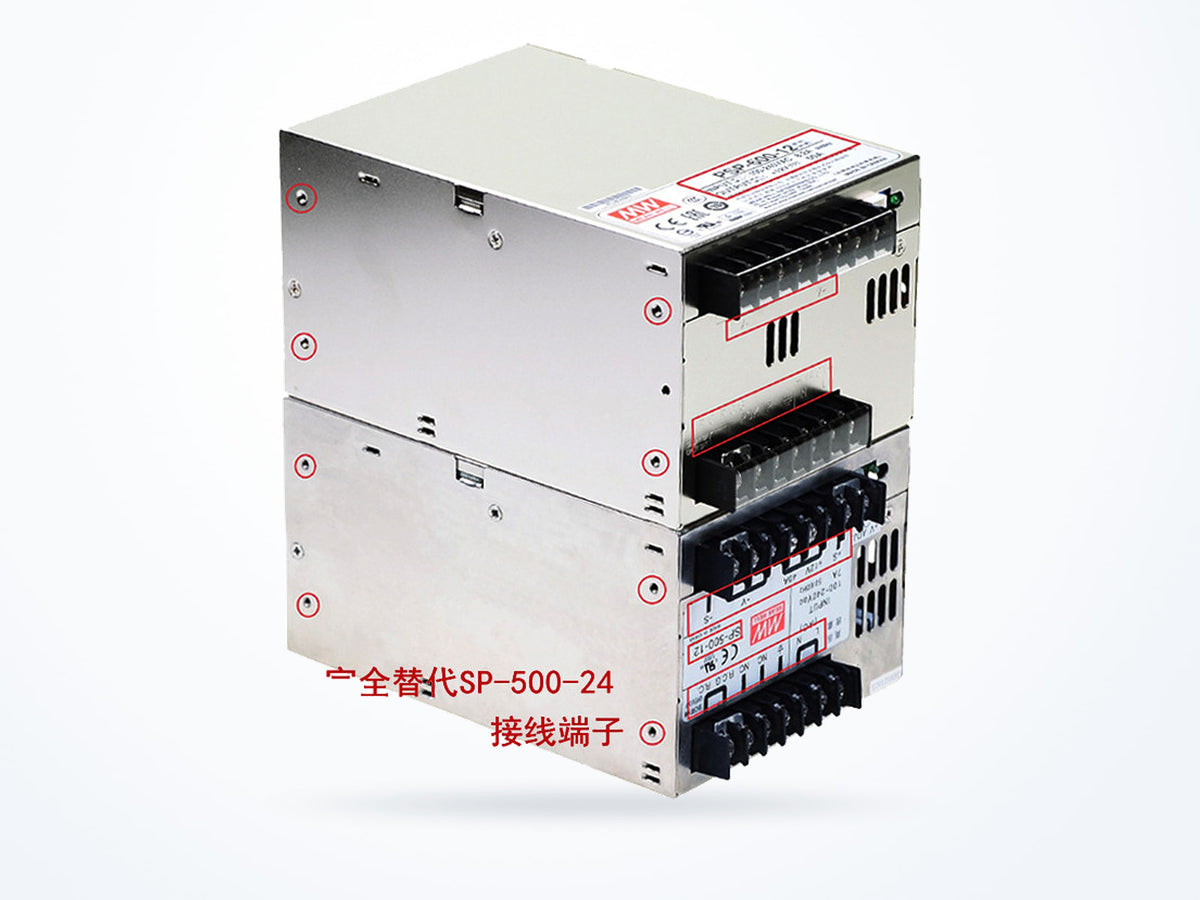

MEAN WELL PSP-600-12 600W 12V 50A Enclosed Type

Part numberPSP-600-12
Output voltage 12 V
Rated current 50 A
Rated power 600 W
$295.62Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
PSP-600 model selection table PSP / QP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 50 A
Rated power 600 W
AC input range 88–264 VAC
Typical efficiency 84 %
Mechanical
Operating temperature -20 to 60 °C
Power factor correction Supported
Dimensions (L × W × H) 170 × 120 × 93 mm

Is this model right for you?

PSP-600-12: 12 V, 50 A, 600 W, 84% efficiency, adjustment 10~13.2V. PSP-600-13.5: 13.5 V, 44.5 A, 600.75 W, 85% efficiency, adjustment 12~15V. PSP-600-15: 15 V, 40 A, 85% efficiency, adjustment 13.5~18V. PSP-600-24: 24 V, 25 A, 86% efficiency, adjustment 20~26.4V. PSP-600-27: 27 V, 22.2 A, 599.4 W, 86% efficiency, adjustment 24~30V. PSP-600-48: 48 V, 12.5 A, 87% efficiency, adjustment 41~56V. PSP-600-5: 5 V, 80 A, 400 W, 79% efficiency, adjustment 4.75~5.5V.

Product overview

The PSP-600-12 provides a 12 V output with a 50 A output current and 600 W rated power. Its output adjustment range is 10~13.2V, and typical efficiency is 84%. The input voltage range is 88 ~ 264VAC 124 ~ 370VDC at 47 ~ 63Hz. Dimensions are 170 × 120 × 93 mm and net weight is 1900 g.

Where this model fits

PSP-600-12 is used in Industrial Automation, Motor Drives, Security & Surveillance, Telecom & Datacom, and Test & Measurement. Its 12 V output at 50 A and 600 W rated power provide the electrical figures for these installations. The operating temperature range is -20 to 60 °C and humidity range is 20 to 90%.

Complete technical specifications

Rev. 2024-12-23
Output
Output voltage 12 V
Rated current 50 A
Rated power 600 W
Voltage adjustment range 10–13.2 V
Input
AC input range 88–264 VAC
DC input range 124–370 VDC
Frequency range 47–63 Hz
Typical efficiency 84 %
Power factor 0.95
Power factor correction Supported
Environmental
Operating temperature -20 to 60 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 170 × 120 × 93 mm
Net weight 1900.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number PSP-600-12
Brand MEAN WELL
Category AC/DC Enclosed Type
Series PSP-600

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

China

  • CCC

    China Compulsory Certification. Mandatory for the product categories in its scope; where it applies, a shipment without it is not clearable. Certification is against the GB standard the datasheet cites.

Taiwan

  • BSMI

    Taiwan's mandatory inspection mark, issued against a CNS standard. CNS 15598-1 is the CNS transposition of IEC 62368-1, which is why the two numbers usually appear together.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, GB9245, GB17625.1, BSMI CNS15936, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS62368.1
  • CNS15598-1
  • EN62368-1
  • GB4943.1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, CCC GB4943.1, BSMI CNS15598-1, AS/NZS62368.1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number PSP-600-12
Minimum order quantity 1
Country of origin China
Typical packed weight 2140 g
Unit weight 1900 g

Downloads

PSP-600 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
PSP-600-12 12 V50 A600 W$295.62
Ships in 3–5 business days
PSP-600-4848 V12.5 A600 W$295.62
Ships in 3–5 business days
PSP-600-1515 V40 A600 W$295.62
Ships in 3–5 business days

PSP-600-12 lists 12 V output and 50 A output current; PSP-600-5 lists 5 V output and 80 A output current.

PSP-600-12 lists 600 W rated power; PSP-600-13.5 lists 600.75 W rated power.

PSP-600-12 lists 84% typical efficiency; PSP-600-48 lists 87% typical efficiency.

PSP-600-12 lists 10~13.2V output adjustment range; PSP-600-24 lists 20~26.4V output adjustment range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for PSP-600-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting PSP-600-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-12-23
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
