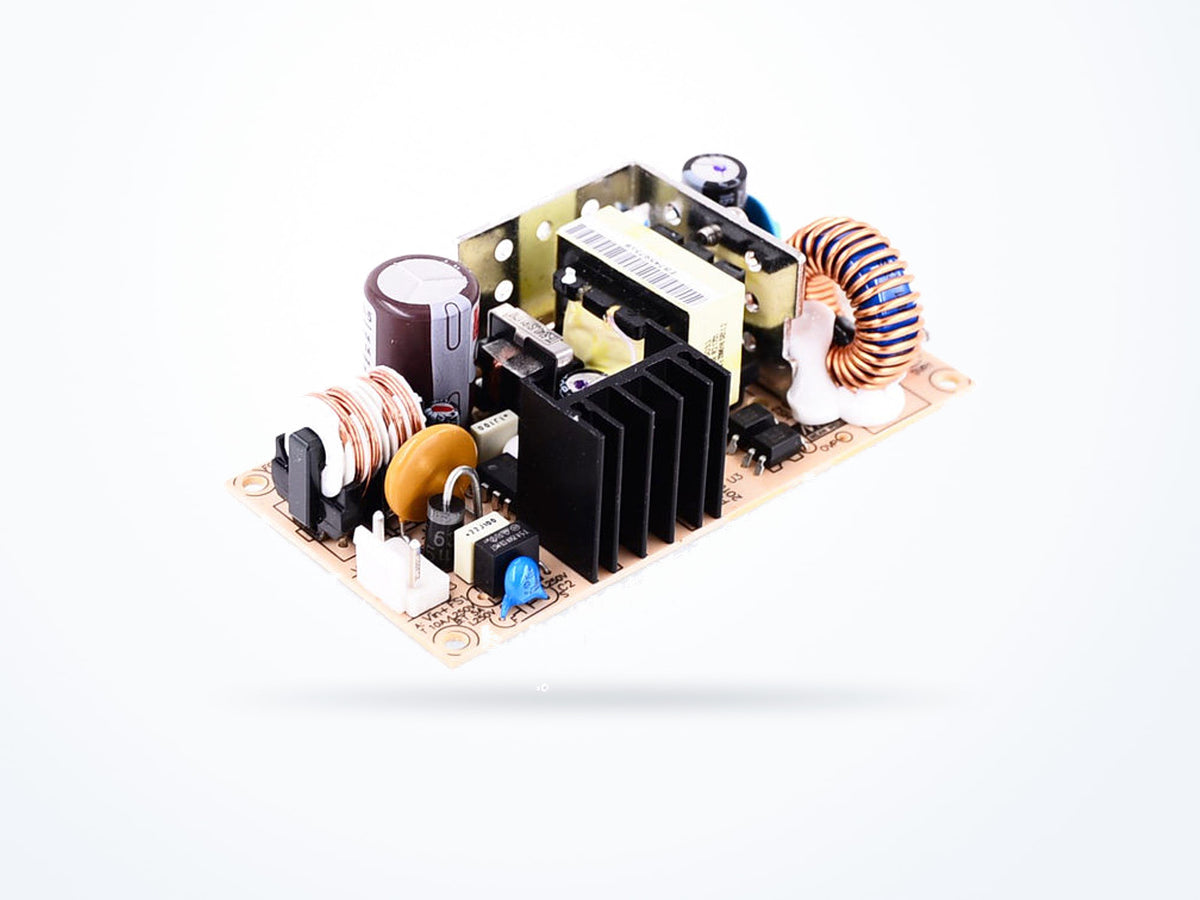

MEAN WELL PSD-30C-5 25W 5V 5A PCB Type

Part numberPSD-30C-5
Output voltage 5 V
Rated current 5 A
Rated power 25 W
$21.47Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
PSD-30 model selection table PSD Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 5 A
Rated power 25 W
Mechanical
Operating temperature -20 to 60 °C
Dimensions (L × W × H) 101.6 × 50.8 × 30 mm

Is this model right for you?

Within the PSD-30 series, the PSD-30C-5 lists a 36 ~ 72VDC input range. PSD-30A-5, PSD-30A-12, and PSD-30A-24 list 9 ~ 18VDC. PSD-30B-5, PSD-30B-12, and PSD-30B-24 list 18 ~ 36VDC.

Product overview

The PSD-30C-5 is a DC/DC PCB Type product in the PSD-30 series. Its input voltage range is 36 ~ 72VDC. The unit measures 101.6 × 50.8 × 30 mm and has a net weight of 150 g. Operating temperature range is -20 to 60 °C, and humidity range is 20 to 90 %.

Where this model fits

The PSD-30C-5 is used in Embedded & Board-level Design. Its input range is 36 ~ 72VDC, and its dimensions are 101.6 × 50.8 × 30 mm. Operating temperature range is -20 to 60 °C, and humidity range is 20 to 90 %.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 5 V
Rated current 5 A
Rated power 25 W
Input
AC input range 36 ~ 72VDC
DC input range 36–72 VDC
Environmental
Operating temperature -20 to 60 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 101.6 × 50.8 × 30 mm
Net weight 150.0 g
Safety & compliance
Safety standards EAC TP TC 004 approved, IEC 62368-1 CB approved by Dekra, Design refer to BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number PSD-30C-5
Brand MEAN WELL
Category DC/DC PCB Type
Series PSD-30

Approvals and compliance

From the manufacturer's datasheet for this series

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC

Standards certified against

  • IEC 62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN62368-1

Read the datasheet's exact wording

EAC TP TC 004 approved, IEC 62368-1 CB approved by Dekra, Design refer to BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number PSD-30C-5
Minimum order quantity 1
Country of origin China
Typical packed weight 300 g
Unit weight 150 g

Downloads

PSD-30 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
PSD-30C-5 5 V5 A25 W$21.47
Ships in 3–5 business days

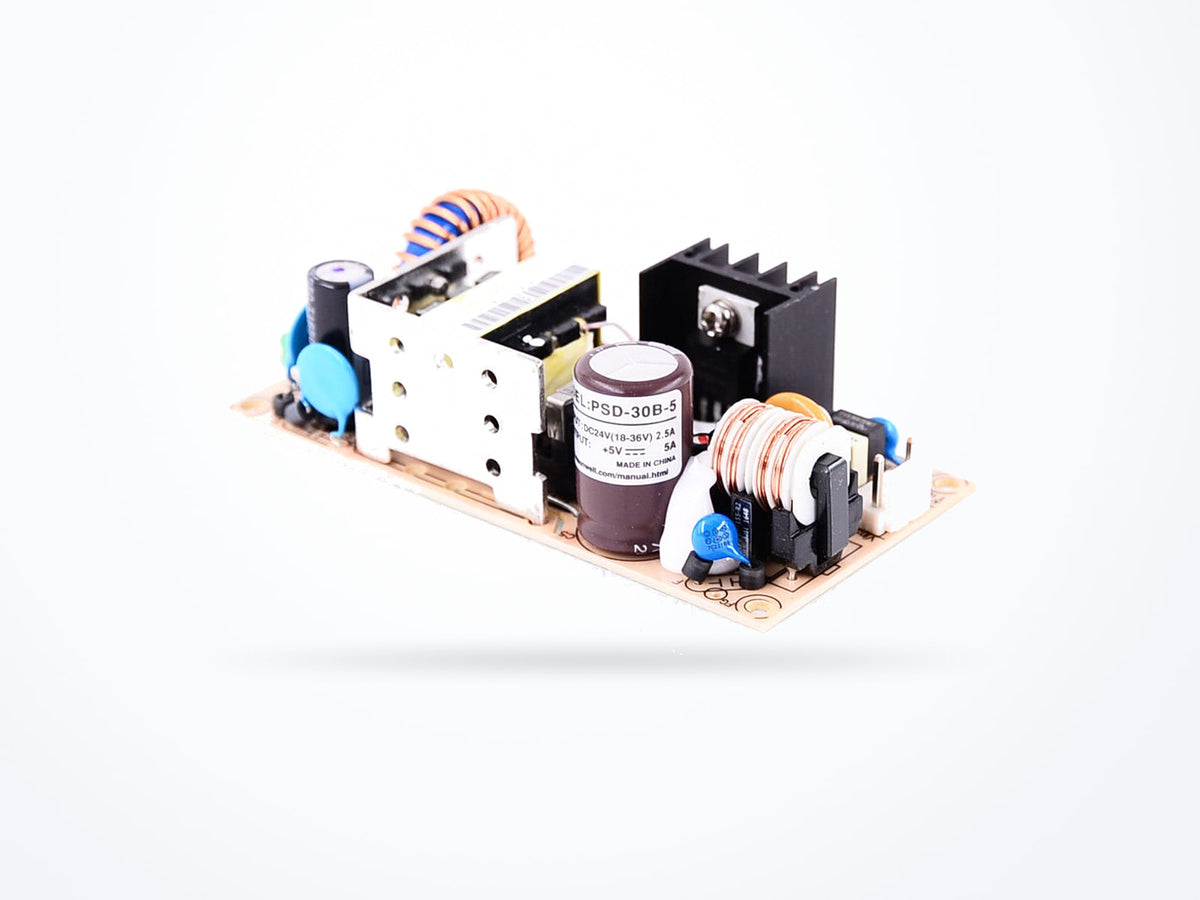

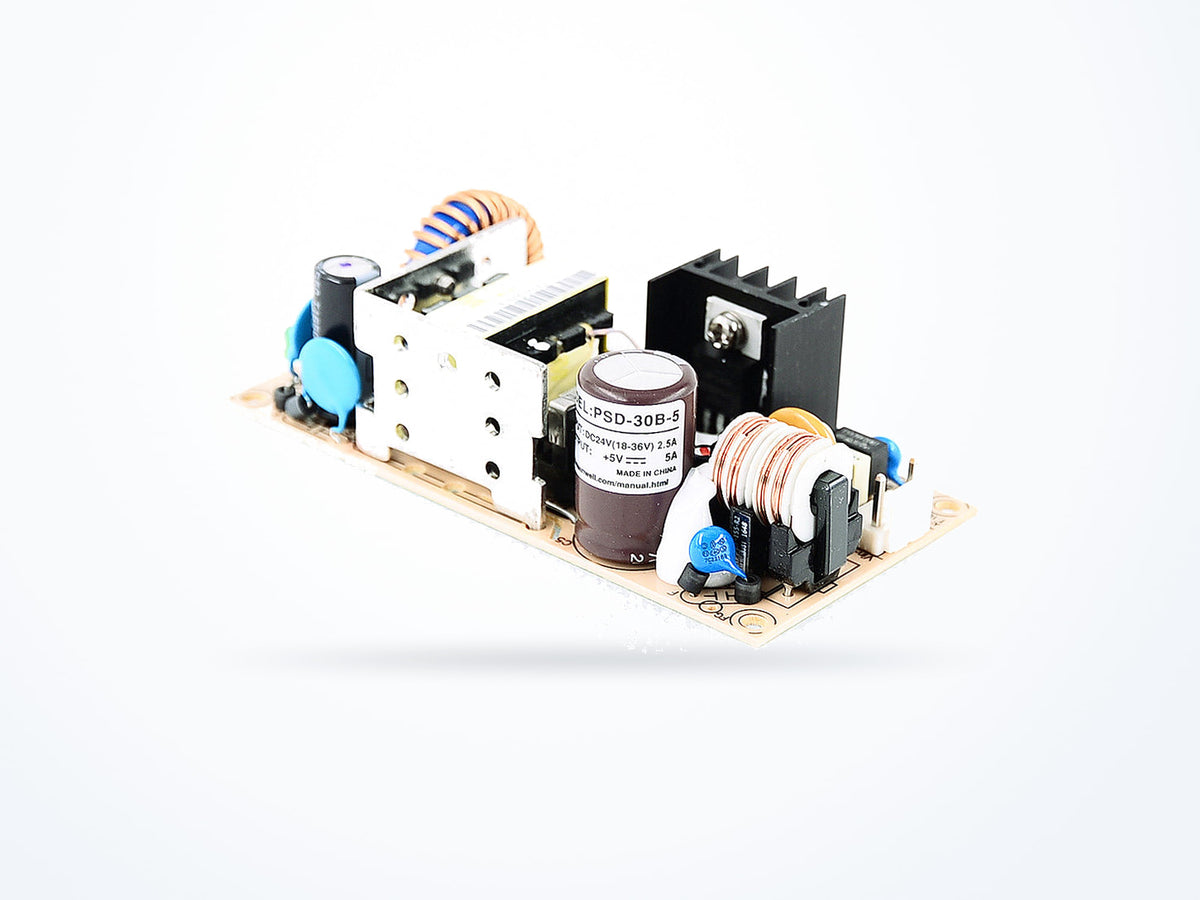

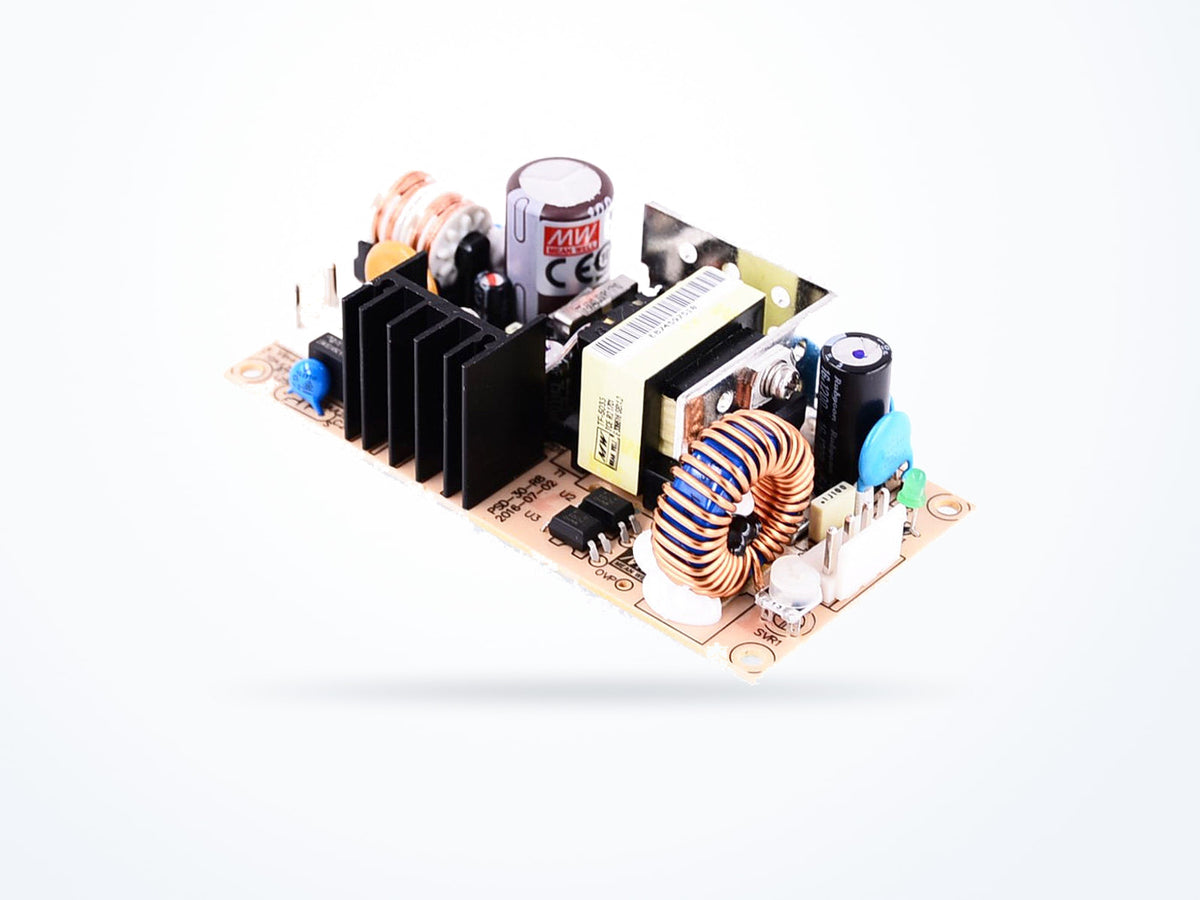

PSD-30A-2424 V1.25 A30 W$21.47
Ships in 3–5 business days
PSD-30B-1212 V2.5 A30 W$21.47
Ships in 3–5 business days

PSD-30C-5: 36 ~ 72VDC input range; PSD-30A-5: 9 ~ 18VDC input range.

PSD-30C-5: 36 ~ 72VDC input range; PSD-30B-5: 18 ~ 36VDC input range.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for PSD-30C-5

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting PSD-30C-5 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
