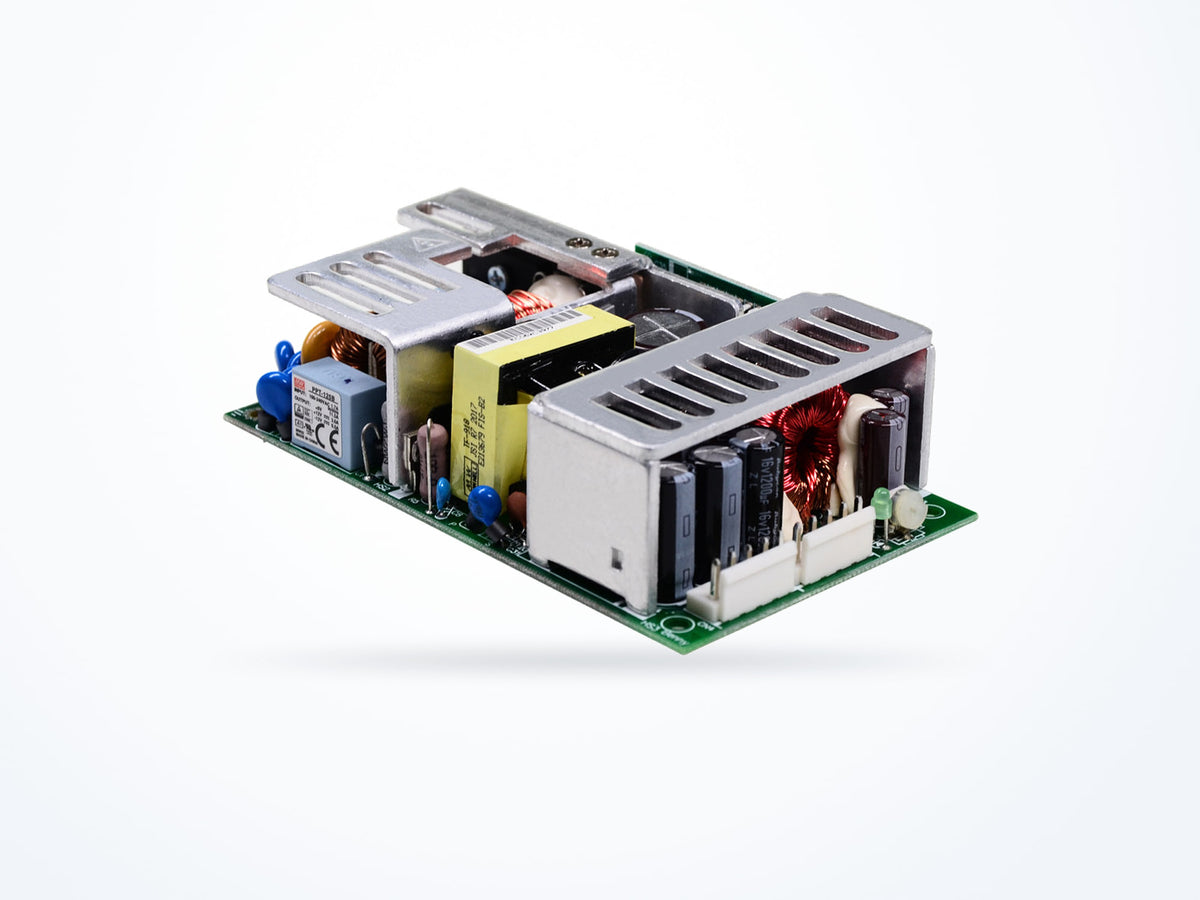

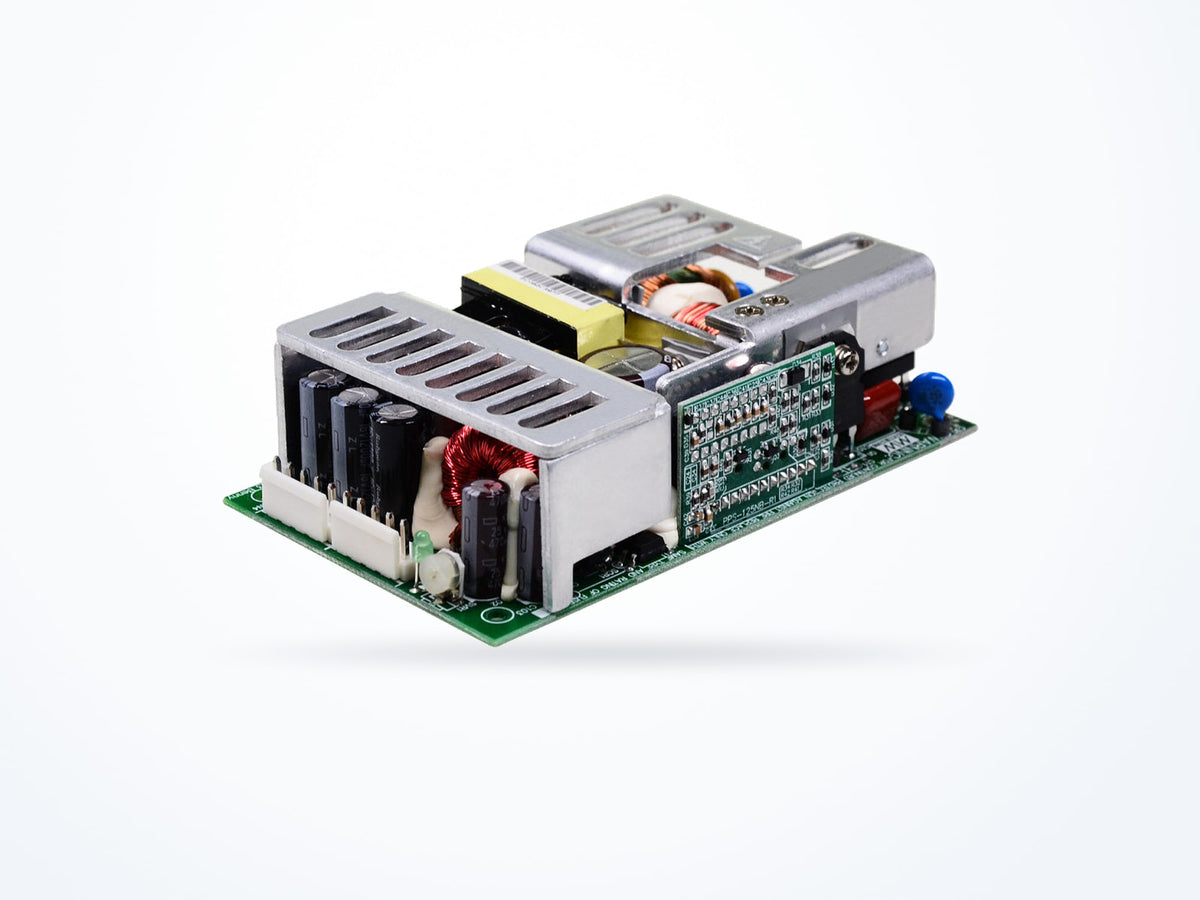

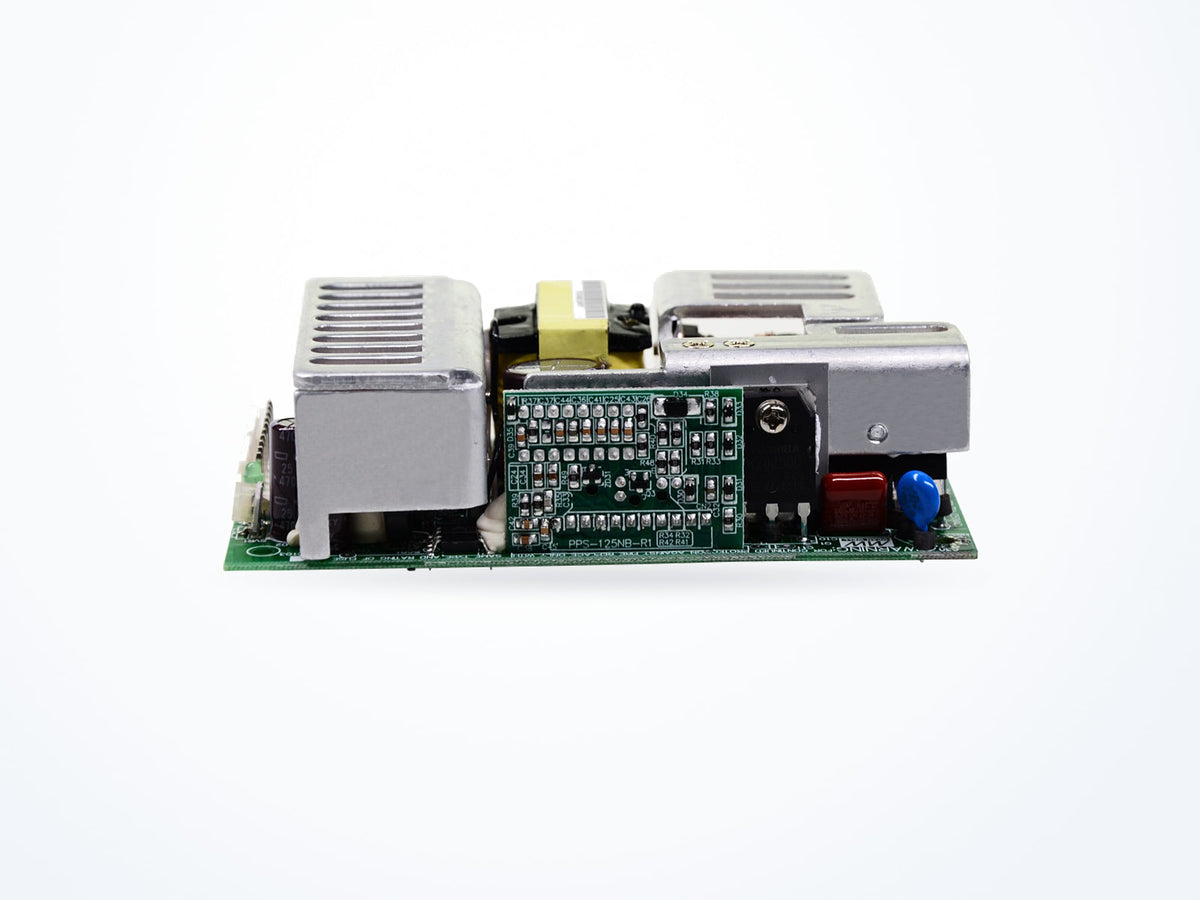

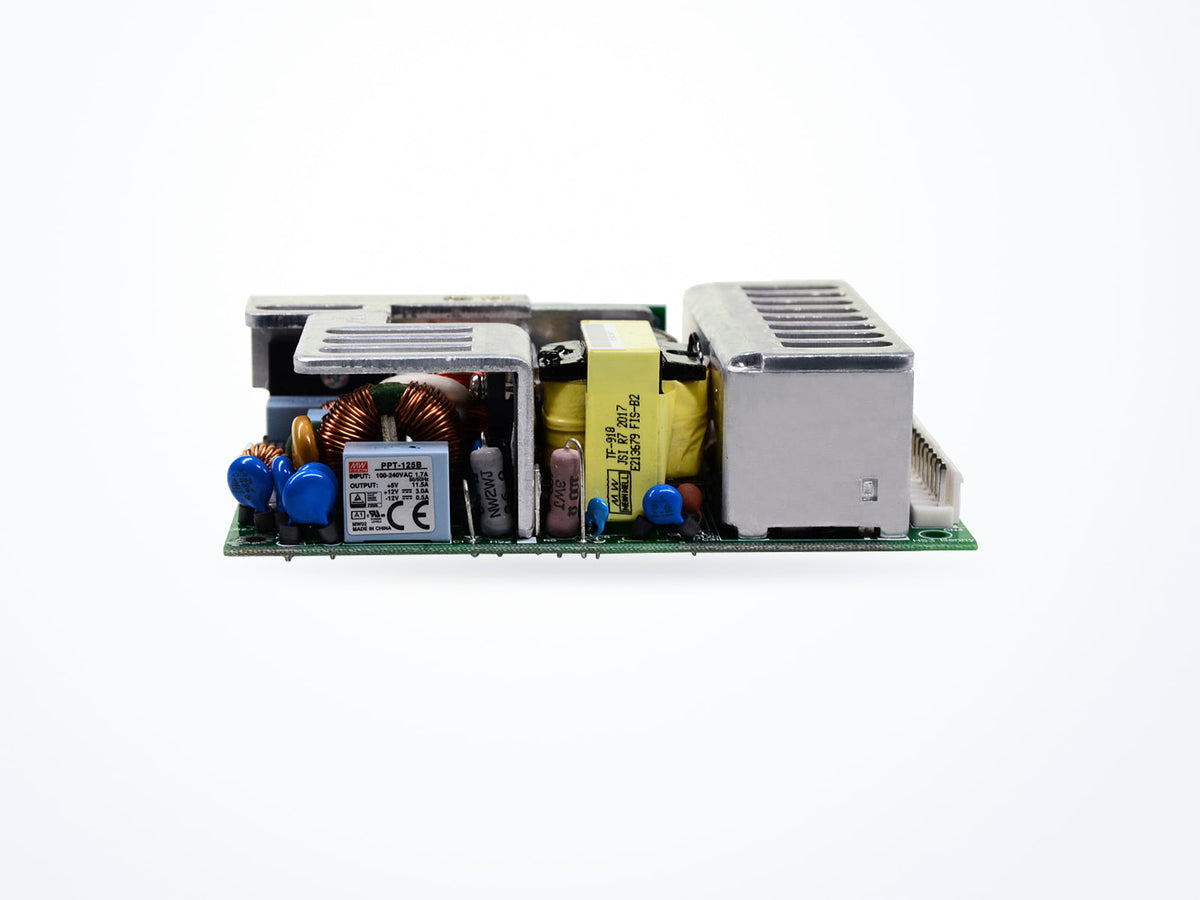

MEAN WELL PPT-125A 79W 3.3V 10A Open Frame

Part numberPPT-125A
Output voltage 3.3 V
Rated current 10 A
Rated power 79 W
$78.32Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
PPT-125 model selection table Industrial - PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 3.3 V
Rated current 10 A
Rated power 79 W
AC input range 90–264 VAC
Mechanical
Operating temperature -20 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 127 × 76.2 × 34.6 mm

Is this model right for you?

Within the PPT-125 series, the PPT-125A lists 79 W. By comparison PPT-125B lists 99.5 W; PPT-125C lists 100 W; PPT-125D lists 101 W. Select the model whose rated power matches the installation.

Product overview

The PPT-125A is an AC/DC Open Frame product from MEAN WELL in the Industrial - PCB Type family. It lists an input voltage range of 90 ~ 264VAC 127 ~ 370VDC and a frequency range of 47~63Hz. Dimensions are 127 × 76.2 × 34.6 mm and net weight is 370 g.

Where this model fits

The PPT-125A is used in Embedded & Board-level Design. Its dimensions are 127 × 76.2 × 34.6 mm and net weight is 370 g. The input voltage range is 90 ~ 264VAC 127 ~ 370VDC and the frequency range is 47~63Hz.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 3.3 V
Rated current 10 A
Rated power 79 W
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Power factor 0.93
Power factor correction Supported
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 127 × 76.2 × 34.6 mm
Net weight 370.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number PPT-125A
Brand MEAN WELL
Category AC/DC Open Frame
Series PPT-125

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • AS/NZS 62368.1
  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 , EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number PPT-125A
Minimum order quantity 1
Country of origin China
Typical packed weight 547 g
Unit weight 370 g

Downloads

PPT-125 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
PPT-125A 3.3 V10 A79 W$78.32
Ships in 3–5 business days
PPT-125C5 V11 A100 W$78.32
Ships in 3–5 business days

PPT-125A: 10 A output current; the rest of the series runs 7 A to 11.5 A.

PPT-125A: 79 W rated power; the rest of the series runs 99.5 W to 101 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for PPT-125A

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting PPT-125A View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
