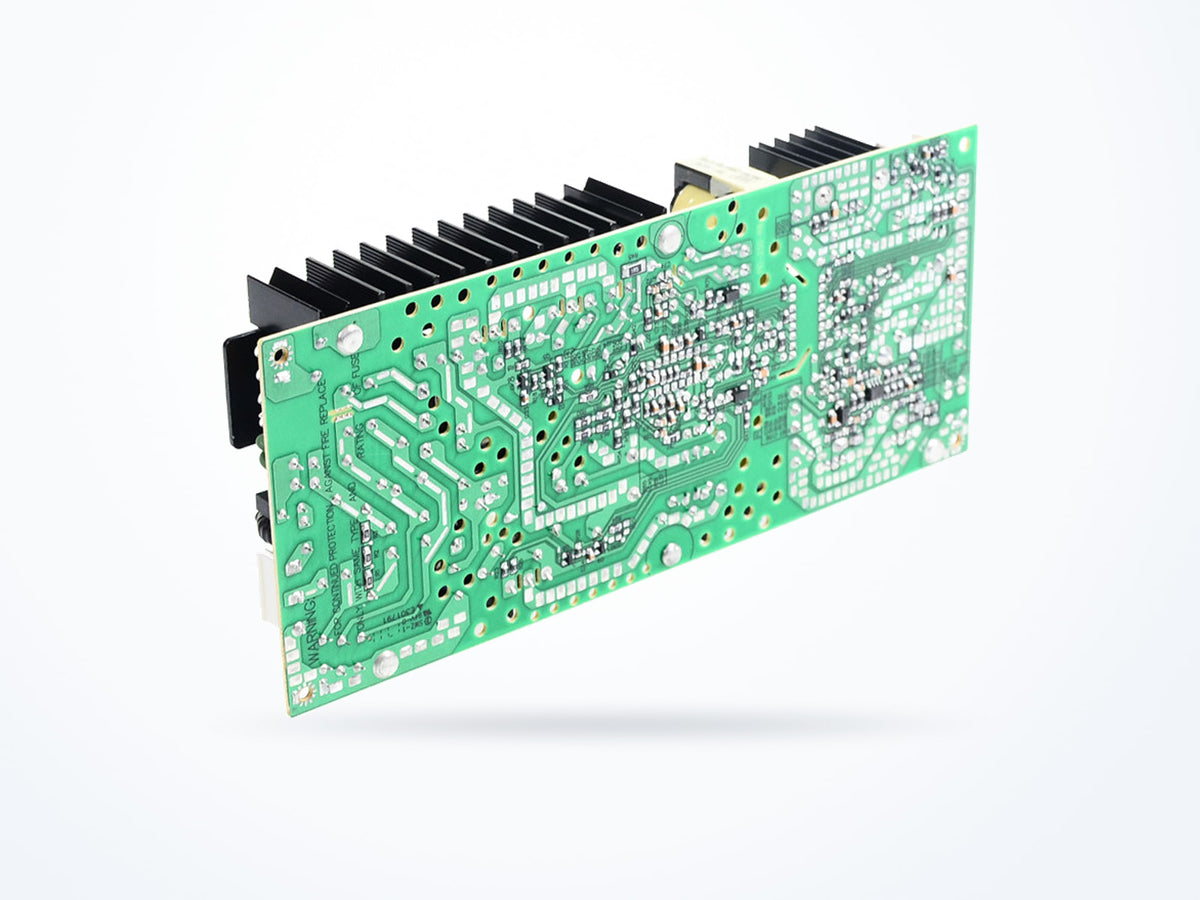

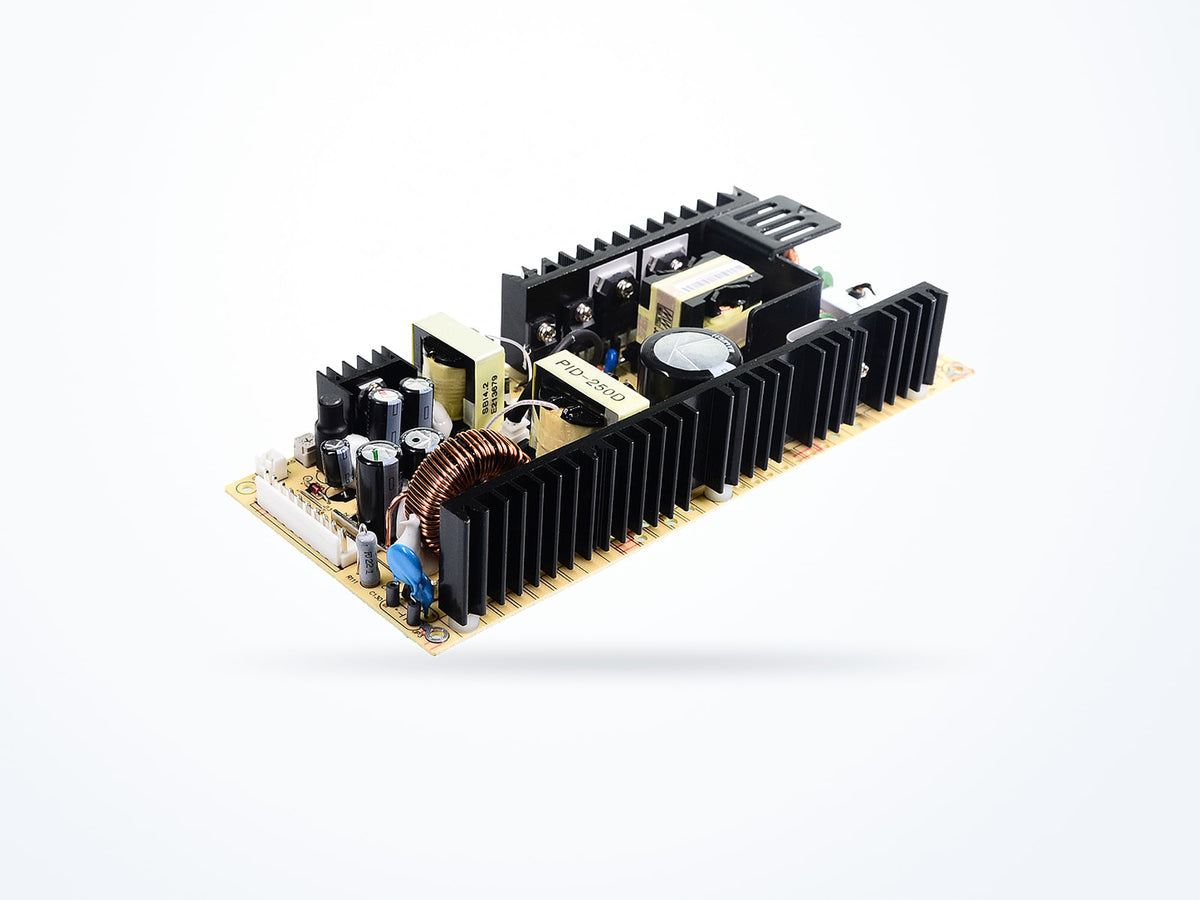

MEAN WELL PID-250A 205W 12V 3A Open Frame

Part numberPID-250A
Output voltage 12 V
Rated current 3 A
Rated power 205 W
$105.80Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
PID-250 model selection table Industrial - PCB Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 3 A
Rated power 205 W
AC input range 90–264 VAC
Mechanical
Operating temperature -20 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 222 × 95 × 40 mm

Is this model right for you?

Within the PID-250 series, the PID-250A lists 205 W. By comparison PID-250B lists 250.6 W; PID-250C lists 251.8 W; PID-250D lists 250.6 W. Select the model whose rated power matches the installation.

Product overview

The PID-250A belongs to the PID-250 series and the Industrial - PCB Type family. Its input range is 90 ~ 264VAC or 127 ~ 370VDC at 47 ~ 63Hz. The product measures 222 × 95 × 40 mm and has a net weight of 740 g. Operating temperature is -20 to 70 °C and humidity is 20 to 90%.

Where this model fits

The PID-250A is used in Embedded & Board-level Design. Its dimensions are 222 × 95 × 40 mm and net weight is 740 g. Operating temperature is -20 to 70 °C and humidity is 20 to 90%.

Complete technical specifications

Output
Output voltage 12 V
Rated current 3 A
Rated power 205 W
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Power factor 0.92
Power factor correction Supported
Protection
Over voltage Protected
Over temperature Protected
Shut down o/p voltage, re-power on to recover for CH1 ; Hiccup mode, recovers automatically afer fault condition
Environmental
Operating temperature -20 to 70 °C
Storage temperature -20 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 222 × 95 × 40 mm
Net weight 740.0 g
Safety & compliance
Safety standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number PID-250A
Brand MEAN WELL
Category AC/DC Open Frame
Series PID-250

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2, heavy industry level, EAC TP TC 020

Standards certified against

  • EN62368-1
  • UL62368-1
Read the datasheet's exact wording

UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number PID-250A
Minimum order quantity 1
Country of origin China
Typical packed weight 944 g
Unit weight 740 g

Downloads

PID-250 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
PID-250A 12 V3 A205 W$105.80
Ships in 3–5 business days

PID-250A: 12 V output; PID-250B: 24 V.

PID-250A: 3 A output current; PID-250D: 1.5 A.

PID-250A: 205 W rated power; PID-250B and PID-250D: 251 W; PID-250C: 252 W.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for PID-250A

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting PID-250A View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
