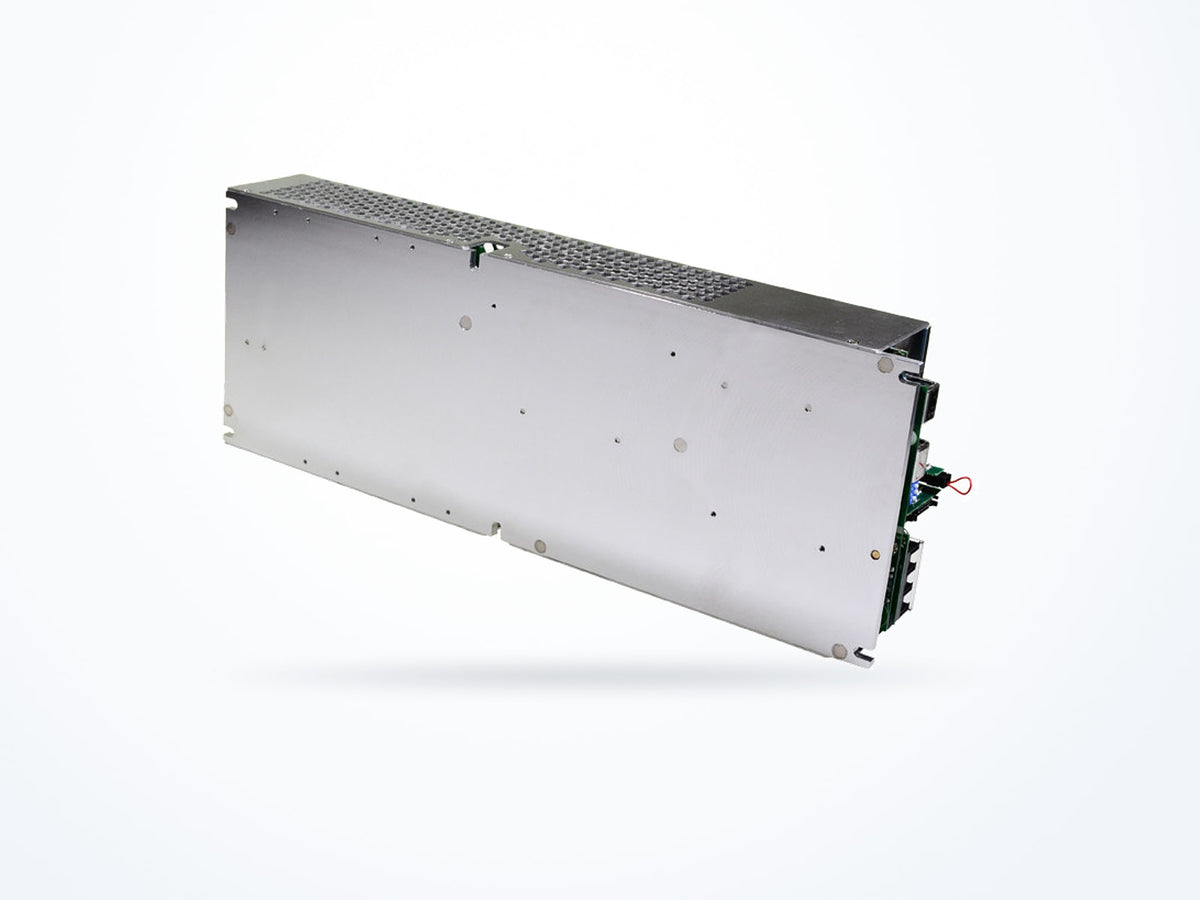

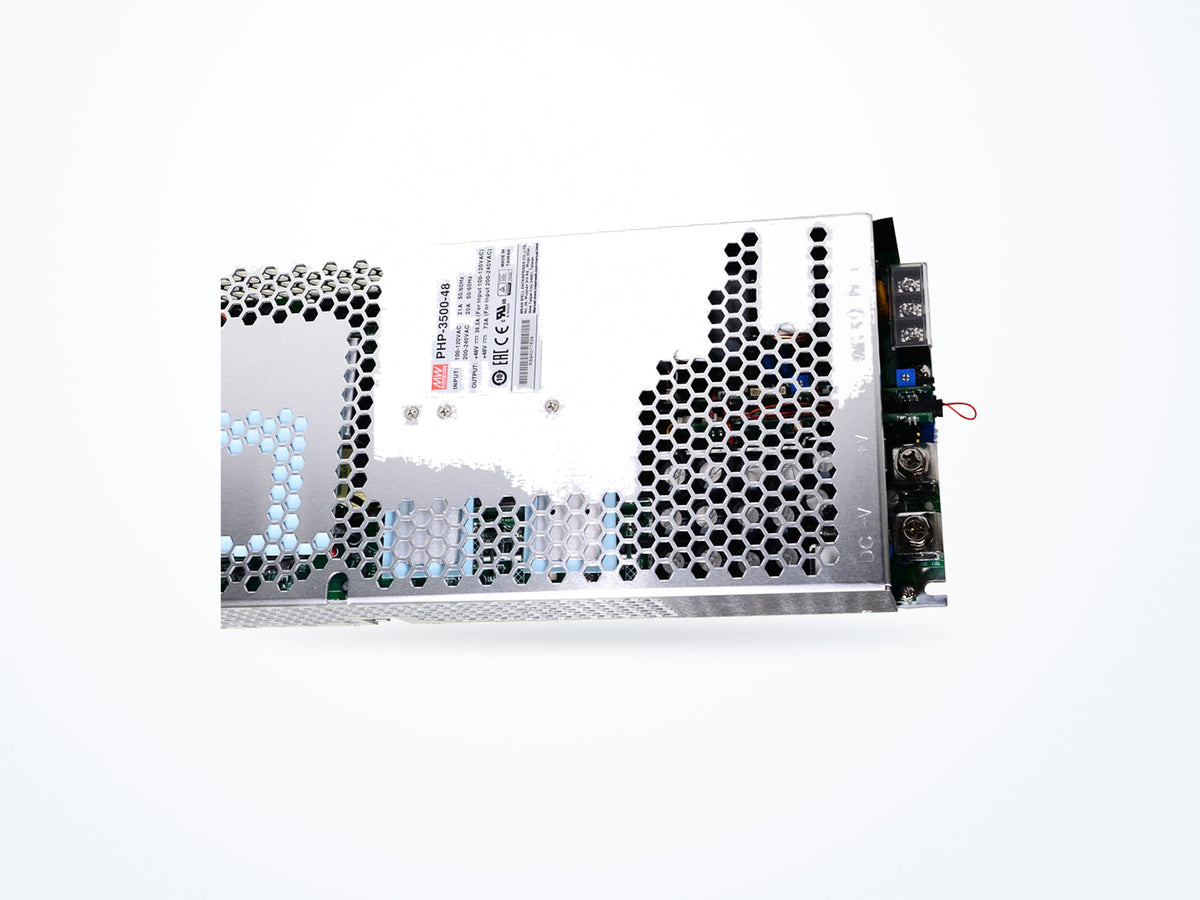

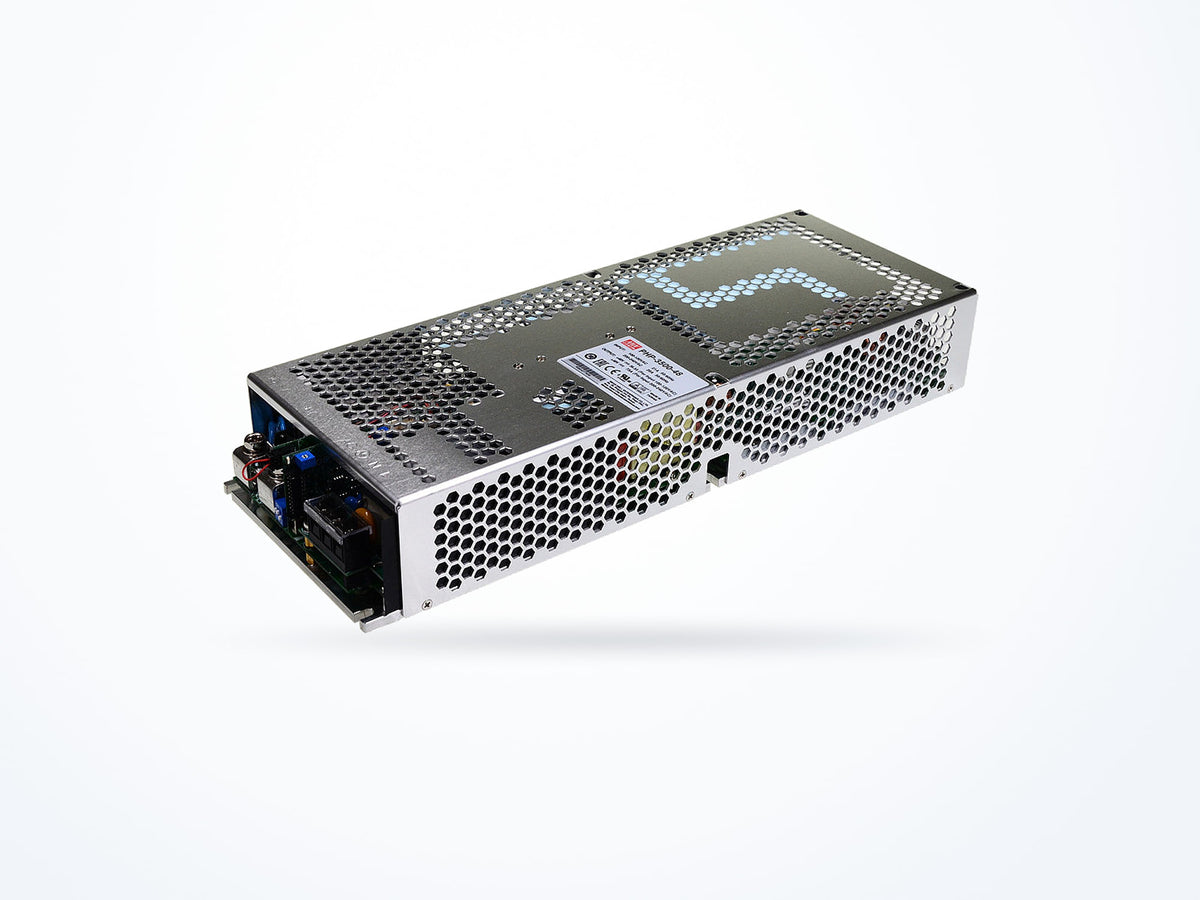

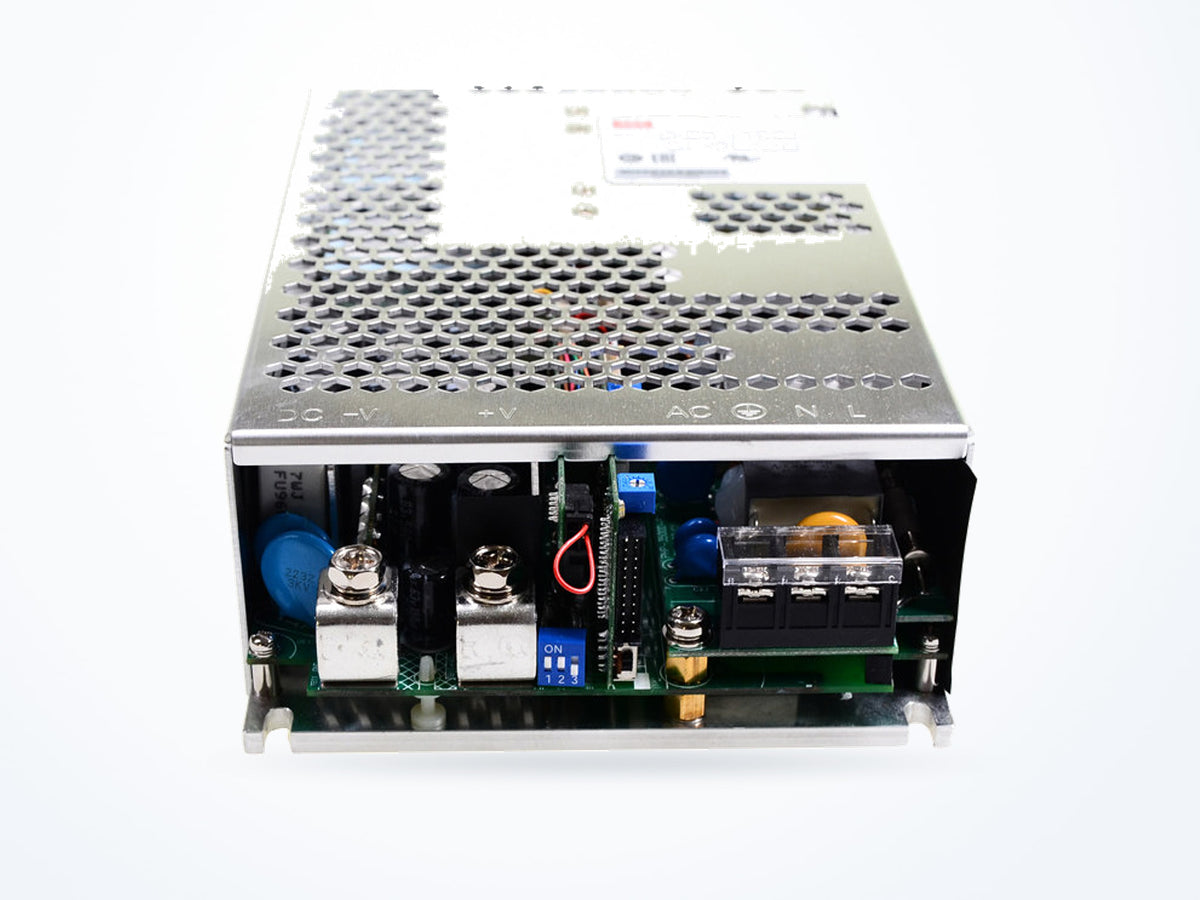

MEAN WELL PHP-3500-24 3480W 24V 145A Programmable Power

Part numberPHP-3500-24
Output voltage 24 V
Rated current 145 A
Rated power 3480 W
$1,731.40Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
PHP-3500 model selection table PHP Series (Water-cooled)
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 145 A
Rated power 3480 W
AC input range 90–264 VAC
Typical efficiency 95 %
Mechanical
Operating temperature -30 to 70 °C
Dimensions (L × W × H) 380 × 141.4 × 60 mm

Is this model right for you?

Within the PHP-3500 series, PHP-3500-24 provides a 24V output at 145A, while PHP-3500-48 provides 48V at 73A. Rated power differs: 3480W for PHP-3500-24 versus 3504W for PHP-3500-48. Typical efficiency is 95% for PHP-3500-24 and 96% for PHP-3500-48. Ripple noise is 300mVp-p for PHP-3500-24 and 480mVp-p for PHP-3500-48. These differing values distinguish the two models from each other.

Product overview

The MEAN WELL PHP-3500-24 is a programmable power product in the PHP-3500 series. It provides a 24V output with 145A output current and 3480W rated power. Typical efficiency is 95%, and ripple noise is listed at 300mVp-p. The specified input voltage range is 90 ~ 264Vac and 127 ~ 370Vdc, with a frequency range of 47 ~ 63Hz. Listed dimensions are 380*141.4*60mm (L*W*H) with forced-air cooling and 380*141.4*72mm (L*W*H) with water cooling.

Complete technical specifications

Rev. 2025-12-05
Output
Output voltage 24 V
Rated current 145 A
Rated power 3480 W
Ripple & noise 300 mVp-p
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Typical efficiency 95 %
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 380 × 141.4 × 60 mm
Net weight 4500.0 g
Safety & compliance
Safety standards UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number PHP-3500-24
Brand MEAN WELL
Category AC/DC Programmable Power
Series PHP-3500

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVac I/P-FG:2KVac O/P-FG:1.25KVac
Isolation resistance I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500Vdc/25℃/ 70%RH

Standards certified against

  • EN62368-1
  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN61558-1, BS EN/EN60335-1

Read the datasheet's exact wording

UL62368-1, CAN/CSA C22.2 No. 62368-1,TUV BS EN/EN62368-1, EAC TP TC 004 approved ; design refers to BS EN/EN61558-1, BS EN/EN60335-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number PHP-3500-24
Minimum order quantity 1
Country of origin China
Typical packed weight 5130 g
Unit weight 4500 g

Downloads

PHP-3500 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
PHP-3500-24 24 V145 A3480 W$1,731.40
Ships in 3–5 business days
PHP-3500-4848 V73 A3504 W$1,731.40
Ships in 3–5 business days

Output voltage: PHP-3500-24 provides 24V; PHP-3500-48 provides 48V.

Output current: PHP-3500-24 provides 145A; PHP-3500-48 provides 73A.

Rated power: PHP-3500-24 lists 3480W; PHP-3500-48 lists 3504W.

Typical efficiency and ripple noise: PHP-3500-24 lists 95% and 300mVp-p; PHP-3500-48 lists 96% and 480mVp-p.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for PHP-3500-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting PHP-3500-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2025-12-05
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
