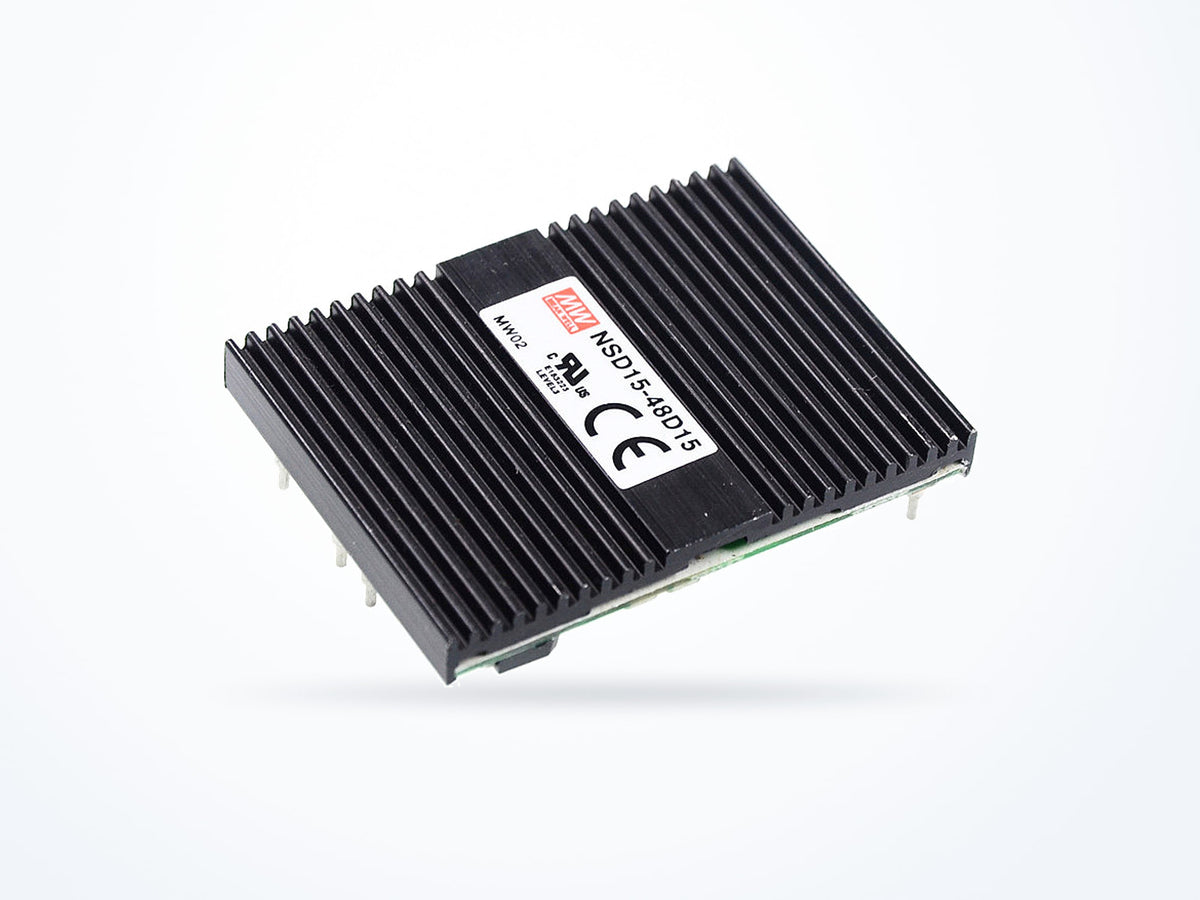

MEAN WELL NSD15-48D15 15W 15V 0.5A On Board Type (Non-Potted)

Part numberNSD15-48D15
Output voltage 15 V
Rated current 0.5 A
Rated power 15 W
$23.37Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
NSD15-D model selection table Isolated: NSD
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 0.5 A
Rated power 15 W
Mechanical
Operating temperature -25 to 70 °C
Dimensions (L × W × H) 50.8 × 38.1 × 9.82 mm

Is this model right for you?

Within the NSD15-D series, the NSD15-48D15 lists 15 W, 18 ~ 72VDC input. By comparison NSD15-12D12 lists 14.88 W, 9.4 ~ 36VDC input; NSD15-12D15 lists 15 W, 9.4 ~ 36VDC input; NSD15-12D5 lists 15 W, 9.4 ~ 36VDC input; NSD15-48D12 lists 14.88 W, 18 ~ 72VDC input, and 1 further model. Select the model whose rated power and input range match the installation.

Product overview

The NSD15-48D15 belongs to the MEAN WELL NSD15-D series and is classified as a DC/DC On Board Type (Non-Potted) product. Its dimensions are 50.8 × 38.1 × 9.82 mm, and its net weight is 30 g. The operating temperature range is -25 to 70 °C.

Where this model fits

The NSD15-48D15 is used in Embedded & Board-level Design. Its dimensions are 50.8 × 38.1 × 9.82 mm, and its net weight is 30 g. The operating temperature range is -25 to 70 °C.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 15 V
Rated current 0.5 A
Rated power 15 W
Input
AC input range 18 ~ 72VDC
DC input range 18–72 VDC
Environmental
Operating temperature -25 to 70 °C
Storage temperature -40 to 85 °C
Mechanical
Dimensions (L × W × H) 50.8 × 38.1 × 9.82 mm
Net weight 30.0 g
Safety & compliance
Safety standards UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number NSD15-48D15
Brand MEAN WELL
Category DC/DC On Board Type (Non-Potted)
Series NSD15-D

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
EMC emission Compliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,6,8; BS EN/EN55035, light industry level, EAC TP TC 020

Standards certified against

  • UL62368-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN62368-1

Read the datasheet's exact wording

UL62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number NSD15-48D15
Minimum order quantity 1
Country of origin China
Typical packed weight 186 g
Unit weight 30 g

Downloads

NSD15-D model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
NSD15-12D1212 V0.62 A14.88 W$23.37
Ships in 3–5 business days
NSD15-48D15 15 V0.5 A15 W$23.37
Ships in 3–5 business days

NSD15-48D15: 0.5 A output current; NSD15-12D12 and NSD15-48D12: 0.62 A; NSD15-12D5 and NSD15-48D5: 1.5 A.

NSD15-48D15: 15 W rated power; NSD15-12D12 and NSD15-48D12: 14.9 W.

NSD15-48D15: 18 ~ 72VDC input; NSD15-12D12, NSD15-12D15 and NSD15-12D5: 9.4 ~ 36VDC.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for NSD15-48D15

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting NSD15-48D15 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
