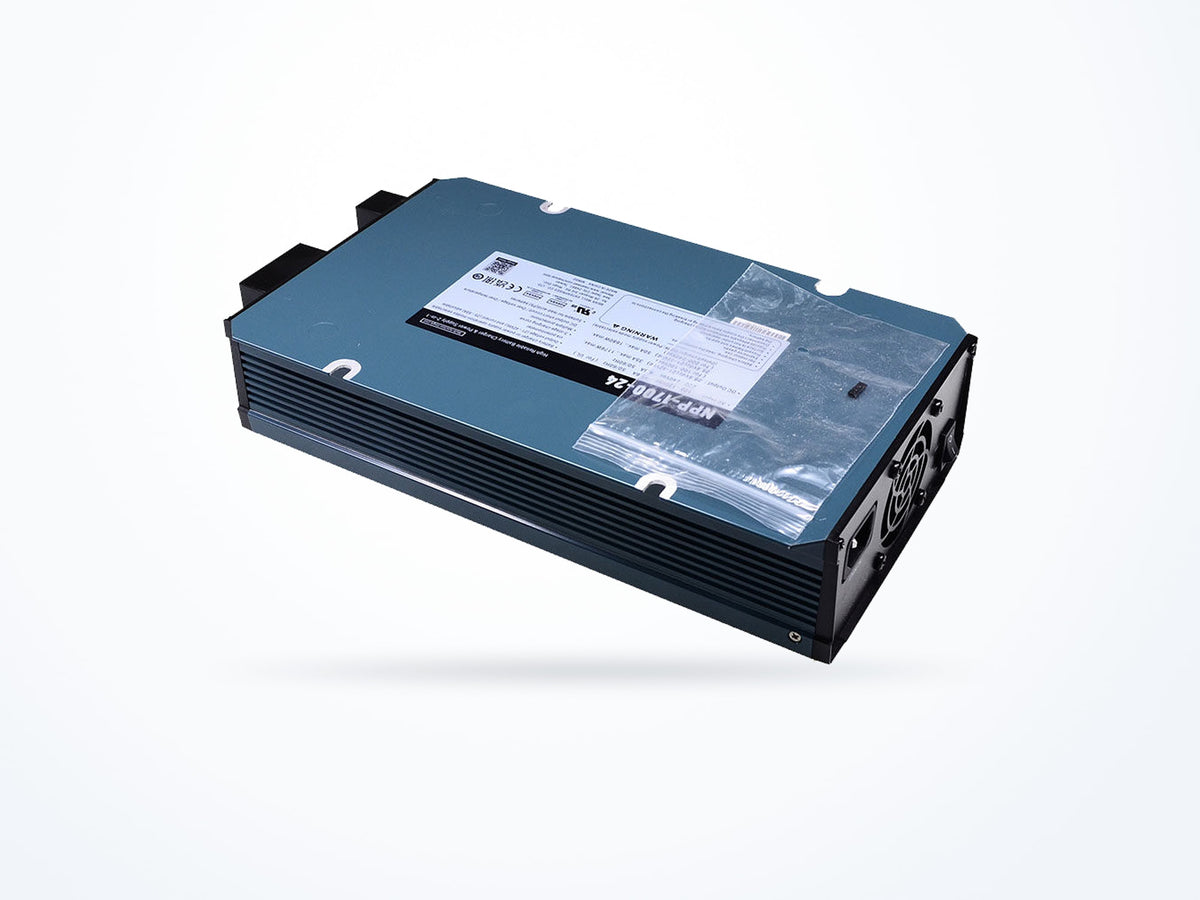

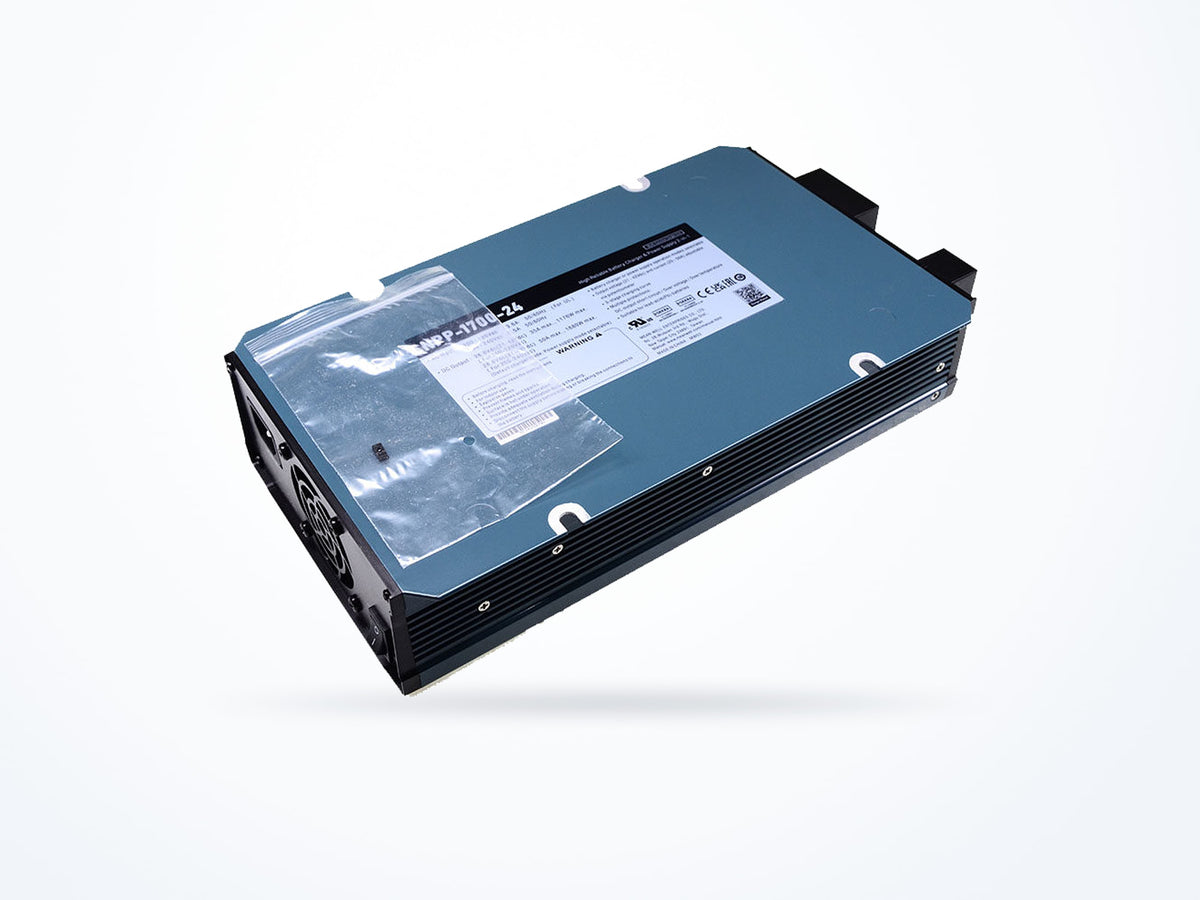

MEAN WELL NPP-1700-12 1428W 14.4V 85A Charger

Part numberNPP-1700-12
Output voltage 14.4 V
Rated current 85 A
Rated power 1428 W
$540.70Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
NPP-1700 model selection table NPP Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 14.4 V
Rated current 85 A
Rated power 1428 W
AC input range 90–264 VAC
Typical efficiency 92 %
Mechanical
Operating temperature -30 to 70 °C
Power factor correction Supported
Dimensions (L × W × H) 307.7 × 184 × 70 mm

Is this model right for you?

Within the NPP-1700 series, the NPP-1700-12 lists 14.4 V output and 85 A output current. The NPP-1700-24 lists 28.8 V and 50 A, while the NPP-1700-48 lists 57.6 V and 25 A. Rated power is 1428 W for the NPP-1700-12 and 1680 W for the NPP-1700-24 and NPP-1700-48.

Product overview

The NPP-1700-12 is an AC/DC charger in the NPP-1700 series. It provides a 14.4 V output at 85 A with 1428 W rated power. Input is 90 ~ 264VAC or 250 ~ 370VDC at 47 ~ 63Hz. Typical efficiency is 92% and ripple noise is 180mVp-p. Dimensions are 307.7 × 184 × 70 mm and net weight is 2960 g.

Where this model fits

The NPP-1700-12 is used in Battery Charging & Energy Storage and Renewable Energy & Off-grid Power. Its output is 14.4 V at 85 A with 1428 W rated power, and it accepts 90 ~ 264VAC or 250 ~ 370VDC input.

Complete technical specifications

Output
Output voltage 14.4 V
Rated current 85 A
Rated power 1428 W
Ripple & noise 180 mVp-p
Input
AC input range 90–264 VAC
DC input range 250–370 VDC
Frequency range 47–63 Hz
Typical efficiency 92 %
Power factor 0.98
Power factor correction Supported
Protection
Short circuit Protected
Over voltage Protected
Over temperature Protected
Shut down and latch off o/p voltage, re-power on to recover
Environmental
Operating temperature -30 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Vibration 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 307.7 × 184 × 70 mm
Net weight 2960.0 g
Safety & compliance
Safety standards CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number NPP-1700-12
Brand MEAN WELL
Category AC/DC Charger
Series NPP-1700

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • DEKRA

    DEKRA is a European notified body; a DEKRA certificate on a datasheet is third-party testing against the cited EN standard, equivalent in standing to a TÜV one.

International

  • CB Scheme

    A CB Test Certificate reports testing against the IEC standard and is accepted by member certification bodies as the basis for a national approval. It shortens a new-country approval rather than granting market access by itself, so it is the most useful item on this list when you are entering a market that is not shown here.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • EN60335-1/2-29
  • EN62368-1
  • IEC60335-1/2-29
  • IEC62368-1
  • UL62368-1
Read the datasheet's exact wording

CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number NPP-1700-12
Minimum order quantity 1
Country of origin China
Typical packed weight 3800 g
Unit weight 2960 g

Downloads

NPP-1700 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
NPP-1700-2428.8 V50 A1680 W$540.70
Ships in 3–5 business days
NPP-1700-4857.6 V25 A1680 W$540.70
Ships in 3–5 business days
NPP-1700-12 14.4 V85 A1428 W$540.70
Ships in 3–5 business days

NPP-1700-12: 14.4 V output, 85 A output current, 1428 W rated power; NPP-1700-24: 28.8 V output, 50 A output current, 1680 W rated power.

NPP-1700-12: 14.4 V output, 85 A output current, 1428 W rated power; NPP-1700-48: 57.6 V output, 25 A output current, 1680 W rated power.

NPP-1700-12: 92% typical efficiency, 180mVp-p ripple noise; NPP-1700-24: 93% typical efficiency, 300mVp-p ripple noise; NPP-1700-48: 94% typical efficiency, 480mVp-p ripple noise.
