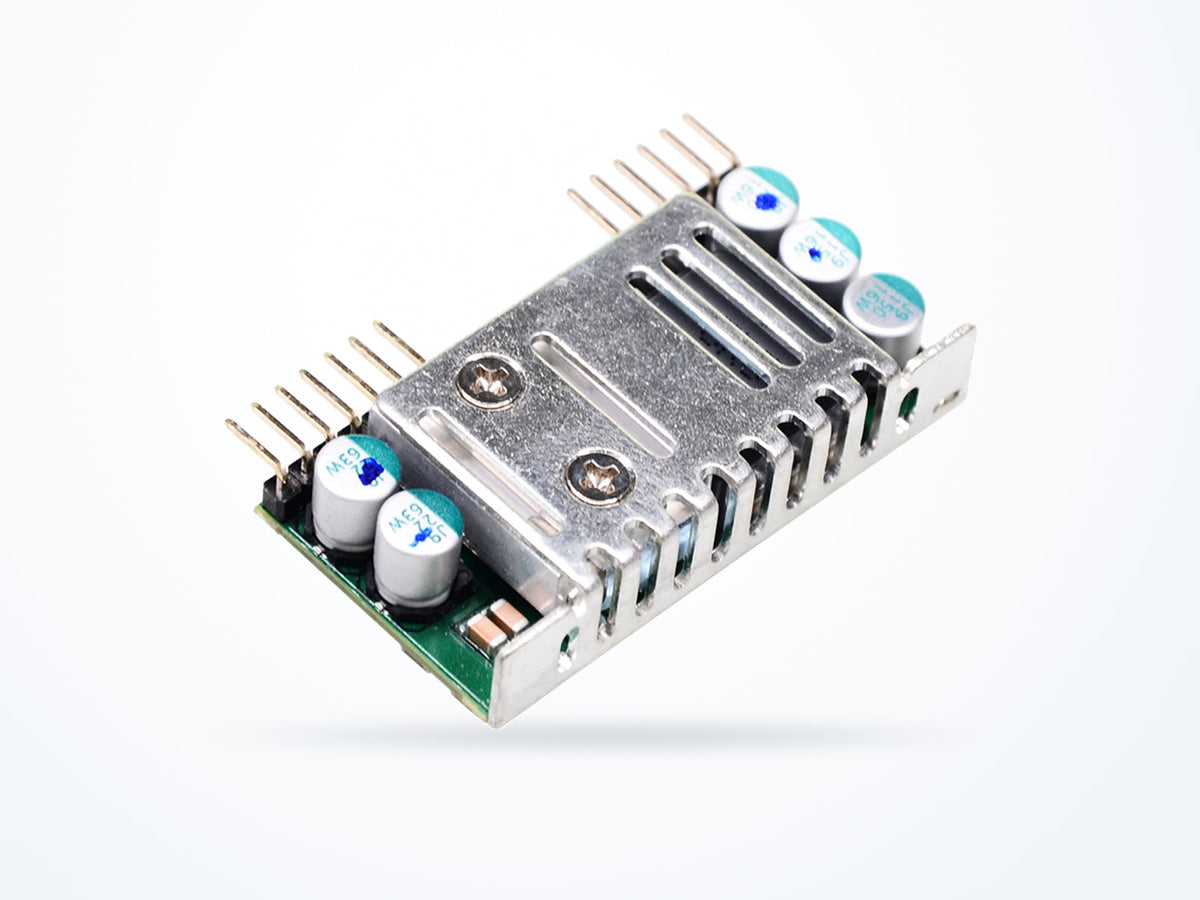

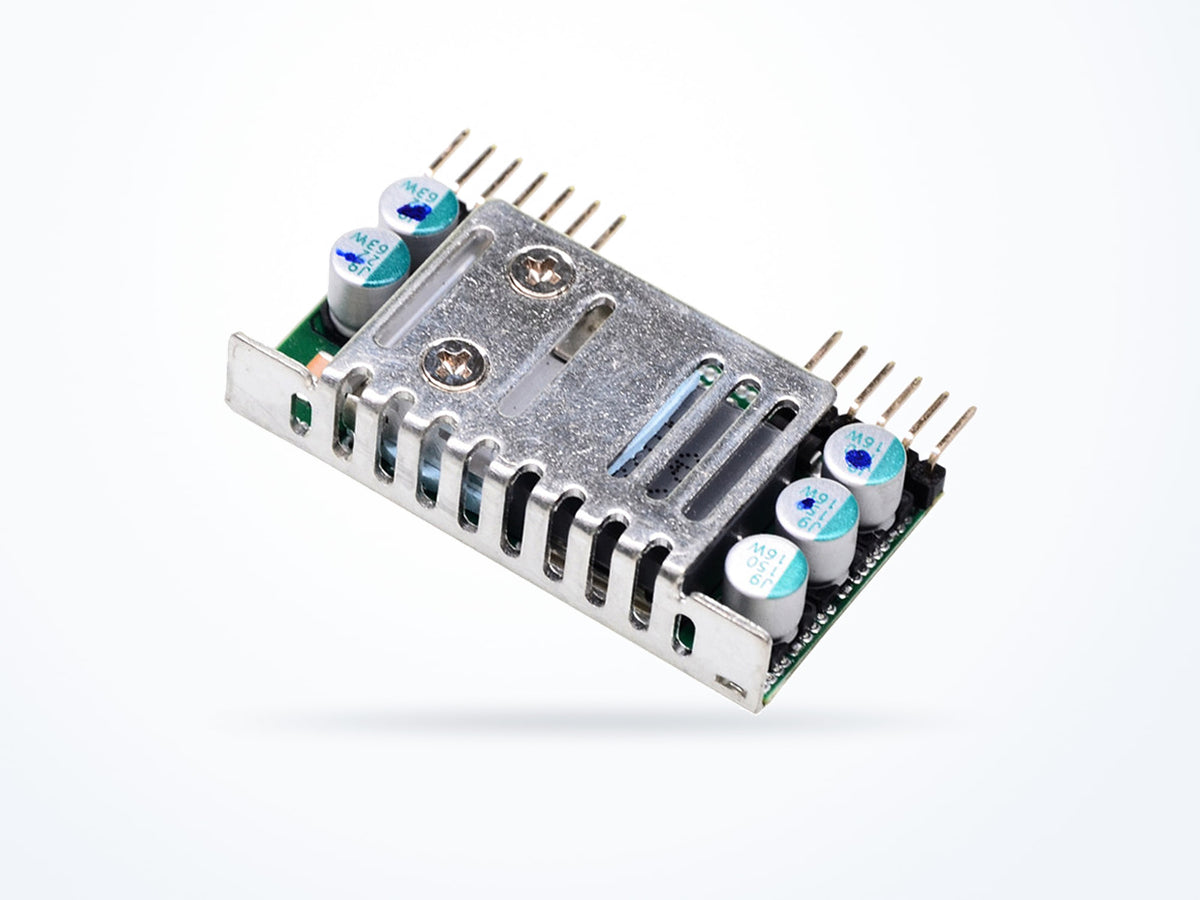

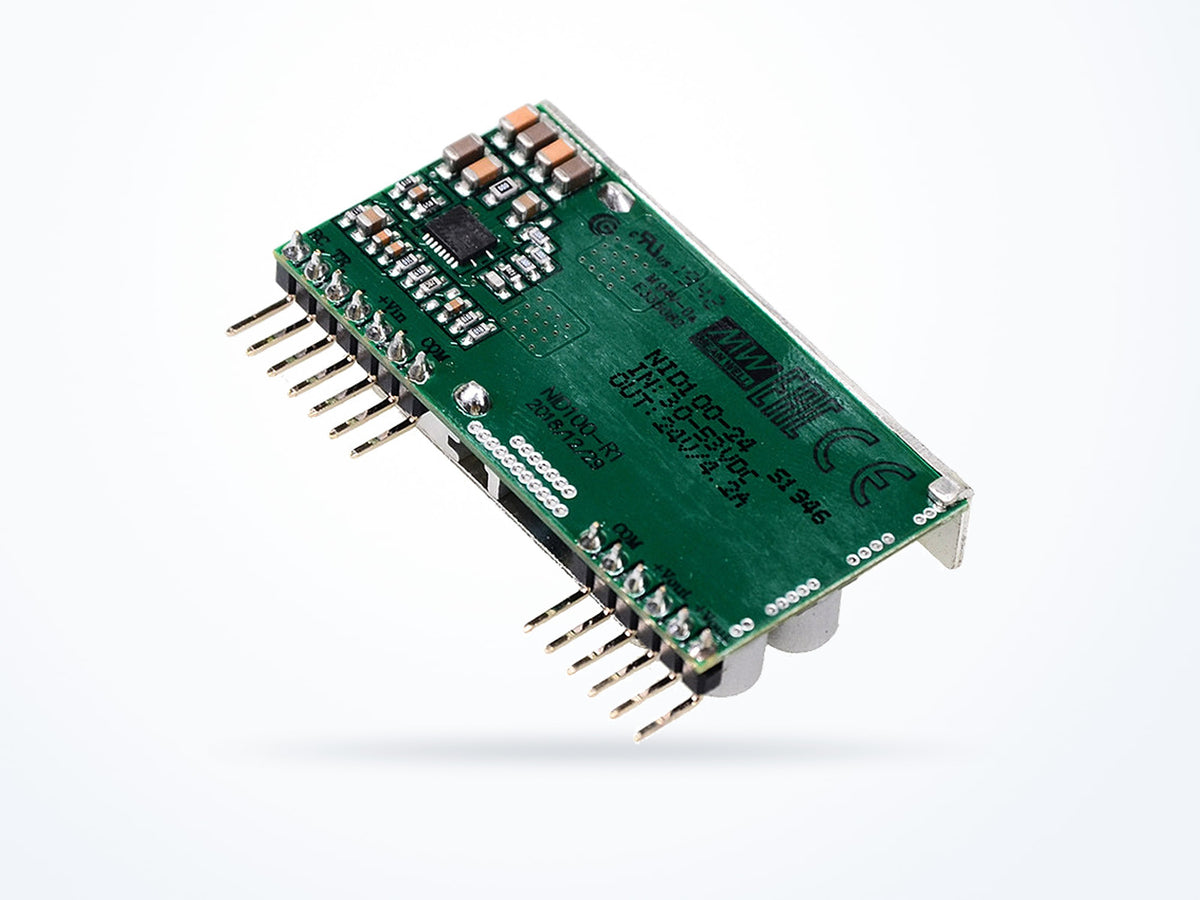

MEAN WELL NID100-12 90W 12V 7.5A On Board Type (Non-Potted)

Part numberNID100-12
Output voltage 12 V
Rated current 7.5 A
Rated power 90 W
$23.05Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
NID100 model selection table Non-Isolated: NID
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 7.5 A
Rated power 90 W
Mechanical
Operating temperature -30 to 85 °C
Dimensions (L × W × H) 50.8 × 27.5 × 12 mm

Is this model right for you?

Within the NID100 series, the NID100-12 lists 12 V, 7.5 A, 90 W, 20 ~ 53VDC input. By comparison NID100-15 lists 15 V, 6.5 A, 97.5 W, 20 ~ 53VDC input; NID100-24 lists 24 V, 100.8 W, 30 ~ 53VDC input; NID100-5 lists 5 V, 11 A, 55 W, 10.5 ~ 53VDC input. Select the model whose output voltage, output current, rated power, and input range match the installation.

Product overview

The NID100-12 belongs to the MEAN WELL NID100 series and is classified as a DC/DC On Board Type (Non-Potted) product within the Non-Isolated: NID family. It provides a 12 V output with 90 W rated power. Its dimensions are 50.8 × 27.5 × 12 mm. The operating temperature range is -30 to 85 °C, and the storage temperature range is -30 to 105 °C.

Where this model fits

The NID100-12 is used in Embedded & Board-level Design. Its dimensions are 50.8 × 27.5 × 12 mm, and its operating temperature range is -30 to 85 °C. The storage temperature range is -30 to 105 °C.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 12 V
Rated current 7.5 A
Rated power 90 W
Input
AC input range 20 ~ 53VDC
DC input range 20–53 VDC
Protection
Short circuit Protected
Overload Protected
Over voltage Protected
Hiccup mode, recovers automatically after fault condition is removed
Environmental
Operating temperature -30 to 85 °C
Storage temperature -30 to 105 °C
Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 50.8 × 27.5 × 12 mm
Net weight 40.778 g
Safety & compliance
Safety standards EAC TP TC 004 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number NID100-12
Brand MEAN WELL
Category DC/DC On Board Type (Non-Potted)
Series NID100

Approvals and compliance

From the manufacturer's datasheet for this series

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
EMC emission Parameter Standard Test Level / Note
Read the datasheet's exact wording

EAC TP TC 004 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number NID100-12
Minimum order quantity 1
Country of origin China
Typical packed weight 194 g
Unit weight 40.778 g

Downloads

NID100 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
NID100-2424 V4.2 A100.8 W$23.05
Ships in 3–5 business days
NID100-55 V11 A55 W$23.05
Ships in 3–5 business days
NID100-12 12 V7.5 A90 W$23.05
Ships in 3–5 business days

NID100-12: 12 V output; the rest of the series runs 5 V to 24 V.

NID100-12: 7.5 A output current; the rest of the series runs 4.2 A to 11 A.

NID100-12: 90 W rated power; the rest of the series runs 55 W to 101 W.

NID100-12: 20 ~ 53VDC input; NID100-5: 10.5 ~ 53VDC; NID100-24: 30 ~ 53VDC.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for NID100-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting NID100-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
