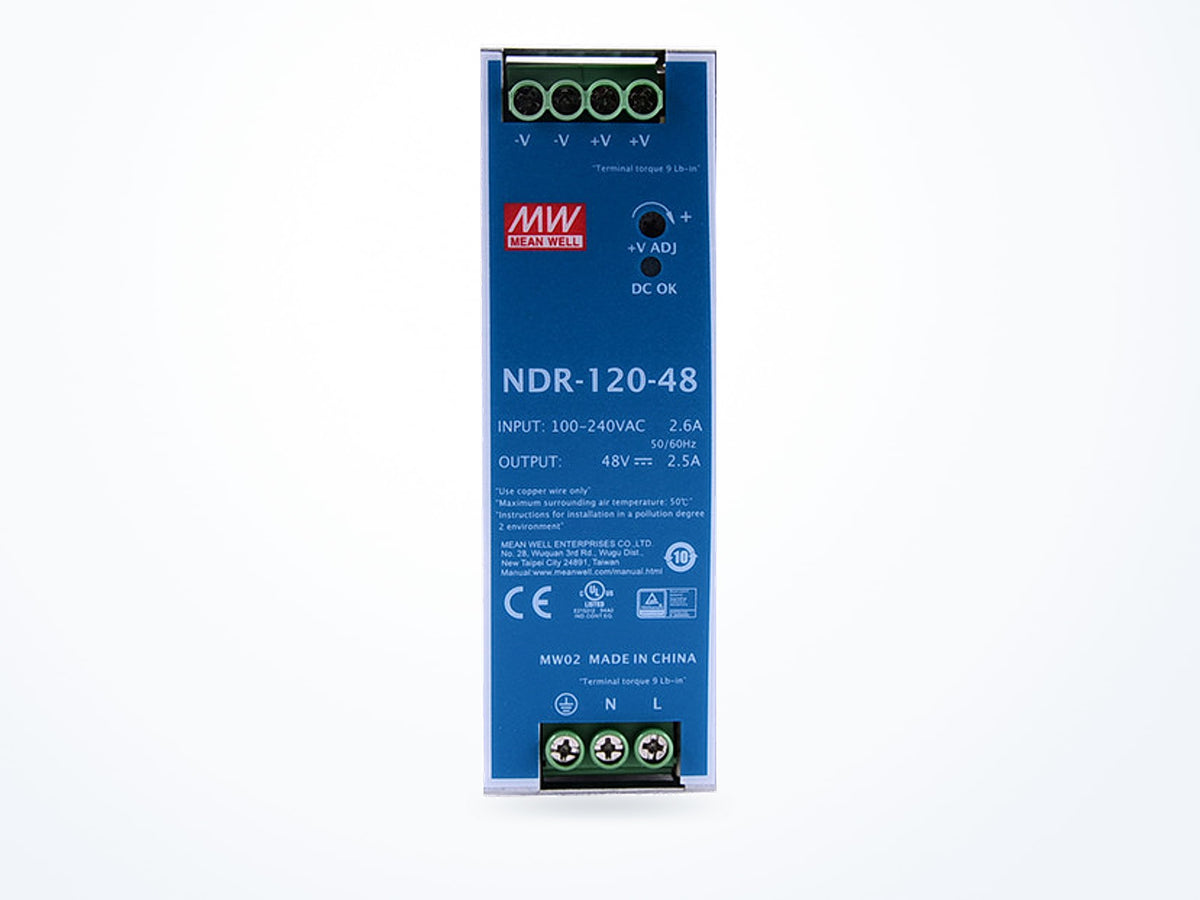

MEAN WELL NDR-120-48 120W 48V 2.5A DIN Rail

Part numberNDR-120-48
Output voltage 48 V
Rated current 2.5 A
Rated power 120 W
$42.64Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
NDR-120 model selection table NDR Series
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 48 V
Rated current 2.5 A
Rated power 120 W
AC input range 90–264 VAC
Typical efficiency 89 %
Mechanical
Operating temperature -20 to 70 °C
Dimensions (L × W × H) 40 × 125.2 × 113.5 mm

Is this model right for you?

Within the NDR-120 series, the NDR-120-48 lists a 48 V output and 2.5 A output current. The NDR-120-12 lists 12 V and 10 A, and the NDR-120-24 lists 24 V and 5 A. Output adjustment ranges also differ: 48 ~ 55V for NDR-120-48, 12 ~ 14V for NDR-120-12, and 24 ~ 28V for NDR-120-24.

Product overview

The NDR-120-48 provides a 48 V output with 2.5 A output current and 120 W rated power. Its output adjustment range is 48 ~ 55V, and typical efficiency is 89%. Ripple and noise are 150mVp-p. The input frequency range is 47 ~ 63Hz. Dimensions are 40 × 125.2 × 113.5 mm and net weight is 600 g.

Where this model fits

The NDR-120-48 is used in Industrial Automation, Motor Drives, and Building & Home Automation. Its 48 V output and 2.5 A output current are the electrical figures for these installations. The operating temperature range is -20 to 70 °C, humidity range is 20 to 95%, and net weight is 600 g.

Complete technical specifications

Rev. 2026-04-03
Output
Output voltage 48 V
Rated current 2.5 A
Rated power 120 W
Voltage adjustment range 48–55 V
Ripple & noise 150 mVp-p
Input
AC input range 90–264 VAC
DC input range 127–370 VDC
Frequency range 47–63 Hz
Typical efficiency 89 %
Environmental
Operating temperature -20 to 70 °C
Storage temperature -40 to 85 °C
Operating humidity 20–95 % RH
Vibration Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
Mechanical
Dimensions (L × W × H) 40 × 125.2 × 113.5 mm
Net weight 600.0 g
Safety & compliance
Safety standards UL508, TUV BS EN/EN62368-1, EAC TP TC 004 approved;(meet BS EN/EN60204-1)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number NDR-120-48
Brand MEAN WELL
Category AC/DC DIN Rail
Series NDR-120

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
EMC emission Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC immunity Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020

Standards certified against

  • EN60204-1
  • EN62368-1
Read the datasheet's exact wording

UL508, TUV BS EN/EN62368-1, EAC TP TC 004 approved;(meet BS EN/EN60204-1)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number NDR-120-48
Minimum order quantity 1
Country of origin China
Warranty 3-year limited warranty, subject to the conditions in MEAN WELL's published warranty statement.
Typical packed weight 800 g
Unit weight 600 g

Downloads

NDR-120 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
NDR-120-2424 V5 A120 W$39.48
Ships in 3–5 business days
NDR-120-48 48 V2.5 A120 W$42.64
Ships in 3–5 business days
NDR-120-1212 V10 A120 W$42.64
Ships in 3–5 business days

NDR-120-48 lists a 48 V output and 2.5 A output current; NDR-120-12 lists 12 V and 10 A.

NDR-120-48 lists a 48 V output and 2.5 A output current; NDR-120-24 lists 24 V and 5 A.

NDR-120-48 lists an output adjustment range of 48 ~ 55V; NDR-120-12 lists 12 ~ 14V and NDR-120-24 lists 24 ~ 28V.

NDR-120-48 lists typical efficiency of 89%; NDR-120-12 lists 85.5% and NDR-120-24 lists 88%.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for NDR-120-48

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting NDR-120-48 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2026-04-03
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
