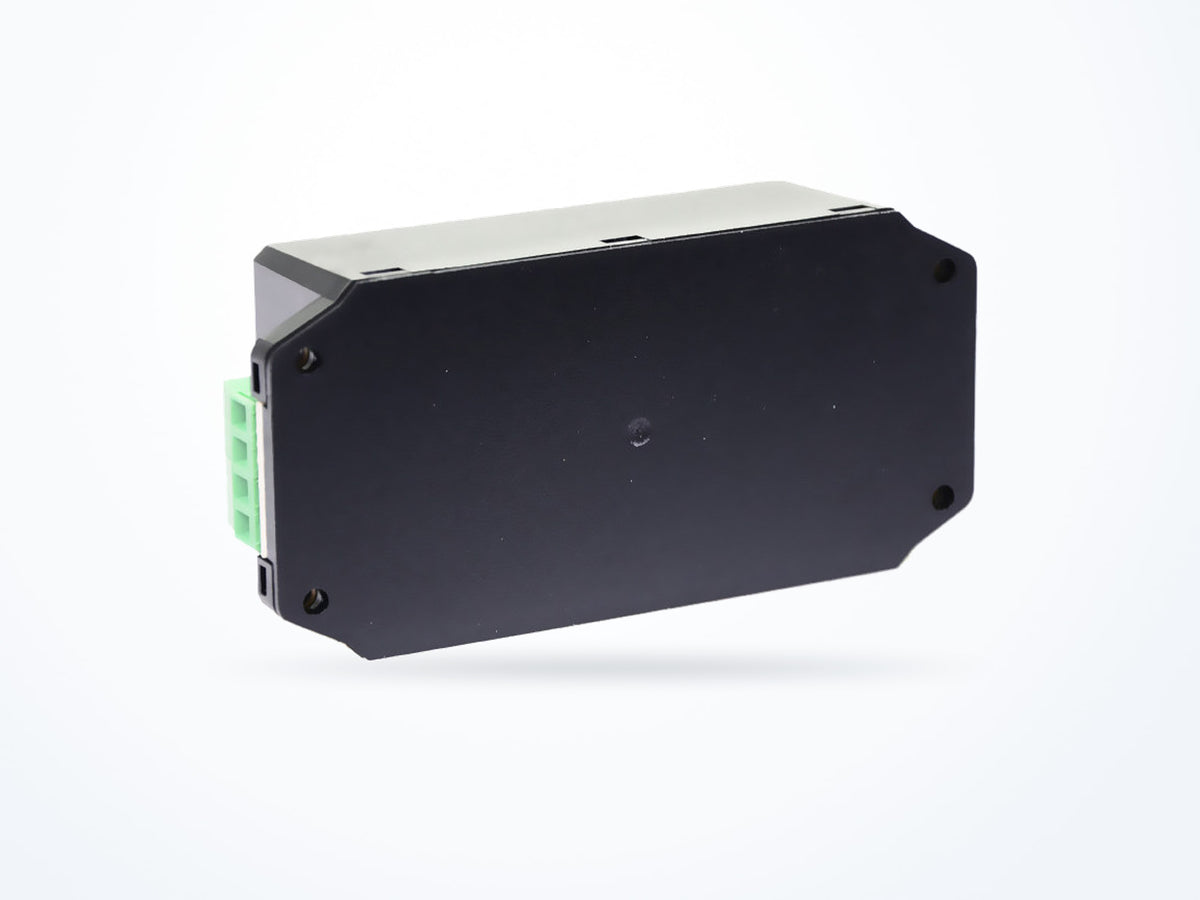

MEAN WELL MPM-90-12 80.4W 12V 6.7A Open Frame

Part numberMPM-90-12
Output voltage 12 V
Rated current 6.7 A
Rated power 80.4 W
$44.53Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MPM-90 model selection table Medical - On Board Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 6.7 A
Rated power 80.4 W
AC input range 80–264 VAC
Typical efficiency 92 %
Mechanical
Operating temperature -30 to 80 °C
Dimensions (L × W × H) 87 × 52 × 29.5 mm

Is this model right for you?

Within the MPM-90 series, the MPM-90-12 provides 12 V output and 92% typical efficiency. MPM-90-15 provides 15 V and 92.5%, MPM-90-24 provides 24 V and 93%, and MPM-90-48 provides 48 V and 93%.

Product overview

The MPM-90-12 is a 12 V AC/DC open frame product in the MPM-90 series. It lists a typical efficiency of 92%, an input range of 80 ~ 264VAC 113 ~ 370VDC, and a frequency range of 47 ~ 63Hz. Dimensions are 87 × 52 × 29.5 mm.

Where this model fits

The MPM-90-12 is used in Embedded & Board-level Design. Its 12 V output and 87 × 52 × 29.5 mm dimensions are the measurements relevant to board-level mounting.

Complete technical specifications

Output
Output voltage 12 V
Rated current 6.7 A
Rated power 80.4 W
Ripple & noise 120 mVp-p
Input
AC input range 80–264 VAC
DC input range 113–370 VDC
Frequency range 47–63 Hz
Typical efficiency 92 %
Environmental
Operating temperature -30 to 80 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 87 × 52 × 29.5 mm
Net weight 219.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MPM-90-12
Brand MEAN WELL
Category AC/DC Open Frame
Series MPM-90

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC
EMC emission Parameter Standard Test Level / Note

Standards certified against

  • ANSI/AAMI ES60601-1
  • EN 60601-1
  • IEC 60601-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN60335-1(by request)

Read the datasheet's exact wording

IEC 60601-1:2005+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved; Design refer to BS EN/EN60335-1(by request)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MPM-90-12
Minimum order quantity 1
Country of origin China
Typical packed weight 390 g
Unit weight 219 g

Downloads

MPM-90 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MPM-90-12 12 V6.7 A80.4 W$44.53
Ships in 3–5 business days
MPM-90-1515 V5.67 A85.05 W$44.53
Ships in 3–5 business days
MPM-90-4848 V1.88 A90.2 W$44.53
Ships in 3–5 business days

MPM-90-12: 12 V output, 92% typical efficiency; MPM-90-15: 15 V output, 92.5% typical efficiency.

MPM-90-12: 12 V output, 92% typical efficiency; MPM-90-24: 24 V output, 93% typical efficiency.

MPM-90-12: 12 V output, 92% typical efficiency; MPM-90-48: 48 V output, 93% typical efficiency.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MPM-90-12

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MPM-90-12 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
