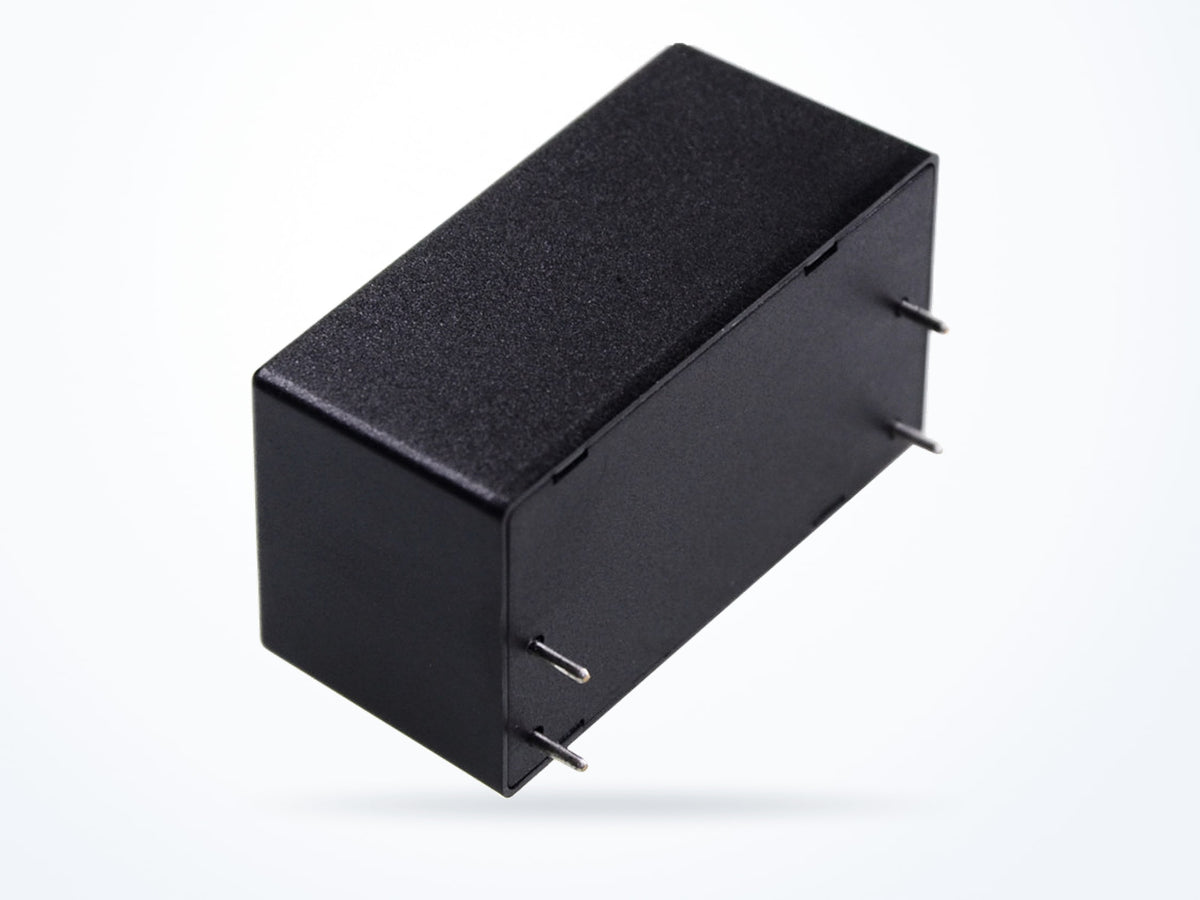

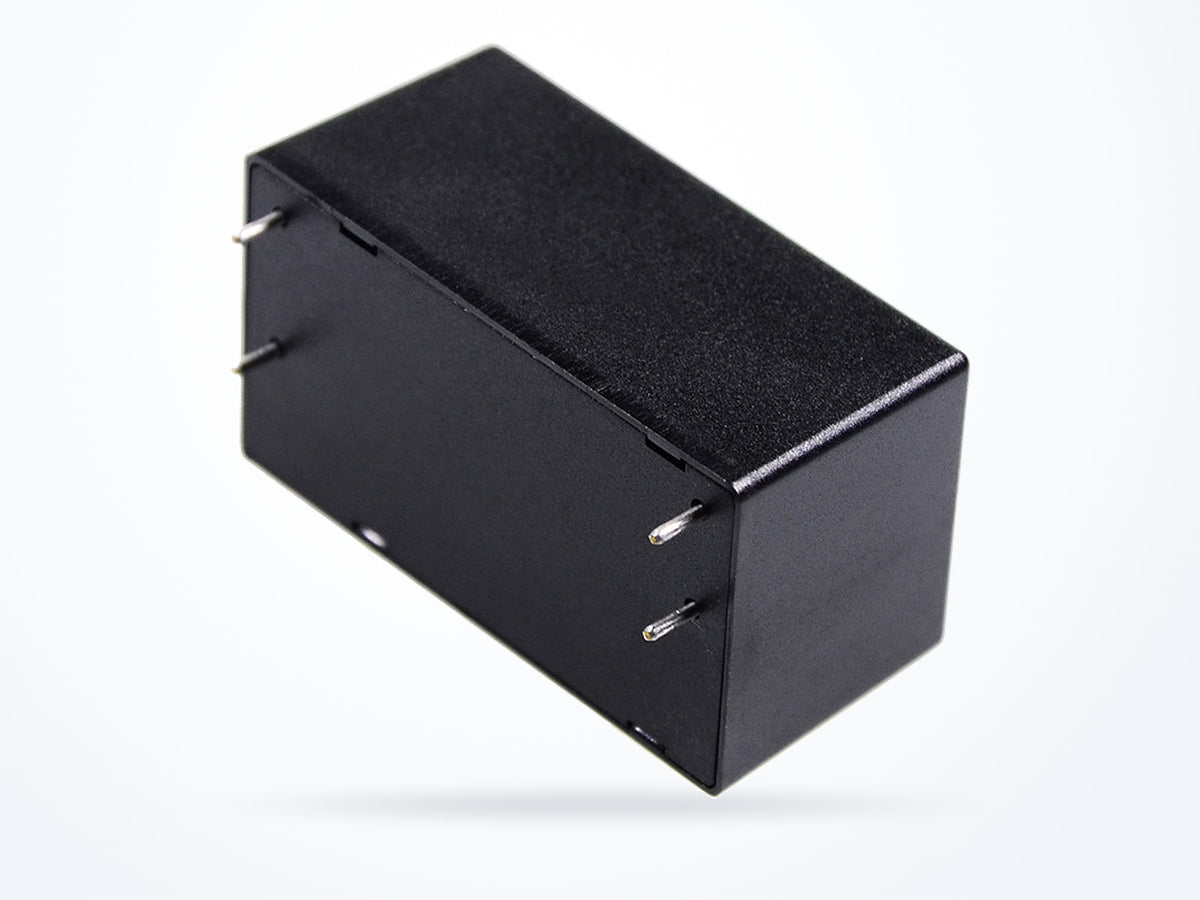

MEAN WELL MPM-10-24 10W 24V 0.42A Open Frame

Part numberMPM-10-24
Output voltage 24 V
Rated current 0.42 A
Rated power 10 W
$15.47Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MPM-10 model selection table Medical - On Board Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 24 V
Rated current 0.42 A
Rated power 10 W
AC input range 80–264 VAC
Typical efficiency 84 %
Mechanical
Operating temperature -30 to 85 °C
Dimensions (L × W × H) 45.7 × 25.4 × 21.5 mm

Is this model right for you?

Within the MPM-10 series, the MPM-10-24 is distinguished by its 24 V output and 0.42 A output current. MPM-10-3.3 provides 3.3 V at 2.5 A, MPM-10-5 provides 5 V at 2 A, MPM-10-12 provides 12 V at 0.85 A, and MPM-10-15 provides 15 V at 0.67 A. Ripple and noise also differ: 200mVp-p for MPM-10-24, 120mVp-p for MPM-10-3.3, 100mVp-p for MPM-10-5, and 180mVp-p for MPM-10-12 and MPM-10-15.

Product overview

The MPM-10-24 provides a 24 V output at 0.42 A with 10 W rated power. Its input voltage range is 80 ~ 264VAC 113V~370VDC, and the frequency range is 47 ~ 440Hz. Typical efficiency is 84%, with ripple and noise of 200mVp-p. The product measures 45.7 × 25.4 × 21.5 mm and has a net weight of 35 g.

Where this model fits

The MPM-10-24 is used in Embedded & Board-level Design. The product measures 45.7 × 25.4 × 21.5 mm and weighs 35 g, with an input voltage range of 80 ~ 264VAC 113V~370VDC.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 24 V
Rated current 0.42 A
Rated power 10 W
Ripple & noise 200 mVp-p
Input
AC input range 80–264 VAC
Frequency range 47–440 Hz
Typical efficiency 84 %
Environmental
Operating temperature -30 to 85 °C
Storage temperature -40 to 100 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 45.7 × 25.4 × 21.5 mm
Net weight 35.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved;Design refer to BS EN/EN60335-1(by request)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MPM-10-24
Brand MEAN WELL
Category AC/DC Open Frame
Series MPM-10

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC

Standards certified against

  • ANSI/AAMI ES60601-1
  • EN 60601-1
  • IEC 60601-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN60335-1(by request)

Read the datasheet's exact wording

IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2 CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved;Design refer to BS EN/EN60335-1(by request)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MPM-10-24
Minimum order quantity 1
Country of origin China
Typical packed weight 189 g
Unit weight 35 g

Downloads

MPM-10 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MPM-10-1515 V0.67 A10 W$16.42
Ships in 3–5 business days
MPM-10-1212 V0.85 A10.2 W$15.47
Ships in 3–5 business days
MPM-10-24 24 V0.42 A10 W$15.47
Ships in 3–5 business days

MPM-10-24 provides 24 V output at 0.42 A; MPM-10-12 provides 12 V output at 0.85 A.

MPM-10-24 provides 24 V output at 0.42 A; MPM-10-15 provides 15 V output at 0.67 A.

MPM-10-24 provides 24 V output at 0.42 A; MPM-10-5 provides 5 V output at 2 A.

MPM-10-24 provides 24 V output at 0.42 A; MPM-10-3.3 provides 3.3 V output at 2.5 A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MPM-10-24

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MPM-10-24 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
