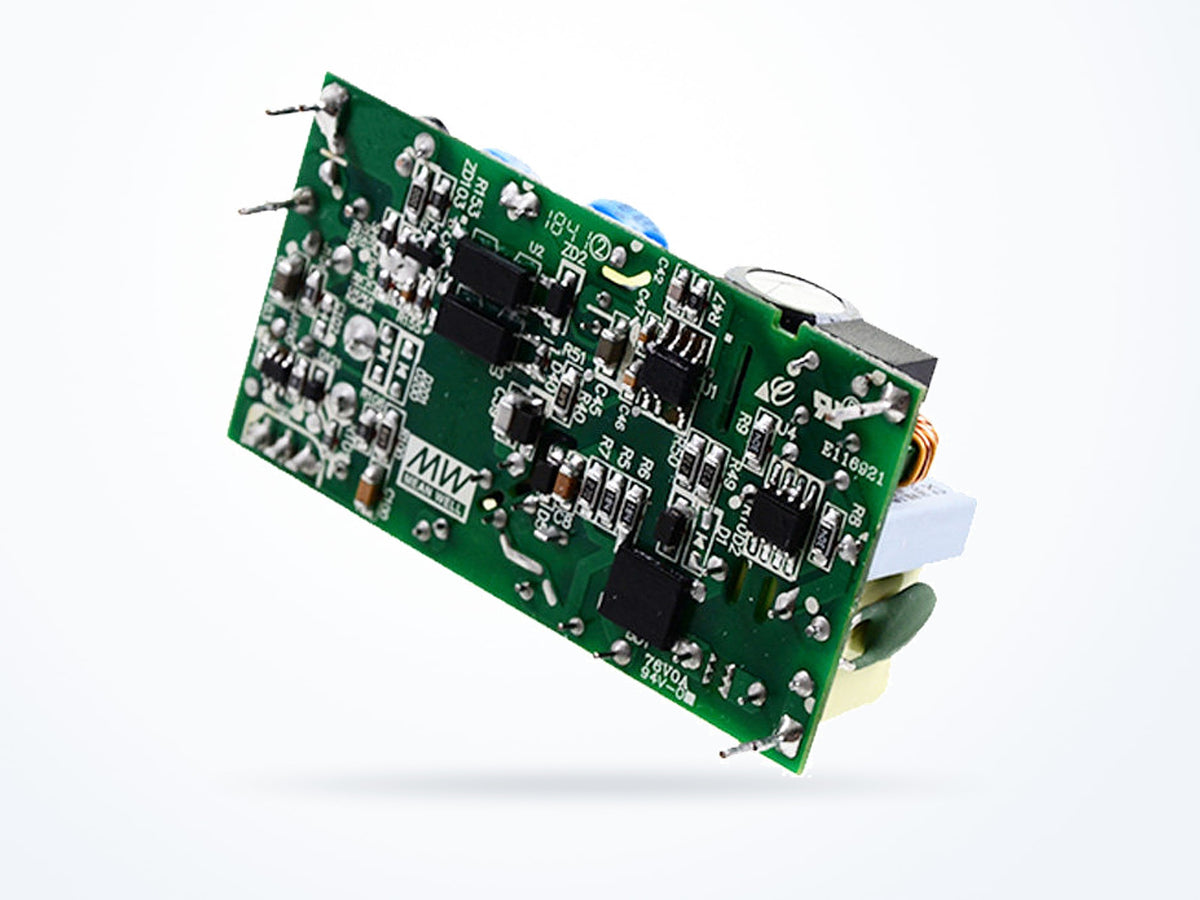

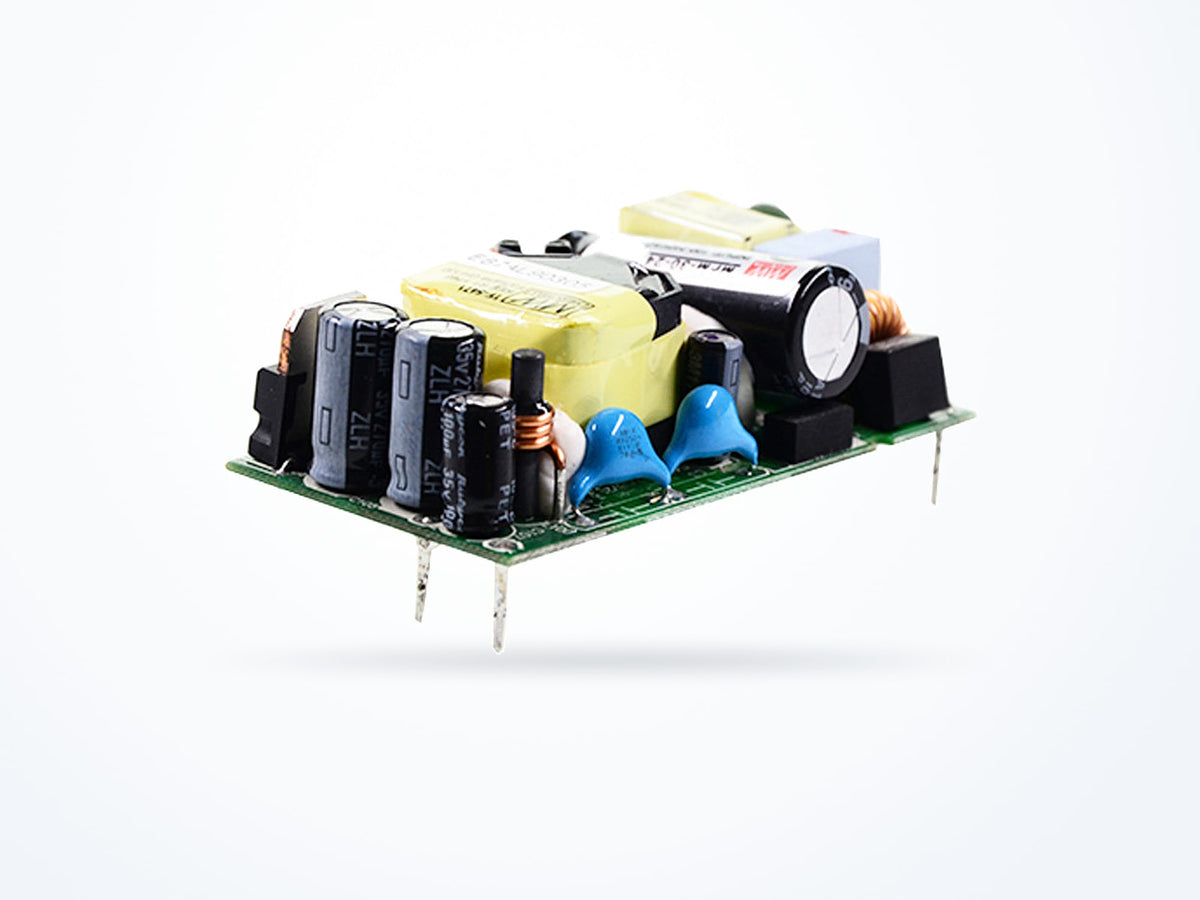

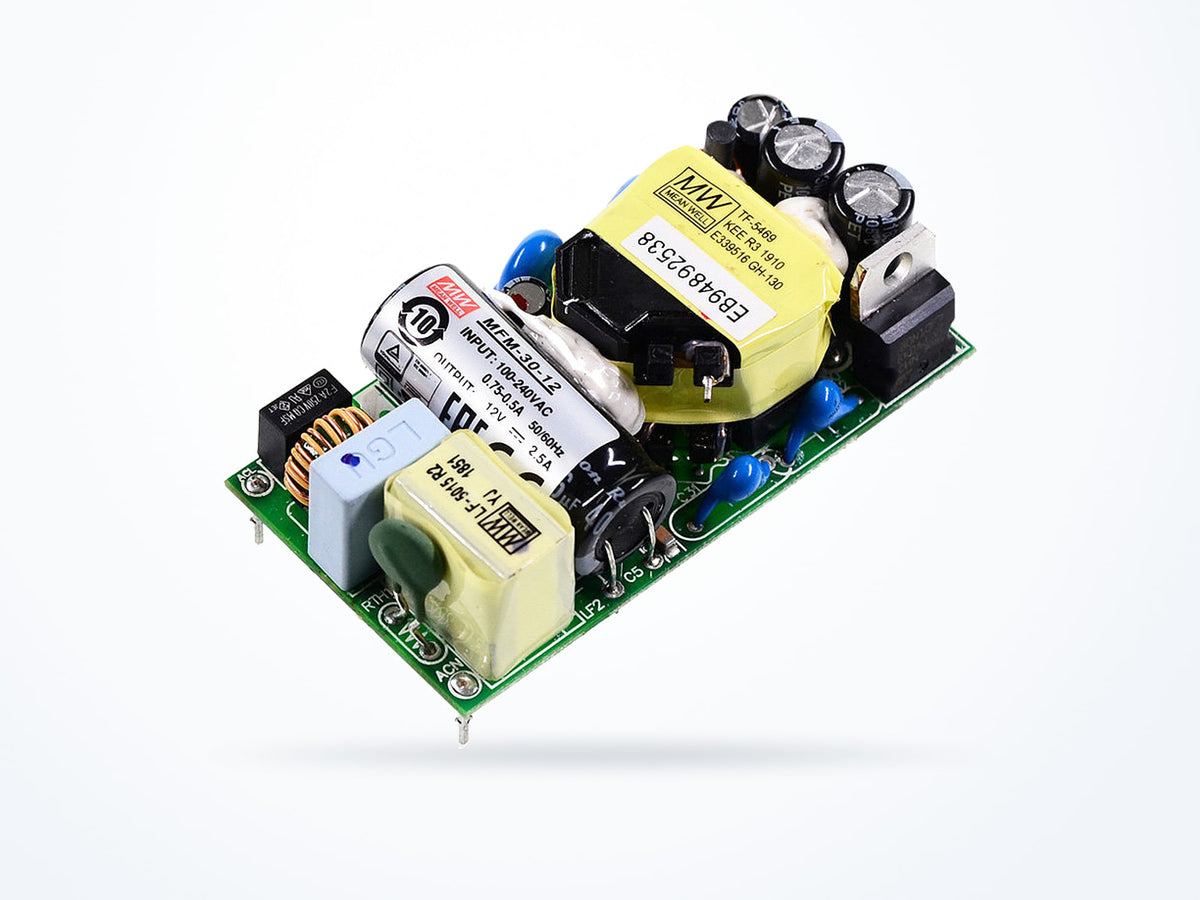

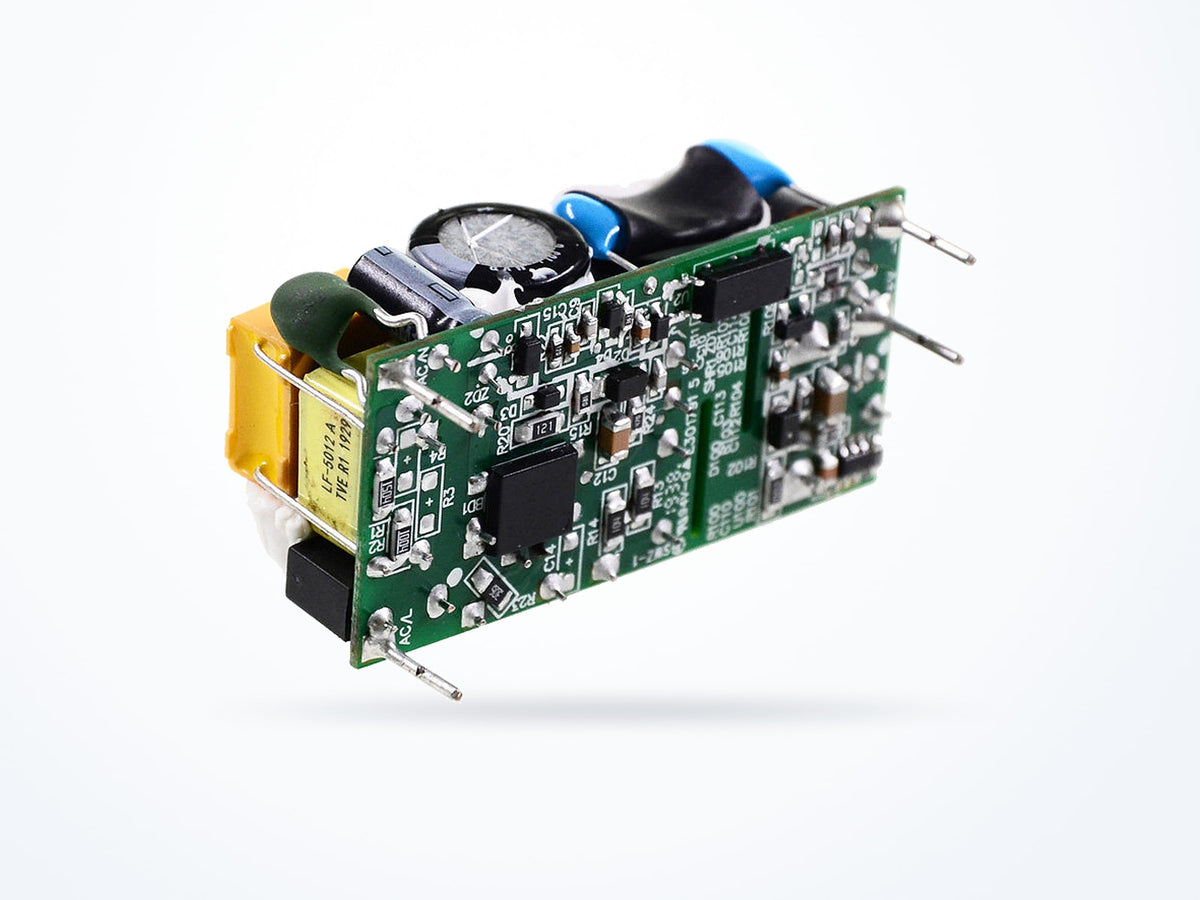

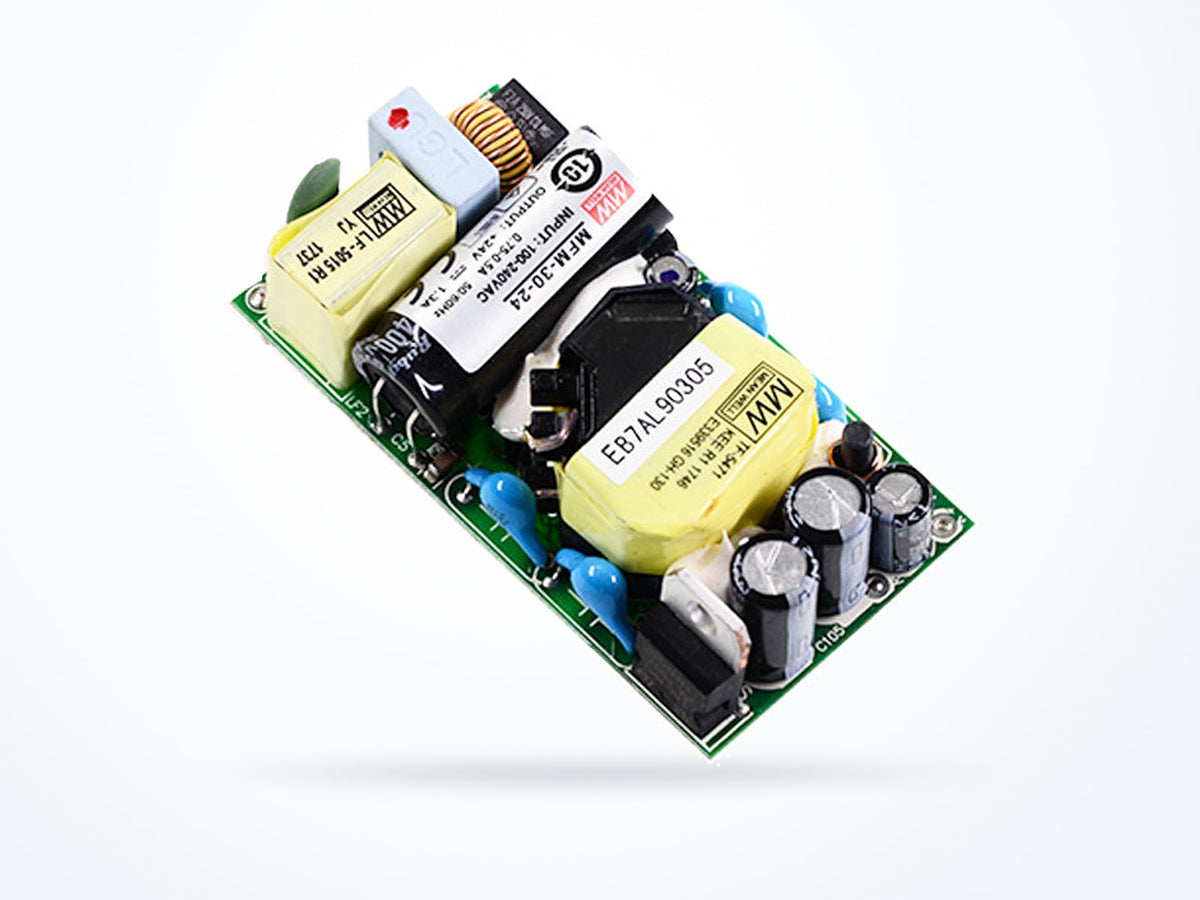

MEAN WELL MFM-30-5 30W 5V 6A Open Frame

Part numberMFM-30-5
Output voltage 5 V
Rated current 6 A
Rated power 30 W
$23.69Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MFM-30 model selection table Medical - On Board Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 6 A
Rated power 30 W
AC input range 80–264 VAC
Typical efficiency 86.5 %
Mechanical
Operating temperature -40 to 85 °C
Dimensions (L × W × H) 65.5 × 35 × 23 mm

Is this model right for you?

Within the MFM-30 series, the MFM-30-5 is distinguished by its 5 V output and 6 A output current. The MFM-30-3.3 provides 3.3 V, the MFM-30-12 provides 12 V at 2.5 A, the MFM-30-15 provides 15 V at 2 A, the MFM-30-24 provides 24 V at 1.3 A, and the MFM-30-48 provides 48 V at 0.63 A.

Product overview

The MFM-30-5 is part of the MEAN WELL MFM-30 series and is classified as an AC/DC open frame product in the Medical - On Board Type family. It provides a 5 V output at 6 A with 30 W rated power. The input range is 80 ~ 264VAC at 47 ~ 63Hz, and typical efficiency is 86.5%. Dimensions are 65.5 × 35 × 23 mm and net weight is 53 g.

Where this model fits

The MFM-30-5 is used in Embedded & Board-level Design. Its 5 V output and 6 A output current are the electrical figures for this model. The operating temperature range is -40 to 85 °C, and the net weight is 53 g.

Complete technical specifications

Rev. 2024-10-30
Output
Output voltage 5 V
Rated current 6 A
Rated power 30 W
Input
AC input range 80–264 VAC
Frequency range 47–63 Hz
Typical efficiency 86.5 %
Environmental
Operating temperature -40 to 85 °C
Storage temperature -40 to 85 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 65.5 × 35 × 23 mm
Net weight 53.0 g
Safety & compliance
Safety standards IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved,Design refer to BS EN/EN60335-1(by request)

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MFM-30-5
Brand MEAN WELL
Category AC/DC Open Frame
Series MFM-30

Approvals and compliance

From the manufacturer's datasheet for this series

Canada

  • CSA

    Certification to a CSA C22.2 standard, the Canadian counterpart of the UL series. Datasheets cite the specific C22.2 number, which is how you tell a power-supply certificate from a luminaire-controlgear one.

Europe

  • TÜV

    A TÜV certificate is third-party testing against the European EN standard. It is the evidence behind a CE declaration rather than a replacement for it: CE remains the manufacturer's own declaration, and the TÜV report is what makes that declaration defensible.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC

Standards certified against

  • ANSI/AAMI ES60601-1
  • EN 60601-1
  • IEC 60601-1

Designed to reference

The datasheet lists these as design references. The series was built to them but has not been certified to them, so do not treat them as approvals.

BS EN/EN60335-1(by request)

Read the datasheet's exact wording

IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved,Design refer to BS EN/EN60335-1(by request)

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MFM-30-5
Minimum order quantity 1
Country of origin China
Typical packed weight 210 g
Unit weight 53 g

Downloads

MFM-30 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MFM-30-5 5 V6 A30 W$23.69
Ships in 3–5 business days
MFM-30-2424 V1.3 A31.2 W$23.69
Ships in 3–5 business days
MFM-30-1515 V2 A30 W$23.69
Ships in 3–5 business days

MFM-30-5: 5 V output, 6 A output current; MFM-30-12: 12 V output, 2.5 A output current.

MFM-30-5: 5 V output, 6 A output current; MFM-30-15: 15 V output, 2 A output current.

MFM-30-5: 5 V output, 6 A output current; MFM-30-24: 24 V output, 1.3 A output current.

MFM-30-5: 5 V output, 6 A output current; MFM-30-48: 48 V output, 0.63 A output current.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MFM-30-5

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MFM-30-5 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Datasheet revision
2024-10-30
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
