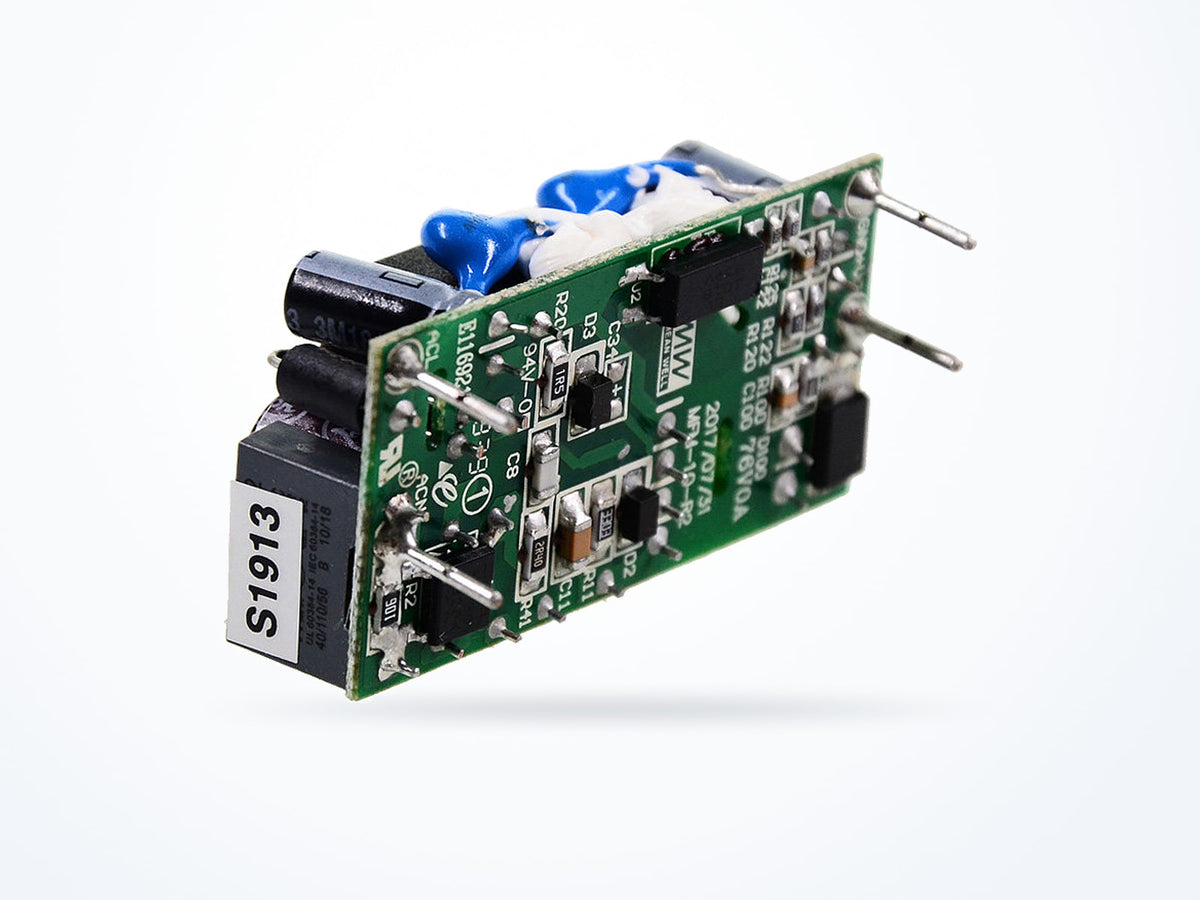

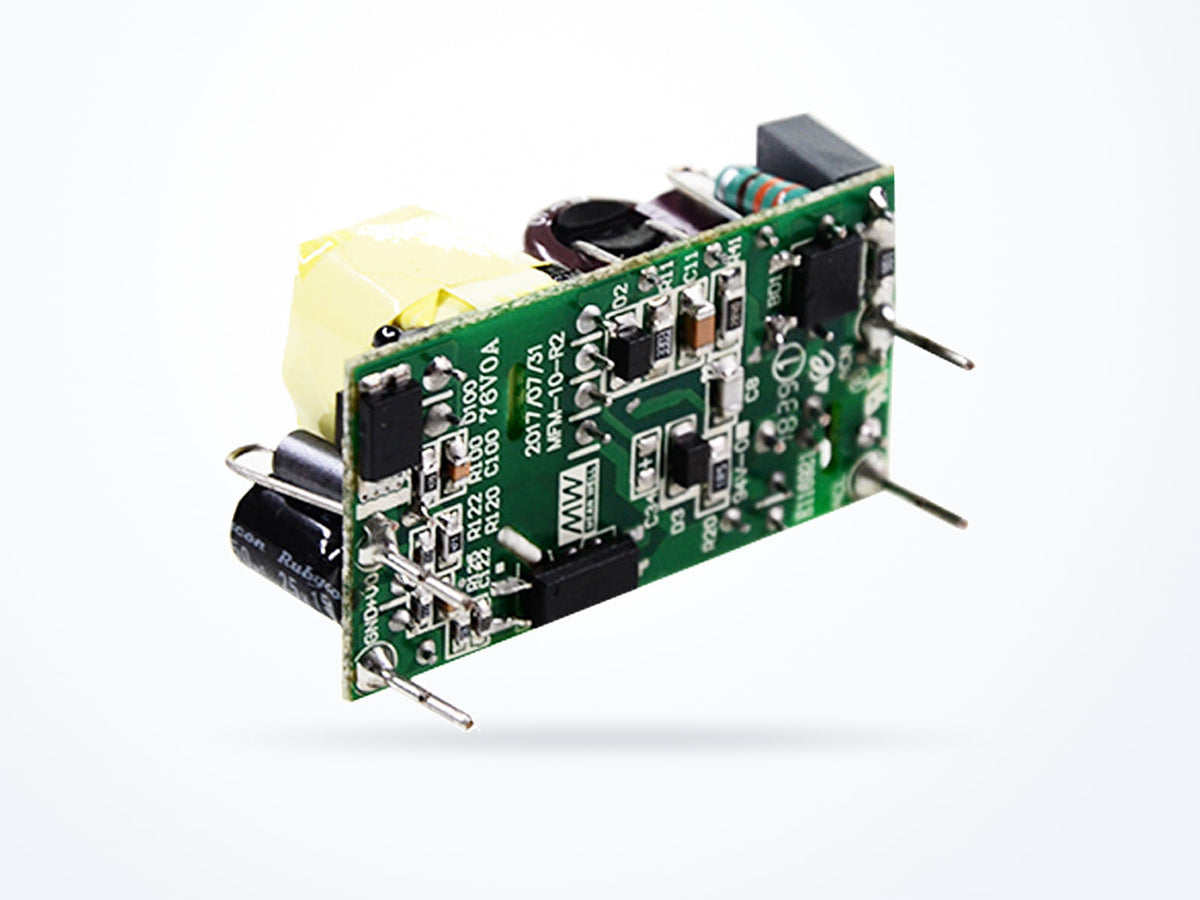

MEAN WELL MFM-05-15 5W 15V 0.33A Open Frame

Part numberMFM-05-15
Output voltage 15 V
Rated current 0.33 A
Rated power 5 W
$12.00Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MFM-05 model selection table Medical - On Board Type
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 15 V
Rated current 0.33 A
Rated power 5 W
AC input range 80–264 VAC
Typical efficiency 81 %
Mechanical
Operating temperature -40 to 85 °C
Dimensions (L × W × H) 42 × 22.3 × 20.5 mm

Is this model right for you?

Within the MFM-05 series, output voltage and current distinguish the models. MFM-05-15: 15 V, 0.33 A; MFM-05-12: 12 V, 0.42 A; MFM-05-24: 24 V, 0.23 A; MFM-05-5: 5 V, 1 A; MFM-05-3.3: 3.3 V, 1.25 A. Rated power also differs: MFM-05-24 lists 5.5 W, MFM-05-3.3 lists 4.1 W, and MFM-05-15 lists 5 W.

Product overview

The MFM-05-15 provides a 15 V output at 0.33 A with 5 W rated power. Input range is 80 ~ 264VAC 113V~370VDC at 47 ~ 440Hz. Typical efficiency is 81%, and ripple and noise is 150mVp-p. Dimensions are 42 × 22.3 × 20.5 mm and net weight is 18 g.

Where this model fits

The MFM-05-15 is used in Embedded & Board-level Design. Dimensions of 42 × 22.3 × 20.5 mm and net weight of 18 g describe the physical package.

Complete technical specifications

Output
Output voltage 15 V
Rated current 0.33 A
Rated power 5 W
Ripple & noise 150 mVp-p
Input
AC input range 80–264 VAC
Frequency range 47–440 Hz
Typical efficiency 81 %
Environmental
Operating temperature -40 to 85 °C
Storage temperature -40 to 100 °C
Operating humidity 20–90 % RH
Vibration 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 42 × 22.3 × 20.5 mm
Net weight 18.0 g
Identification
Part number MFM-05-15
Brand MEAN WELL
Category AC/DC Open Frame
Series MFM-05

Approvals and compliance

From the manufacturer's datasheet for this series
Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:4KVAC

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MFM-05-15
Minimum order quantity 1
Country of origin China
Warranty 3-year limited warranty, as stated in the product datasheet.
Typical packed weight 171 g
Unit weight 18 g

Downloads

MFM-05 model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MFM-05-3.33.3 V1.25 A4.1 W$12.00
Ships in 3–5 business days
MFM-05-15 15 V0.33 A5 W$12.00
Ships in 3–5 business days

MFM-05-15: 15 V, 0.33 A; MFM-05-12: 12 V, 0.42 A.

MFM-05-15: 15 V, 0.33 A; MFM-05-24: 24 V, 0.23 A.

MFM-05-15: 15 V, 0.33 A; MFM-05-5: 5 V, 1 A.

MFM-05-15: 15 V, 0.33 A; MFM-05-3.3: 3.3 V, 1.25 A.

Request a bulk quote

Tell us the quantity and target date and we will come back with pricing, lead time and stock position for this part number.

  1. 1 We confirm the part number and quantity against current stock.
  2. 2 You receive pricing, lead time and freight options by email.
  3. 3 Approve the quotation and we issue the invoice and shipping documents.

Request a quote for MFM-05-15

Confirm quantity and destination and we will come back with pricing and lead time.

Quoting MFM-05-15 View
Have a BOM? Reply to our confirmation email with the file attached.
We use your details only to answer this request.

Technical data source

Primary source
MEAN WELL
Last verified

View the manufacturer datasheet How we source and verify product data

Specifications are transcribed from the manufacturer datasheet and are subject to change without notice. The current manufacturer datasheet governs in case of any discrepancy.
