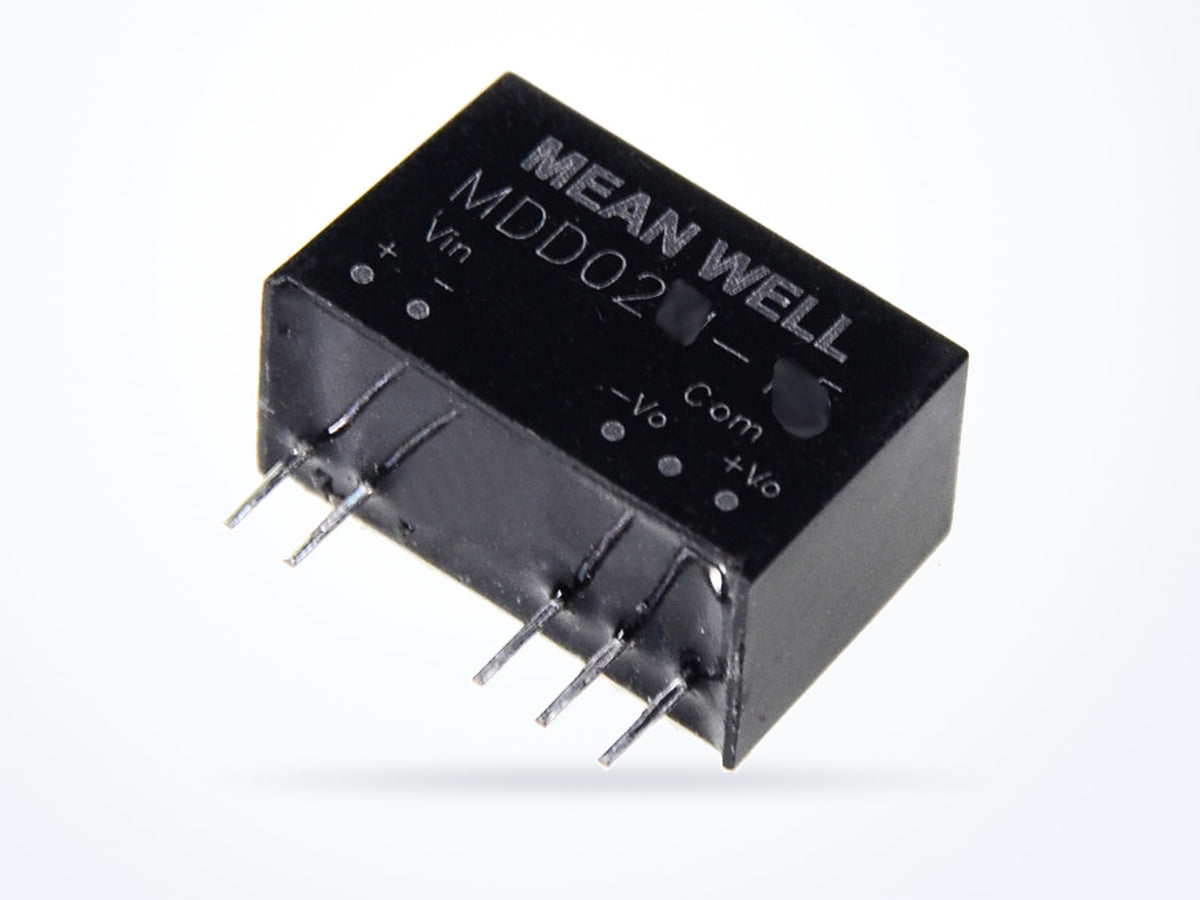

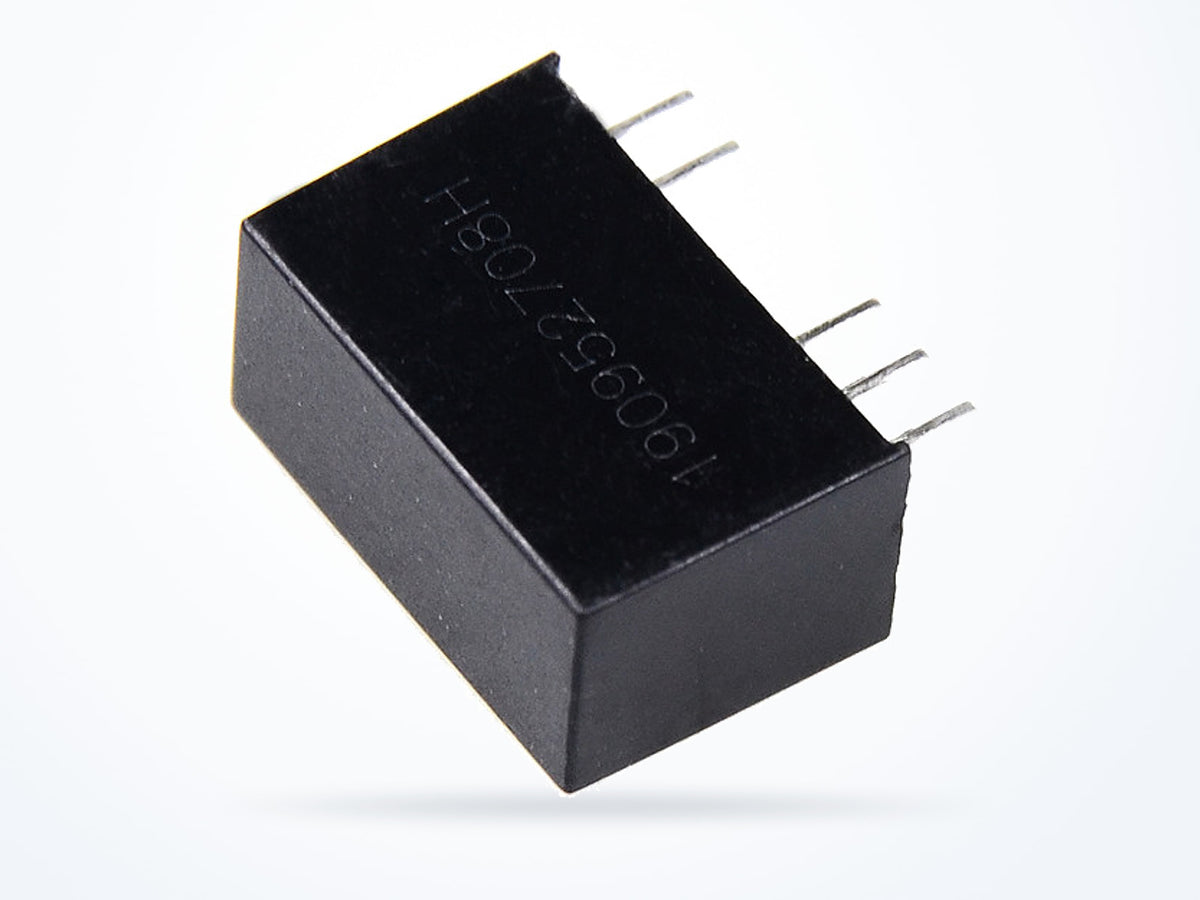

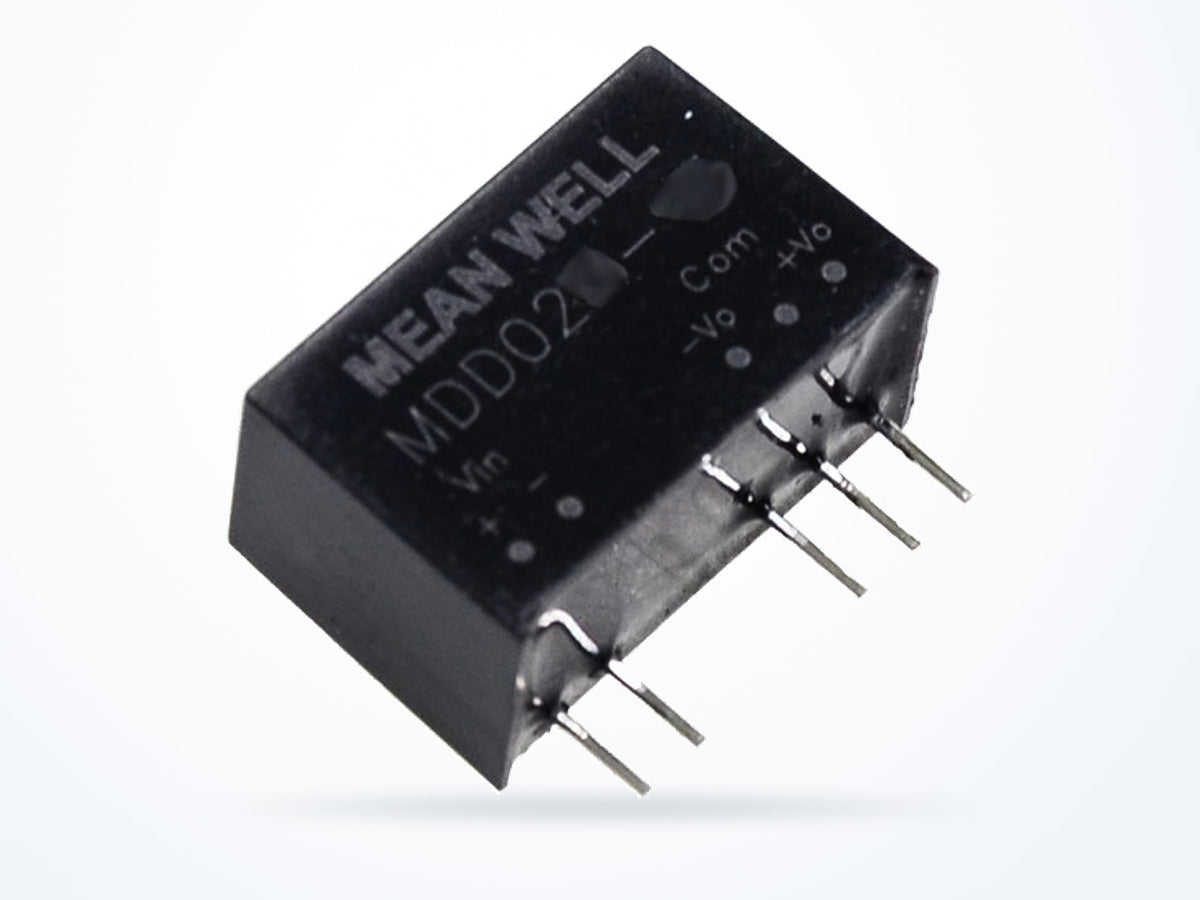

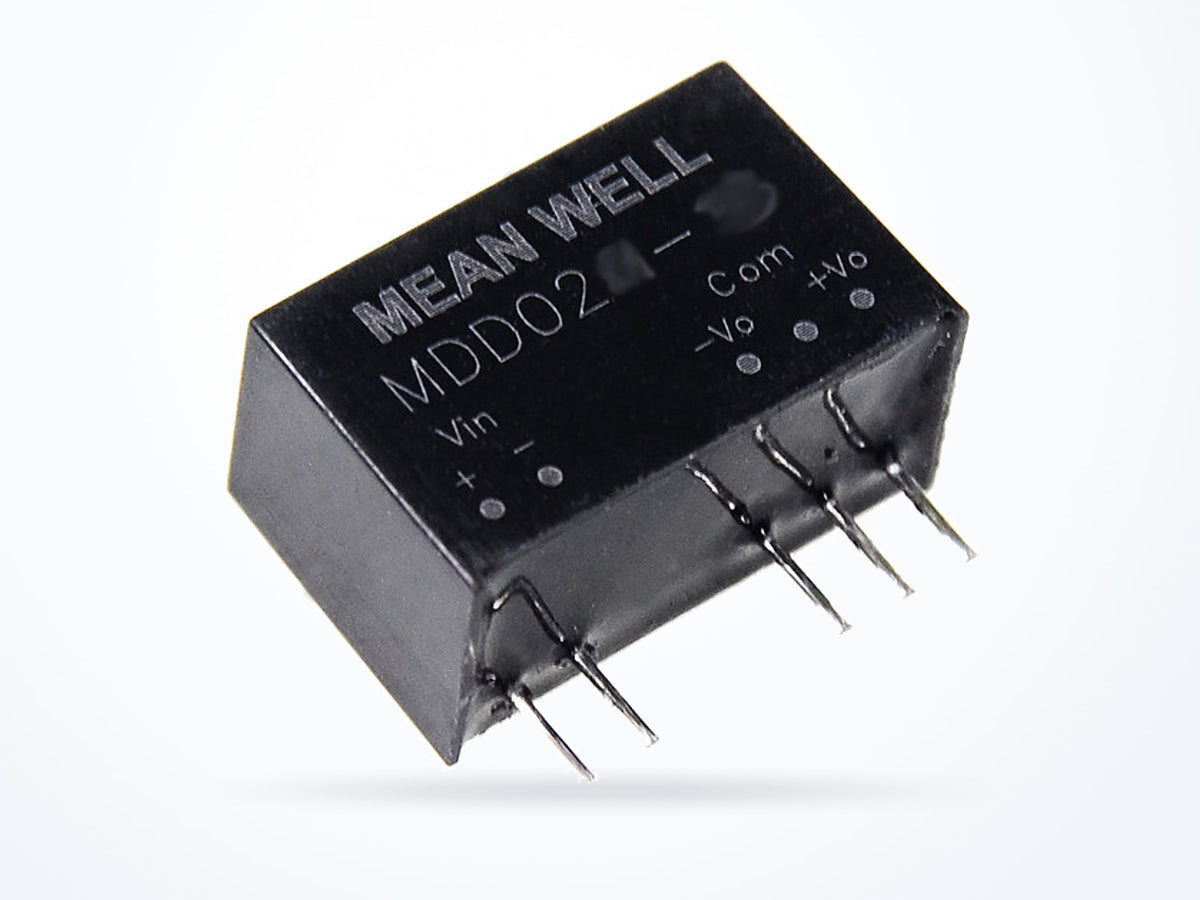

MEAN WELL MDS02L-12N 2.004W 12V 0.167A On Board Type (Module Potted)

Part numberMDS02L-12N
Output voltage 12 V
Rated current 0.167 A
Rated power 2.004 W
$12.32Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MDS02-N,MDD02-N model selection table Medical - SIP Package
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 12 V
Rated current 0.167 A
Rated power 2.004 W
Typical efficiency 83 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 95 °C
Dimensions (L × W × H) 19.7 × 7.1 × 11.5 mm

Is this model right for you?

Within the MDS02-N,MDD02-N series, the MDS02L-12N lists a 4.5 ~ 5.5Vdc input range. MDS02M-03N, MDS02M-05N, MDS02M-12N, and MDS02M-15N list 10.8 ~ 13.2Vdc. MDS02N-03N, MDS02N-05N, MDS02N-12N, and MDS02N-15N list 21.6 ~ 26.4Vdc.

Other voltages in MDS02-N,MDD02-N

View all models

Product overview

The MDS02L-12N belongs to the MDS02-N,MDD02-N series and is classified as a DC/DC On Board Type (Module Potted) product. It lists a 4.5 ~ 5.5Vdc input range and an operating temperature range of -40 to 95 °C. The case is non-conductive black plastic (UL 94V-0 rated), and cooling is by free-air convection. Dimensions are 19.7 × 7.1 × 11.5 mm, with a net weight of 2.8 g.

Where this model fits

The MDS02L-12N is used in Embedded & Board-level Design. Its 4.5 ~ 5.5Vdc input range, free-air convection cooling, non-conductive black plastic (UL 94V-0 rated) case, and 19.7 × 7.1 × 11.5 mm dimensions are the listed parameters for board-level integration.

Complete technical specifications
