MEAN WELL MDS01L-05N 1W 5V 0.2A On Board Type (Module Potted)

Part numberMDS01L-05N
Output voltage 5 V
Rated current 0.2 A
Rated power 1 W
$11.37Excluding tax and shipping
Ships in 3–5 business daysLead time is the time from order to dispatch, and does not include transit time.
Request bulk quote
MDS01-N,MDD01-N model selection table Medical - SIP Package
  • Genuine product Sourced through our documented supply chain.
  • Worldwide shipping Export documentation handled for you.
  • Commercial invoice Available for every order.
  • Specification support Talk to someone who reads datasheets.

Key specifications

Complete technical specifications
Output
Output voltage 5 V
Rated current 0.2 A
Rated power 1 W
Typical efficiency 79 %
Mechanical
Cooling Free-air convection
Operating temperature -40 to 95 °C
Dimensions (L × W × H) 19.7 × 7.1 × 11.5 mm

Is this model right for you?

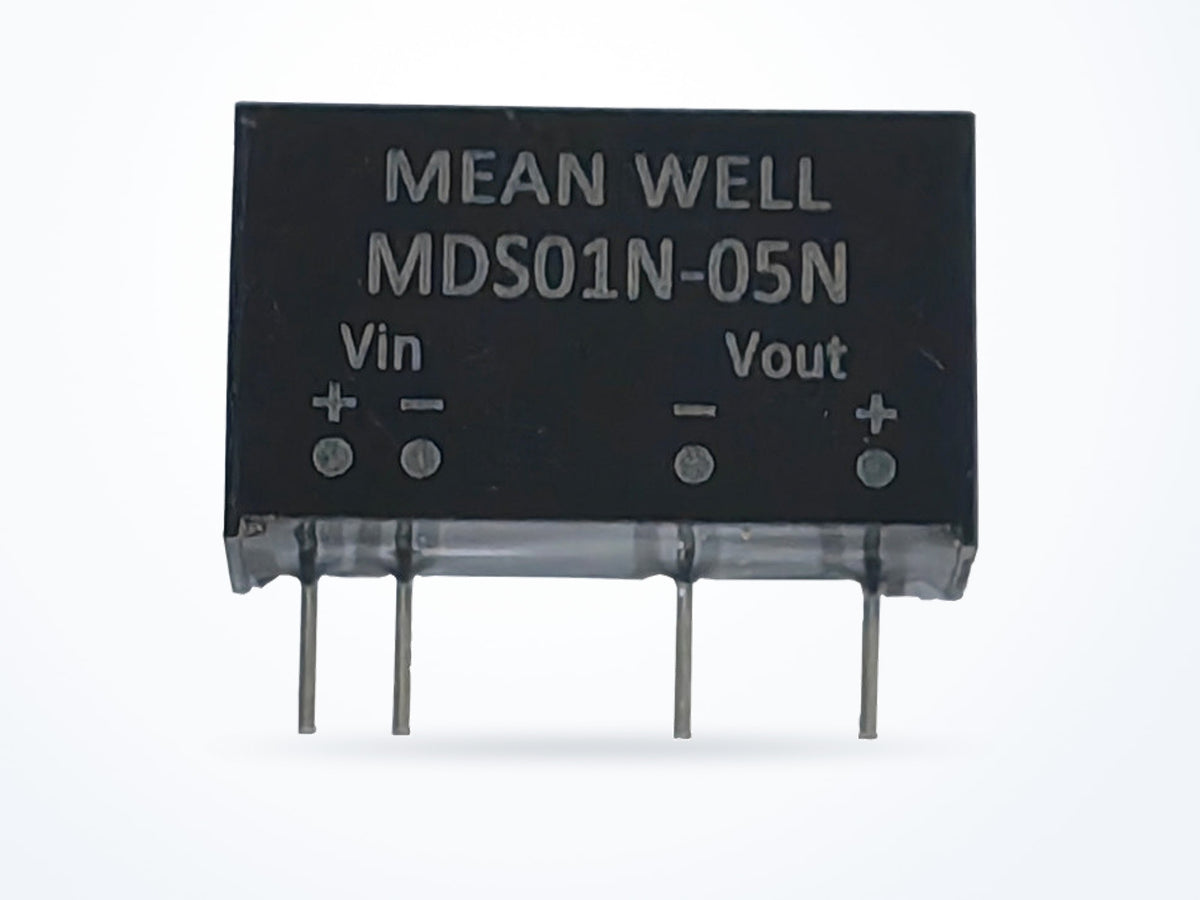

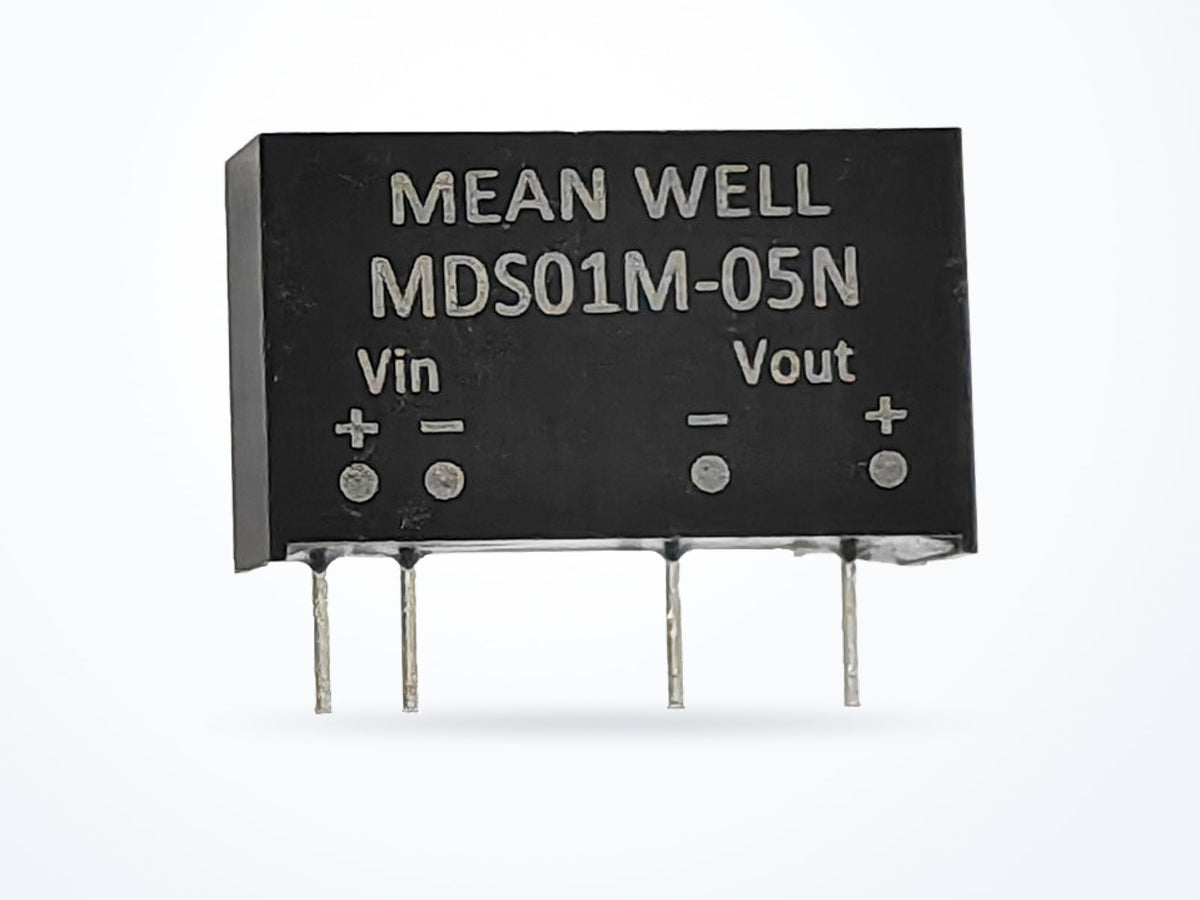

Within the MDS01-N,MDD01-N series, the MDS01L-05N lists a DC input range of 4.5 ~ 5.5Vdc. MDS01M-05N lists 10.8 ~ 13.2Vdc, and MDS01N-05N lists 21.6 ~ 26.4Vdc. Select the model whose input range matches the available DC rail.

Other voltages in MDS01-N,MDD01-N

View all models

Product overview

The MDS01L-05N is a DC/DC on board type module (potted) from the MDS01-N,MDD01-N series. It has a non-conductive black plastic case rated UL 94V-0, measures 19.7 × 7.1 × 11.5 mm, and weighs 2.8 g. Cooling is by free-air convection. The DC input range is 4.5 ~ 5.5Vdc, and the operating temperature range is -40 to 95 °C.

Where this model fits

For Embedded & Board-level Design, the MDS01L-05N provides a 4.5 ~ 5.5Vdc input range, a non-conductive black plastic case rated UL 94V-0, free-air convection cooling, and an operating temperature range of -40 to 95 °C. Its dimensions are 19.7 × 7.1 × 11.5 mm and its net weight is 2.8 g.

Complete technical specifications

Rev. 2024-08-12
Output
Output voltage 5 V
Rated current 0.2 A
Rated power 1 W
Input
AC input range 4.5 ~ 5.5Vdc
DC input range 4.5–5.5 VDC
Typical efficiency 79 %
Environmental
Operating temperature -40 to 95 °C
Storage temperature -55 to 125 °C
Vibration 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Mechanical
Dimensions (L × W × H) 19.7 × 7.1 × 11.5 mm
Net weight 2.8 g
Cooling Free-air convection
Fan Not supported
Case material Non-Conductive black plastic (UL 94V-0 rated)
Safety & compliance
Safety standards IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved

These approvals are recorded for the series as a whole. Where a line names particular models or ratings, it applies only to those — read it against this part number, and ask us for the certificate if your approval process needs it.

Identification
Part number MDS01L-05N
Brand MEAN WELL
Category DC/DC On Board Type (Module Potted)
Series MDS01-N,MDD01-N

Approvals and compliance

From the manufacturer's datasheet for this series

United States

  • UL

    UL Listing or Recognition means UL Solutions tested samples against the applicable UL safety standard and audits the factory that builds them. A UL file number is the usual evidence an inspector or specifier asks for in North America.

Eurasian Economic Union

  • EAC

    Conformity with the Eurasian Economic Union technical regulations, covering Russia, Belarus, Kazakhstan, Armenia and Kyrgyzstan. TP TC 004 is the low-voltage regulation and TP TC 020 the electromagnetic-compatibility one, so which number appears tells you what was assessed.

Isolation and electromagnetic compatibility
Withstand voltage I/P-O/P:6KVDC
Isolation resistance I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

Standards certified against

  • IEC60601-1
  • IEC62368-1
  • UL62368-1
Read the datasheet's exact wording

IEC62368-1 / UL62368-1, LVD IEC60601-1, EAC TP TC 020/2011 approved

Reproduced unedited from the manufacturer's datasheet. Where an approval covers only some models, the wording says so. Ask us for the certificate itself if your approval process needs it.

Certificates

Certificate copy supplied with this model.

  • CE · R50453592

    100%
    CE certificate R50453592

    CE · Certificate number R50453592

Ordering & shipping information

Order and delivery terms
Part number MDS01L-05N
Minimum order quantity 1
Country of origin China
Typical packed weight 153 g
Unit weight 2.8 g

Downloads

MDS01-N,MDD01-N model comparison

View all models
ModelOutput voltageRated currentRated powerPriceAvailability
MDD01N-05N5 V0.1 A1 W$5.49
Ships in 3–5 business days
MDS01L-05N 5 V0.2 A1 W$11.37
Ships in 3–5 business days

MDS01L-05N lists a DC input range of 4.5 ~ 5.5Vdc; MDS01M-05N lists 10.8 ~ 13.2Vdc.

MDS01L-05N lists a DC input range of 4.5 ~ 5.5Vdc; MDS01N-05N lists 21.6 ~ 26.4Vdc.
